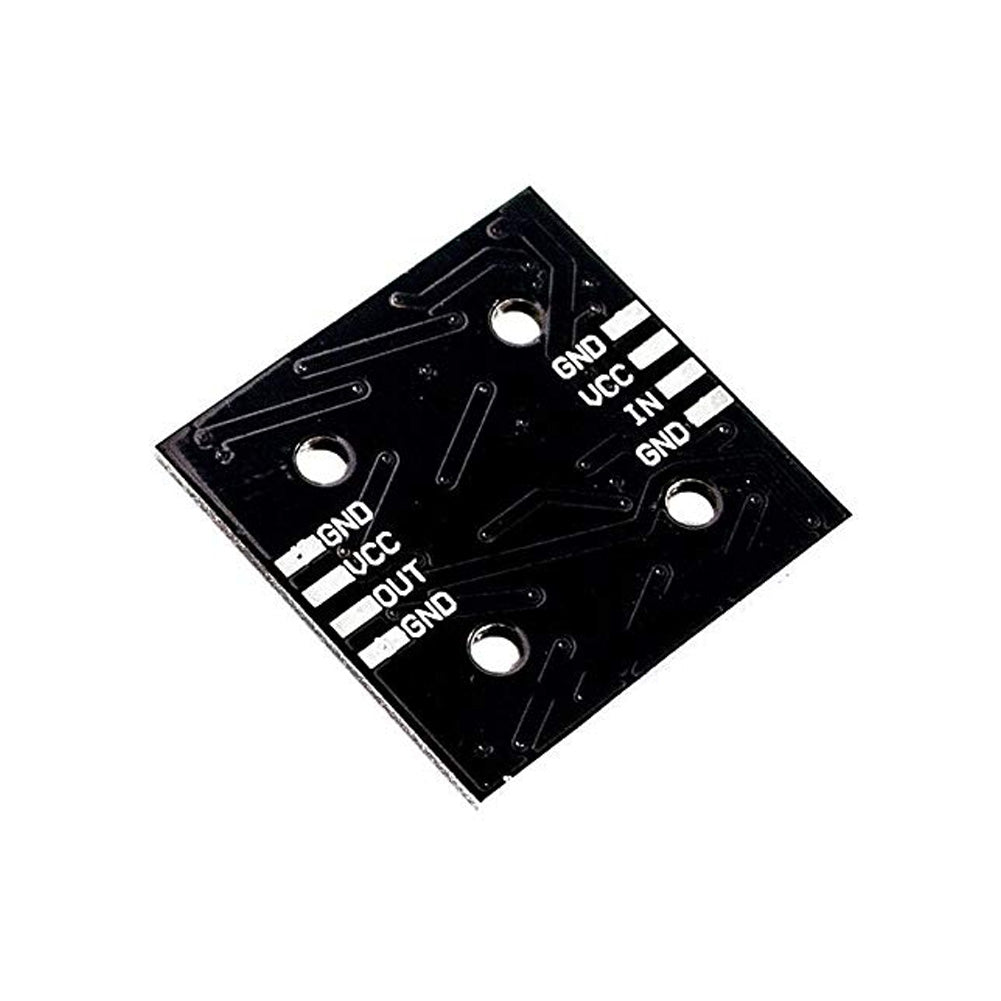

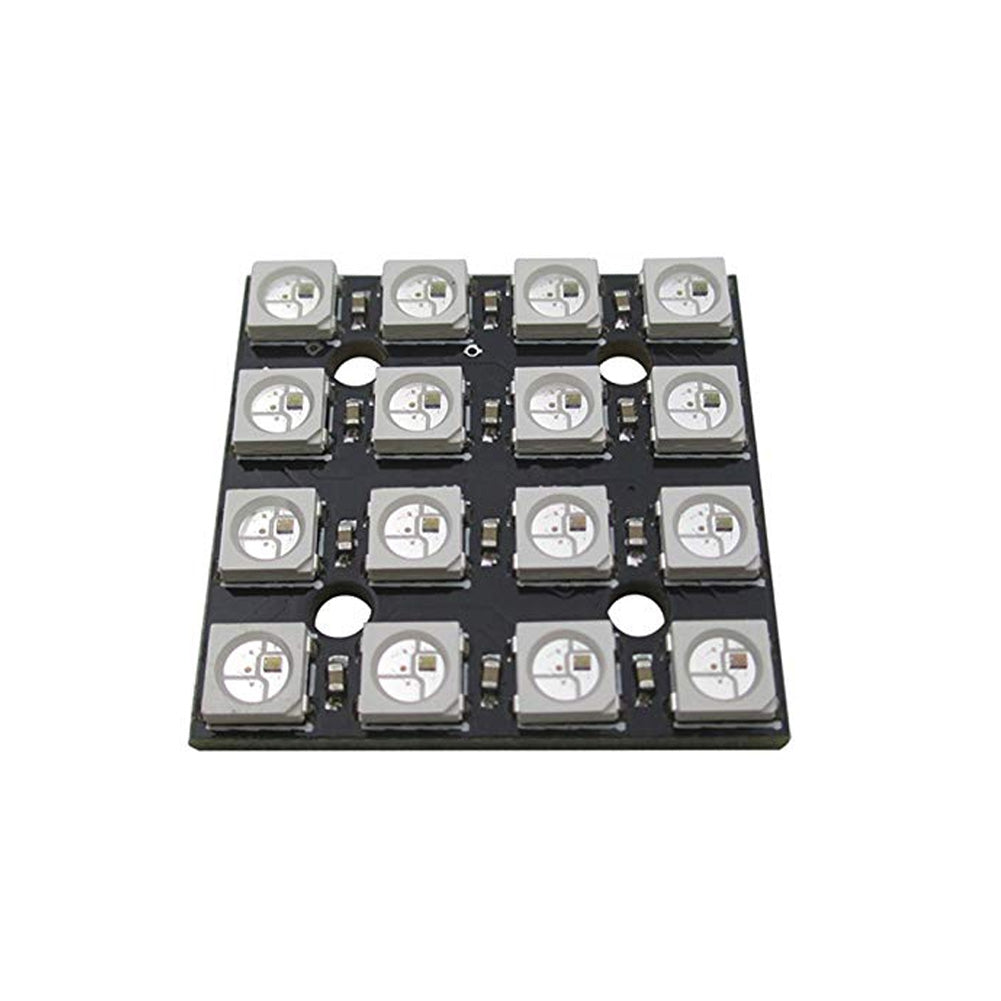

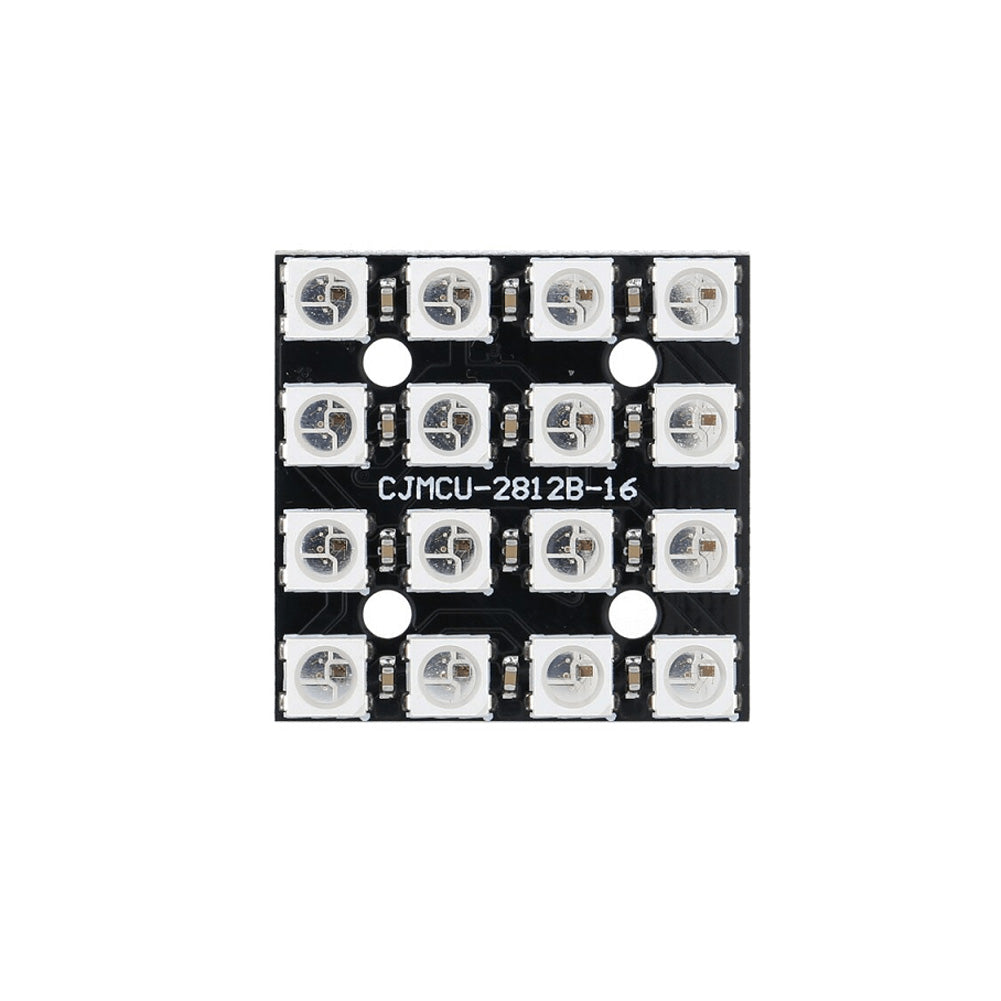

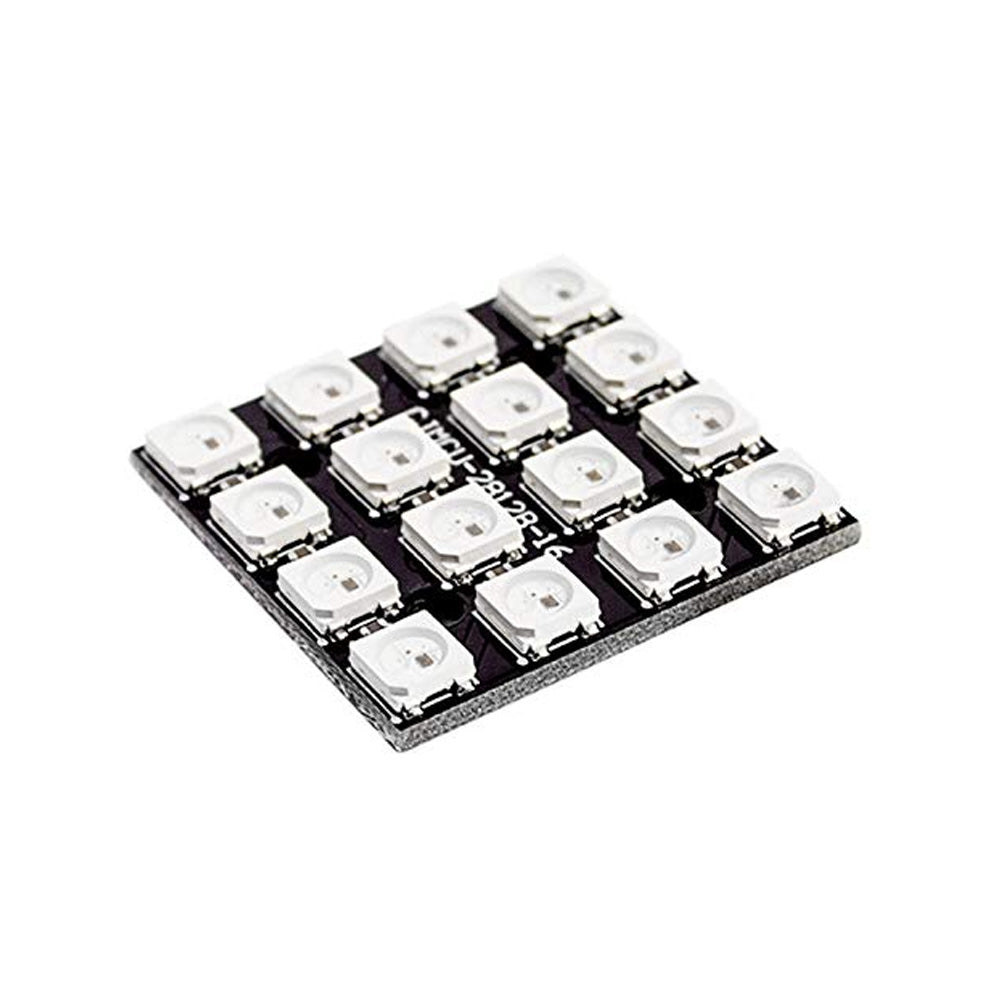

Description:
This is a WS2812B 4 x 4 Bit RGB LED full color driver 16-Bit module development board. It has intelligent reverse connect protection, the power supply reverse will not damage the IC. It has IC control circuit and LED point light share a power supply. Control circuit and the RGB chip integration are in a 5050 size components, constituting a complete external control pixels. It has Built-in signal shaping circuit, any pixels after received signal waveform shaping output again, ensure the line waveform distortion does not accumulate and built-in electric reset and reset circuit when power supply drop. Each pixel of the three primary colors can achieve a level 256, according to the luminance finished 16777216 whole true color display of different colors, not less than 400 hz/s scanning frequency.
Specification:
- Model Number:WS2812B
- Material: CCL
- Colour: Black
- Voltage:12V
Features:
- Serial connection mouth, can complete data through a signal receiving and decoding.
- Any two points transmission distance in no more than five meters without adding any circuit.
- When the refresh rate of 30 frames per second, cascade number not less than 1024 points.
- Data sending rate of up to 800 KBPS.
- The color of light highly consistent, high performance-price ratio.
- Built-in electirc reset circuit and power lost reset circuit.
- Cascading port transmission signal by single line.
- Any two point the distance more than 5m transmission signal without any increase circuit
- Send data at speeds of 800Kbps
Application:
- LED decorative lighting.
- Indoor/outdoor LED video irregular screen.
Package Included:
1 xWS2812B 4x4 LED Matrix RGB LED Module RGB LED Pixel Matrix Module Full Color Driver 16-Bit Module Development Board for Arduino
