Description:

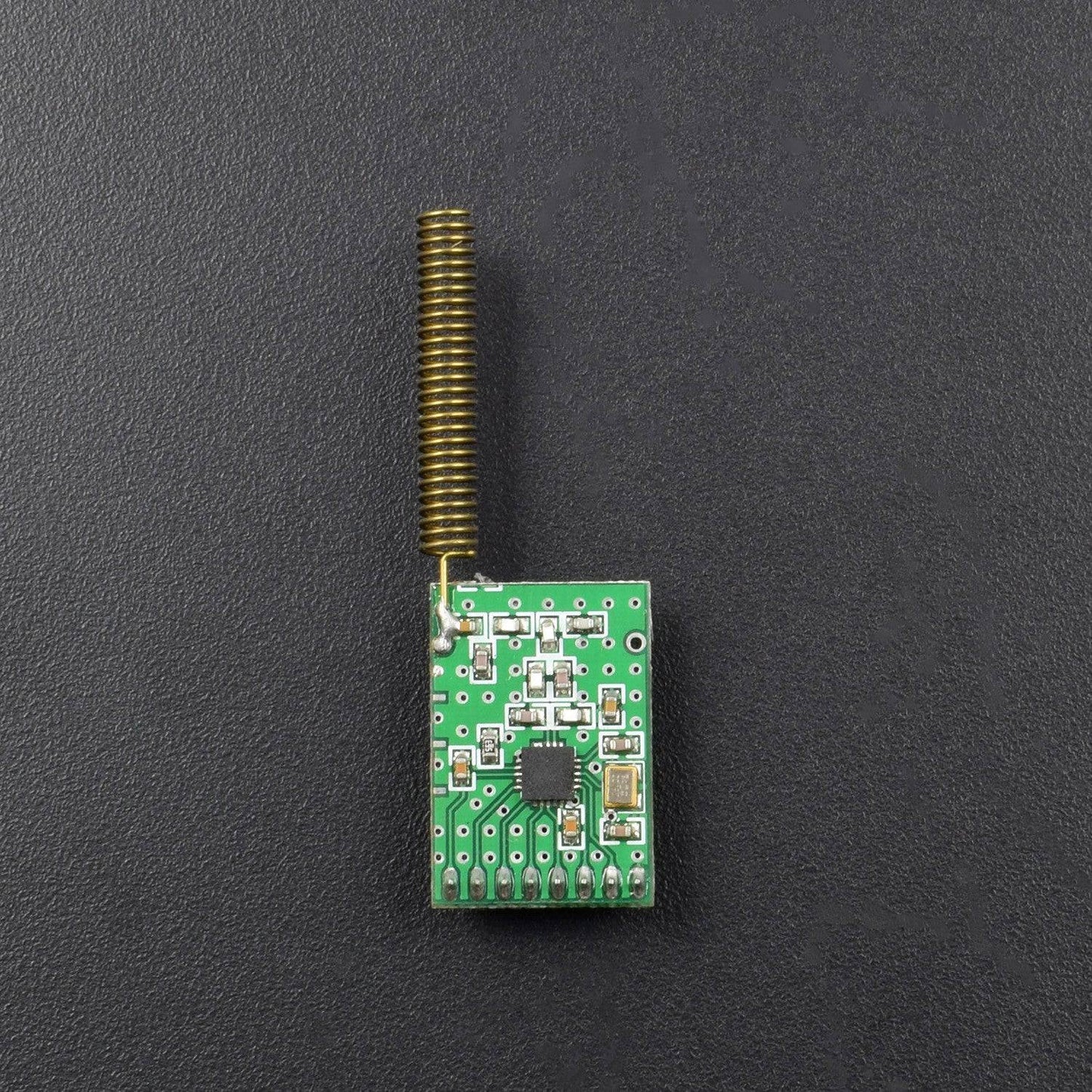

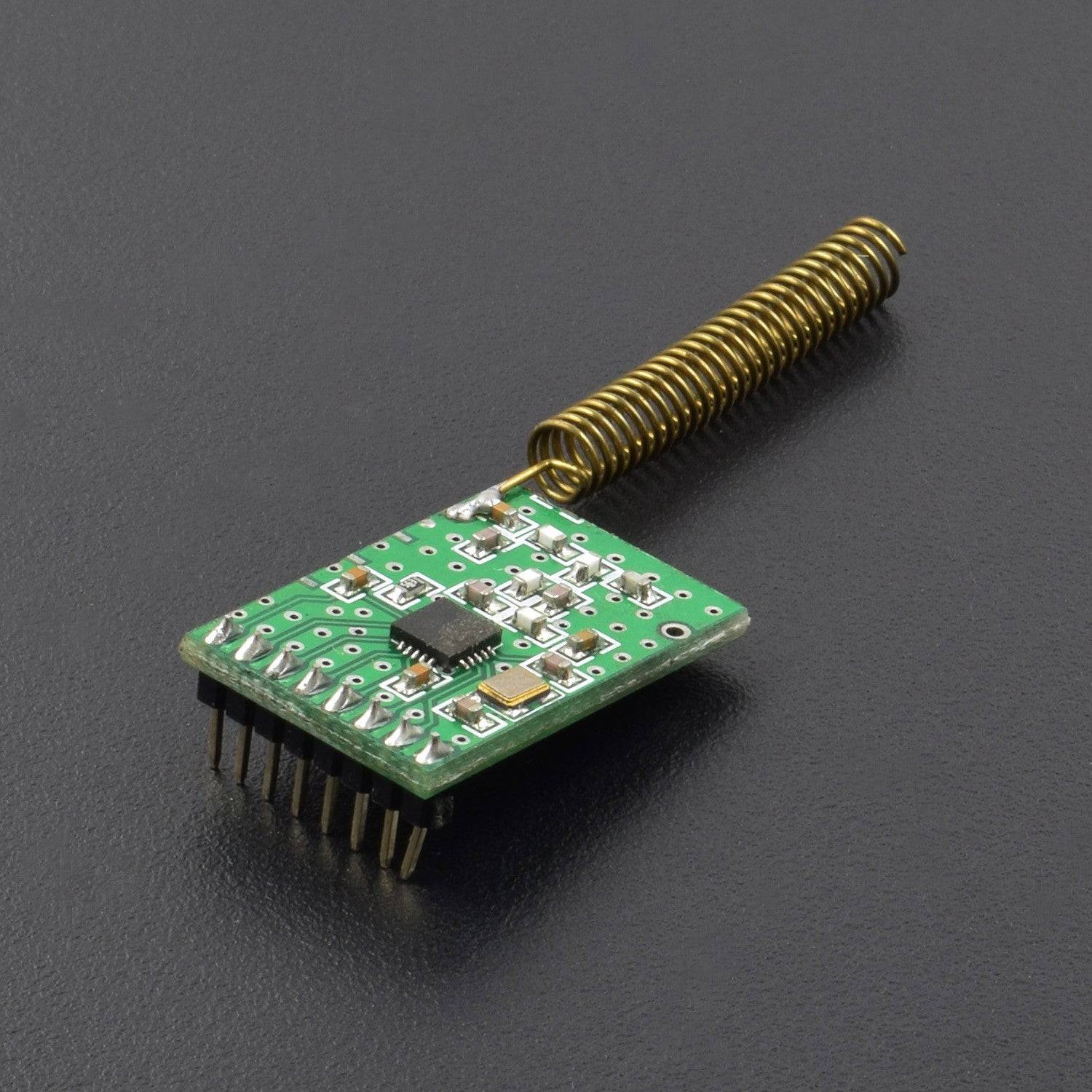

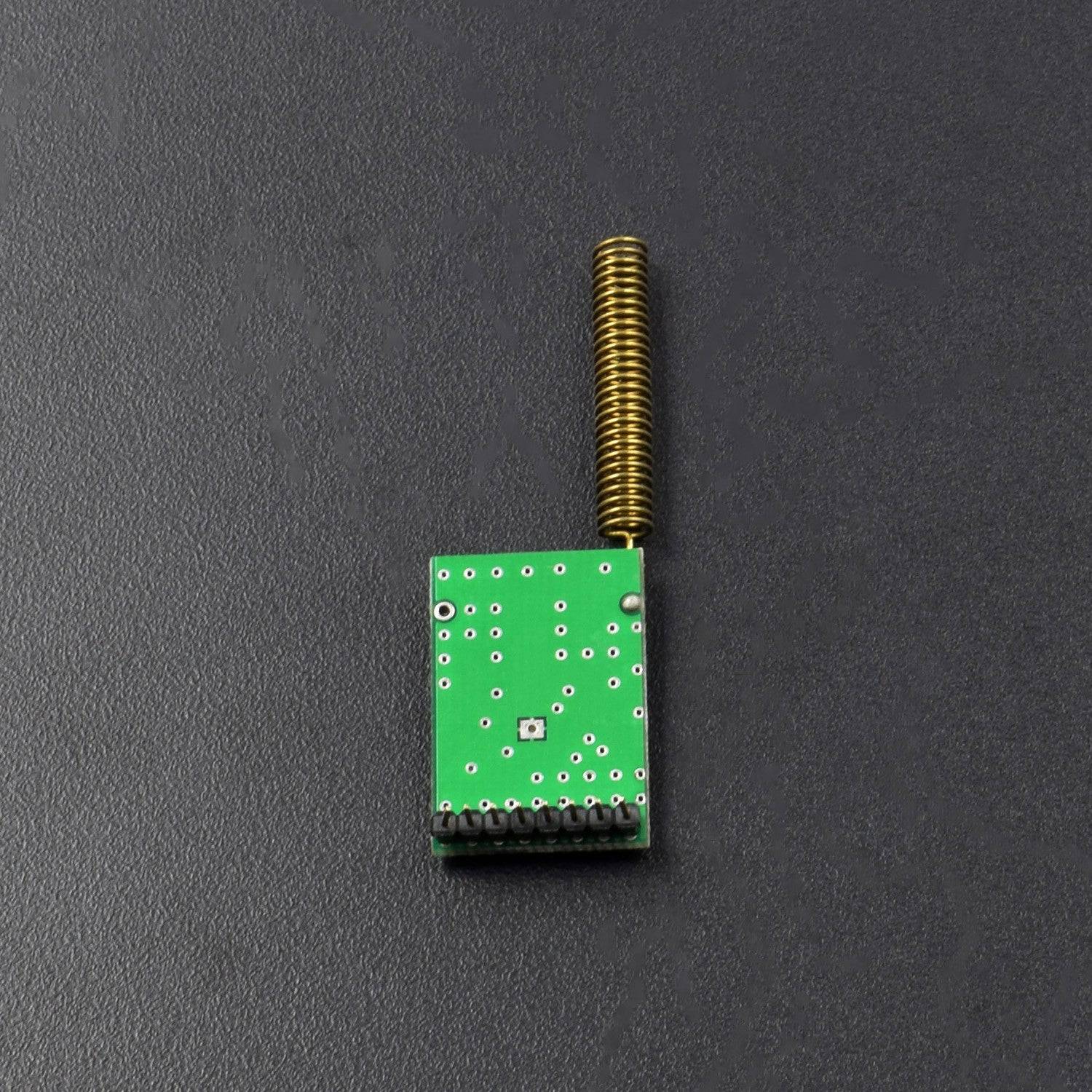

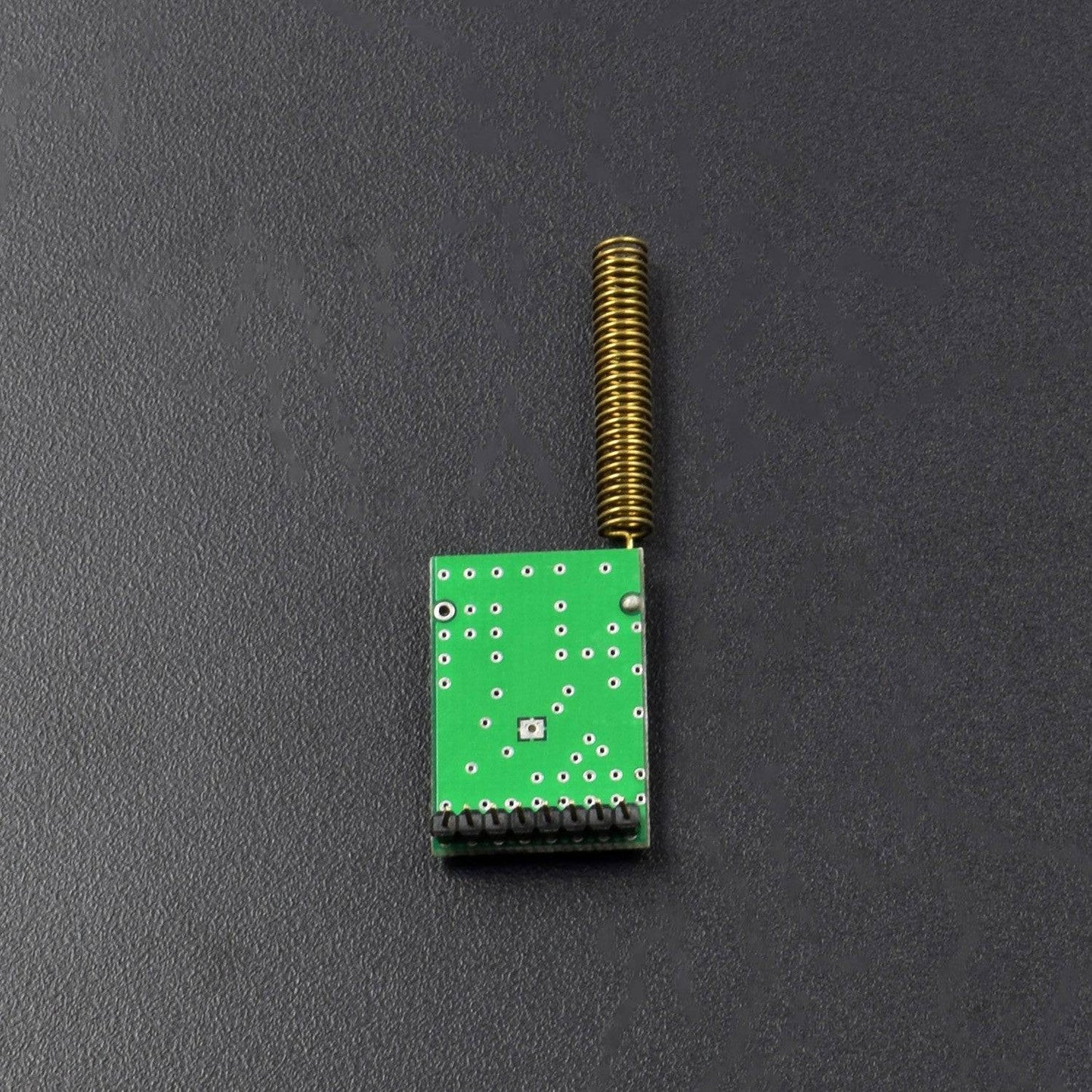

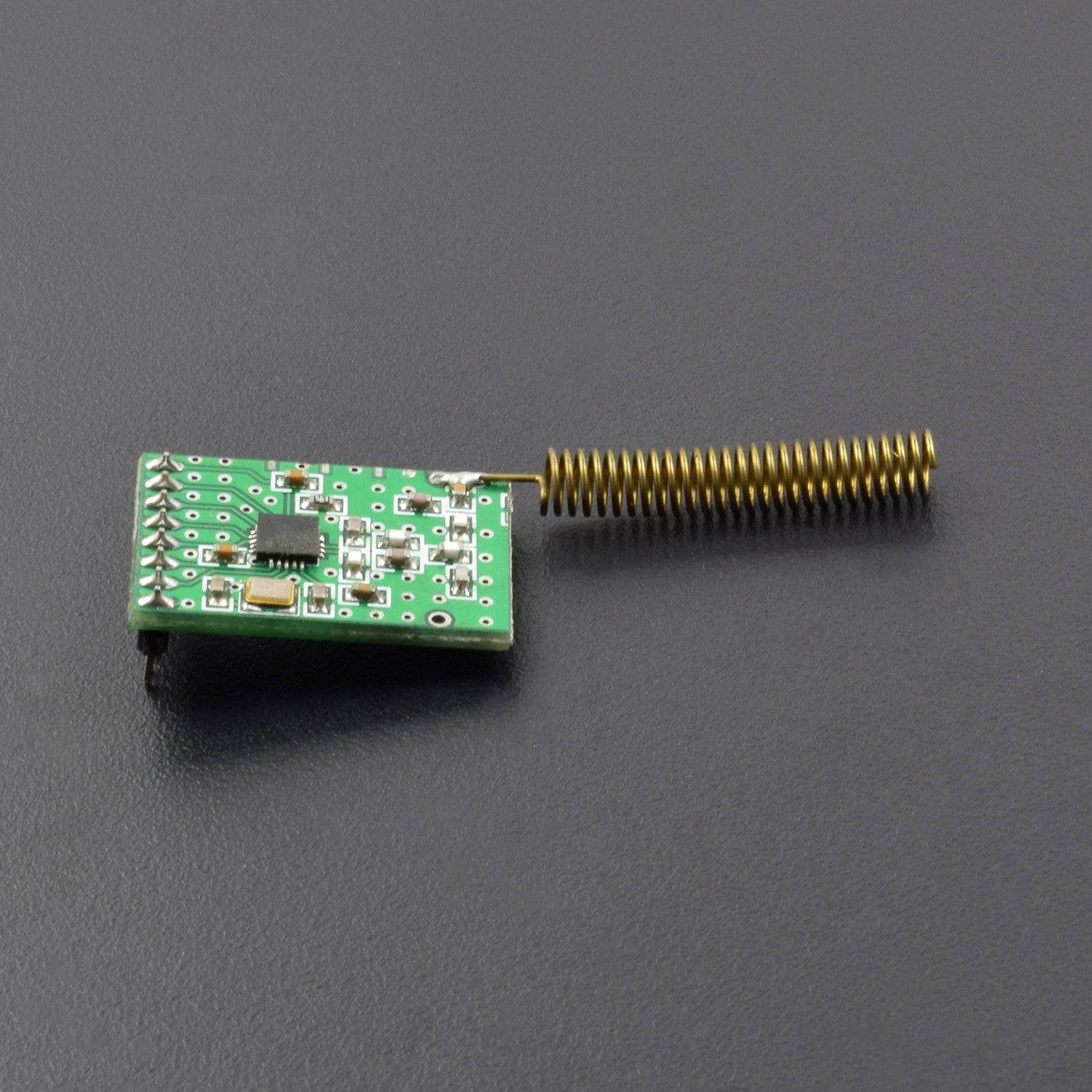

The 433MHz Wireless RF Transceiver Module (CC1101/CC1100 RF1100SE) is a high-performance, low-power wireless communication module designed for long-distance, stable, and reliable data transmission. Built around the powerful CC1101 chipset, this module offers exceptional sensitivity, fast communication rates, and robust resistance to interference, making it ideal for a wide range of wireless applications.
Equipped with an external high-gain antenna, the module ensures extended transmission range and enhanced signal stability, even in complex or noisy environments. It supports multiple modulation formats such as ASK, FSK, GFSK and features ultra-low power consumption, making it perfect for battery-powered and IoT devices.
Specification:
- Voltage: 1.8--3.6VDC
- Modulation System: ASK/OOK/MSK/2-FSK/4-FSK
- Carrier Frequency: 433MHz
- Receiver Sensitivity: -99dBm
- Transmission Rate:1.2～500K Baud
- Maximum operating speed: 500kbps, support 2-FSK, GFSK and MSK modulation
- Transmission distance: 300 - 500 meters (Depending on the specific situation of the environment and communication baud rate, etc.
Features:
- The baud rate, power, frequency, and other related parameters can be modified by software.
- High sensitivity (1.2kbps -110dDm, 0.1% packet error rate)
- CRC error detection and built-in hardware address multi-point communication control
- Lower current consumption (RX, 15.6mA; 2.4kbps, 433MHz)
- Programmable control of output power, maximum output power of +10dBm
- Standard 2.0mm DIP pitch interfaces for embedded applications
- Separate 64-byte RX and TX data FIF
Package Included:
1 x 433MHz Wireless RF Transceiver Module
