Winson WCS1700 Hall Effect Linear Current Sensor High-Precision DC/AC Current Measurement For Industrial & Automotive Applications
Winson WCS1700 Hall Effect Linear Current Sensor High-Precision DC/AC Current Measurement For Industrial & Automotive Applications
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

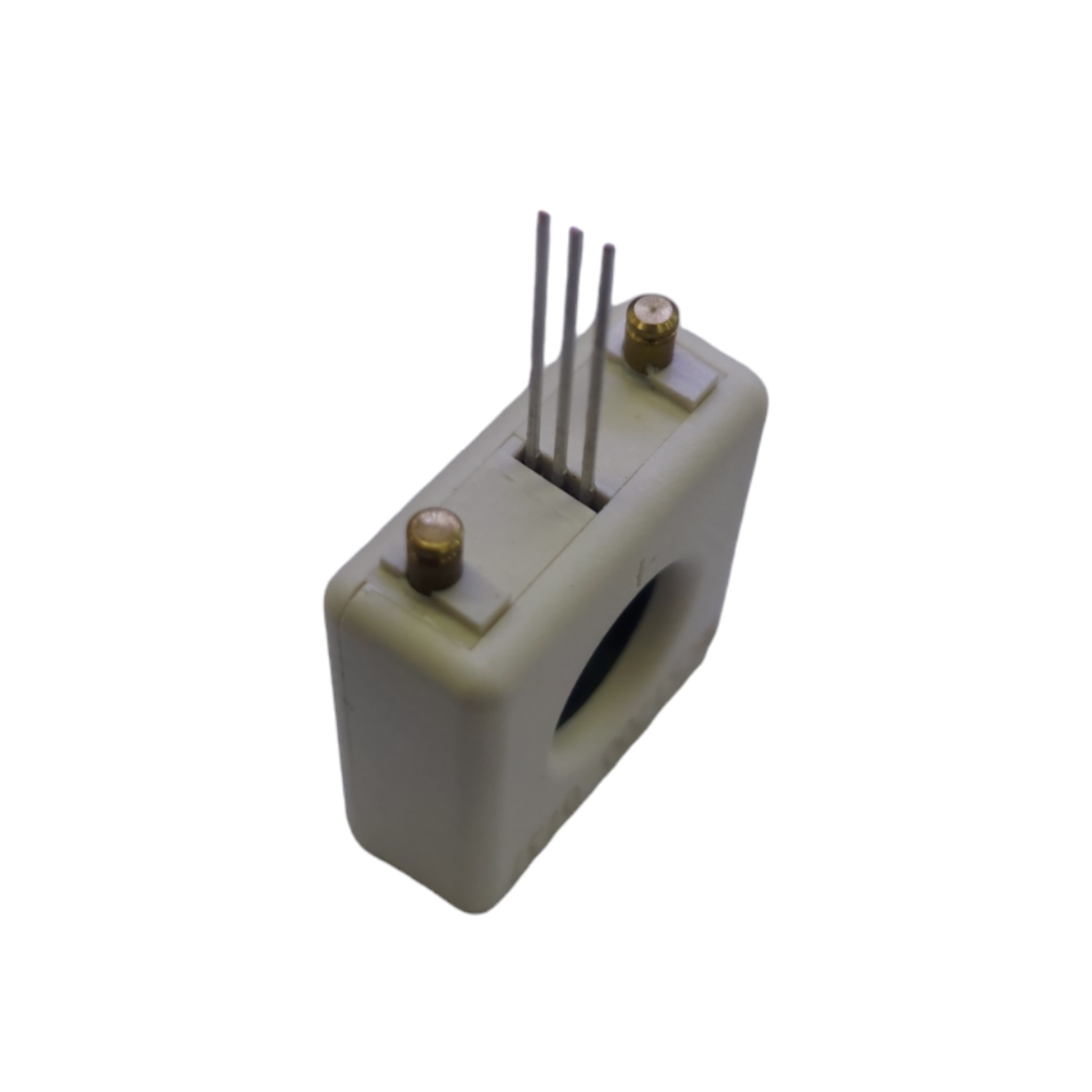

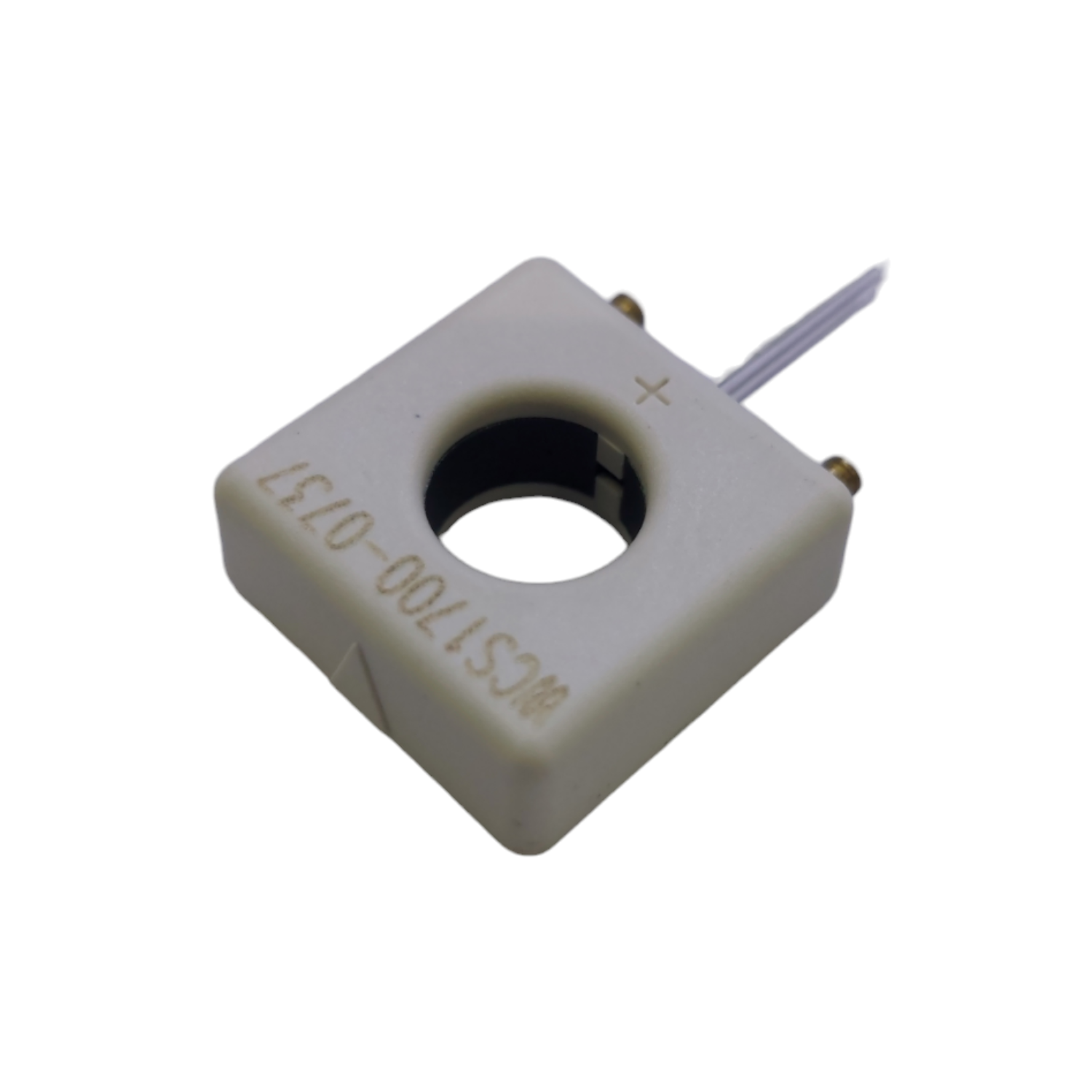

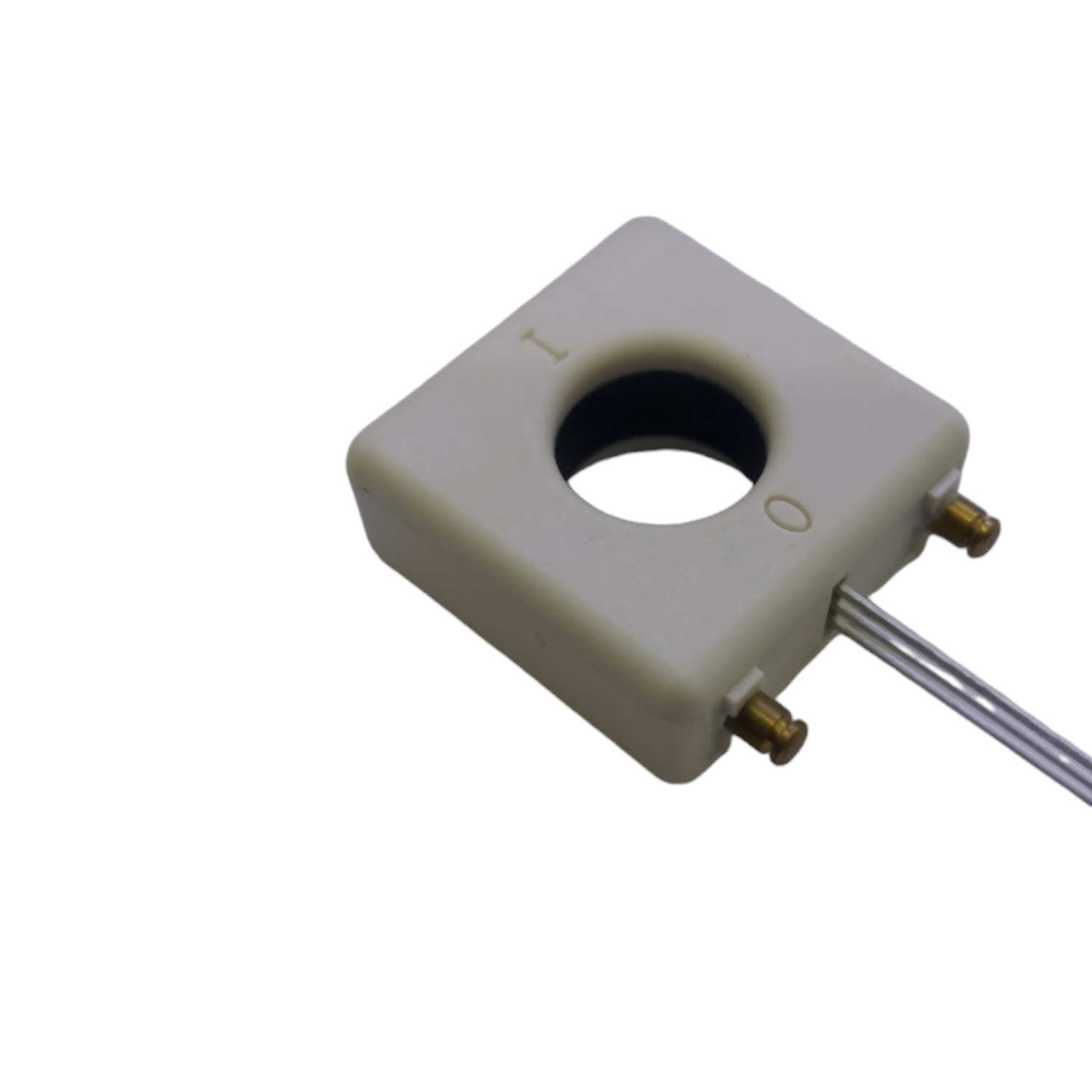

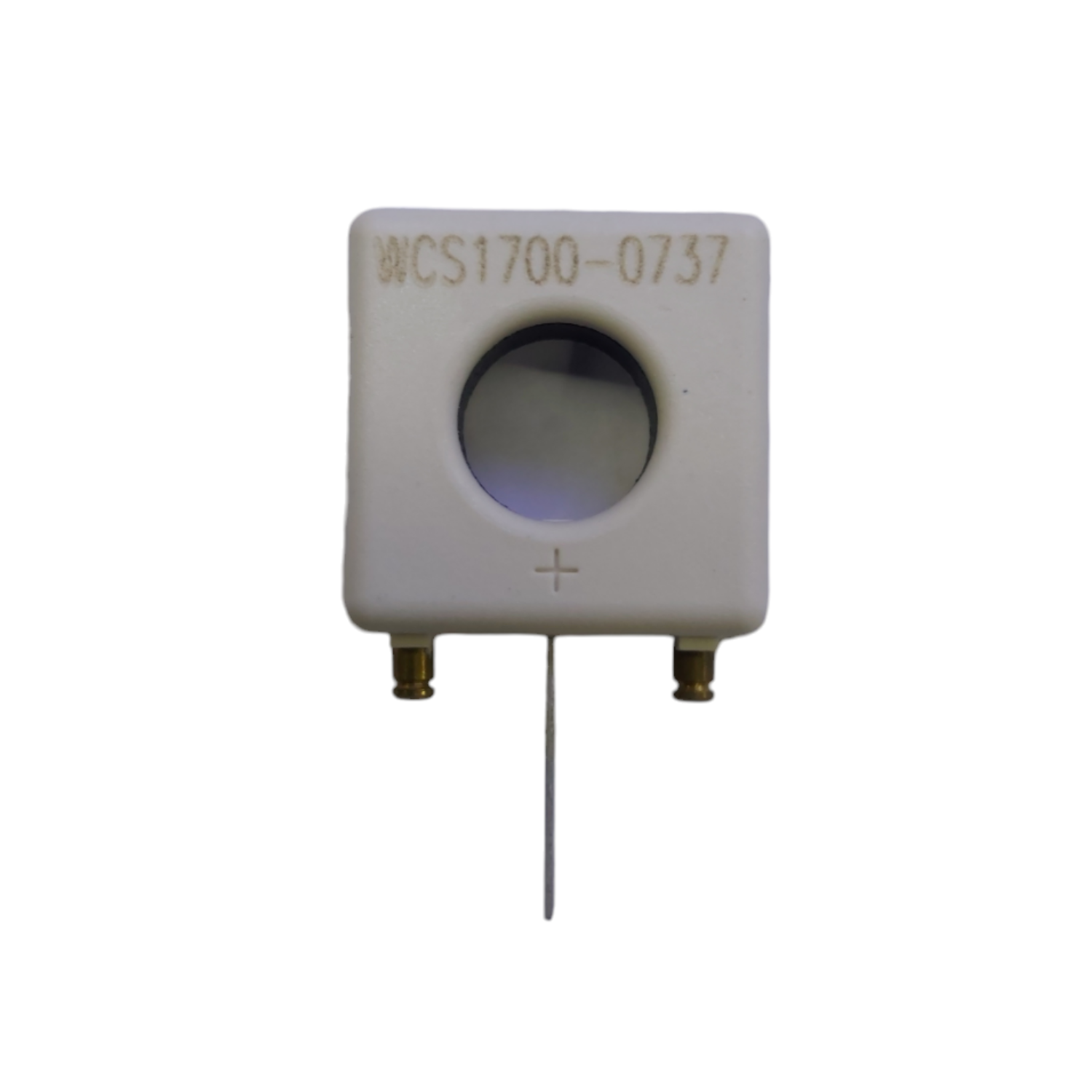

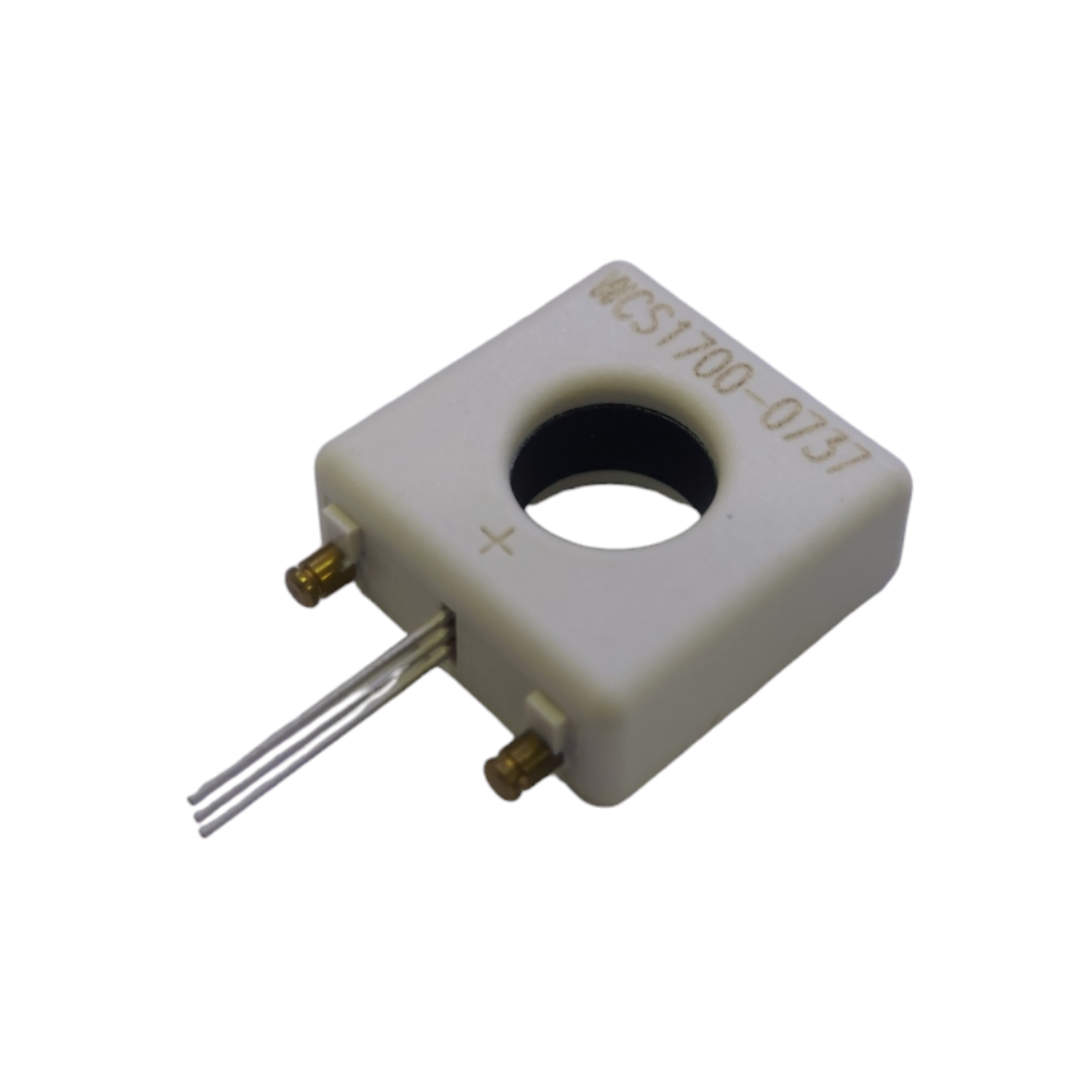

The WCS1700 is a highly precise, low-temperature drift linear Hall sensor IC. This sophisticated IC is equipped with an integrated temperature compensation circuit, ensuring accurate readings even under fluctuating temperature conditions. The sensor features a 9.0mm diameter through-hole, designed to accommodate the system's electrical wire.
Users simply pass the wire through this hole to measure the current flowing through it. This ingenious design eliminates the need for any physical alterations to the existing wiring, making integration seamless and hassle-free.
The principle of operation is based on the fundamental relationship between electric current and magnetic fields. When current flows through the wire passing through the sensor's hole, it generates a magnetic field. This magnetic field is then detected by the integrated Hall IC, which converts the magnetic field strength into a proportional voltage. This output voltage provides a precise representation of the current being measured.
Specifications:
- Item Type: Current Sensor
- Model Type: Hall Current Sensor
- Brand: Winson
- MPN: WCS1700
- Mounting Type: Through Hole
- Supply Voltage: 3.0~12V
- Current: 3.5 to 6.0mA
- Mounting Holes Diameter: 9.0mm
Features:
- Measures current in a linear manner based on the Hall Effect principle
- Non-invasive, meaning it does not require the interruption of the circuit being measured
- High accuracy in current measurement
- High sensitivity 33 mV/A.
- Wide range of current sensing capability
- Compact and easy to integrate into circuit designs
- Minimal power consumption
- Suitable for various applications, including power supplies, motor control, and battery management
- Provides reliable and precise current measurement for system monitoring and control
Package Included:
1 x WCS1700-Winson-Hall Effect Base Linear Current Sensor
