Description:

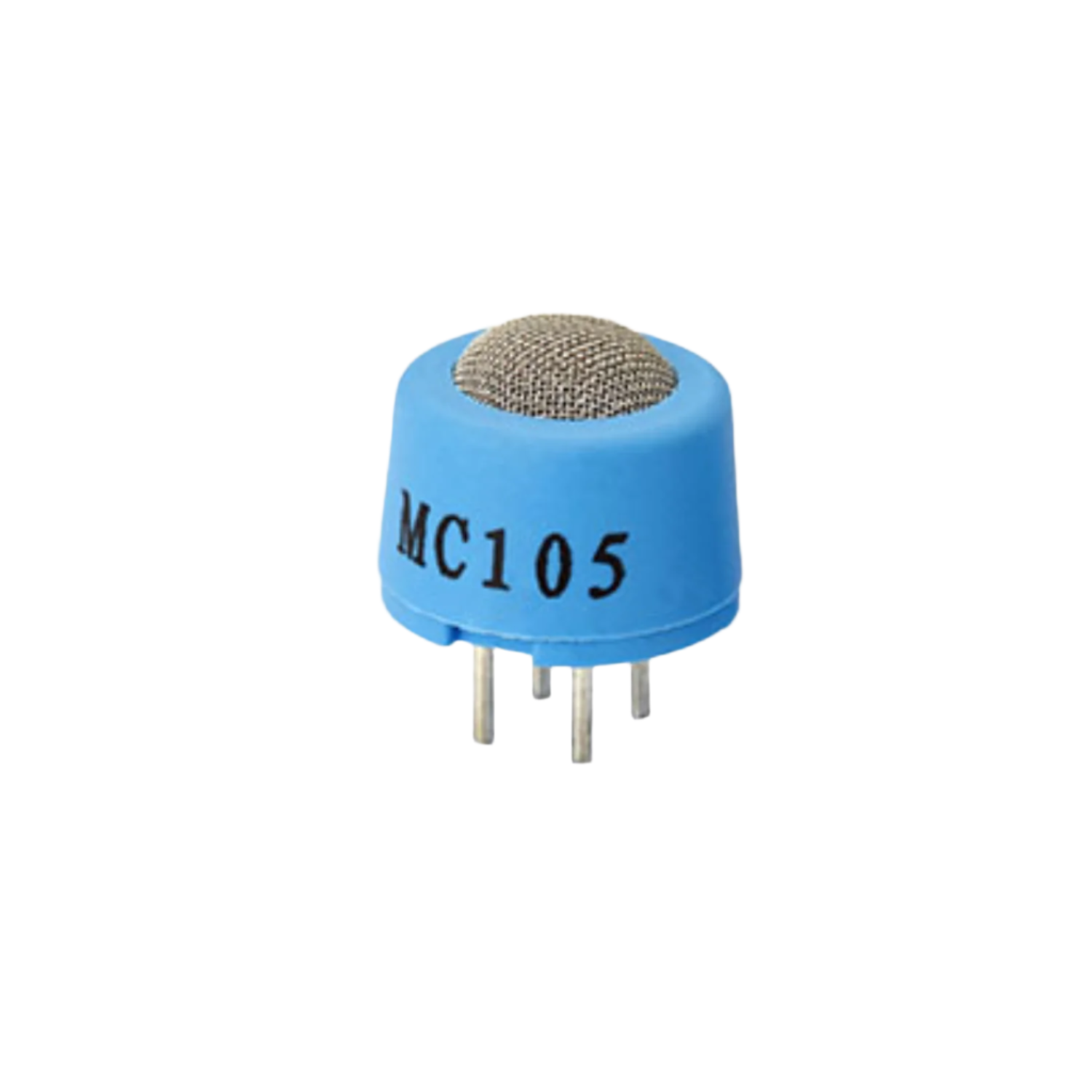

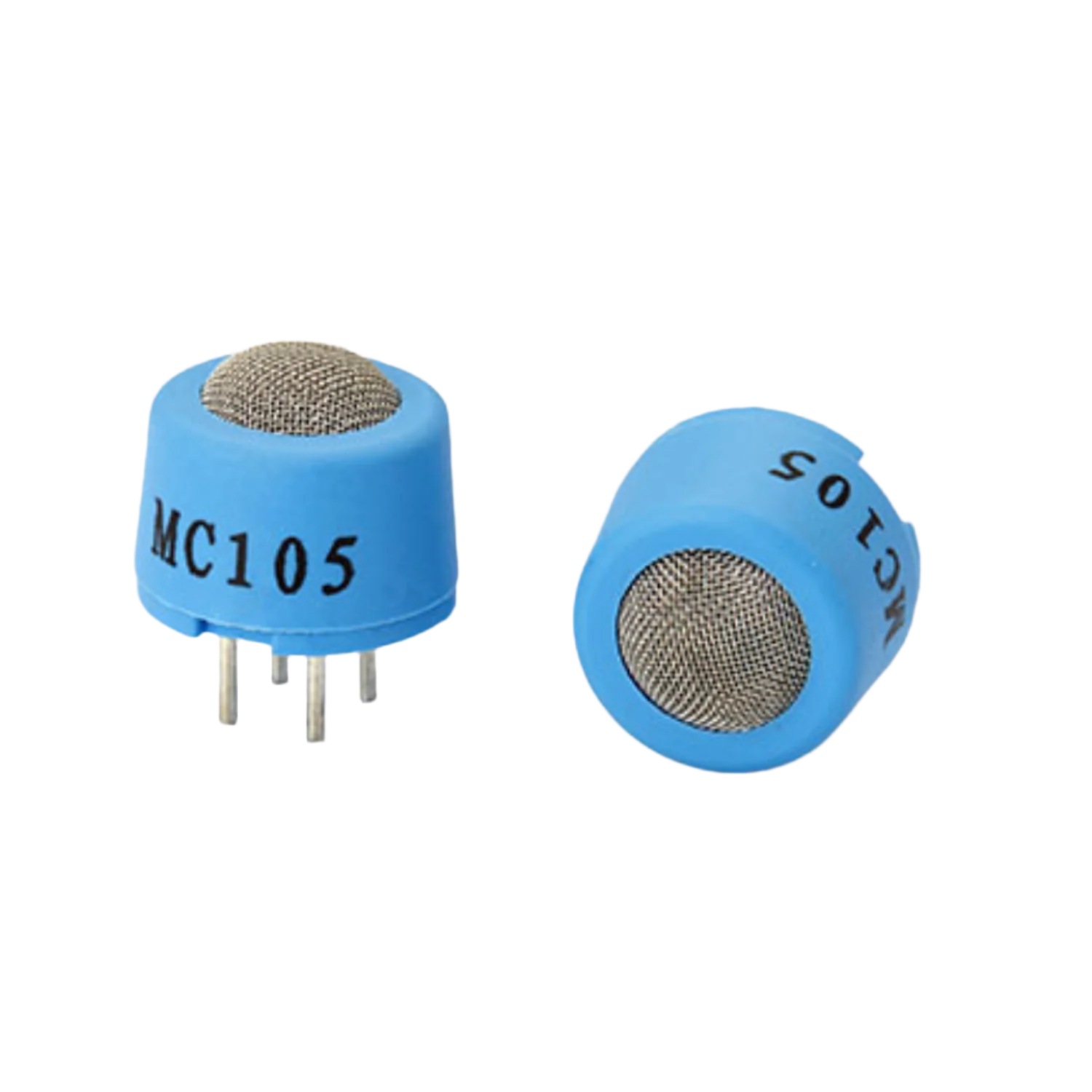

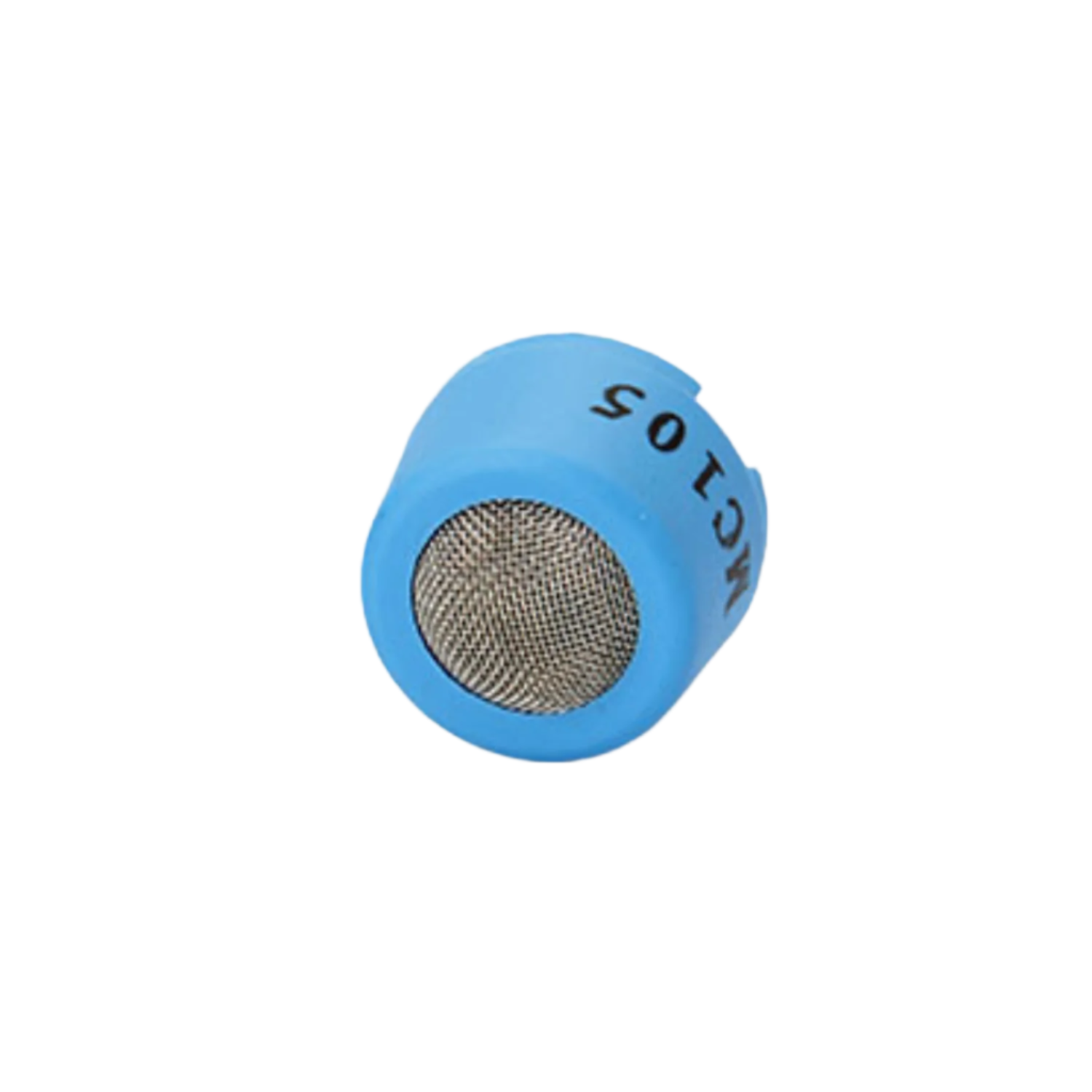

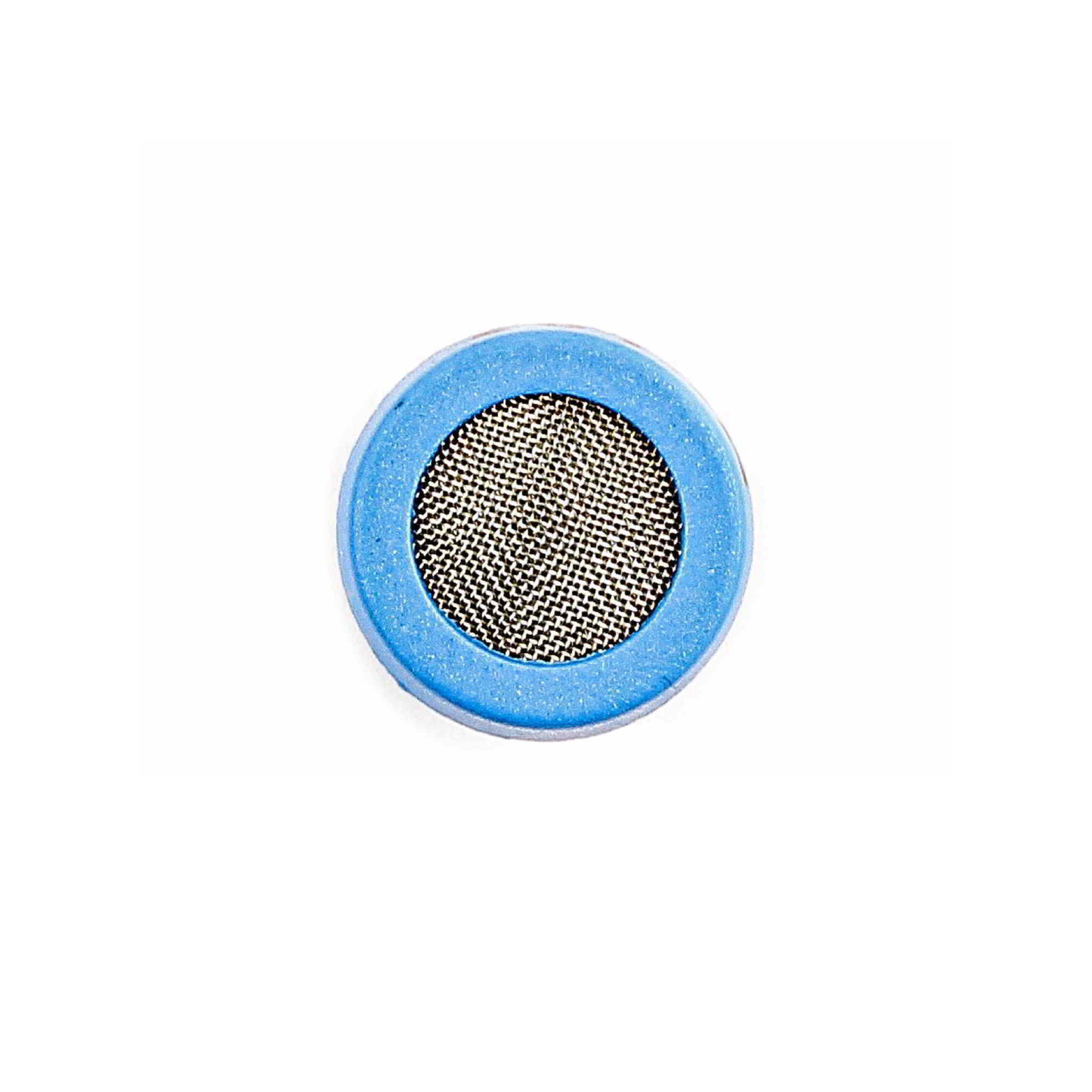

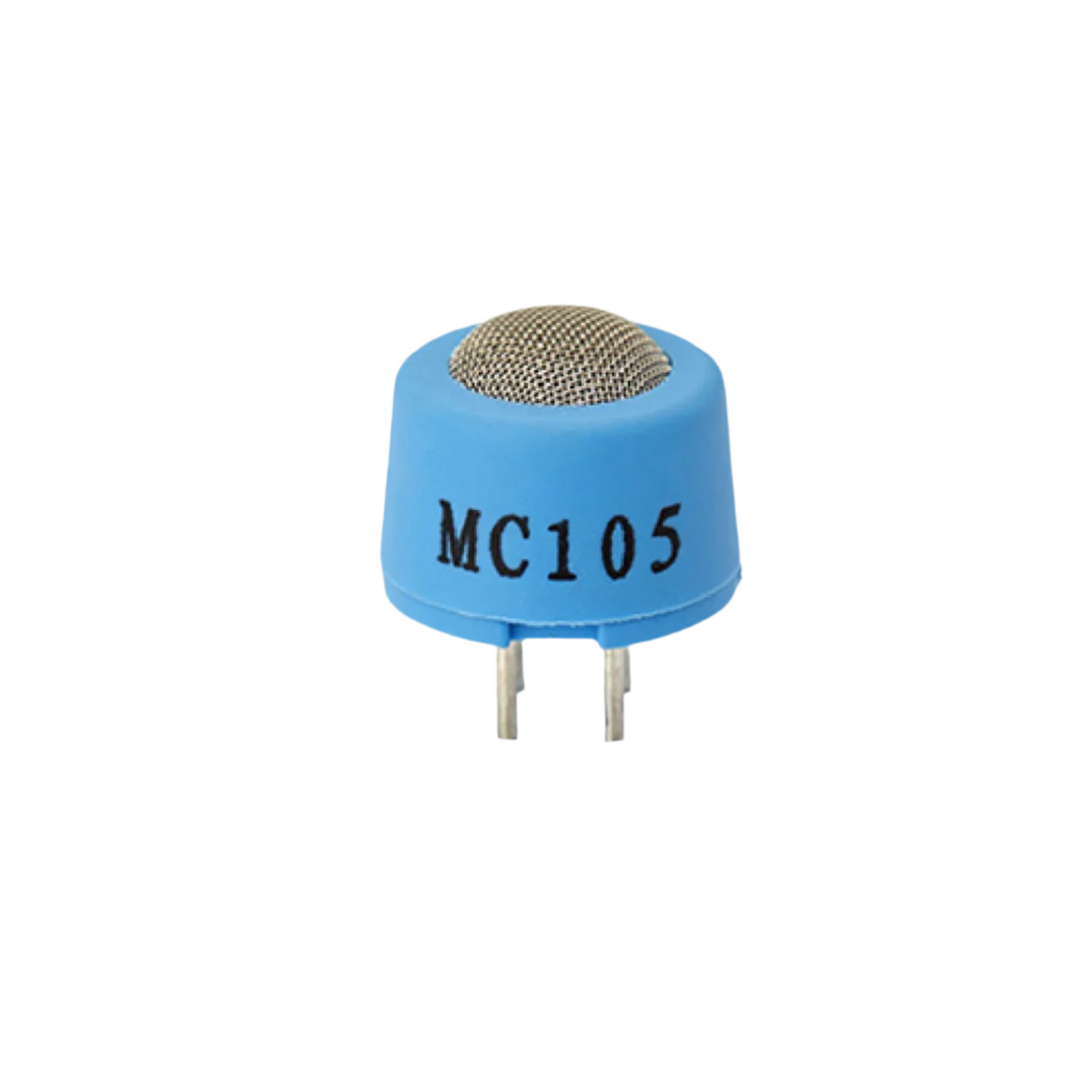

The Winsen MC105 Catalytic Flame Gas Sensor utilizes the principle of catalytic combustion for combustible gas detection. It features a Wheatstone bridge circuit with a test element and a compensation element.
When the test element encounters combustible gases, its resistance increases, leading to a proportional change in the bridge's output voltage. The compensation element provides temperature and humidity compensation, ensuring accurate and stable readings.
Specifications:
- Model No.: MC105
- Item Type: Gas Sensor
- Sensor Type: Catalytic
- Operating Voltage: 2.5+-0.1
- Working Current (mA): 150+-10
- Response Time(s): ≤10s (90%)
- Linearity: ≤5%
- Measuring Current Range: 0～100 (%LEL)
Features:
- Good repeatability and selectivity
- Resist H2S poisoning & organosilicone.
- Bridge output voltage in linear
- Fast response
Application
- It is widely used in industrial occasion to detect the concentration of natural gas, LPG, coal gas and alkanes.
- It is also used in combustible gas leakage alarm system, combustible gas detector and gas concentration meter and so on.
Package Included:
1 x Winsen MC105 Catalytic CCombustible Gas Detection
