- Operating voltage: 12V DC
- Board consumption: less than 1W
- Operating current: 250mA
- Standby current: 90mA
- Max input current: 10A
Description:
This product is a wireless switch that supports inching mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and IOS 2G/3G/4G Networks. Supports numerous WiFi smart switches on one smartphone. Supports max 8 enabled scheduled/countdown/loop timers for each device. Works with Alexa, Google Home: Link "eWeLink Smart Home Fan" skill. You can directly ask Echo/Echo Dot/Tap to turn on/off your Sonoff devices. Control home appliances or electrical devices with your voice like this: “Alexa, turn on the light.”Alexa, turn on the Garage door.”Hey Google, turn off the bedroom light.”
Specification:
- Operating voltage: 12V DC
- Board consumption: less than 1W
- Operating current: 250mA
- Standby current: 90mA
- Max input current: 10A
- Supports to control different voltage ranges
- Relay lifespan: more than 1000000
- Insulation resistance: 100M ohm
- Electric shock voltage: 1000V
- Relay maximum pull time: 15ms
- Relay maximum release time: 5ms
- Operating temperature: -40 Celsius to +70 Celsius
- Operating Humidity: 40%RH ~ 80% RH
Features:
- Smart remote control functions with Timing control, Cyclic timing control, Delay switch control and Mechanical switch output
- Compatible with iOS Andriod app 2G/3G/4G Network
- Download the "EWelink" APP and control all your household appliances with your phone only wherever you are
- Operating Voltage:DC 12V; Operating Current:250mA; Quiescent Current:90mA
- The schematic diagram has been provided as the picture shows. Please contact us if you're not 100% happy with your kit - We will help you fix the problem
How to choose the relay module for your garage door?
- For the Self-locking Relay, your lock will remain locked or open.
- For the Inching Relay, your lock will remain open for 0.5 seconds. And it's locked for all other time.
- To have enough time to control the door, it's a better choice to have the Self-locking Relay.
User Guide:
- Start with “EWelink” APP.
- Register an Ewelink account; If you have an Ewelink account, just
- log on.
- Power up.
- On the device, the default call is closed and can be set to
- call or maintain in the APP change.
- Press and hold the Match button for about 7 seconds until the
- WIFI green LED blinks fast.
- Tap “+” on the Ewelink app; Fast mode is preferred in(Touch),
- In special cases, you can try the compatibility model(AP).
- Input your WIFI password; Name your device; When the WIFI LED
- is on, the device is online.
- Click the on/off buttons on the APP can control device, Manual
- control switch also can be displayed in real-time on the APP.
Package Included:

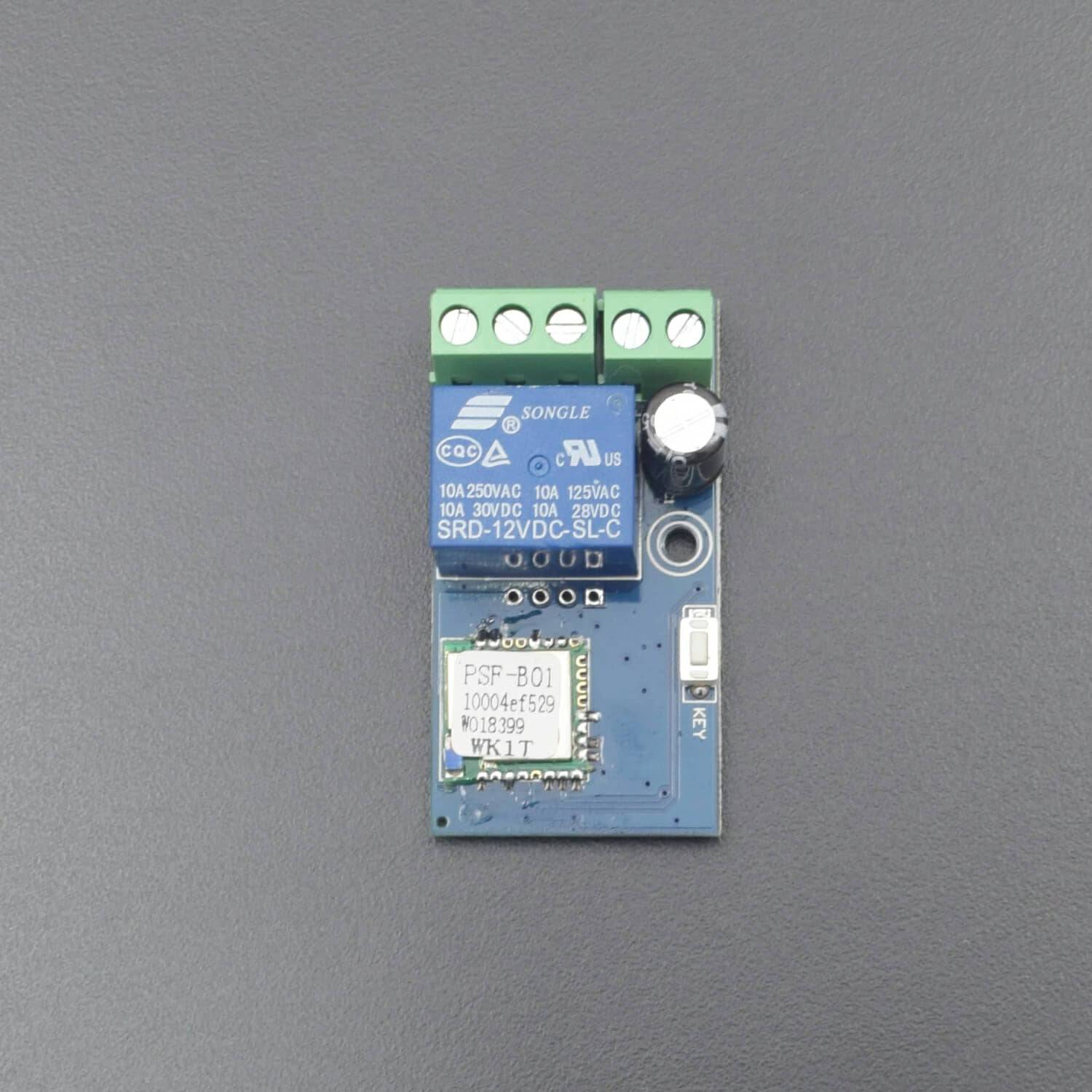

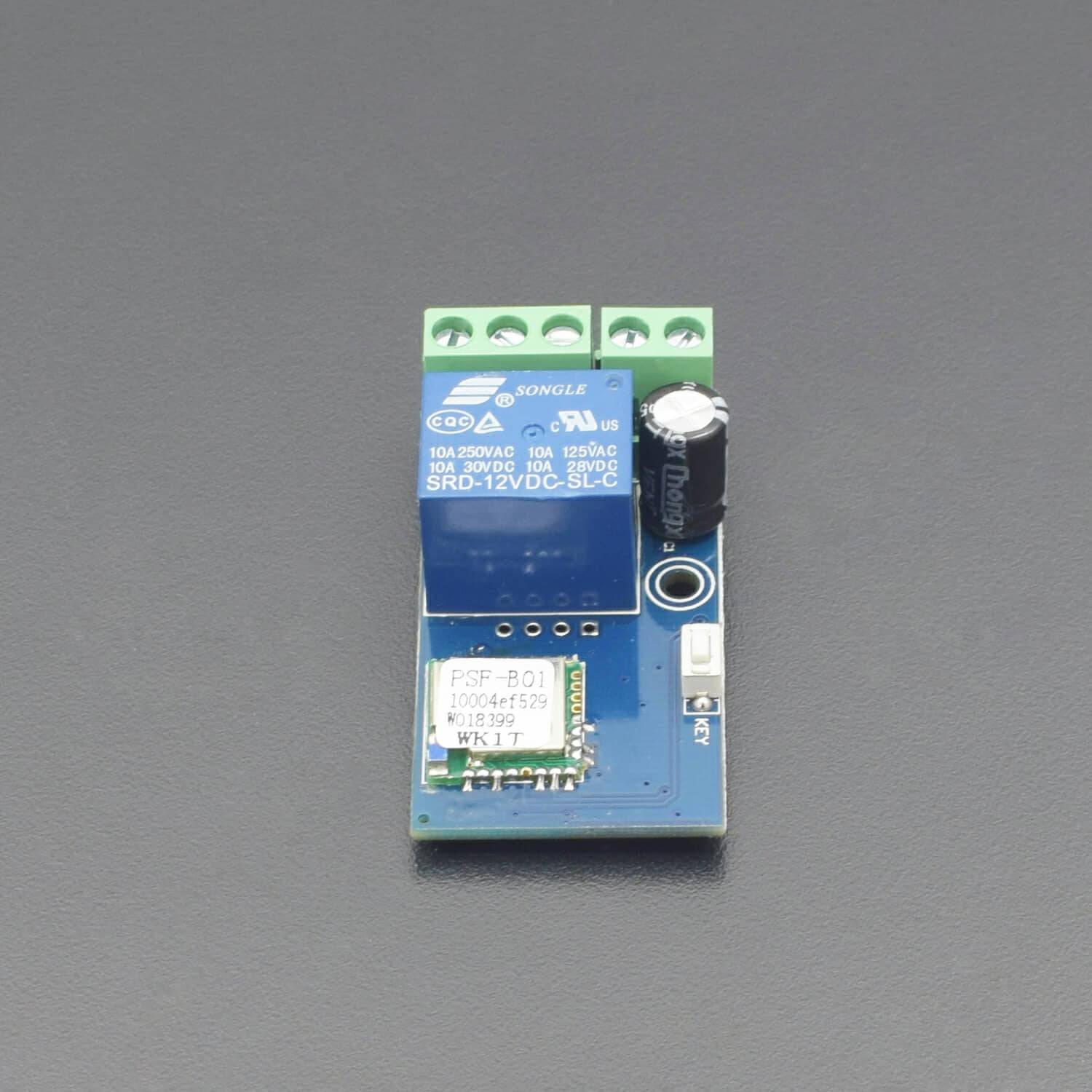

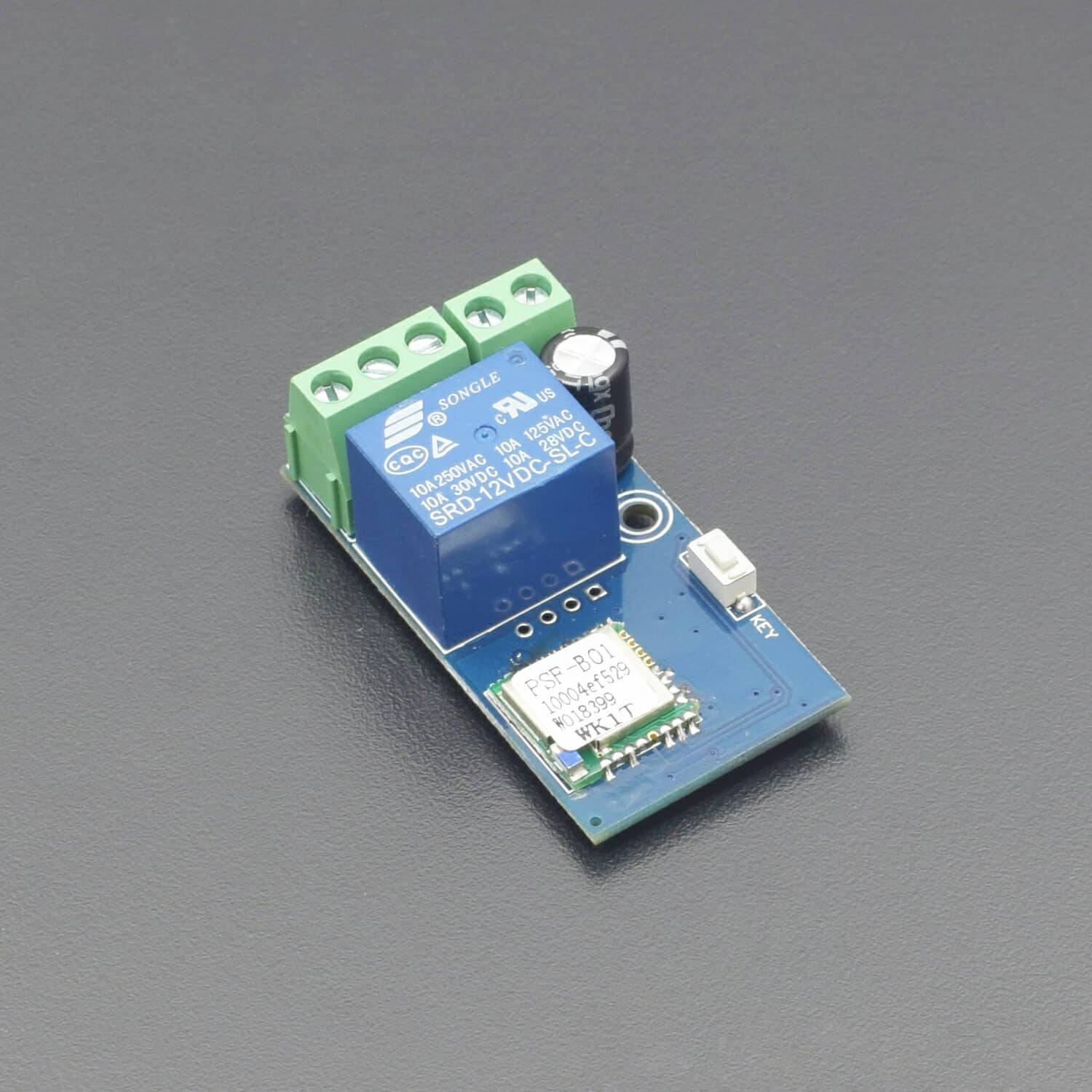

1 x WiFi Relay Delay Switch Module Self-Lock Latching Mode Low Power Smart Home Remote Control DC 12V
