- Lowest rated operating voltage: DC 3.5 5V-12V
- Maximum operating current: 15 mA¨DC 5V
- Operating voltage range: DC 5¡«18 V
- Load capacity: 10 mA¨DC 5V
- Operating temperature range: 80
- Operating humidity: 35%¡«90%RH No frost
Description :
Feature :
- The appearance of the product is light and handy, small size, easy to install.
- Stainless steel beads are inserted inside the impeller, always wear resistant.
- The sealing ring, the structure will never Water Leakage.
- Hall components imported from Germany, and the use of plastic encapsulation, prevent water, never aging.
- All raw materials are in compliance with ROHS testing standards.
- Scope of application: Apply to food, credit card machines, water vending machine, flow metering equipment!
Note:
- Non-violent shocks and chemical erosion
- Do not throw or hit
- Vertical mounting inclination of not more than 5 degrees
- Medium temperature should not exceed 120 Degree.
- Output waveforms: square wave
Outgoing line:
- Red IN connect to the positive electrode.
- Yellow OUT signal output line
- Black GND connect to the negative electrode.
Frequency: F = 98 * Q (L / Min) Error: ¡À 2% The flow of 1L to the column, that is, 98 * 1 * 60 is equal to the number of pulses flowing through the water output voltage: 3.5-12VDC, the current can not exceed 10mA, finished a liter of water output 5880 pulses
Ie frequency calculation = constant 98 * unit flow rate (L / min) * time (seconds)
Specification :
- Lowest rated operating voltage: DC3.5 5V-12V
- Maximum operating current: 15 mA¨DC 5V
- Operating voltage range: DC 5«18 V
- Load capacity: 10 mA¨DC 5V
- Operating temperature range: 80
- Operating humidity: 35%¡«90%RH No frost
- allowable pressure: Water pressure below 1.75Mpa
- Storage temperature: -25+ 80
- Storage Humidity: 25%«95%RH
- Flow range: 0.3-6L / min
- Color: White
Package included:

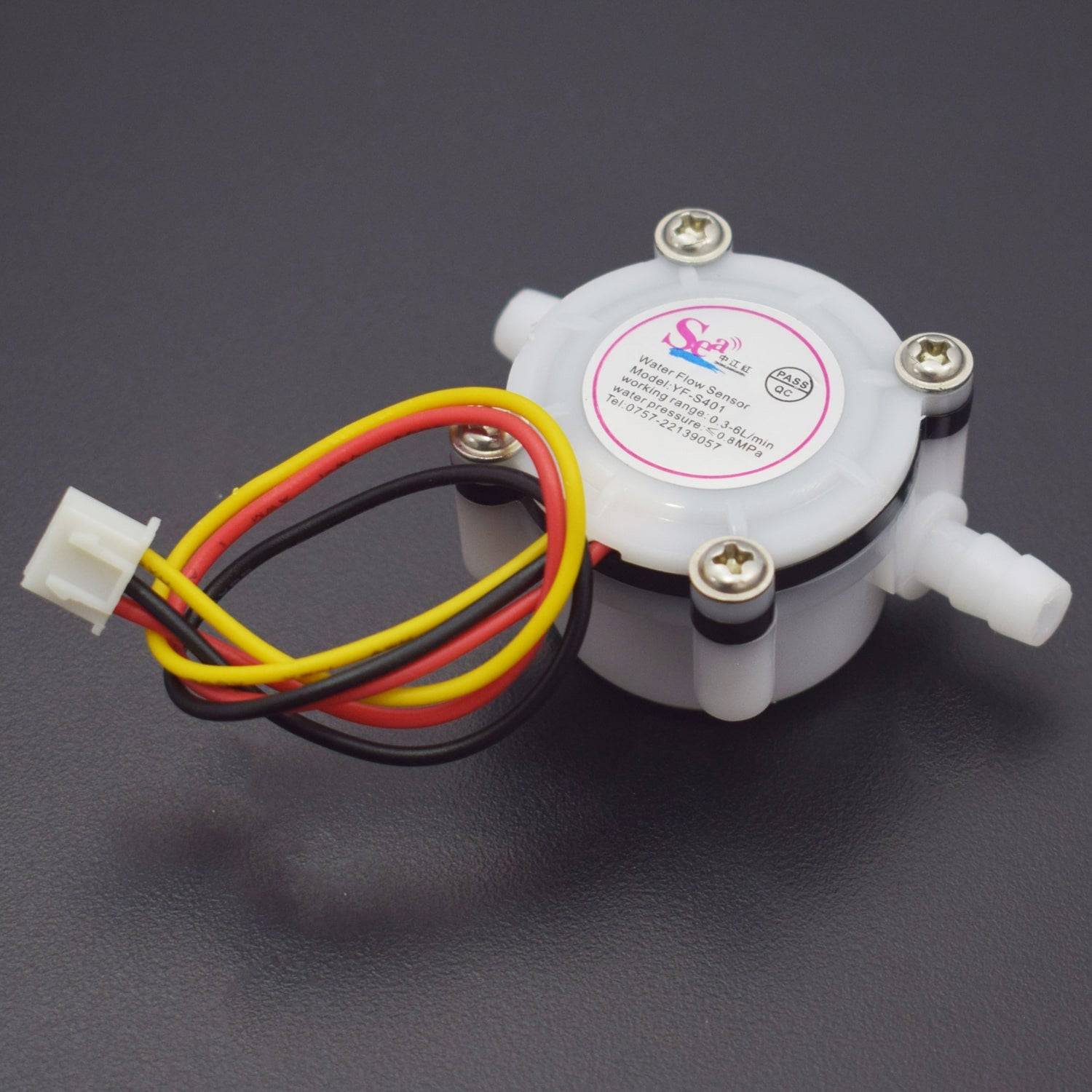

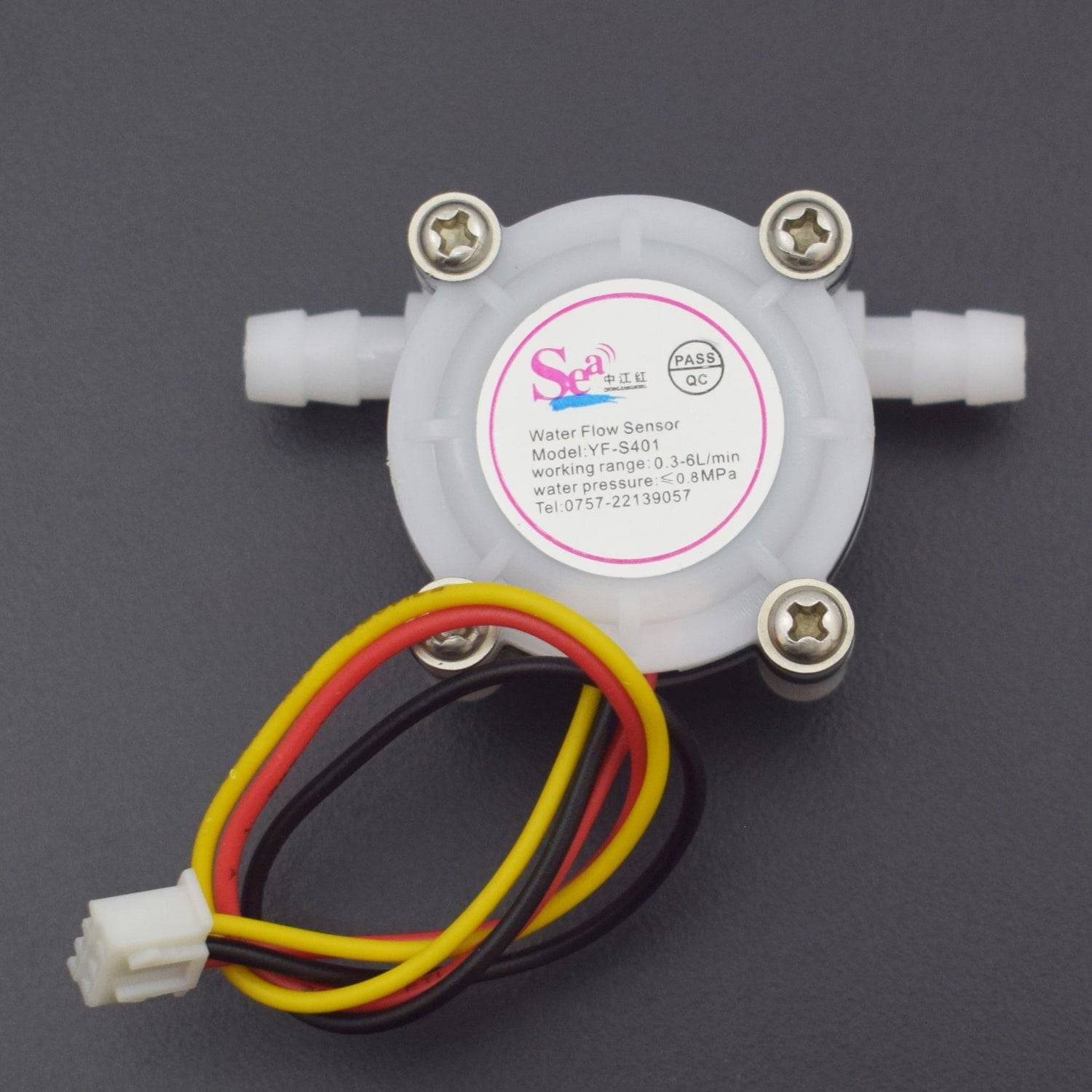

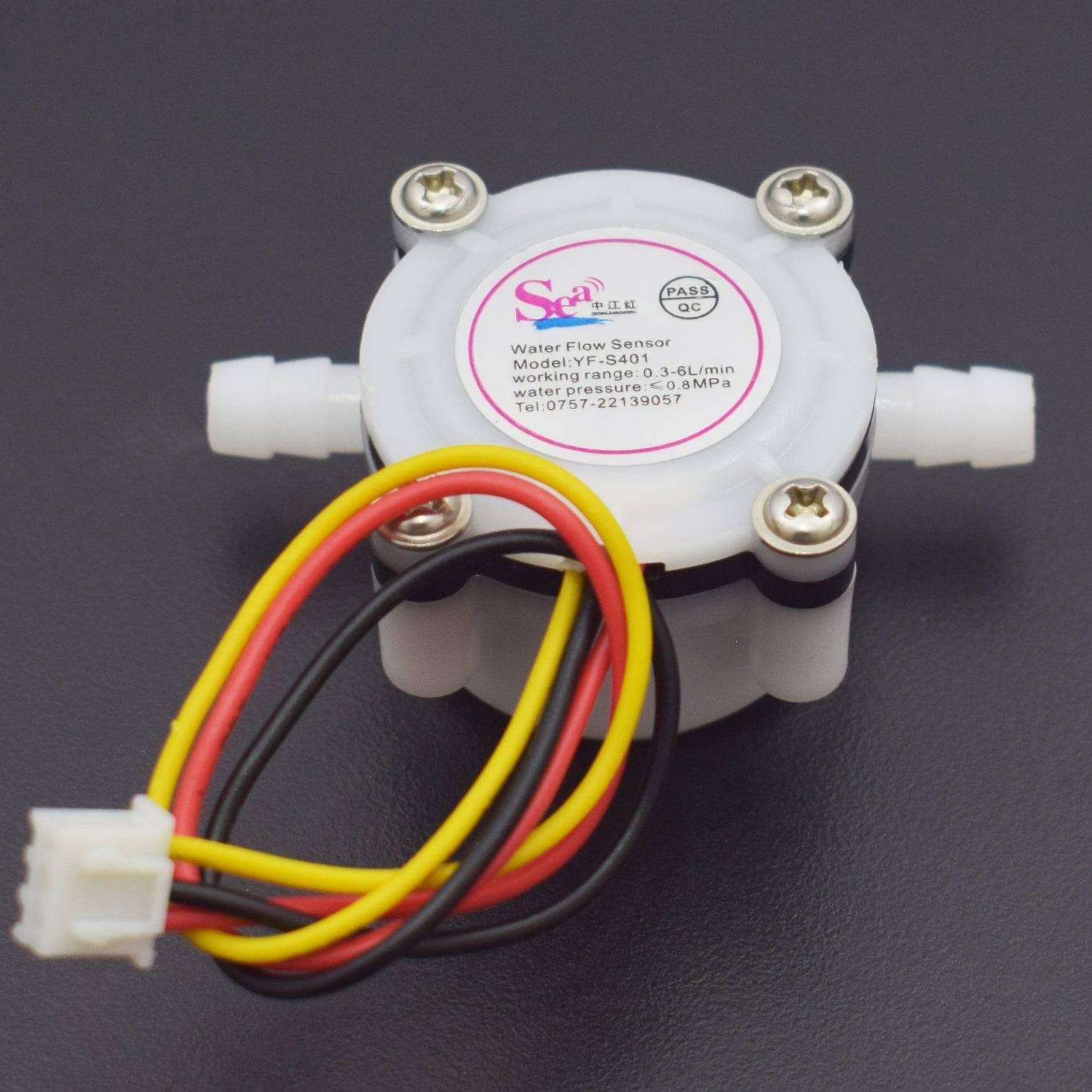

1x Coffee Maker Water Flowmeter Flow Sensor
