Description:

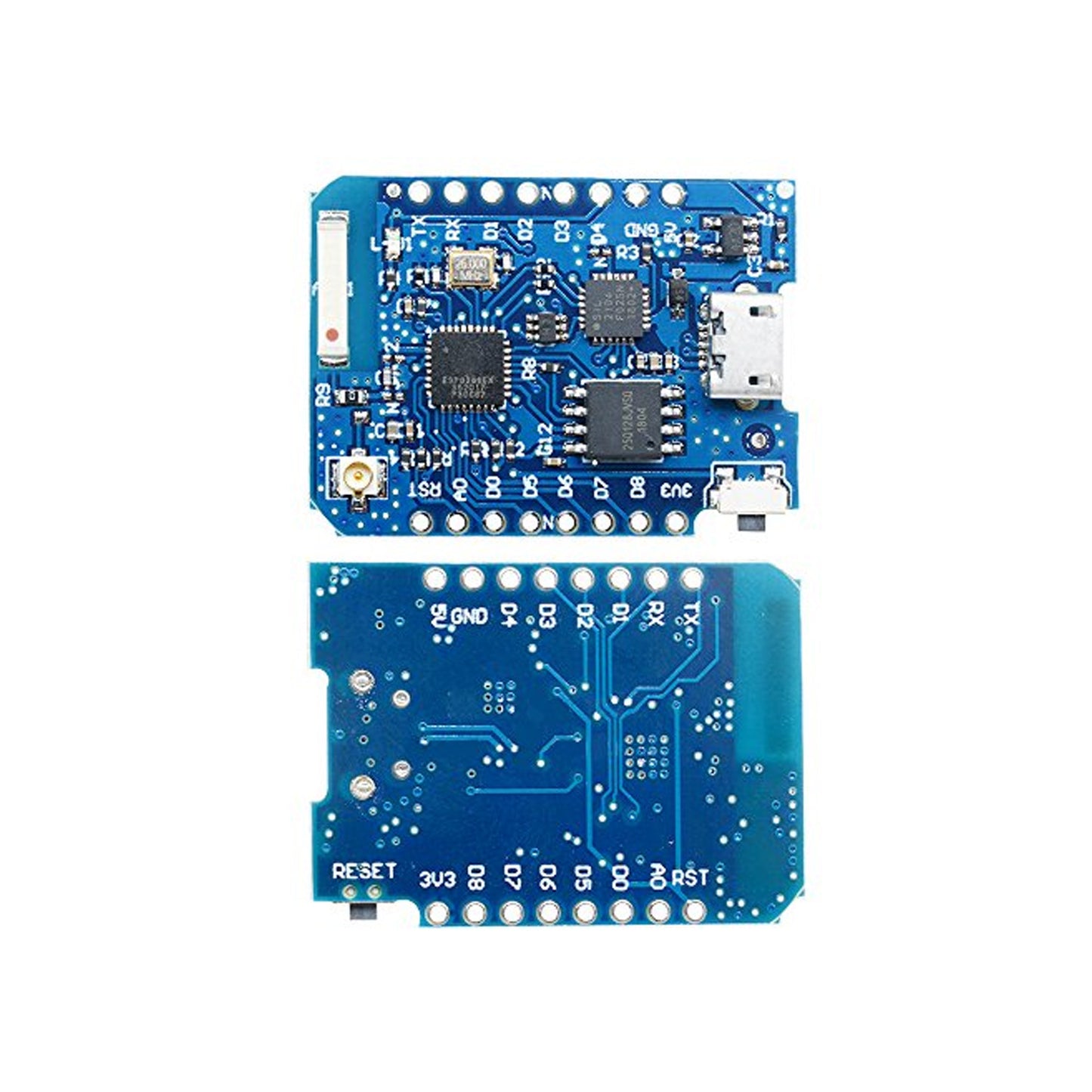

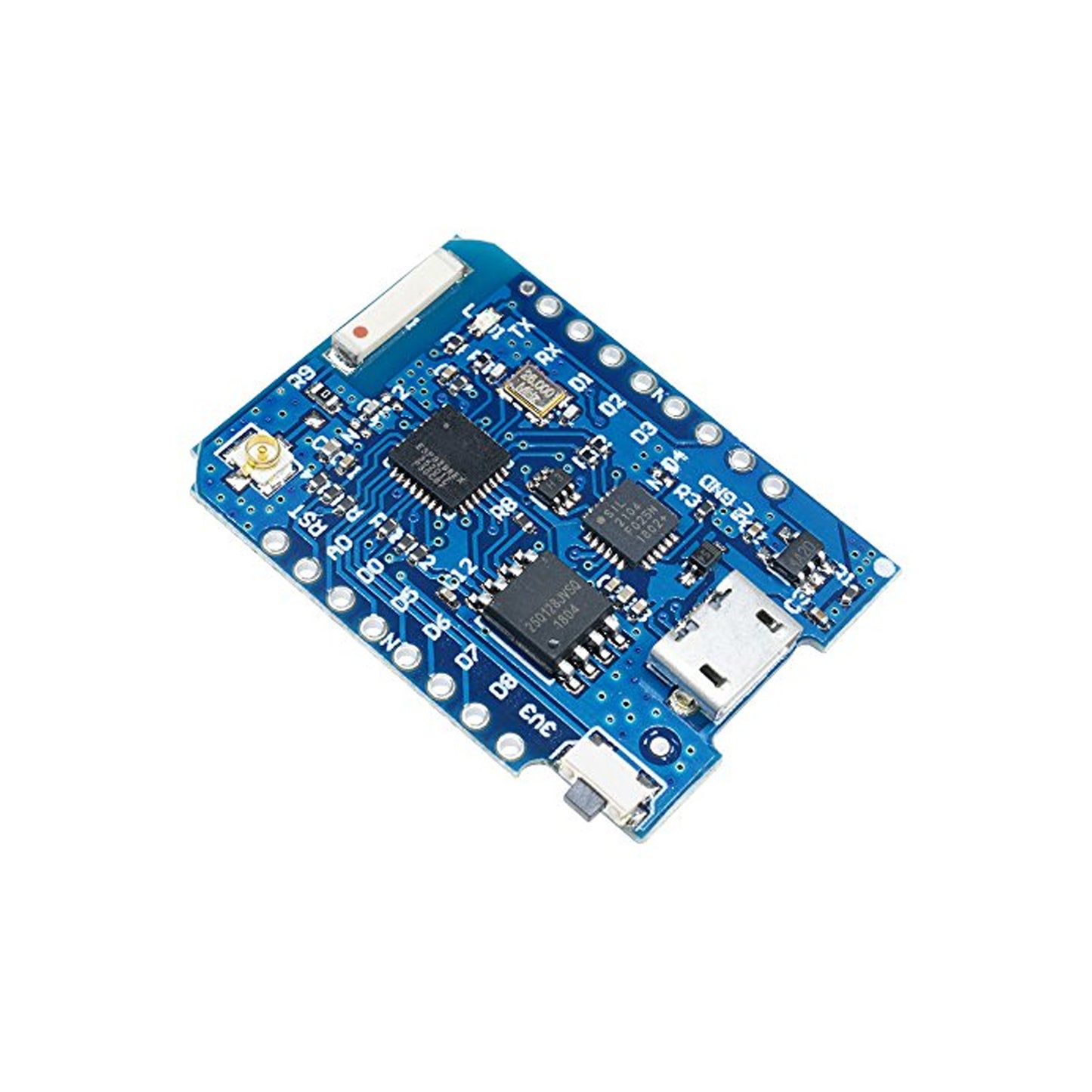

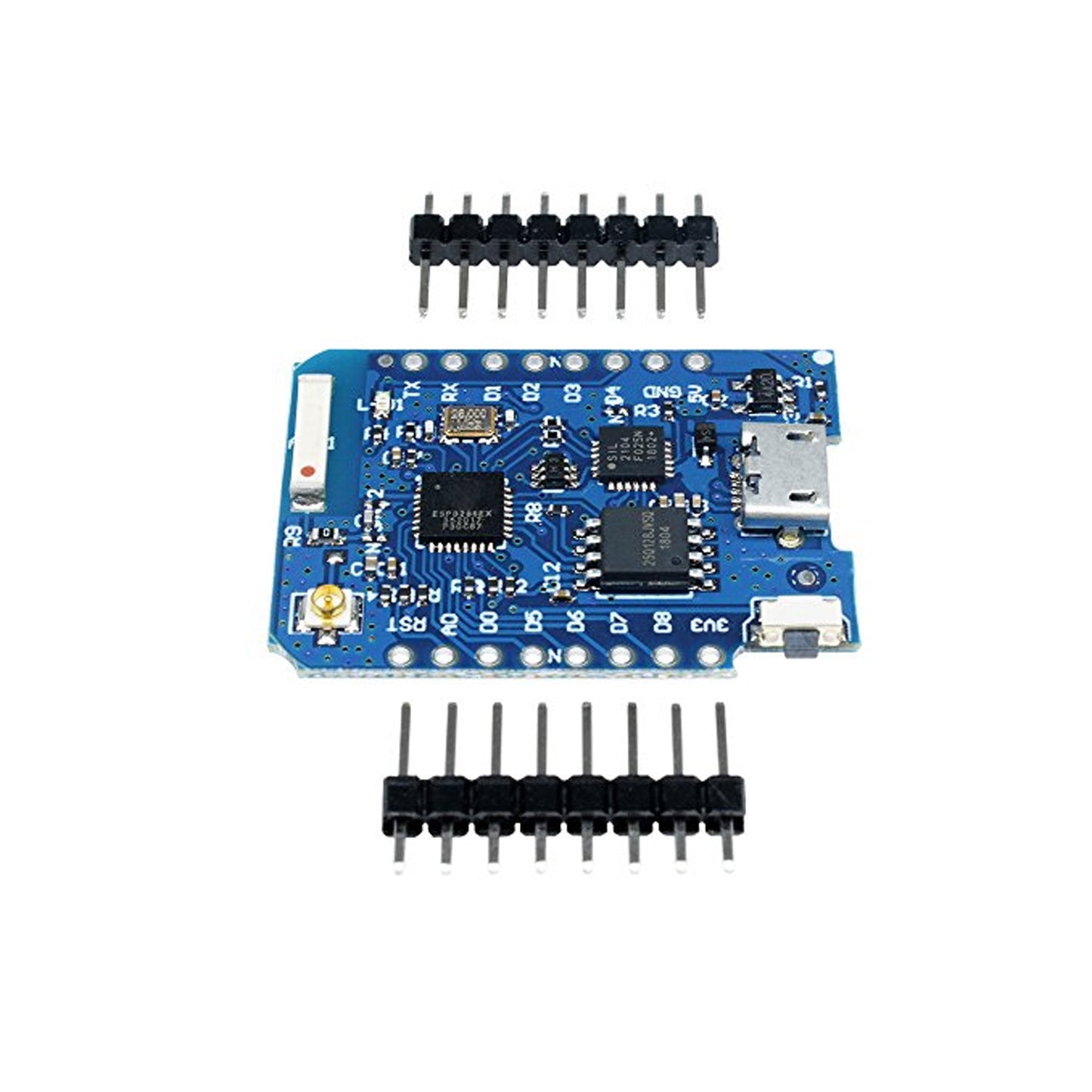

This WEMOS D1 Pro Mini-16M is a powerful IoT development board, with a 16MB flash, an external antenna connector and a built-in ceramic antenna based on ESP8266 D1 Pro Mini-16m. Same size as the D1 mini, but lighter. D1 Mini PRO development board is compatible with Arduino, Micro Python, and Node MCU. And can be programmed in the Arduino IDE. New CP2104 USB-TO-UART IC, built-in ceramic antenna or external antenna PCB antenna. 11 digital input/output pins, all pins have interrupt / PWM / I2C / 1-wire; 1 analogue input(3.2V max input); 16M bytes(128M bit) Flash and a micro-USB connection.
Specifications:
- Microcontroller: ESP-8266EX
- Operating Voltage: 3.2V
- Digital I/O Pins: 11
- Analog Input Pins: 1(Max input: 3.2V)
- Flash: 16M bytes
Features:
- 11 digital input/output pins
- Interrupt/PWM/I2C/one-wire
- 1 analog input(3.2V max input)
- 16M bytes(128M bit) Flash
- External antenna connector
- Built-in ceramic antenna
-
New CP2104 USB-TO-UART IC
Package Included:

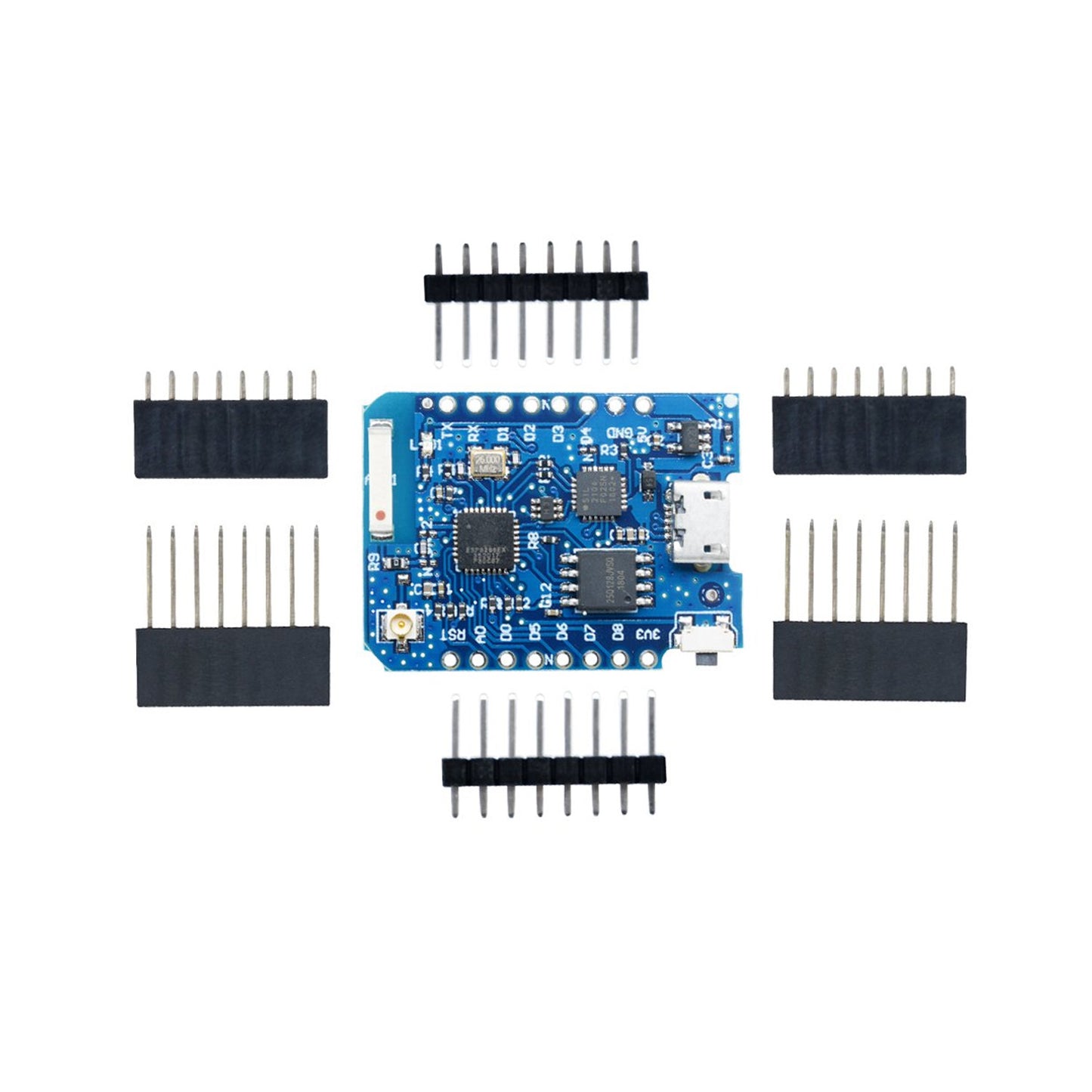

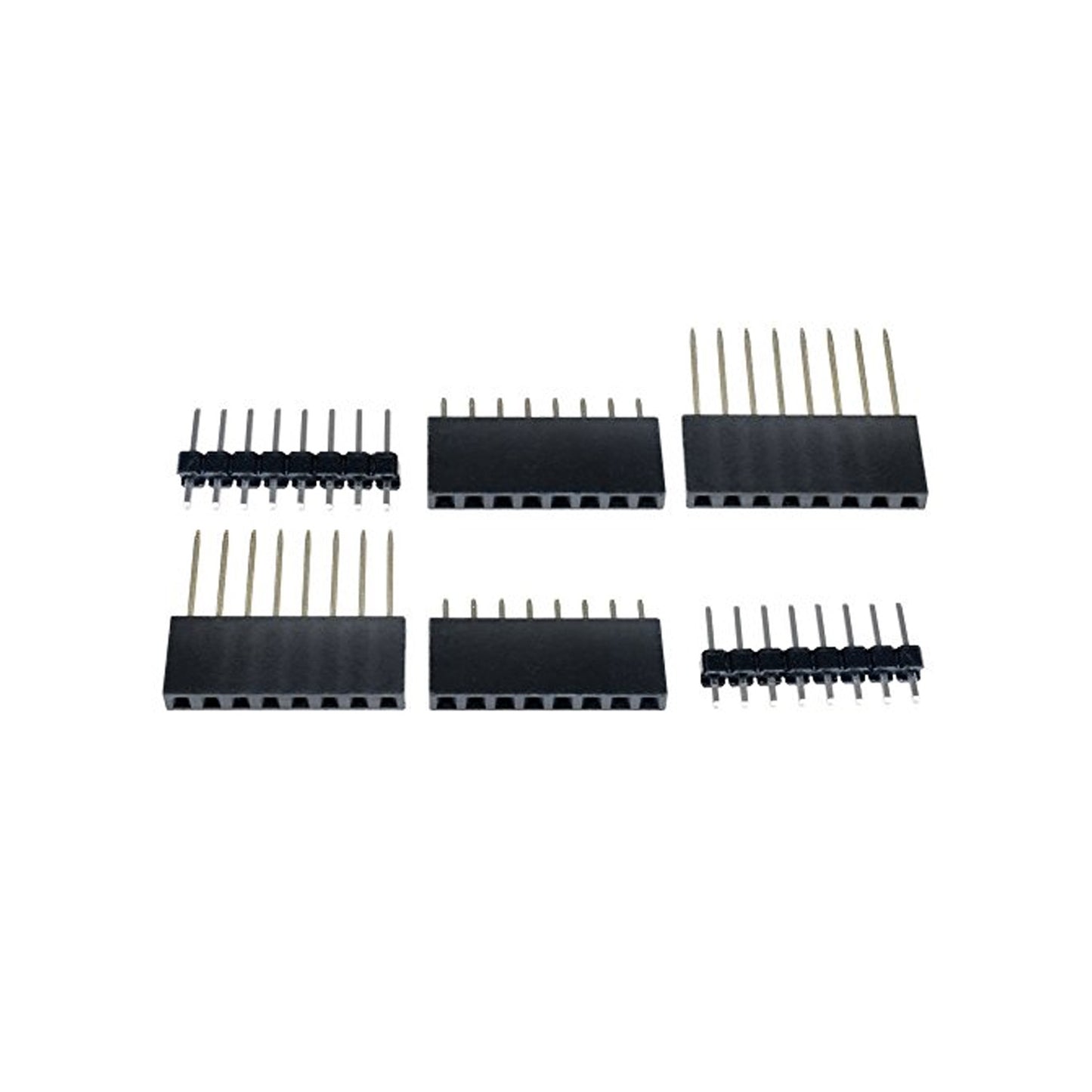

1 x WEMOS D1 Pro Mini-16M ESP8266 Antenna Connector Development Board 16M Bytes External Antenna Connector ESP8266 WIFI Networking Smart Component WiFi IoT Board
