Description:

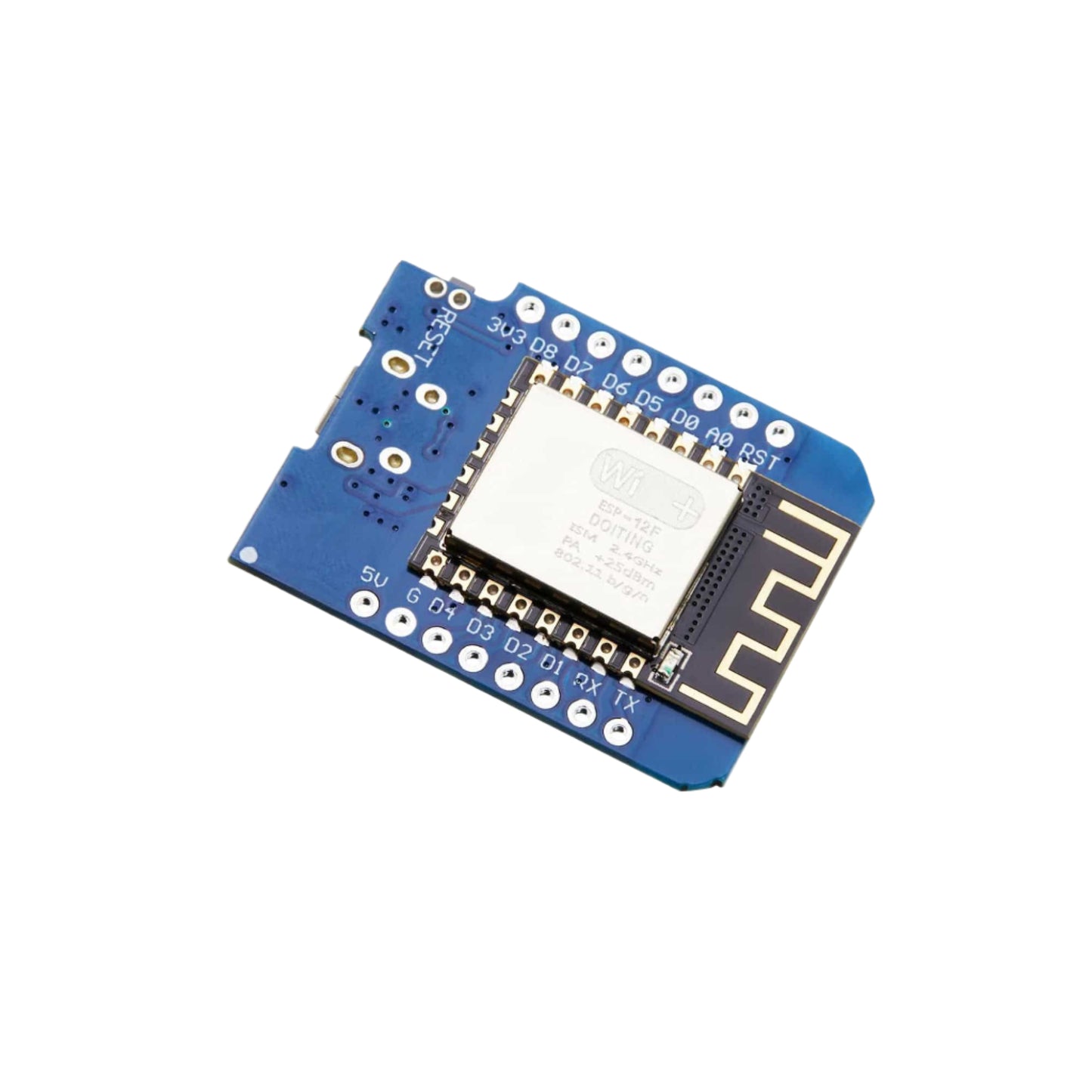

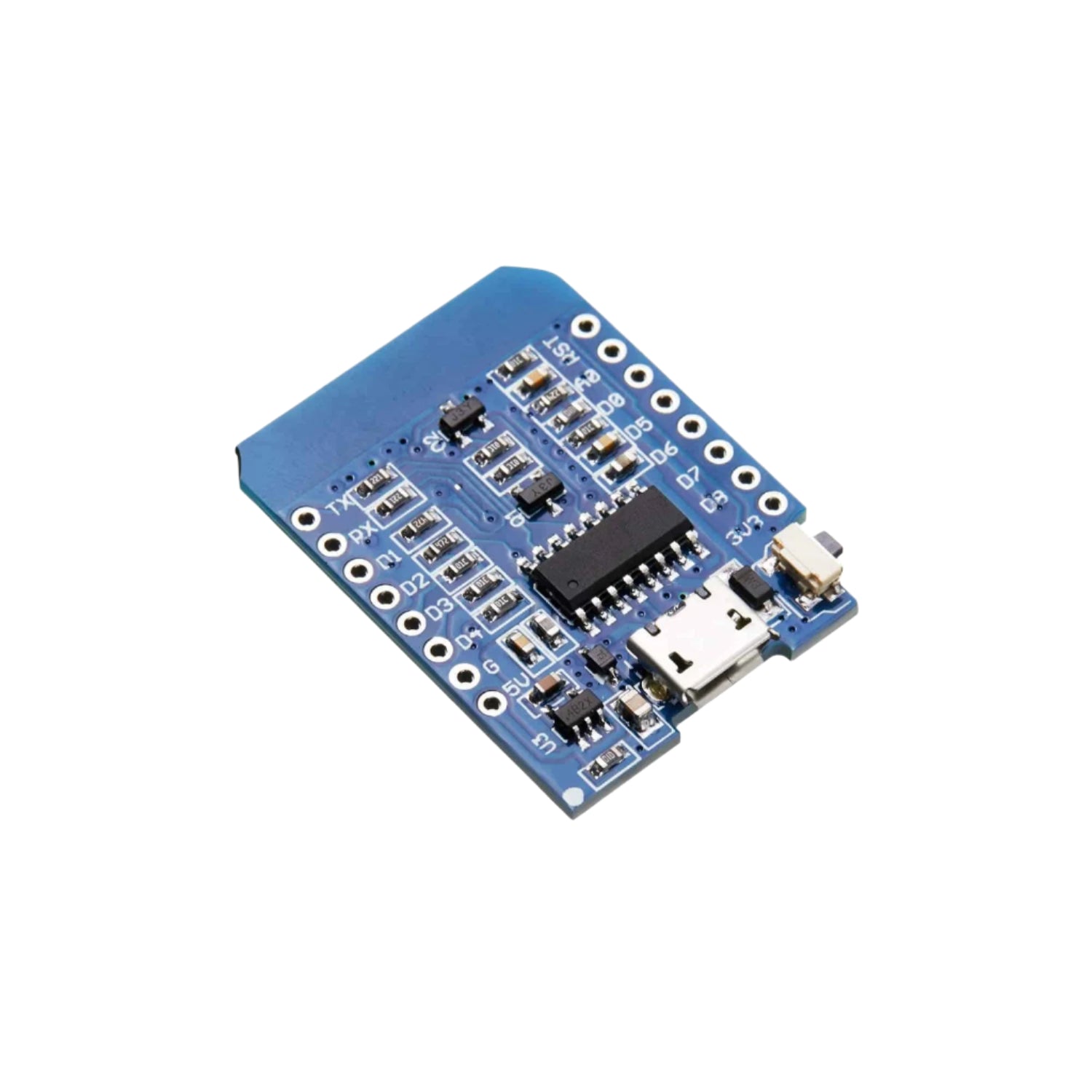

D1 Mini Board is a small, cheap, wifi ready micro-controller. D1 Mini Board ESP8266 comes pre-flashed with a Lua-based firmware and while I understand that Lua is easy enough to pick up, I wanted to develop in the IDE. This D1 Mini Board uses a new ESP-12S wifi module, antenna performance is excellent.
Specifications:
- Microcontroller: ESP-8266EX
- Operating Voltage: 3.3 Volts
- Digital I/O Pins: 11
- Analog Input Pins: 1(Max input: 3.2V)
- Clock Speed: 80MHz/160MHz
- Flash: 4 M bytes
Features:
- It has a Micro USB connection
- D1 Mini Board is compatible with Arduino R3
- D1 Mini Board is compatible with nodemcu
Installation with Boards Manager:
- As of 1.6.4, Arduino allows the installation of third-party platform packages using Board Manager. We have packages available for Windows, Mac OS, and Linux (32 and 64-bit).
- Install Arduino 1.6.7 from the Arduino website.
- Start Arduino and open the Preferences window.
- Enter in the Additional Board Manager URL field(paste url,). You can add multiple URLs, separating them with commas.
- Open Tools → Table: xxx → Board Manager and install esp8266 by ESP8266 community (and don't forget to select your ESP8266 board from Tools> Board menu after installation).
Installing with GIT (Recommend):
- We recommend using GIT to install the Hardware package, you can always get the latest version of it.
Package Included:

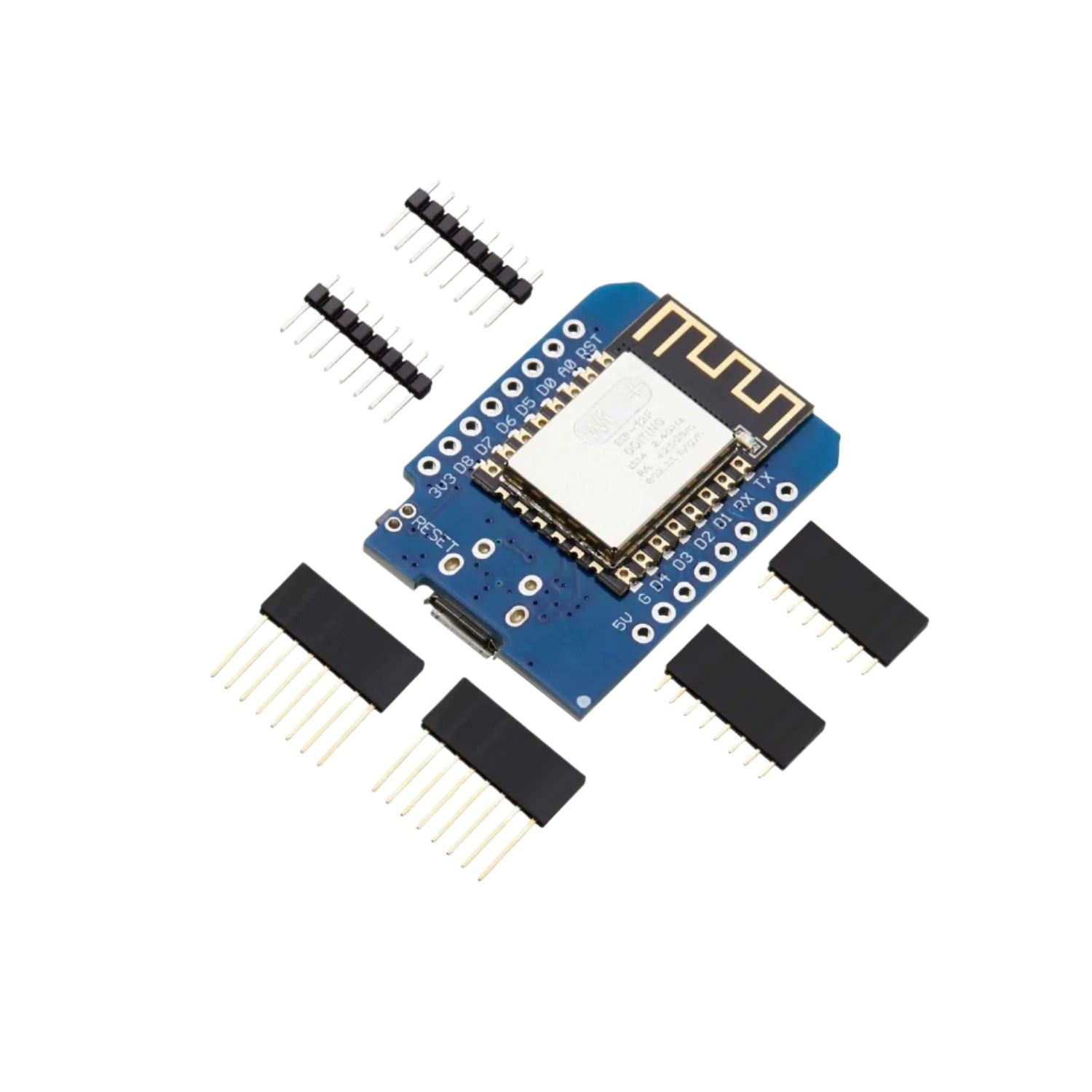

1 x D1 Mini Board Wemos D1 Mini
