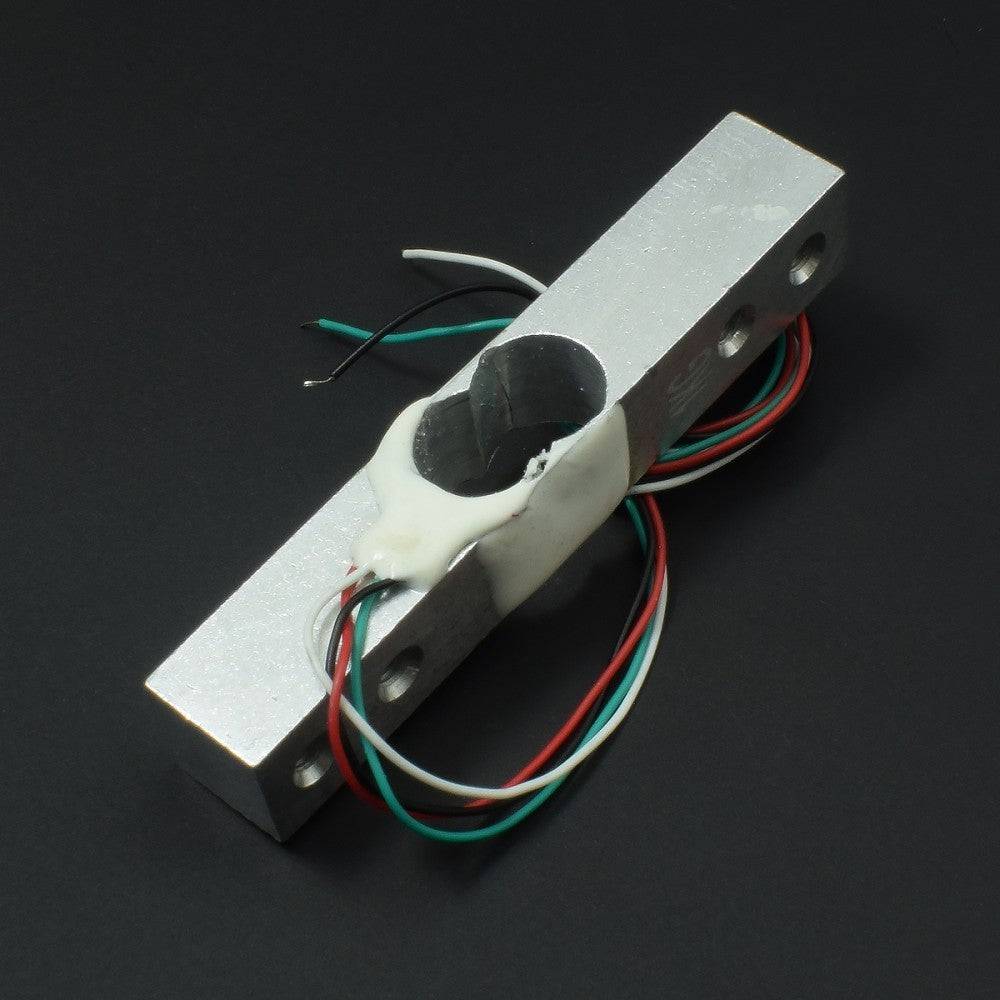

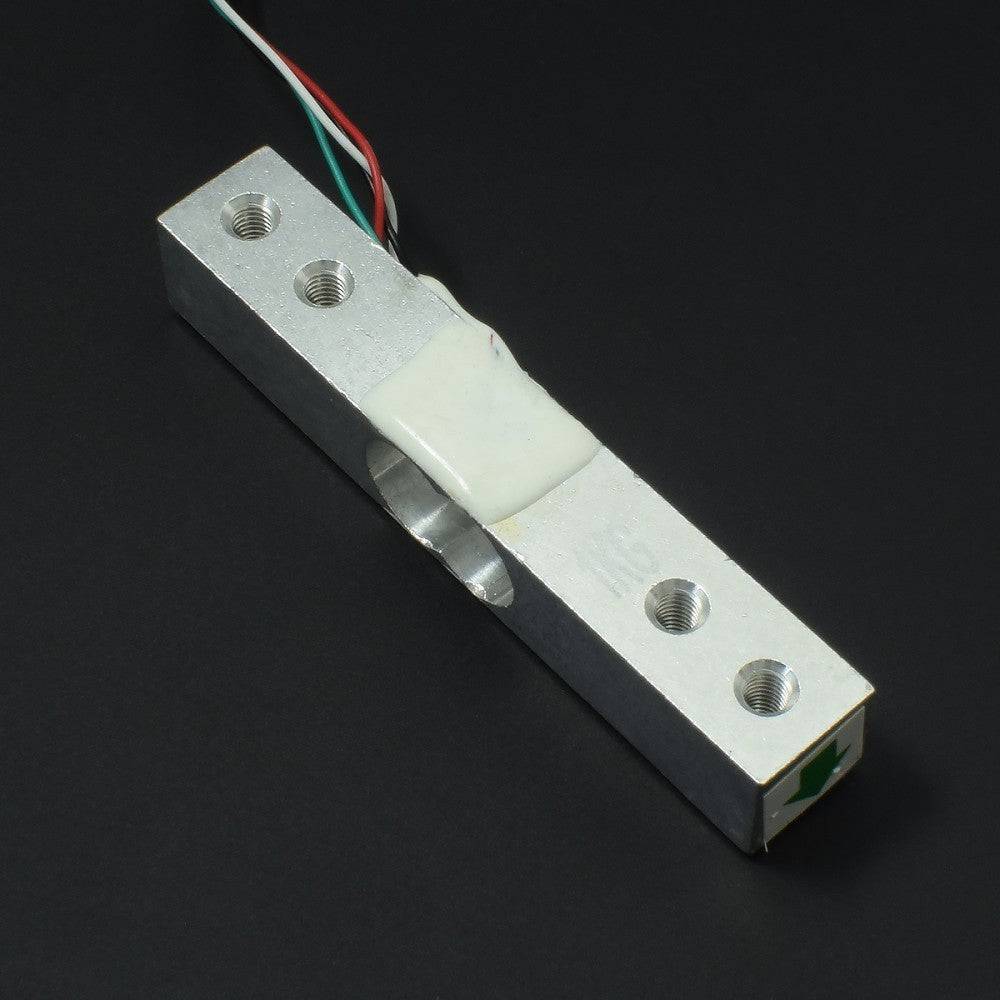

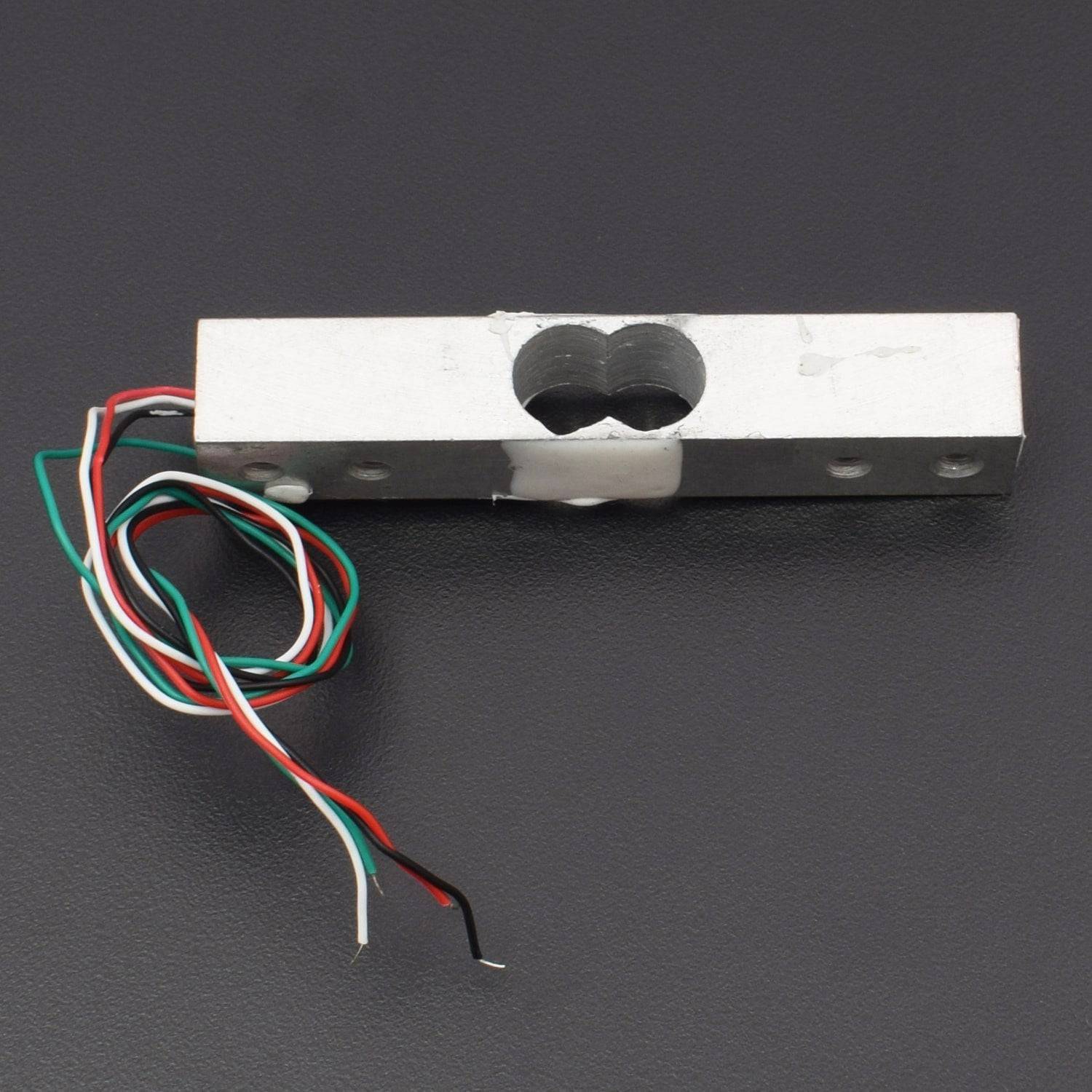

Weighing Load Cell Sensor 5Kg For Electronic Kitchen Scale YZC-131 With Wires for Arduino scale - AB094

Weighing Load Cell Sensor 5Kg For Electronic Kitchen Scale YZC-131 With Wires for Arduino scale - AB094

SKU:AB094

33 in stock

Regular price Rs. 152.00
Regular price Sale price Rs. 152.00
Sale Sold out
Shipping calculated at checkout.

Couldn't load pickup availability

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Model: YZC-131A
  • Range: 5 kg
  • Rated output: 1.0 0.1mV / V
  • Nonlinear: 0.05% F.S
  • Hysteresis: 0.0% F.S
  • Repeatability: 0.05% F.S

Description :

This straight bar load cell (sometimes called a strain gauge) can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight It has Four lead wires which can be connected to HX711 A/D Pressure Sensor. It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it. Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

Specification:

Model

YZC-131A

Material

Aluminum

Dimensions in mm (L x W x H)

75 x 12.7 x 12.7

Weighing Range

0~5 Kg

Rated Output

1.0 ± 0.1mV / V

Non Linear Output

± 0.03% F.S

Hysteresis

0.0% F.S

Repeat ability

0.05% F.S

Creep

(5 minutes) 0.05% F.S

Cable Length

20 cm

Zero Balance

± 0.1 mV / V

Input Impedance

1066 ± 10% Ω

Output Impedance

1000 ± 10% Ω

Temperature Effect on Output

0.003% F.S / C

Operating Temperature Range

-21º ~ 40º C

Weight (gm)

29

Insulation Resistance

2000 MΩ

Package Included:

1 x Weighing Load Cell Sensor 5Kg For Electronic Kitchen Scale YZC-131 With Wires for Arduino scale
