Description:
The WCS1700 finds application in various scenarios, including motor control systems where precise current feedback is crucial for optimal performance. Ā It is also valuable in load detection and management, enabling systems to monitor and control power consumption effectively.
Over-current fault detection is another critical area where the WCS1700 excels, providing rapid and reliable identification of potentially damaging current surges. Ā Furthermore, the sensor is an integral part of intelligent power management systems, contributing to efficient energy usage and system stability.
Specifications:
- Item Type: Current Sensor
- Model Type: Hall Current Sensor
- Working voltage: DC-DC 5V
- Current detection resolution: 32mV / A
- Pass-Through Wire Diameter: 9mm
- Output Current Sink: 0.4mA
Features:
- The current detection resolution of 32mV / A
- Output overcurrent signal indication
- Overcurrent signal is set to critical point adjustable settings, Resolution 3A
- With mounting holes for easy firmware installation
- Sampling the current converting analog signal output, which can be accessed Via ADC, a TTL level signal output, which can be accessed microcontroller IO port control.
- The output signal is the signal level of the analog signal.
- Maximum current sensing range: 70A
Package Included:

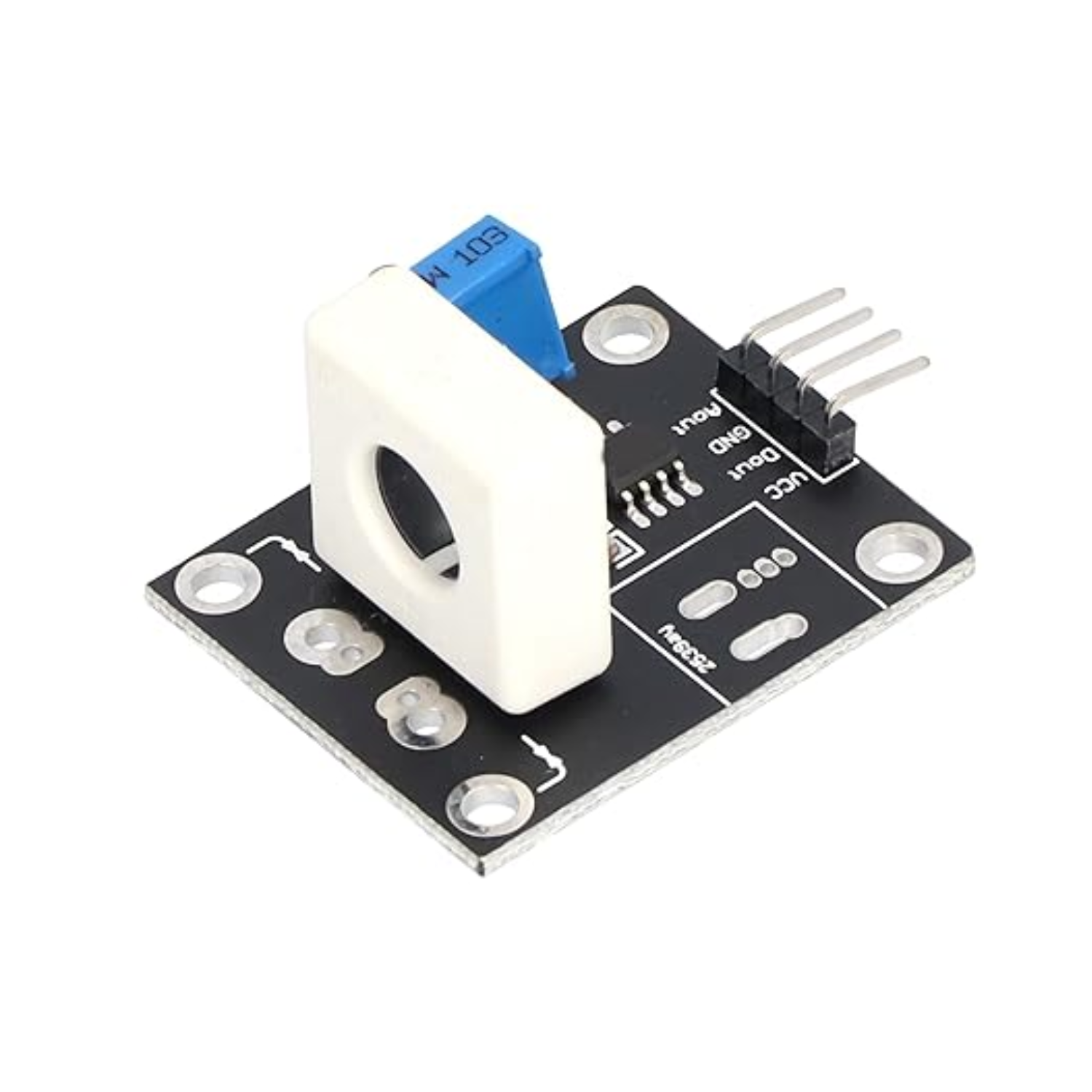

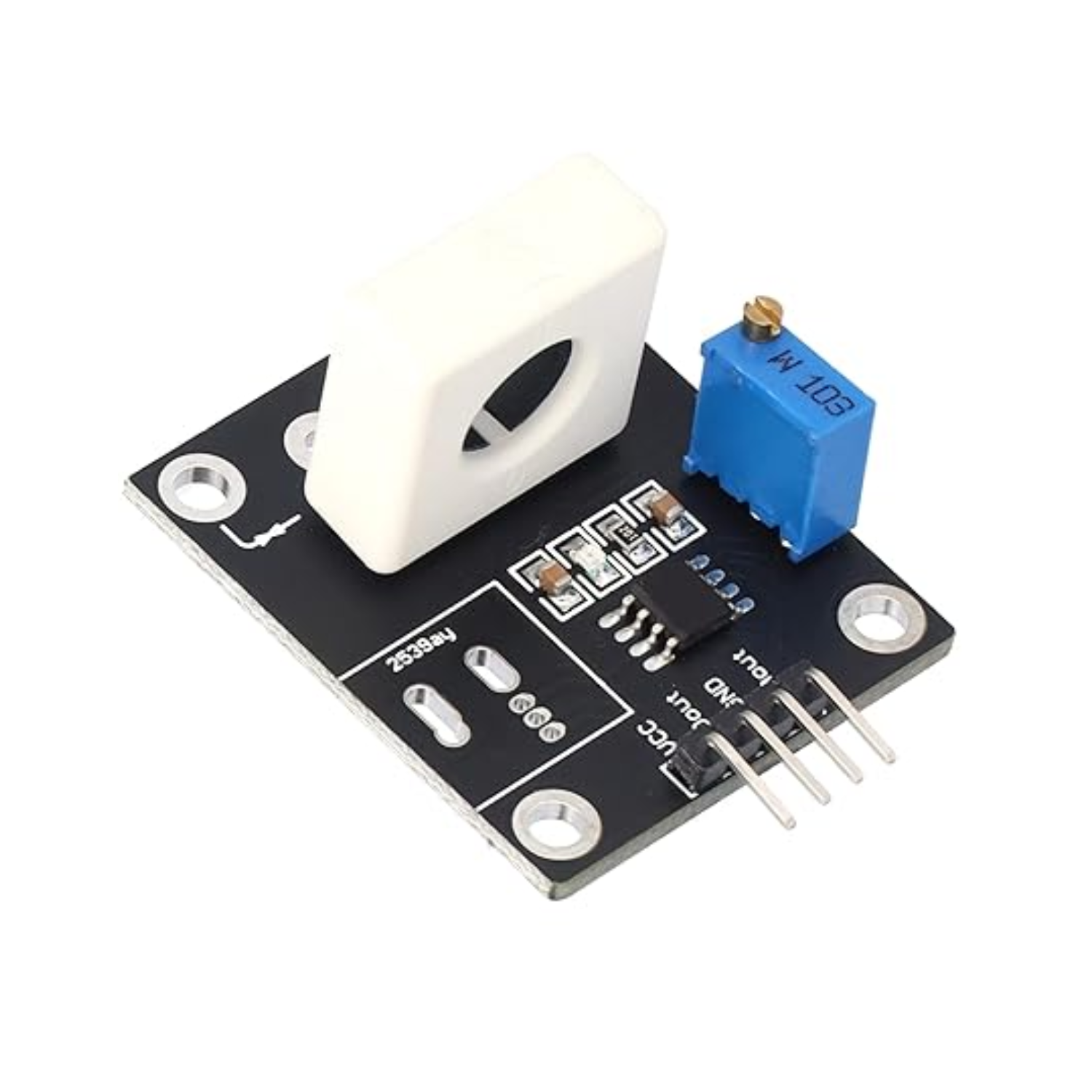

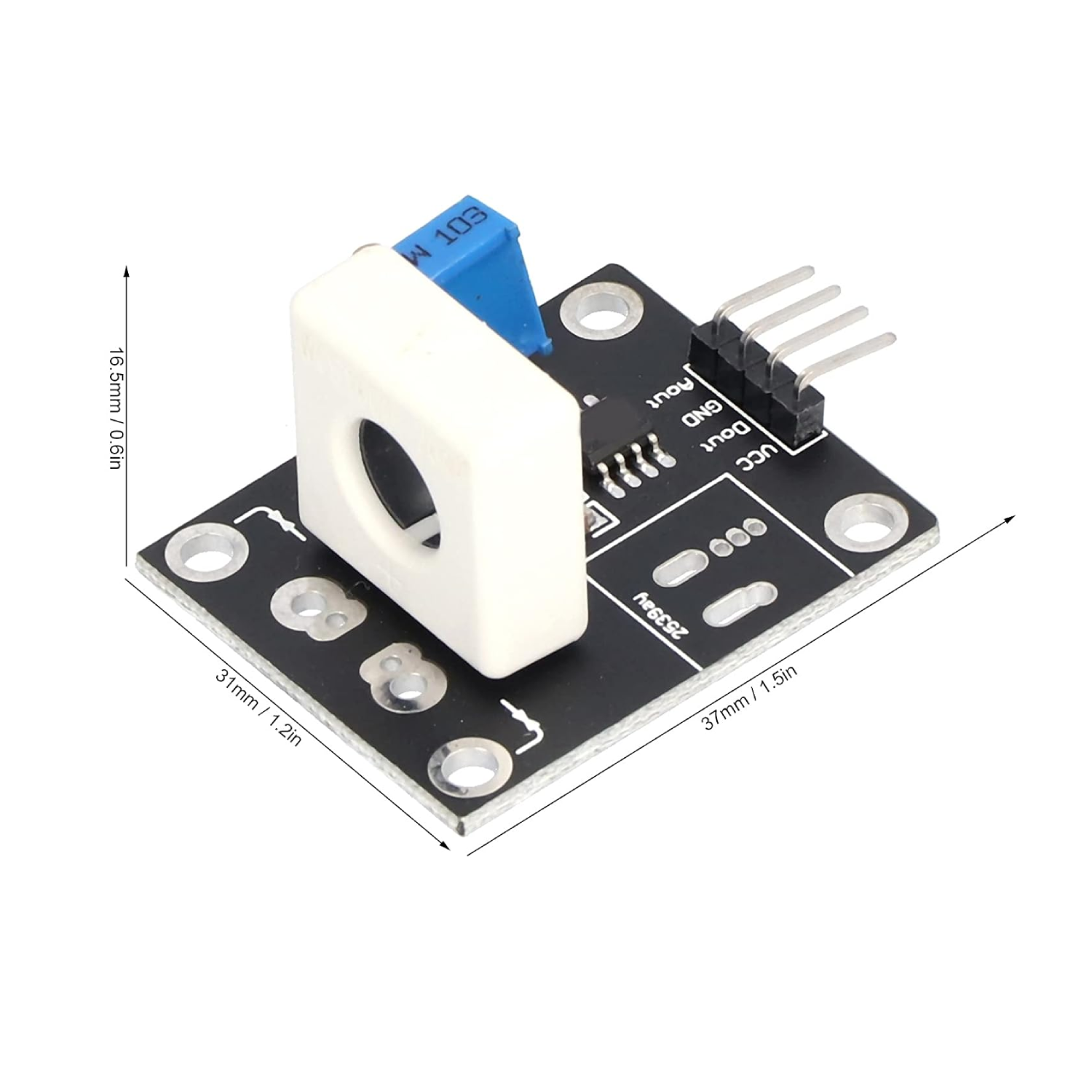

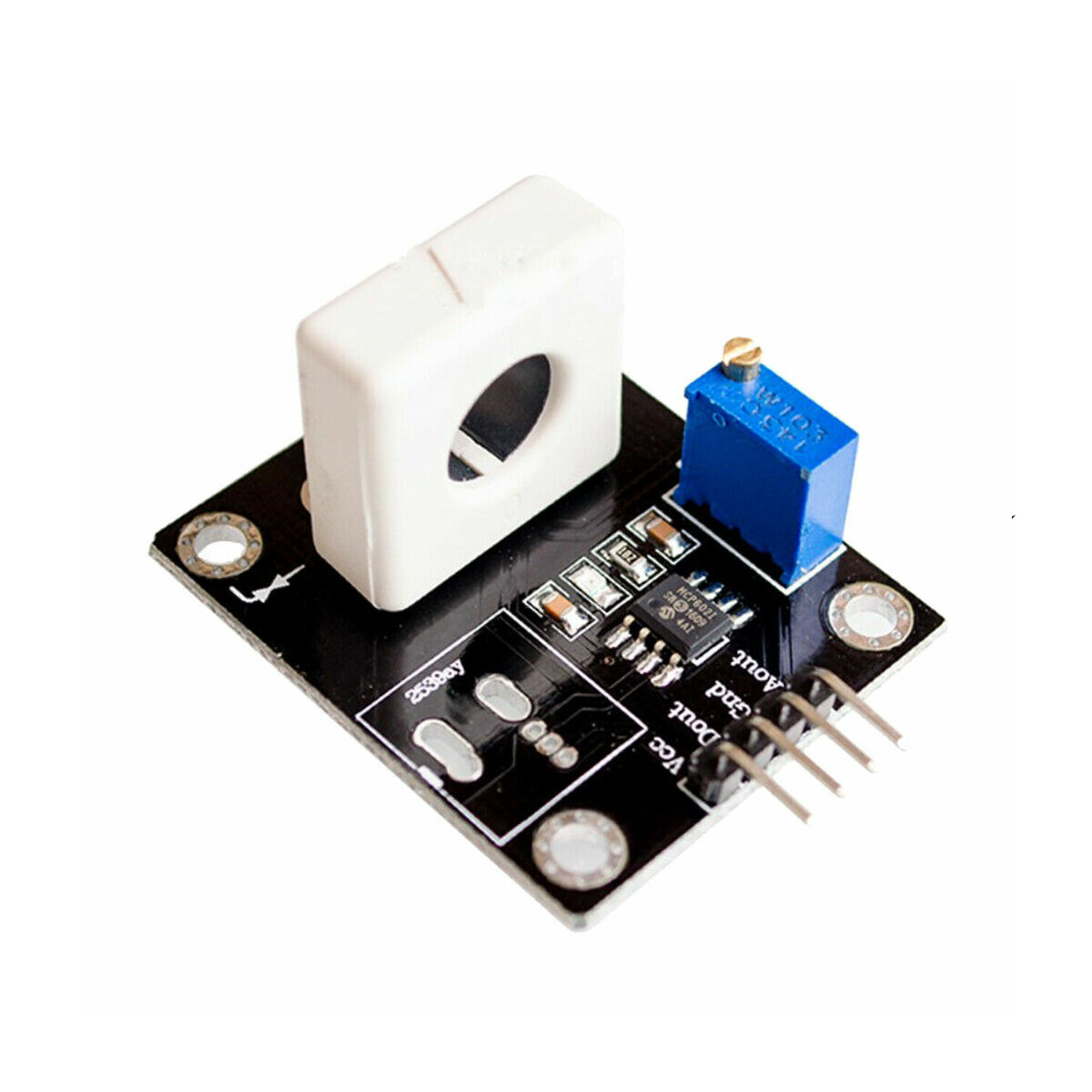

1 x WCS1700 Hall Current Sensor with Over Current Protection
