Description:
The WCS1700 current sensor module provides economical and precise solutions for both DC and AC sensing in industrial, commercial, and communications systems.
The unique package provides easy implementation without breaking the original system and makes current sensing possible. Hall Current Sensor with Overcurrent Protection is Typical applications include motor control, load detection and management, over-current fault detection, and any intelligent power management system, etc.
The WCS1700 module consists of a precise, low-temperature drift linear hall sensor IC with a temperature compensation circuit and diameter of 9.0mm.
Specifications:
- Working Voltage: DC-DC 5V
- Main Chip: LM393 op-amp
- Pass-Through Wire Diameter: 9mm
- Output Current Sink: 0.4mA
Features:
- The current detection resolution of 32mV / A
- WCS1700 Hall Current Detection Sensor has output overcurrent signal indication
- Overcurrent signal is set critical point adjustable settings Resolution 3A
- WCS1700 Hall Current Detection Sensor with mounting holes for easy firmware installation
- Sampling current converting analog signal output, which can be accessed ADC, TTL level signal output, which can be accessed microcontroller IO port control.
- The output signal is the signal level of the analog signal.
- Maximum detection current selectable: 2A / 5A / 7.5A / 20A / 30A / 35A / 60A / 75A / 100A / 150A / 200A.
Package Included:

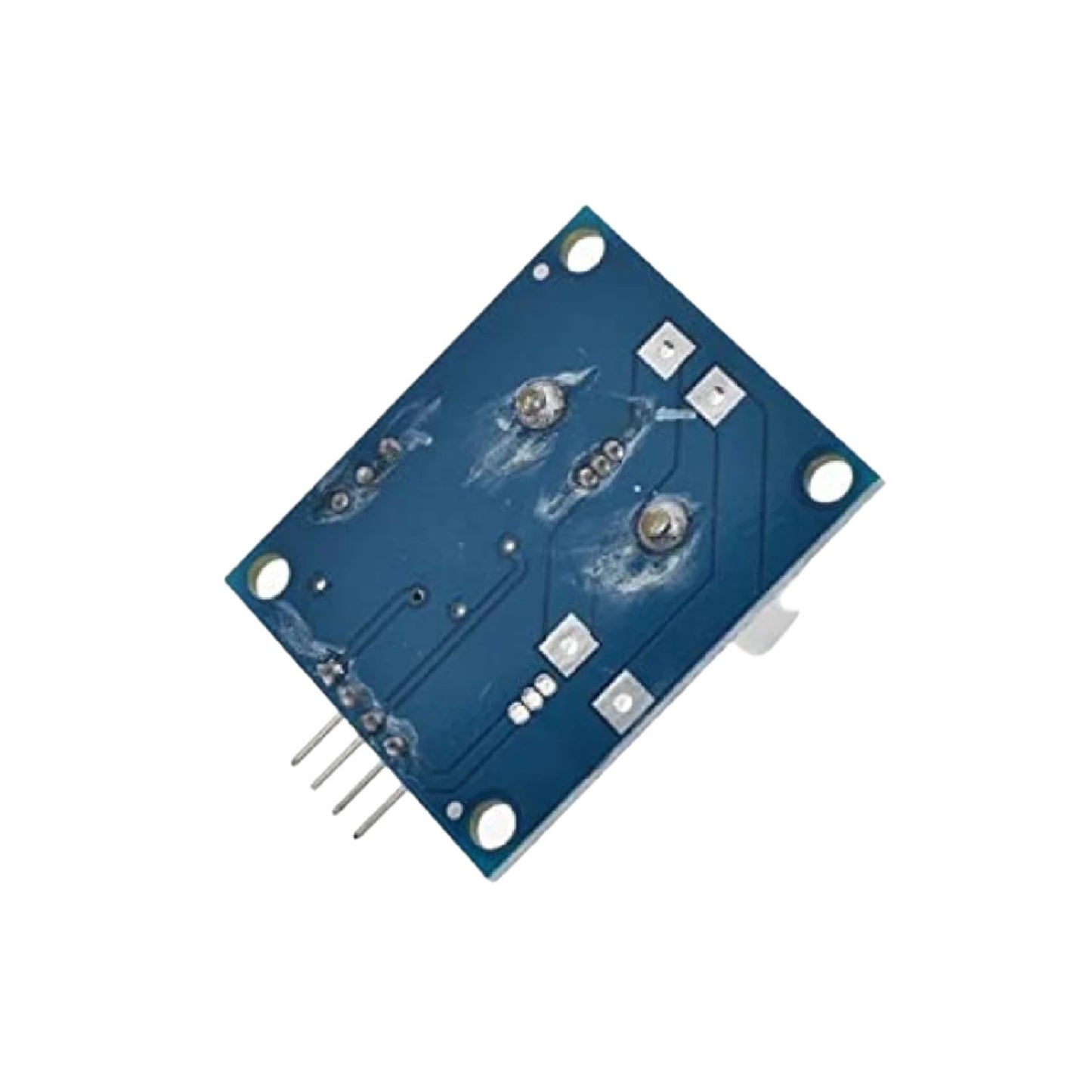

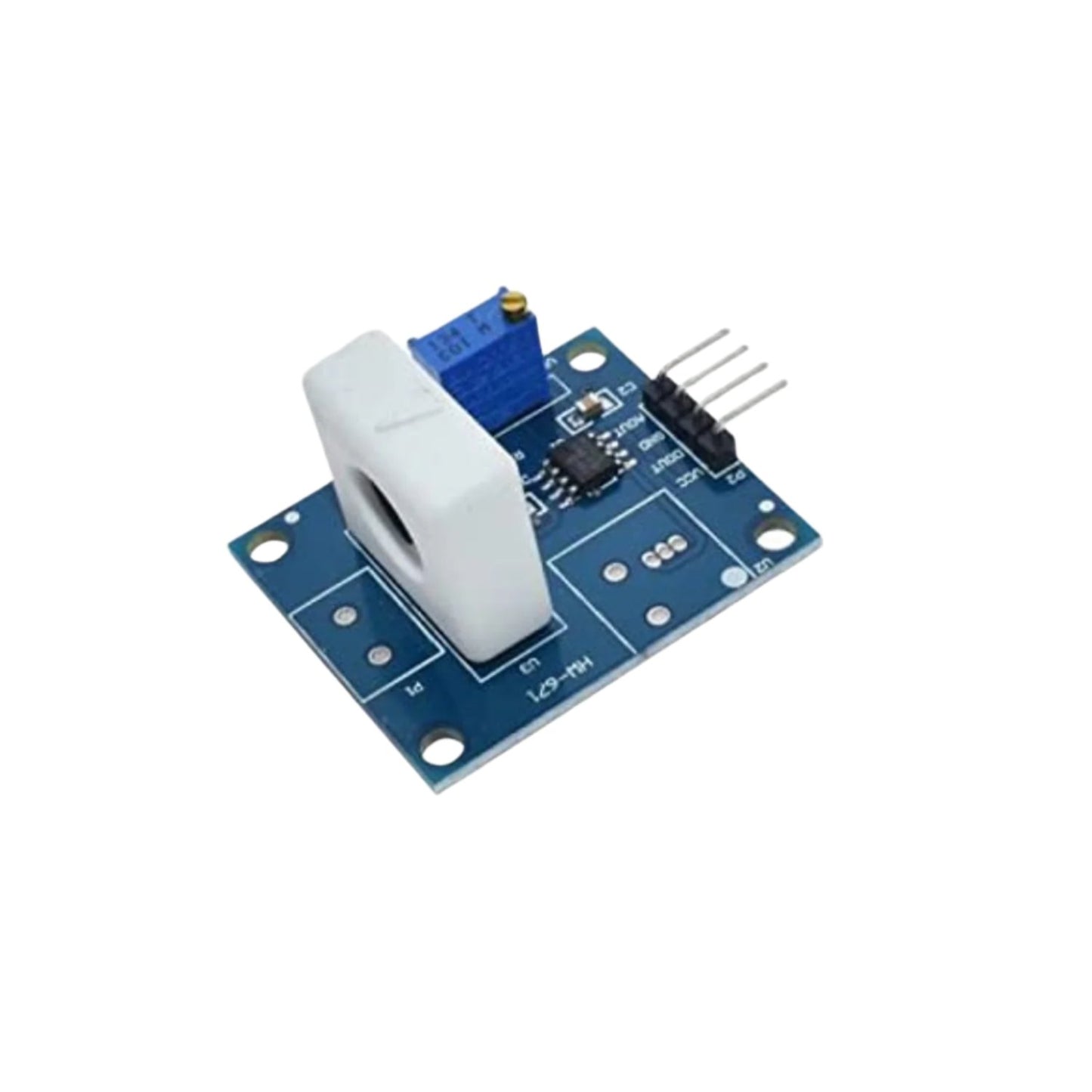

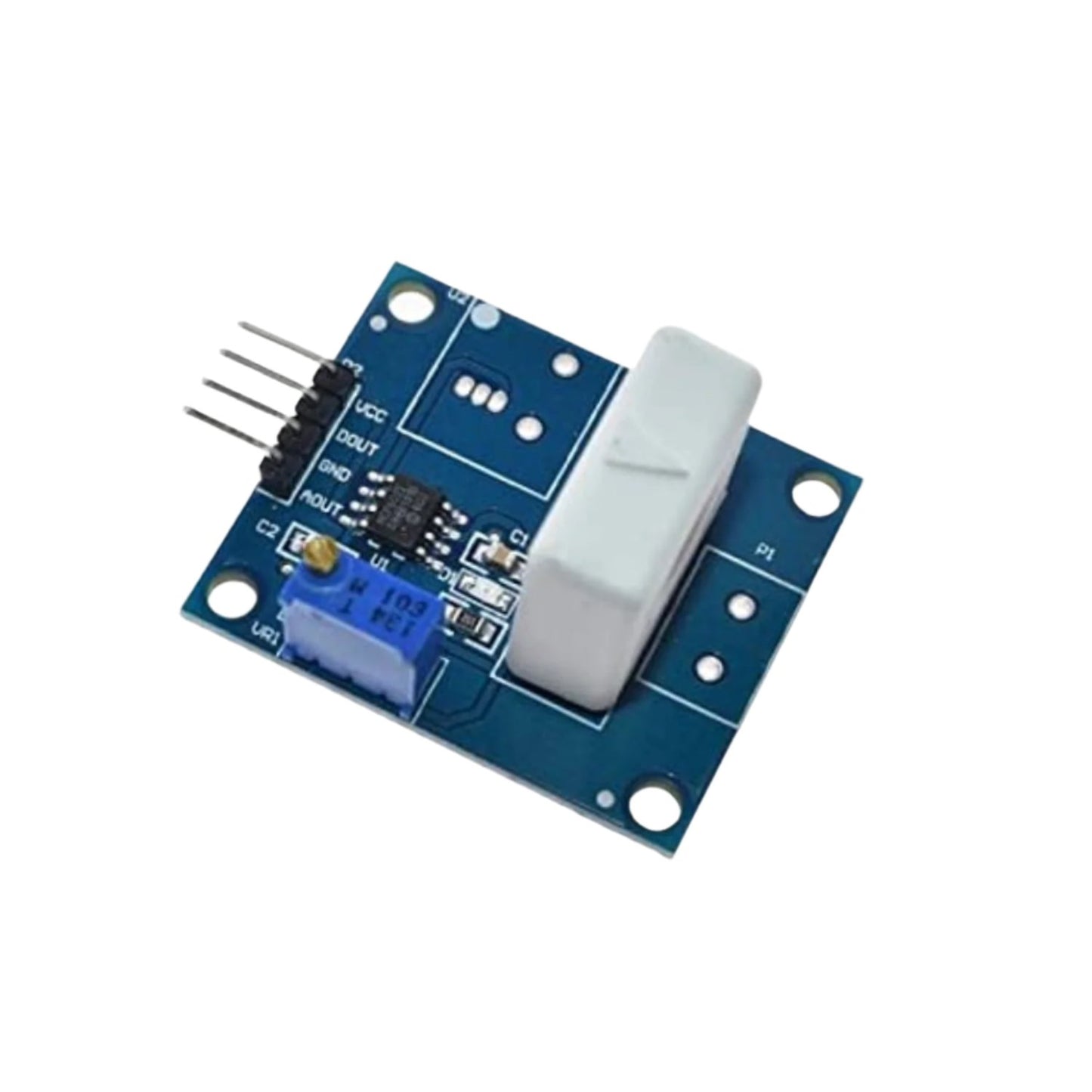

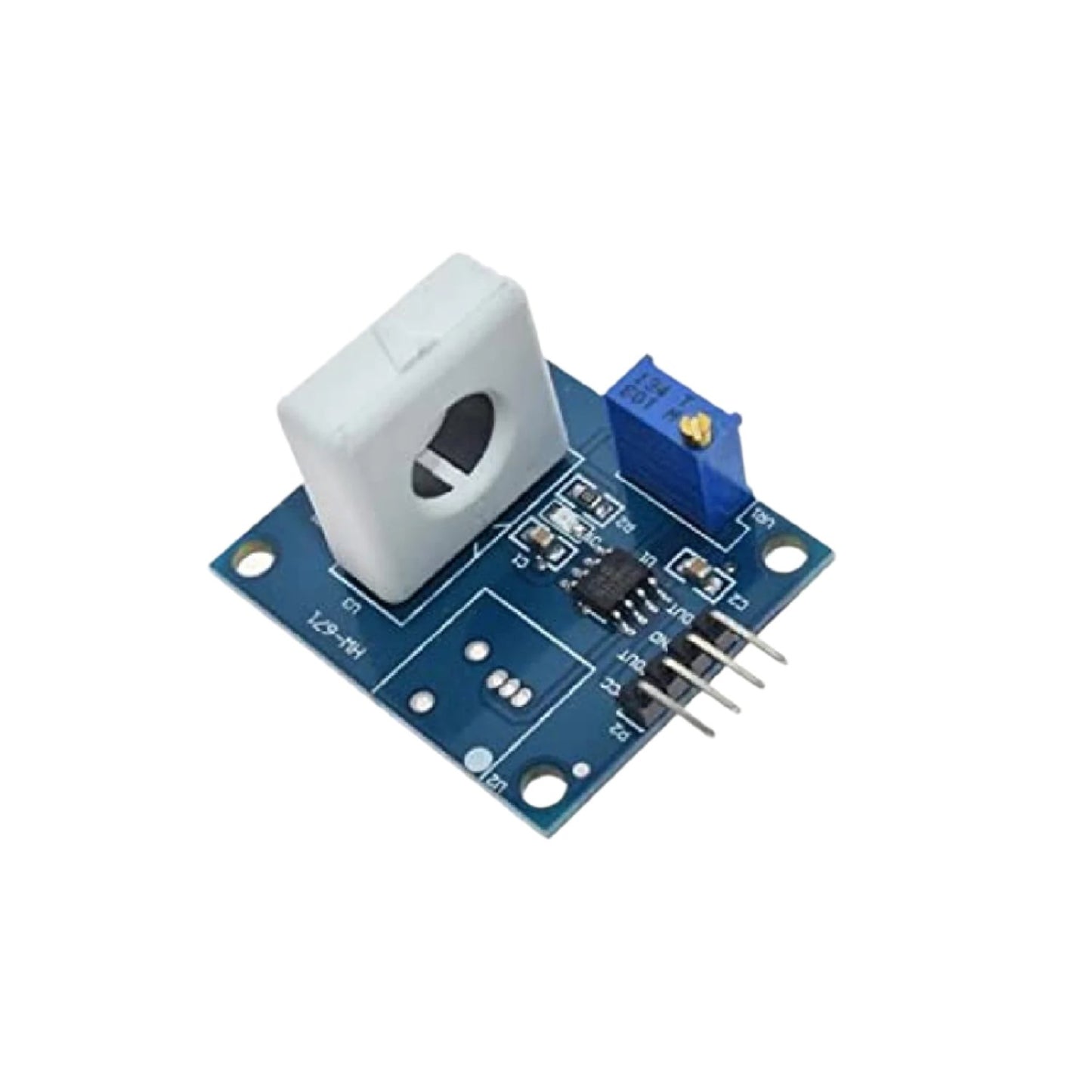

1 x WCS1700 Hall Current Sensor Module
