Description:

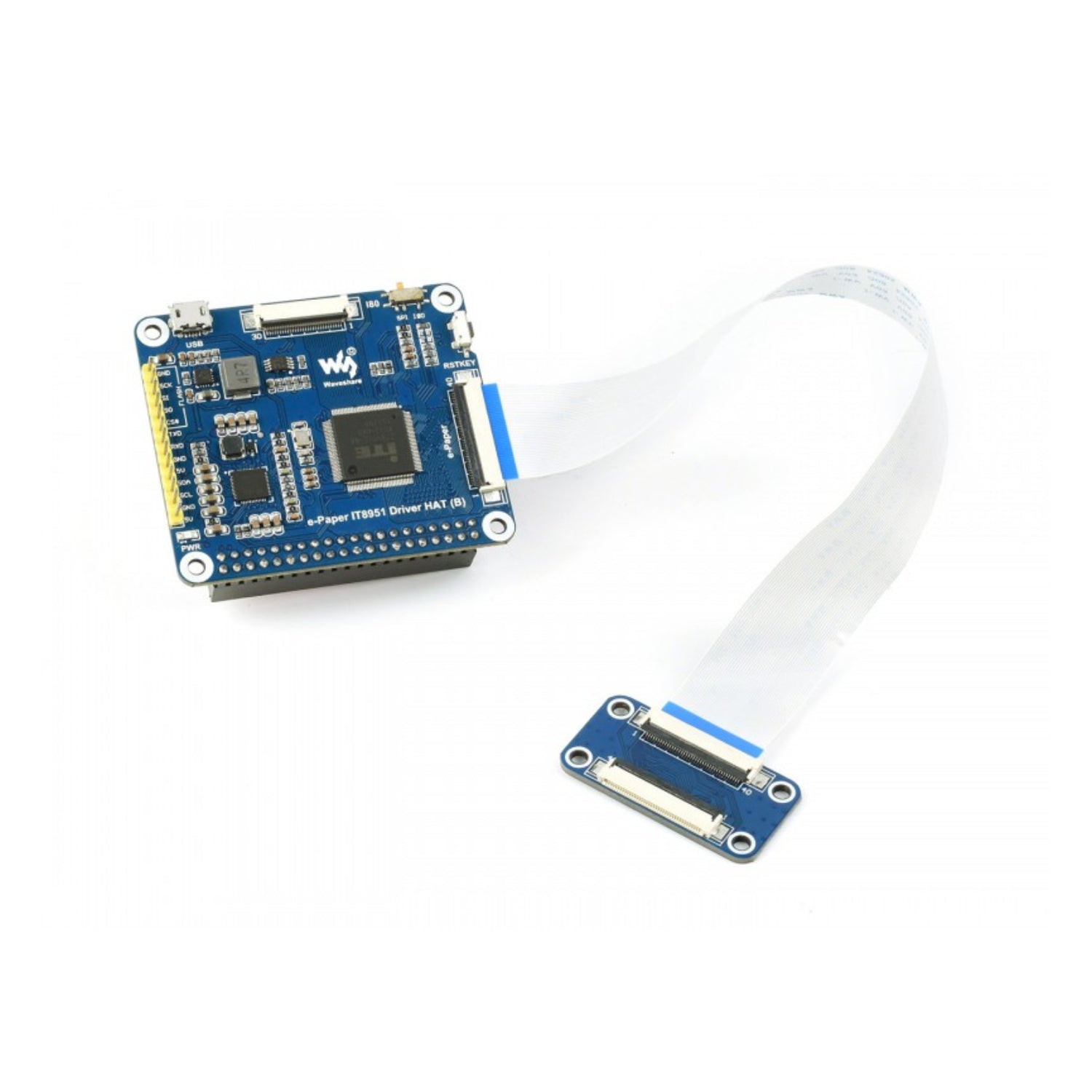

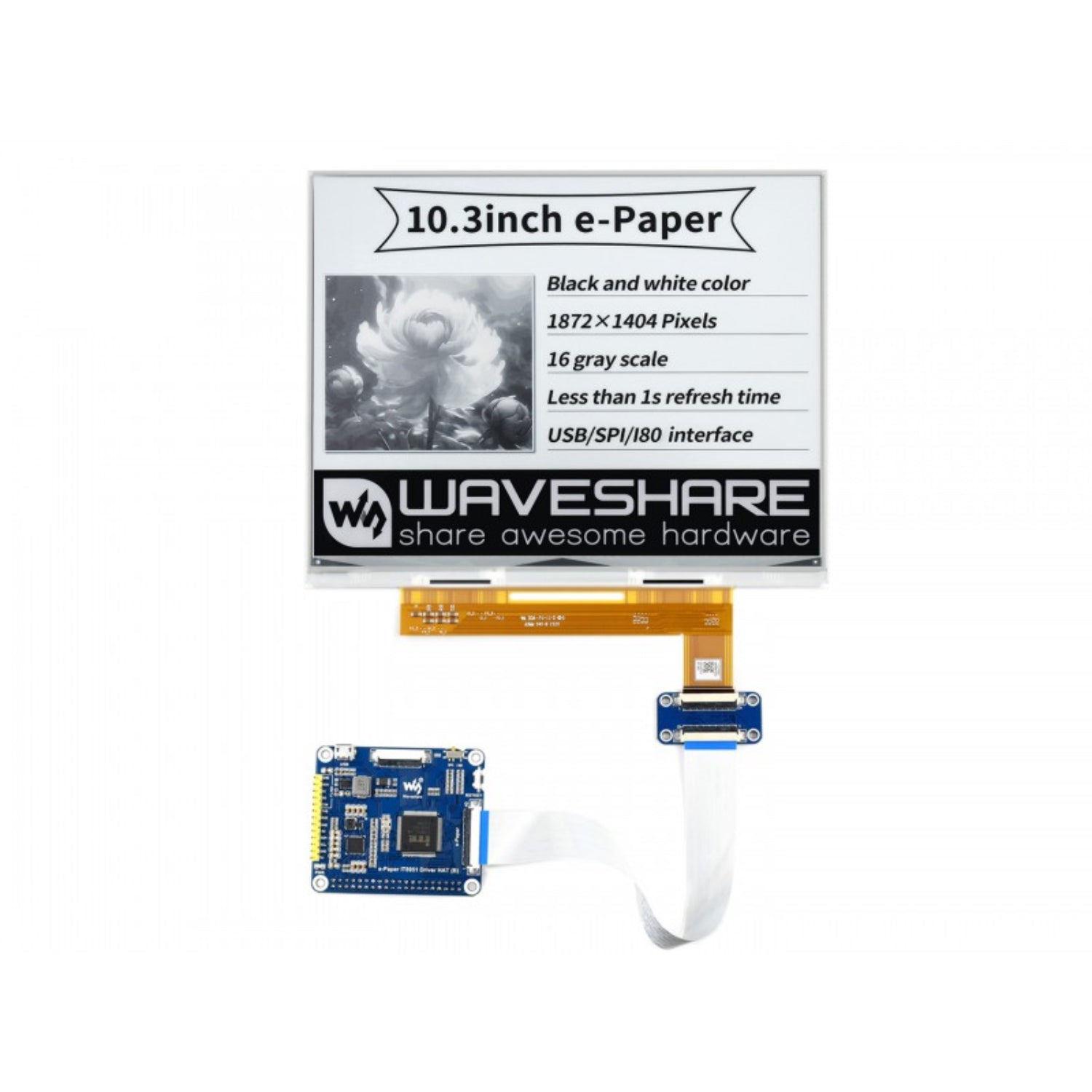

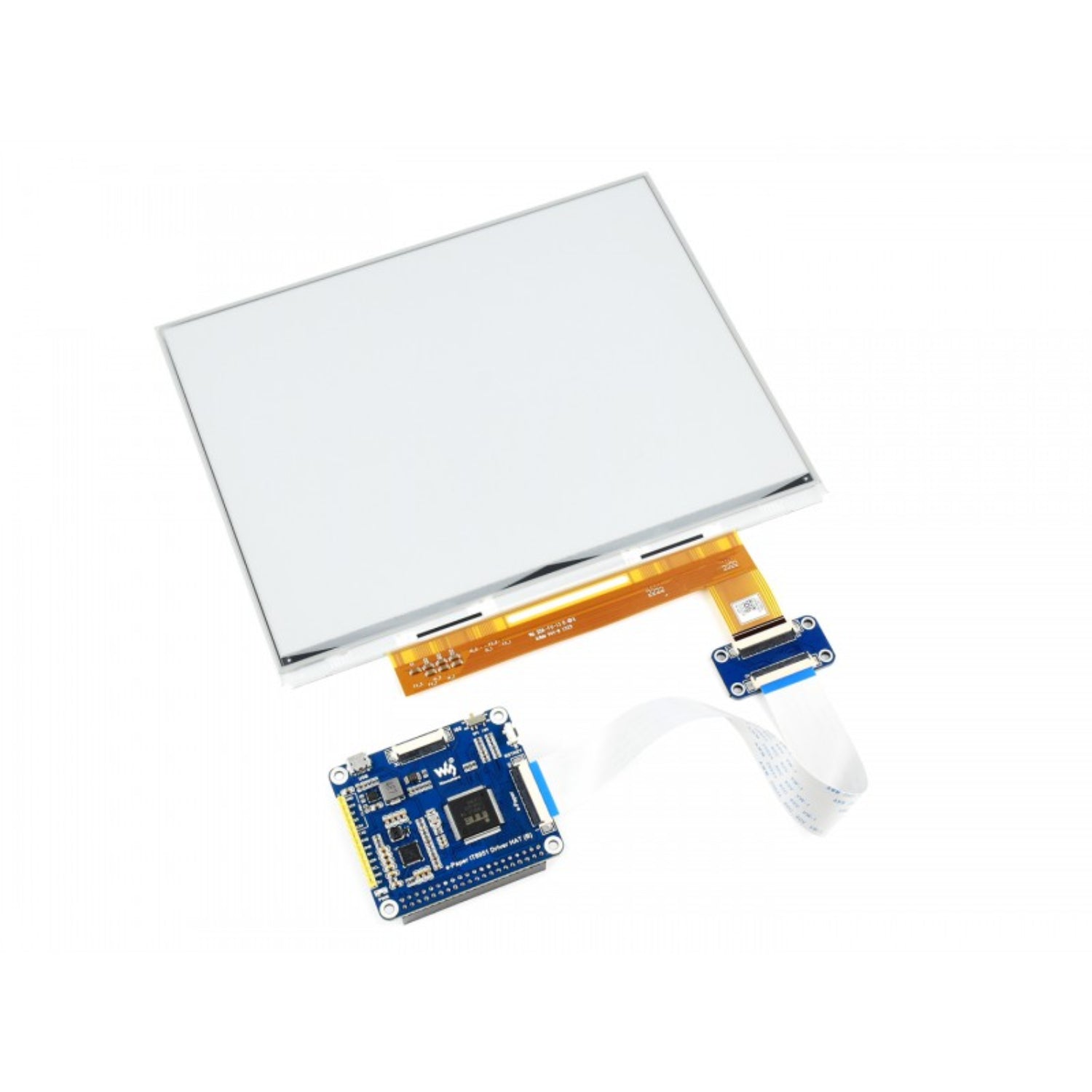

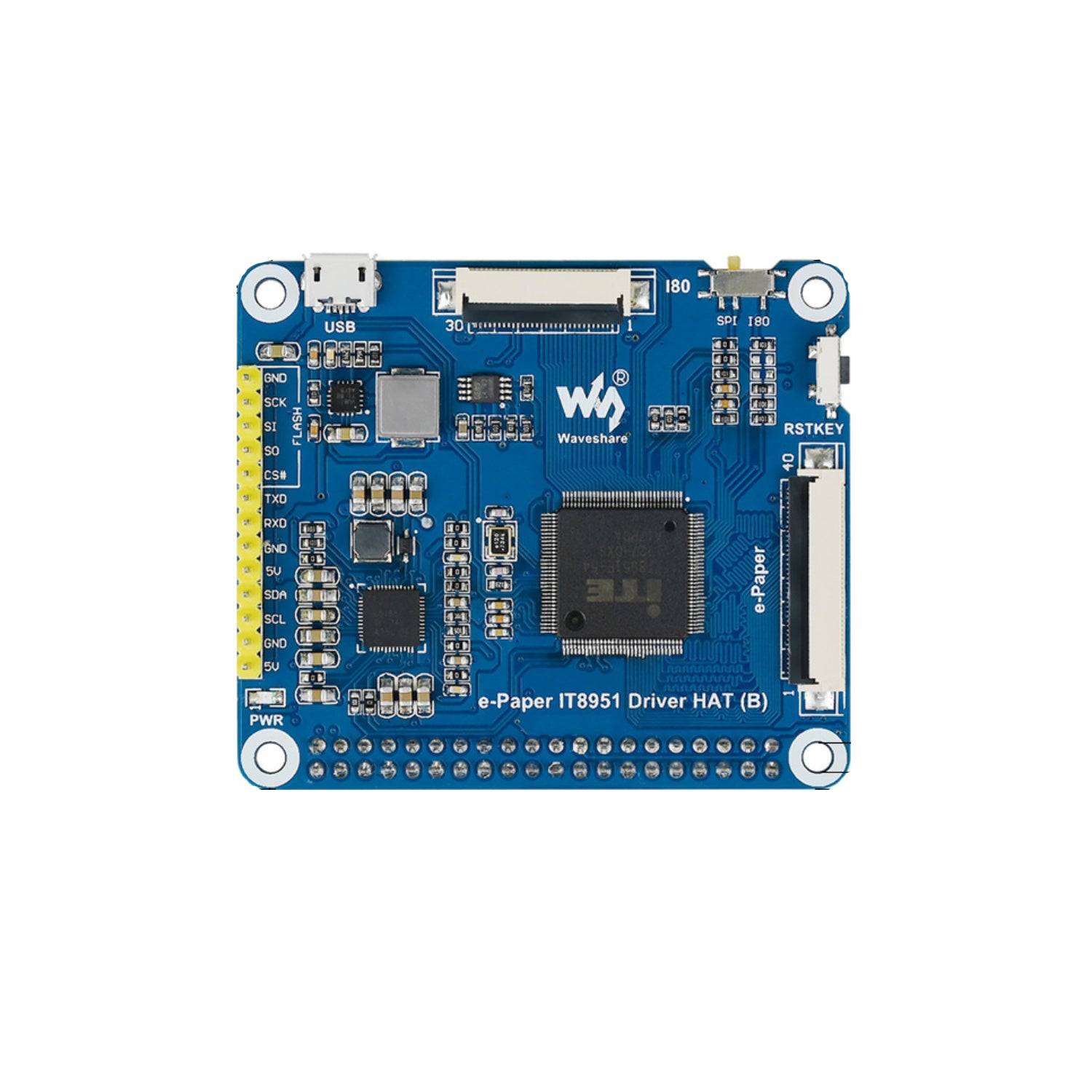

10.3-inch EPD (Electronic Paper Display) HAT for Raspberry Pi, 1872 x 1404 resolution, with embedded controller IT8951, USB/SPI/I80/I2C interface, supports partial refresh.
It has the advantages of low power consumption, wide viewing angle, and clear display under direct sunlight, and is often used in display applications such as ebook readers, e-ink displays, and industrial instruments.
Features:
- No backlight keeps displaying the latest content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
- Standard Raspberry Pi 40 GPIO pin headers are compatible with the Raspberry Pi series board.
Pin Description:
SPI Port:-
- VCC: Power, 5V input
- GND: Ground
- MISO: SPI MISO pin
- MOSI: SPI MOSI pin
- SCK: SPI SCK pin
- CS: SPI chip selection, low active
- RST: External reset, low active
- HRDY: Busy status output, low active
Useful Link:
Package Included:
1 x Wavshare 10.3" ePaper Display HAT 1872×1404 e-Ink Display HAT USB/SPI/I80 Interface Raspberry Pi ePaper Display HAT For 16 Grayscale High-Resolution Display
