- 4 x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1.
- Onboard external USB-C 5V DC power port, ensures a more stable power supply.
- 1 x power indicator and 4 x USB port indicators, easy to check the operating status.
- Driver-free, plug, and play, compatible with OS including Windows, Mac OS, Linux, and Android.
- Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi versions and Sunrise X3 PI.
- Comes with development resources and manual.
Description :
This is a driver-free 4-port USB 3.2 Gen1 Hub HAT for Raspberry Pi and Sunrise X3 PI, providing more USB capability to your Pi or X3 PI, making it easy to connect more USB devices.

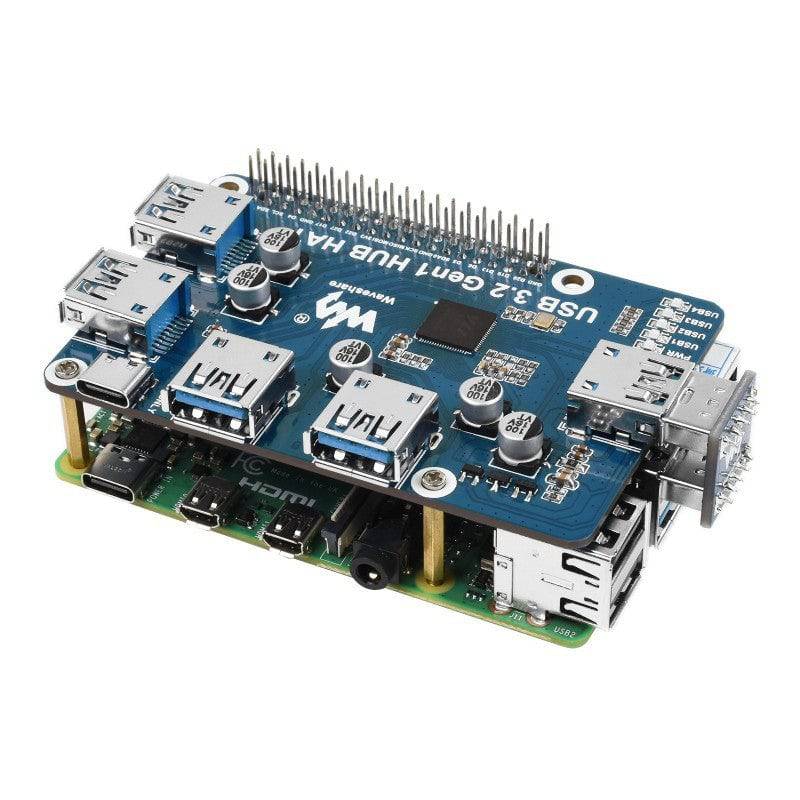

The HAT features a standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports are able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.
Feature
- 4 x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1.
- Onboard external USB-C 5V DC power port, ensures a more stable power supply.
- 1 x power indicator and 4 x USB port indicators, easy to check the operating status.
- Driver-free, plug, and play, compatible with OS including Windows, Mac OS, Linux, and Android.
- Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi versions and Sunrise X3 PI.
- Comes with development resources and manual.

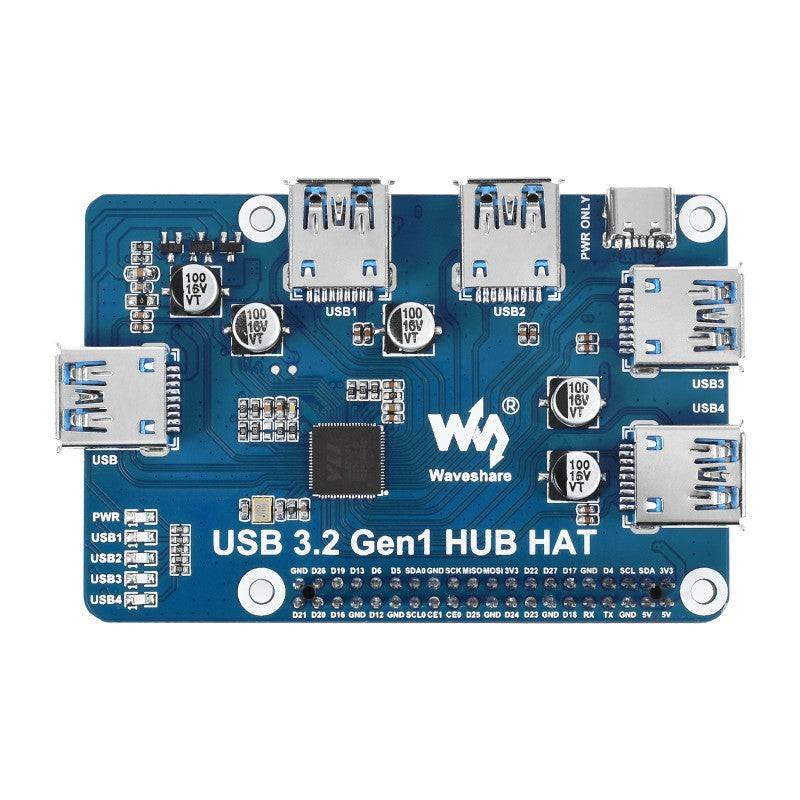

What's on board
- Raspberry Pi GPIO: Standard Raspberry Pi 40PIN GPIO Header, customized for Raspberry Pi series boards and X3 PI.
- USB 3.2 Gen1 HUB Interface: It should be connected to the USB interface of the Raspberry Pi and X3 PI.
- USB 3.2 Gen1 Ports: Four USB3.0 ports are extended (USB1~UBS4)
- PWR ONLY Interface: It is used for connecting an external 5V DC power supply.
- VL817-Q7:USB HUB chip
- MX25L512EOI-10G：FLASH chip
- PWR: Power indicators.
- USB1~USB4：Indicators of USB ports
Package Included :
- USB 3.2 Gen1 HUB HAT x1
- USB 3.0 Adapter x1
- USB 2.0 Adapter x1
- USB 3.0 dual plug cable x1
- RPI screws pack (2PCS) x1
