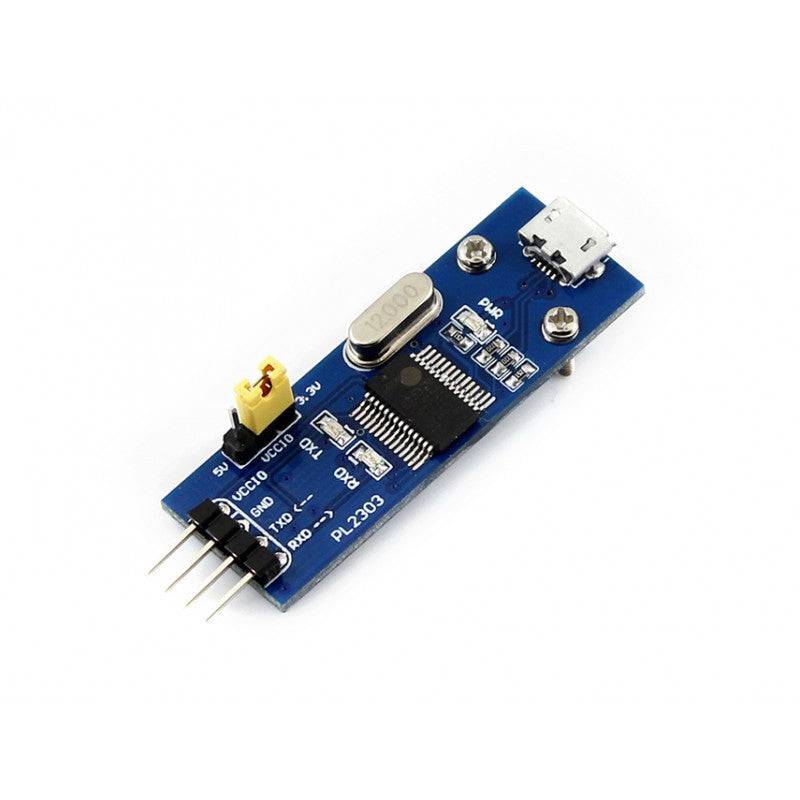

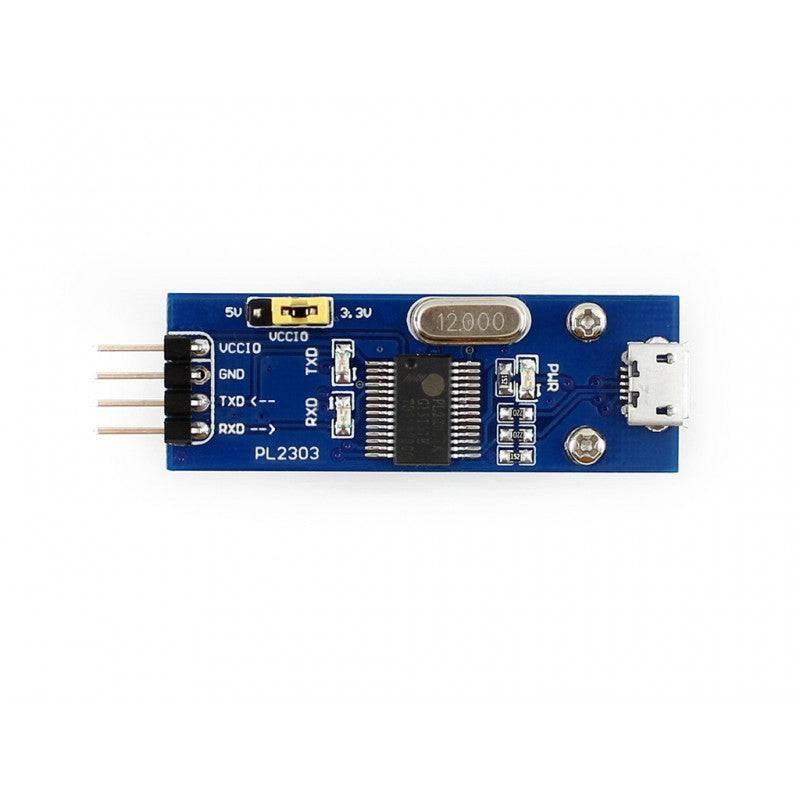

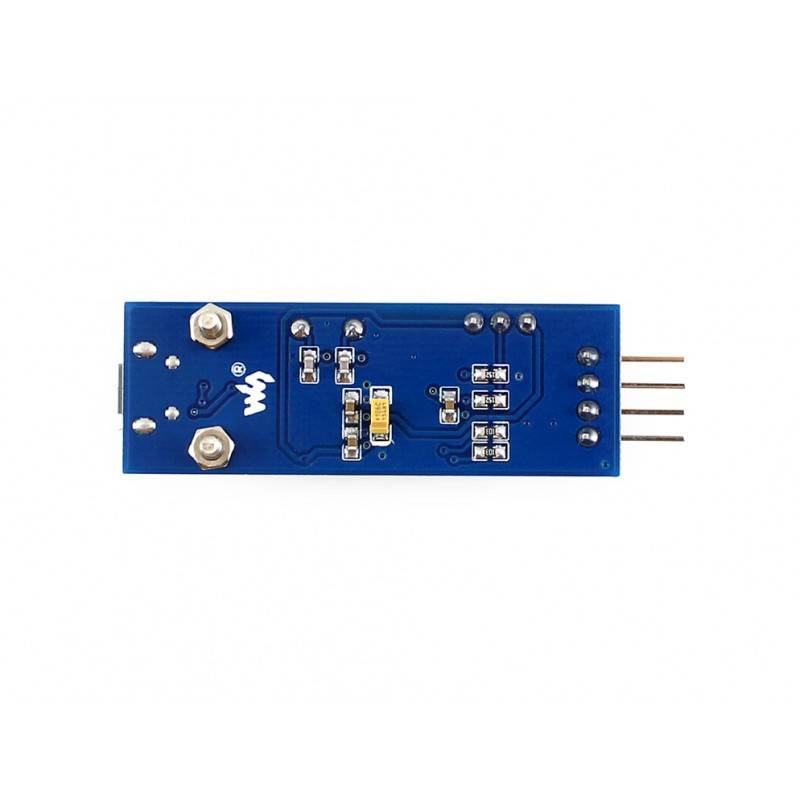

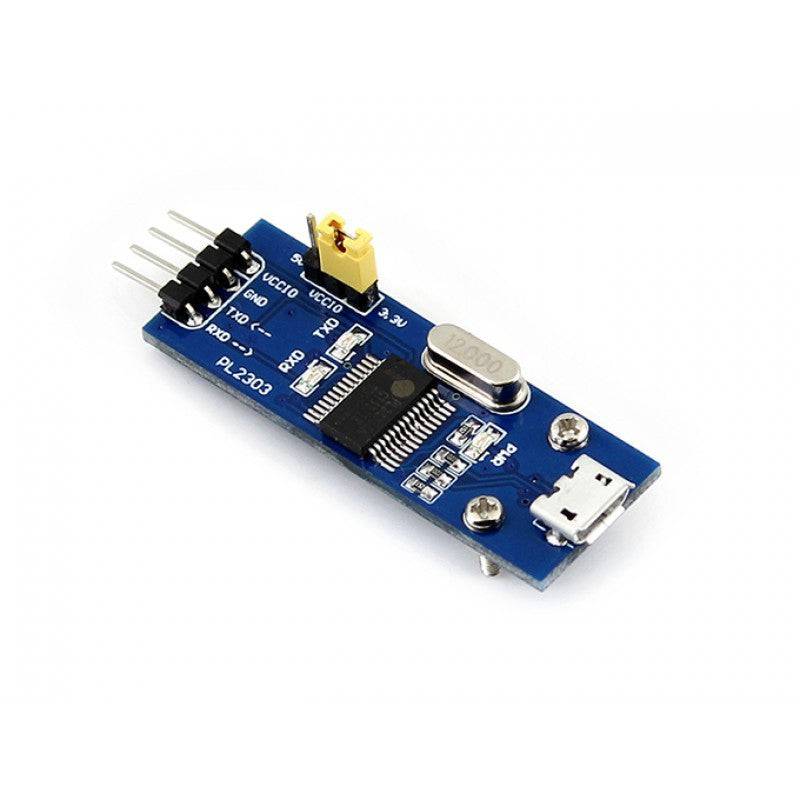

Waveshre PL2303 USB UART Board (micro) -RS682

Waveshre PL2303 USB UART Board (micro) -RS682

RS682

Low stock: 7 left

Rs. 287.00
Rs. 287.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • PL2303TA onboard (the latest device, compatible with PL2303HXA)
  • Supports windows XP/7/8/8.1/10. If you need to use in WIN11, please purchase PL2303 USB UART Board (Type C)
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED

Features

  • PL2303TA onboard (the latest device, compatible with PL2303HXA)
  • Supports windows XP/7/8/8.1/10. If you need to use in WIN11, please purchase PL2303 USB UART Board (Type C)
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED

How to Use

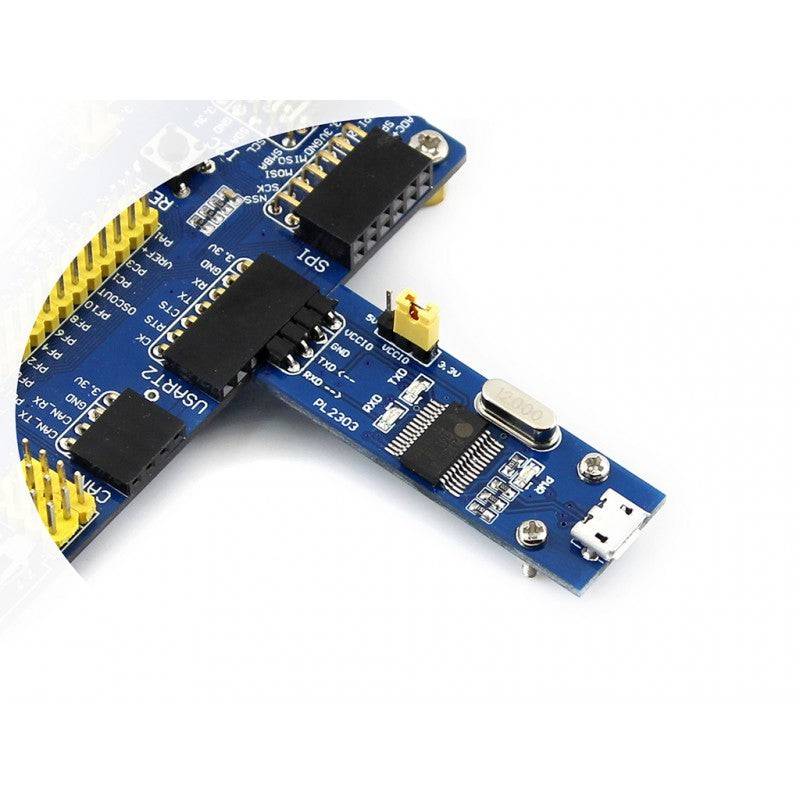

In the case of working with a MCU:

VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

Package included :

  • PL2303 USB UART Board (micro) x1
  • 4-pin custom connector jumper wire x1
