Description:

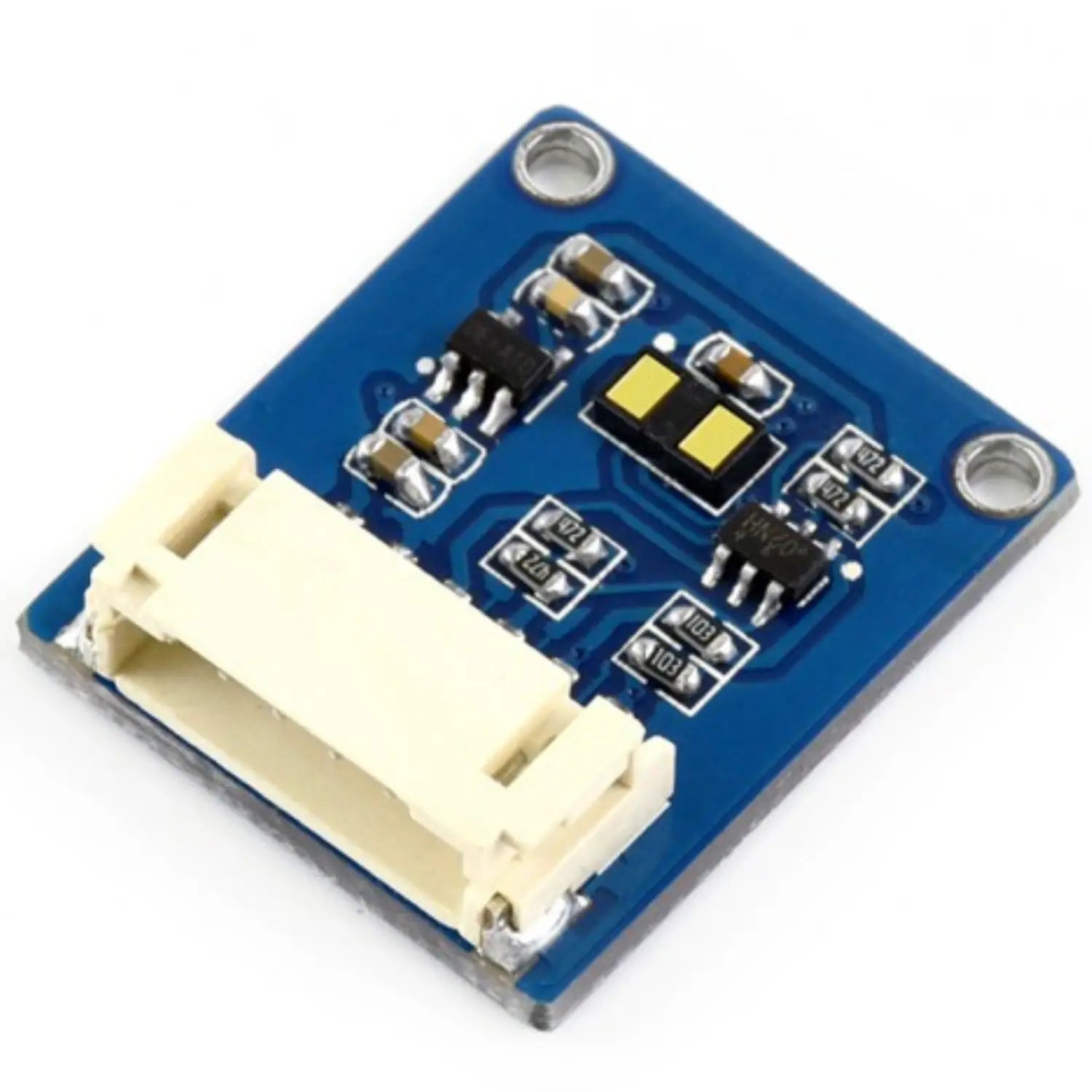

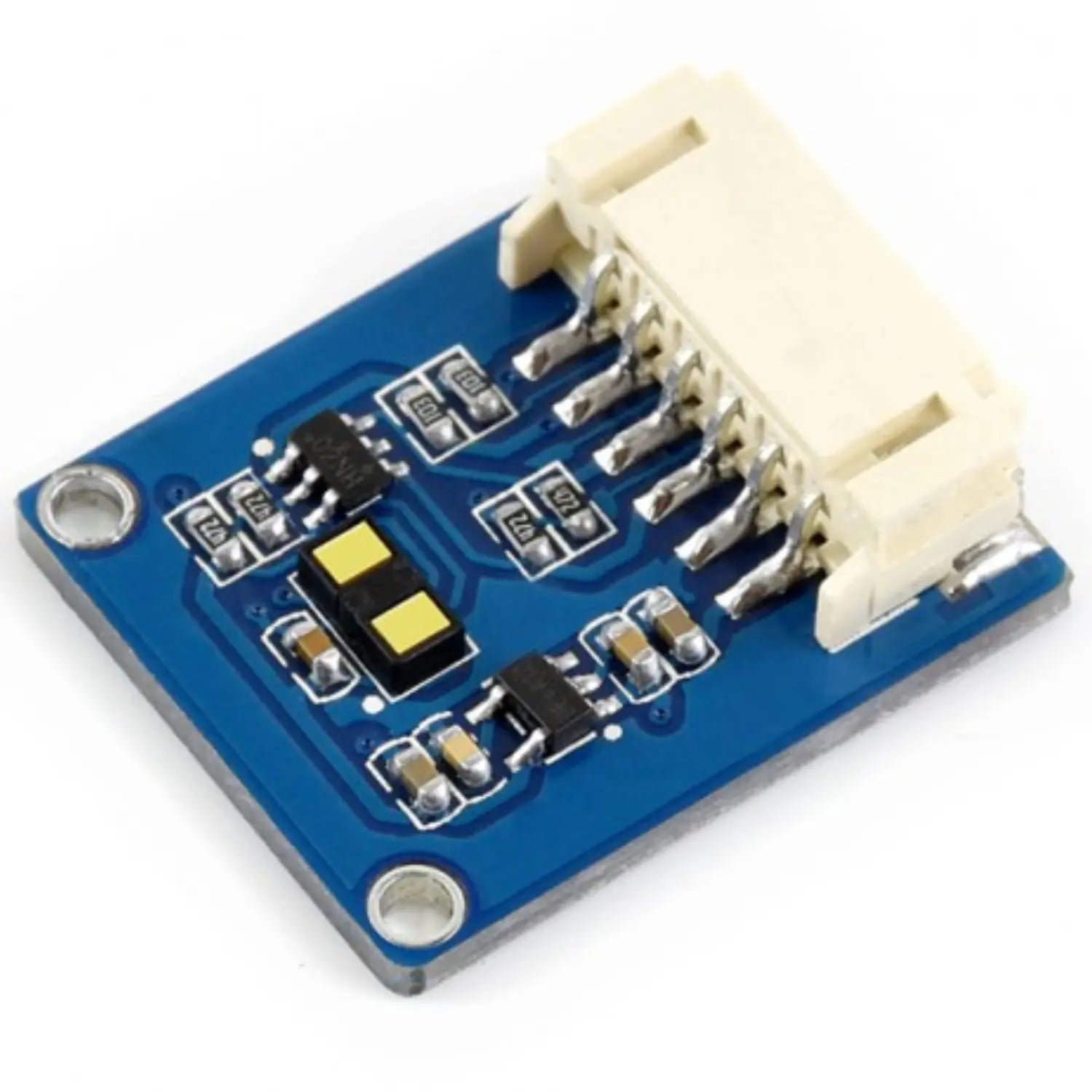

The Waveshare VL53L1X Distance Sensor is a sophisticated Time-of-Flight (ToF) ranging module that leverages ST's advanced VL53L1X chip, featuring their third-generation FlightSense technology. This sensor offers highly accurate distance measurements up to 4 meters with a rapid ranging frequency of up to 50 Hz.
Designed for efficiency, the VL53L1X is controlled via an I2C interface and boasts remarkably low power consumption. Compared to its predecessor, the VL53L0X, this module significantly extends the ranging capability and improves speed.
A key advantage of the VL53L1X is its integrated physical infrared filters and optics. Utilizing ST's latest ToF technology, it provides absolute distance measurement regardless of the target's color or reflectance, ensuring superior anti-interference capability for reliable performance in various environments.
Specification:
- Operating voltage: 3.3V/5V
- Dimension: 20mm × 24mm
- Mounting hole size: 2.0mm
- Ranging distance: 40 ~ 4000mm
- Ranging accuracy: ±5%
- Ranging time (min): 20ms (short distance mode), 33ms (medium/long distance mode)
- Field of view: 27°
- Laser wavelength: 940nm
- Operating temperature: -20 ~ 80°C
Features:

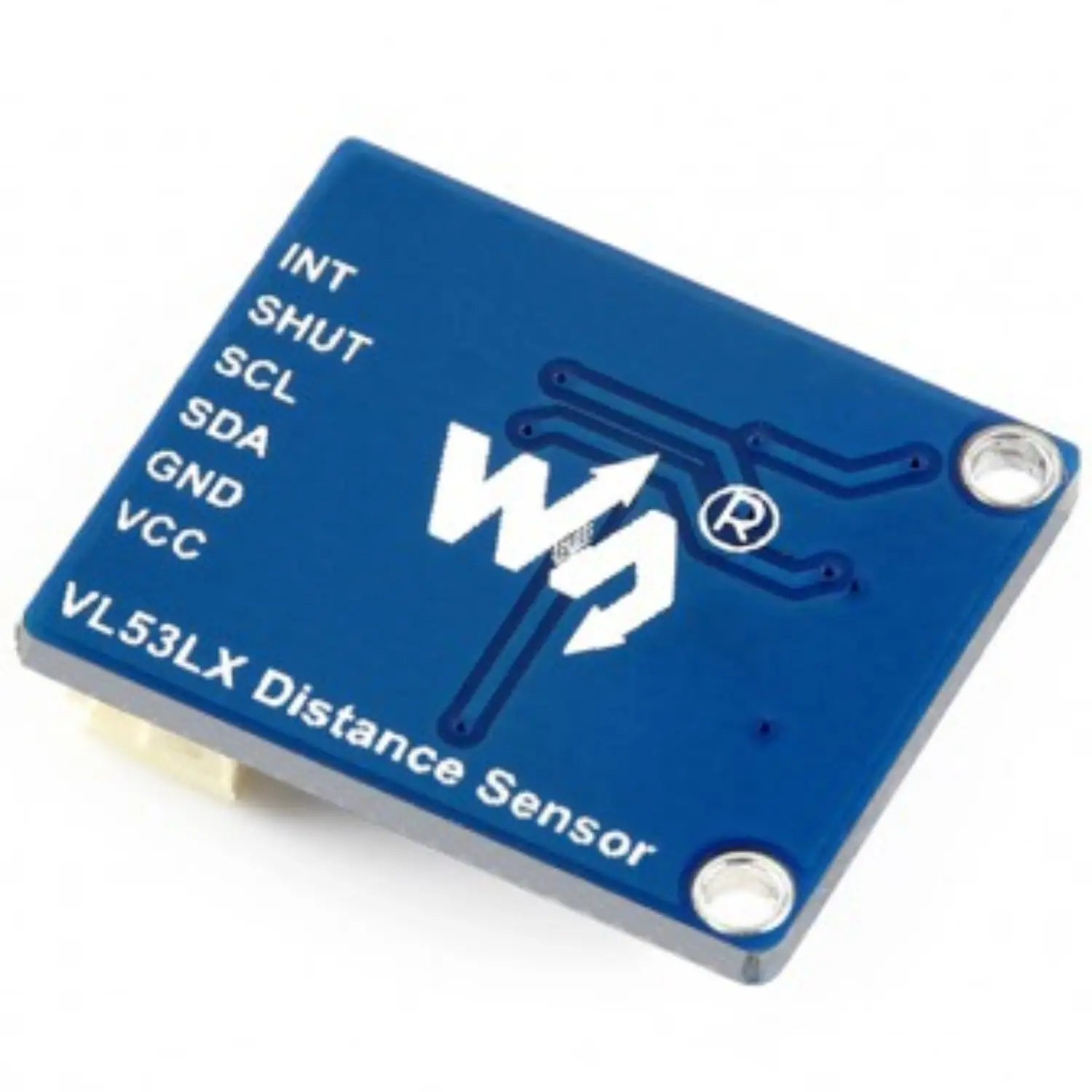

- I2C communication interface
- Control the module on/off via the IO pins
- Onboard voltage translator
- compatible with 3.3V/5V operating voltage
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Useful Link:
Waveshare VL53L1X ToF Distance Sensor

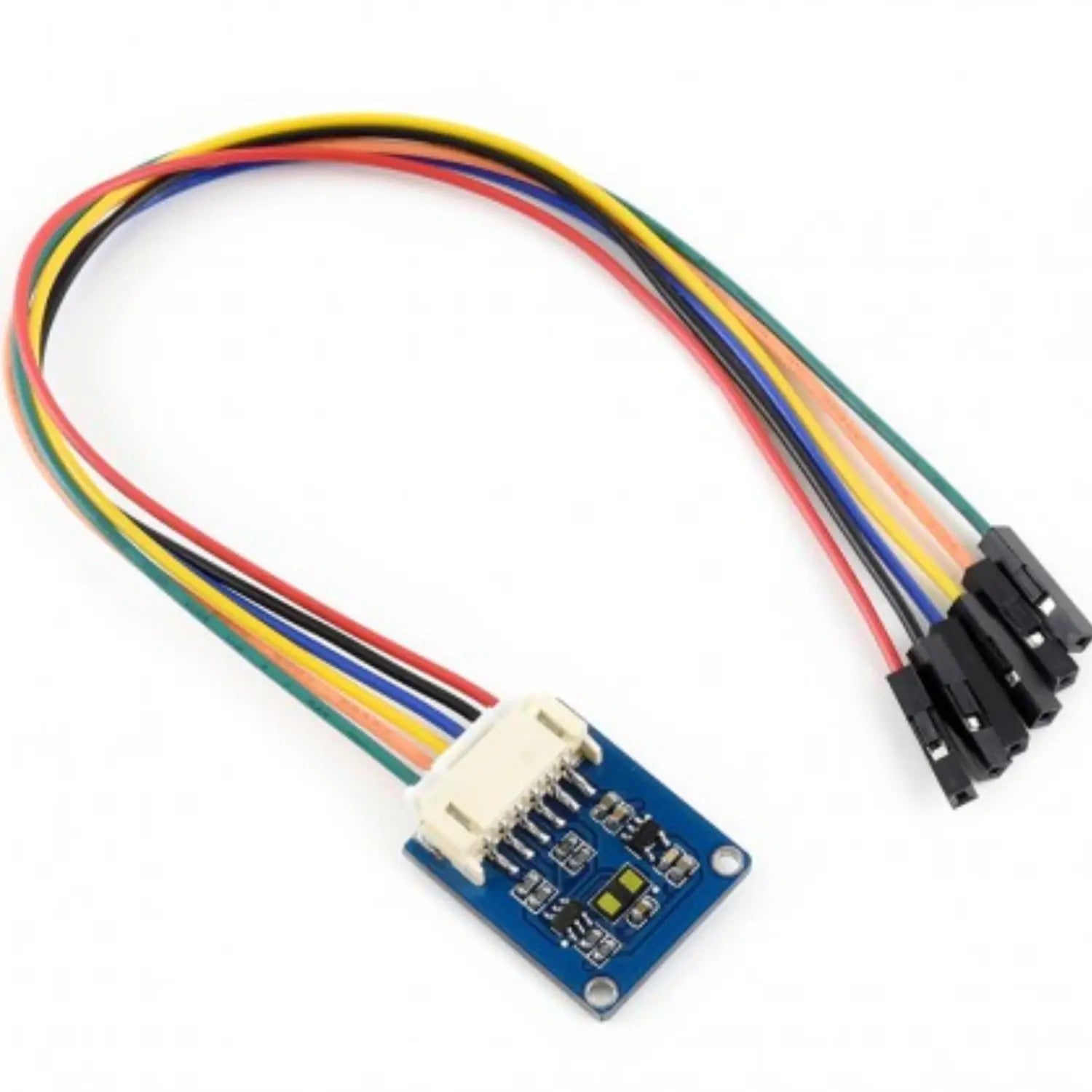

Package Includes:
- 1 x VL53L1X Distance Sensor
- 1 x PH2.0 6PIN wire 20cm
