Waveshare VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor With Integrated 3D GPU, Base On Linux 4GB With WIFI - RS5439

Waveshare VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor With Integrated 3D GPU, Base On Linux 4GB With WIFI - RS5439

SKU:

Regular price Rs. 9,499.00
Regular price Sale price Rs. 9,499.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

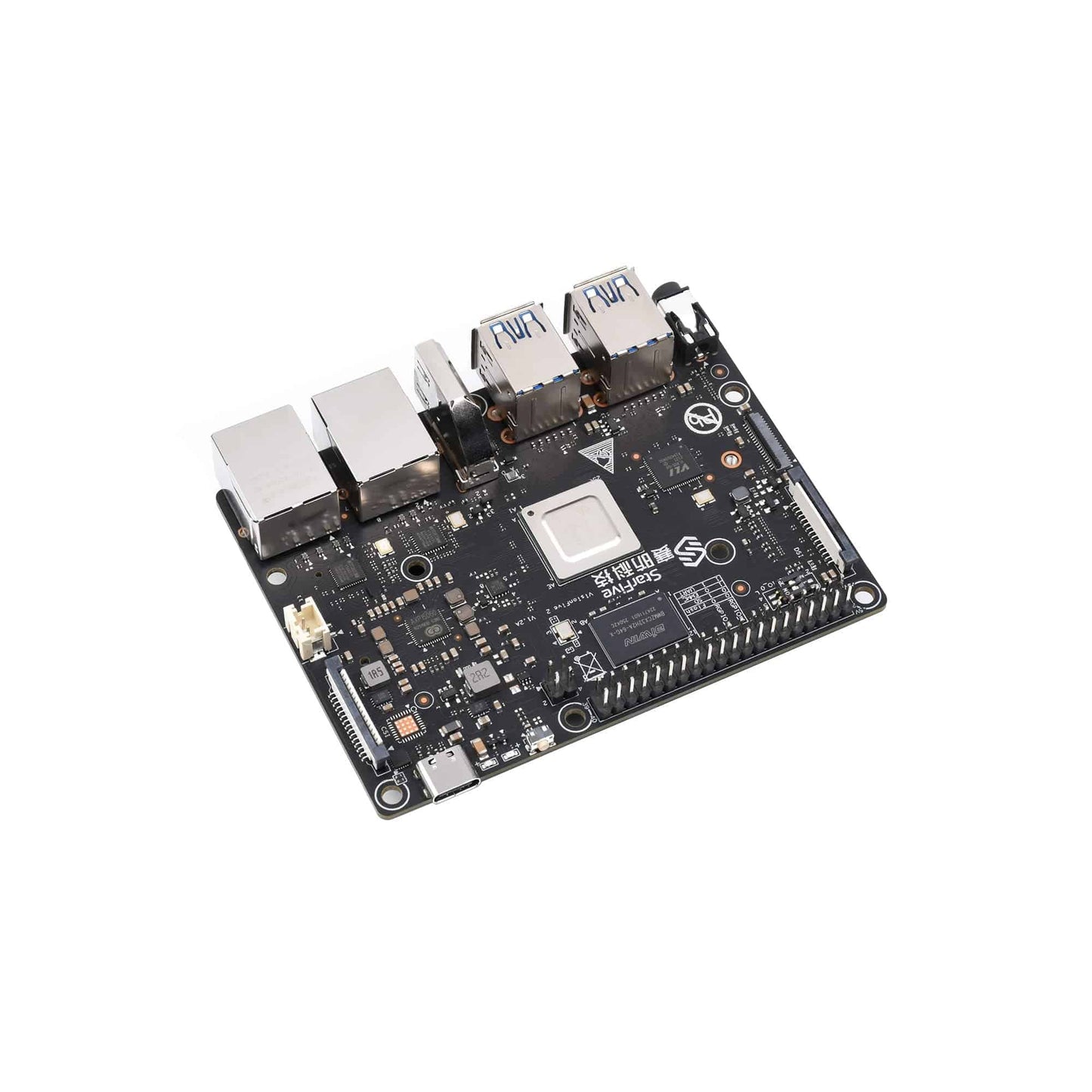

VisionFive2 RISC-V Single Board Computer is the world's first high-performance RISC-V single-board computer (SBC) with an integrated GPU. Its outstanding performance and reasonable price make it the most affordable RISC-V development board ever. The VisionFive2 RISC-V Single Board Computer features a quad-core 64-bit SoC with RV64GC ISA, running at a clock speed of up to 1.5 GHz, and is equipped with the IMG BXE-4-32 MC1, supporting OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2.

VisionFive2 RISC-V Single Board Computer offers options for 4/8 GB LPDDR4 RAM and provides a rich set of I/O peripherals such as M.2 connector, eMMC socket, USB 3.0 ports, 40-pin GPIO header, Gigabit Ethernet port, TF card slot, and more. The VisionFive 2 has onboard audio and video processing capabilities and features MIPI-CSI and MIPI-DSI connectors as multimedia peripherals. The open-source VisionFive2 RISC-V Single Board Computer also offers extensive software compatibility, including support for Debian, Ubuntu, OpenSUSE, OpenKylin, OpenEuler, Deepin, and other software running on these operating systems.

Specifications:

Processor
StarFive JH7110
CPU RISC-V U74 Quad-core 64-bit RV64GC ISA SoC
With 2MB L2 cache and S7 core, operating frequency up to 1.5GHz
GPU IMG BXE-4-32 MC1, operating frequency up to 600MHz
Memory
4GB LPDDR4
Storage
TF card (included in the Display Kit, Starter Kit and Starter Box Kit)
Camera
MIPI CSI 2lane 1080p@30fps
Display
1 × 2-lane MIPI DSI 1080p@30fps
1 × 4-lane MIPI DSI 2K@30fps
(Only one DSI port can be used for display at the same time)
1 × HDMI 2.0 4K@30fps, 2K@60fps
USB Host 4 × USB 3.0 Type-A port
USB Device 1 × USB Device (multiplexed with the USB Type-C port)
Networking
2 × Gigabit Ethernet port (1-ch with PoE function)
Reset Button Press the reset button to reboot when in the U-boot mode;
Press and hold the reset button for three seconds to reboot after the system boots
Boot Mode Switch
RGPIO_1 RGPIO_0 Boot Mode
0 0 flash
0 1 TF Card
1 0 eMMC
1 1 UART
DEBUG Pin Headers Multiplex pin 8 and pin 10 (physical address) on the 40PIN header, for UART TX and UART RX functions
USB Type-C Power Port Supports Quick Charge input 5V DC (minimum 3A) (up to 30 W)
Supports 5~20V fixed voltage input
Supports USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A
Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A
Other Power Supply
5V input via 40PIN GPIO header
PoE port power input requires an external PoE module

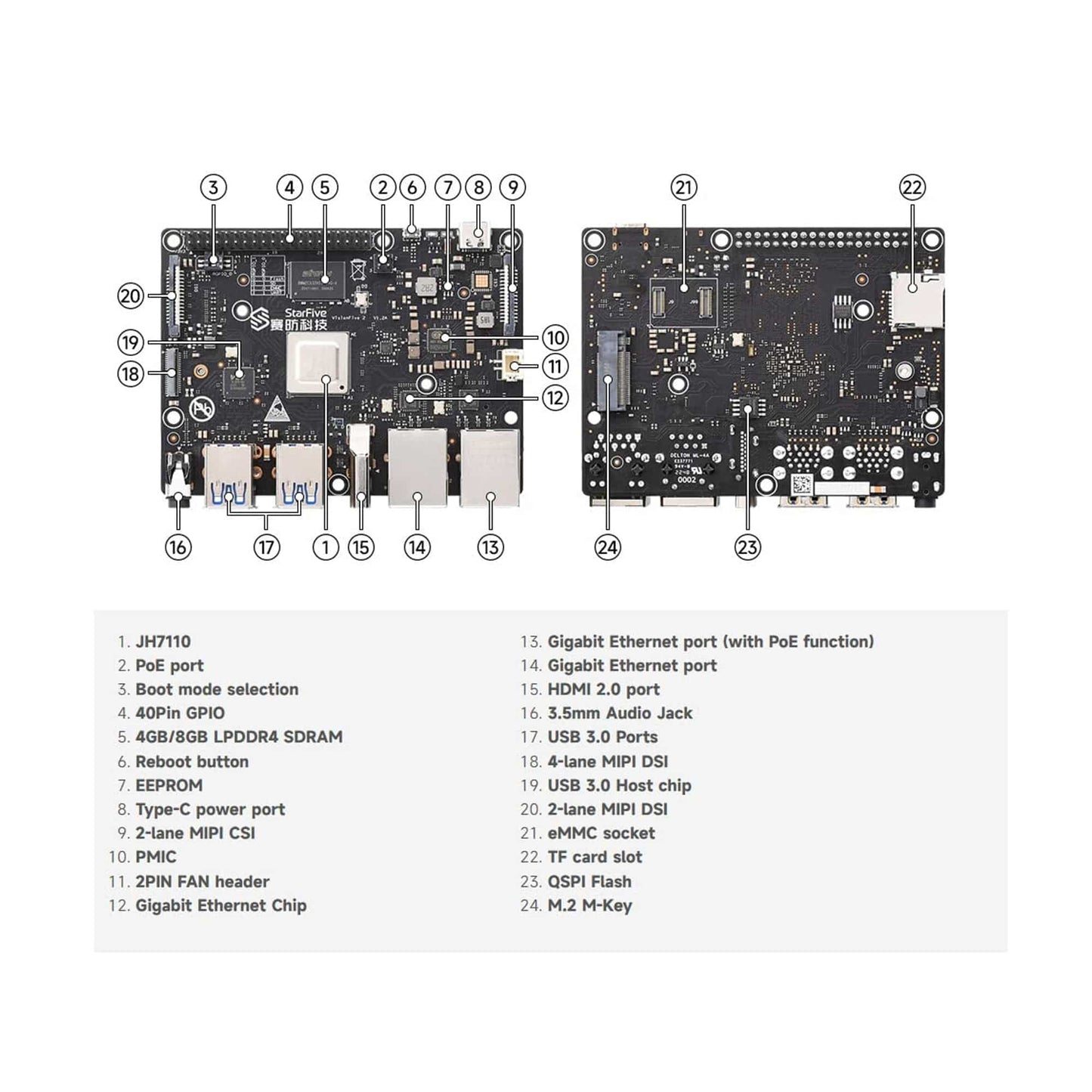

Other Interfaces
40PIN GPIO
M.2 M-Key Solid State Drive socket
eMMC socket
2PIN Fan header
3.5mm Audio Jack, 4-pole stereo audio jack

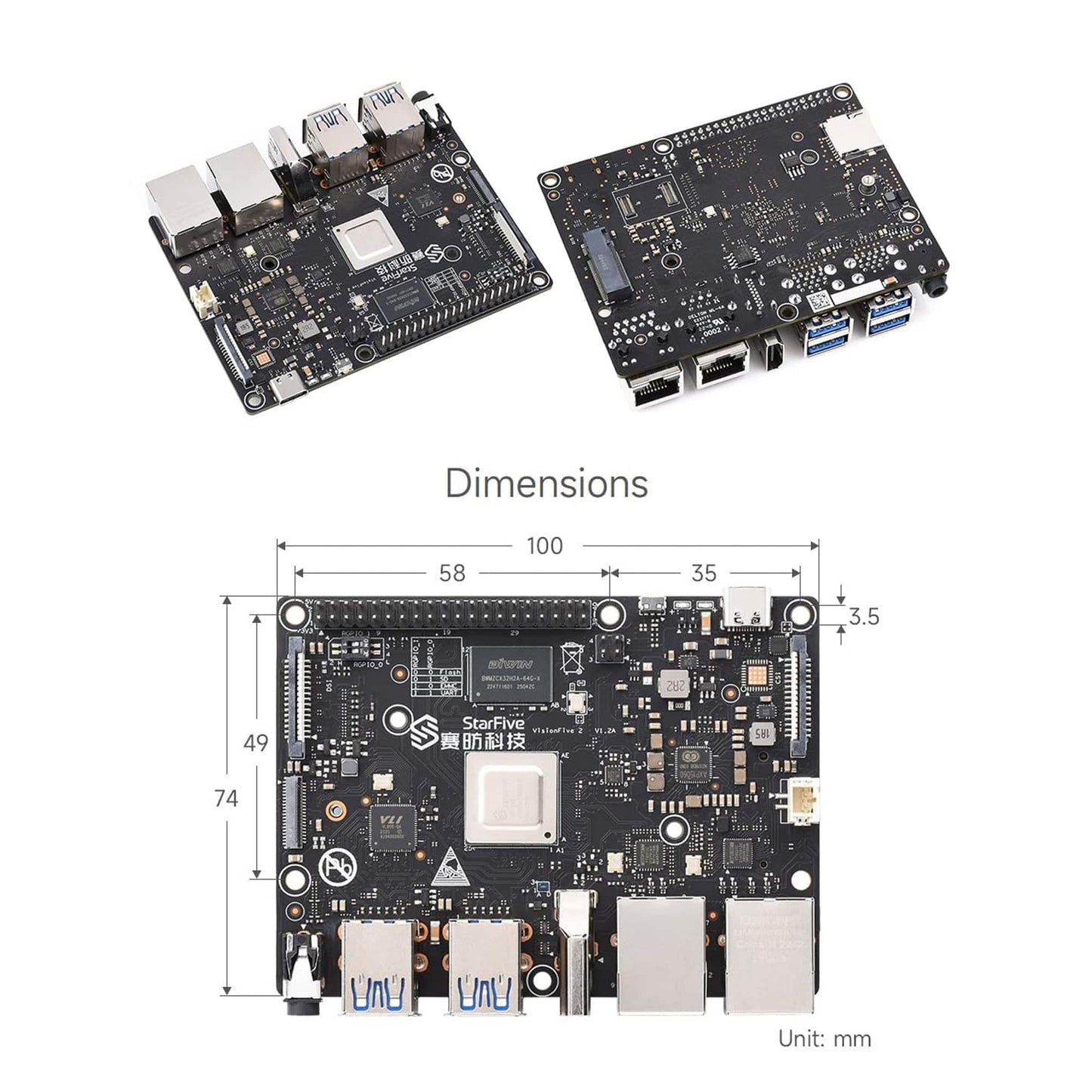

Dimension
100 × 74 × 21mm
Compliance
RoHS, FCC, CE
Recommended Operating Ambient Temperatures 0~50℃ (If the operating temperature of the chip exceeds 85°C, the frequency and voltage of the CPU will be automatically reduced for cooling)

    Features:

    • Onboard RV64GC ISA Quad-core 64-bit SoC, operating frequency up to 1.5GHz
    • VisionFive2 RISC-V Single Board Computer supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2
    • VisionFive2 RISC-V Single Board Computer is available in 4GB/8GB LPDDR4 RAM options and optional wireless module
    • VisionFive2 RISC-V Single Board Computer have multiple onboard interfaces, including M.2 / CSI / DSI / HDMI / eMMC / USB 3.0 / 40PIN GPIO / RJ45 Gigabit Ethernet port / TF card slot, etc
    • VisionFive2 RISC-V Single Board Computer supports 4K@60fps and H264/H265 multi-stream video decoding, 1080p@30fps and H265 multi-stream video encoding
    • VisionFive2 RISC-V Single Board Computer has an onboard 40PIN GPIO header, compatible with the pinout of Raspberry Pi series boards
    • VisionFive2 RISC-V Single Board Computer provides wide software compatibility including support for Debian

      Package Included:

      1 x VisionFive2 RISC-V Single Board Computer 4GB With WIFI
