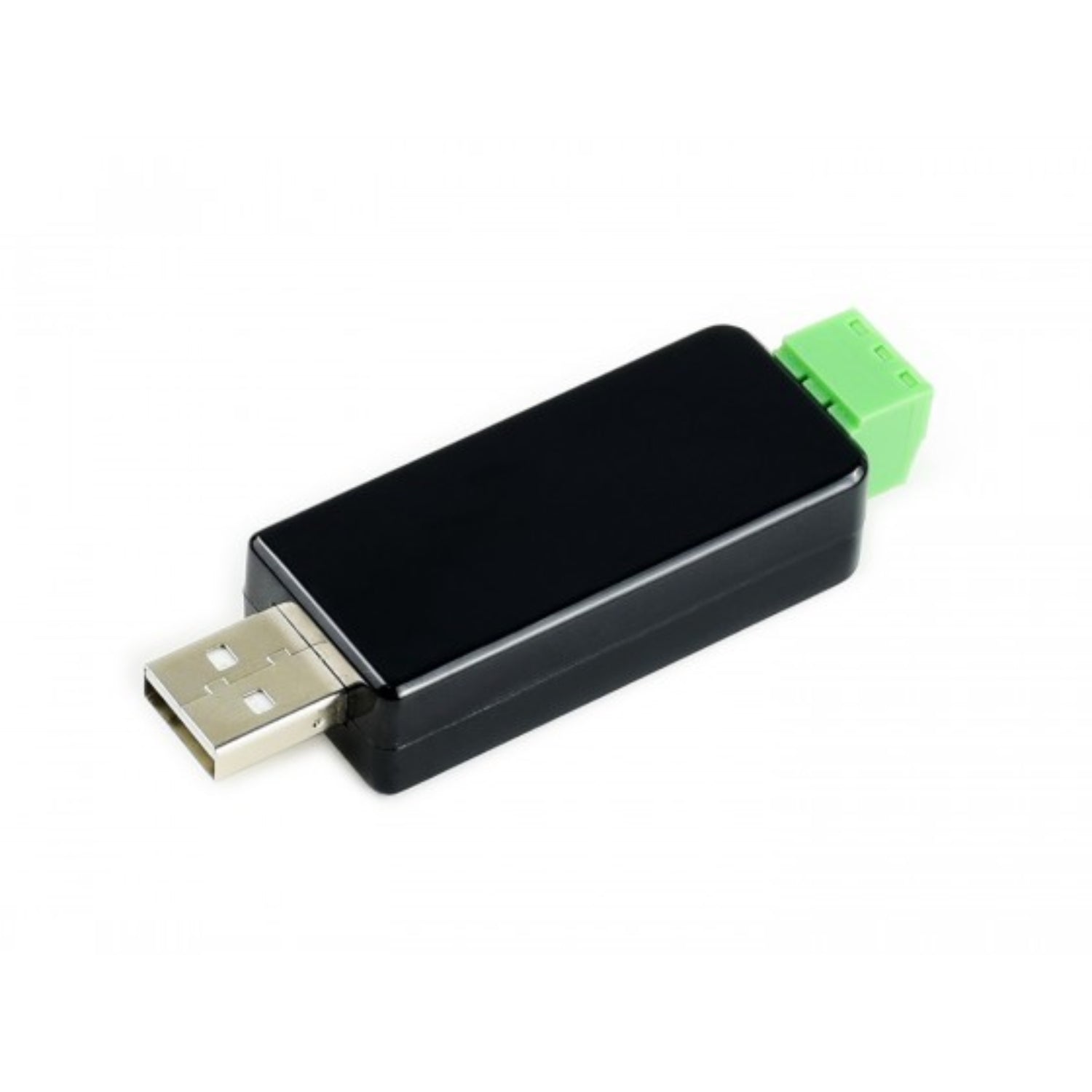

Description:
CH343G is a USB bus adapter chip, that can convert USB to a high-speed asynchronous serial port, supports automatic identification and dynamic self-adaptation of communication baud rate of 115200bps and below, and provides commonly-used MODEM contact signals to expand asynchronous serial ports for computers. It can upgrade a common serial device or MCU directly to a USB bus.
Specifications:
- Product Type: USB to 485
USB:-
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission Distance: About 5m
RS485:-
- Connector: Screw terminal
- Pins: A+, B-, GND
- Direction Control: Hardware Automatic Control
- Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
- Transmission Distance: About 1.2km(low rate)
- Transmission mode: Point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED Indicators:-
- PWR: Red power indicator, lights up when there is a USB connection and voltage is detected
- TXD: Red TX indicator, light up when the USB port sends data
- RXD: Red RX indicator, lights up when the device ports send data back
Operating Environment:-
- Temperature: -15℃ ~ 70℃
- Humidity: 5%RH ~ 95%RH
- Communication Rate: 50bps ~ 3Mbps
- Operating System: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7, Android
Features:
- USB TO RS485 Converter supports USB to RS485 bidirectional conversion
- Fast communication, stable and reliable, better compatibility
- USB TO RS485 Converter has onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- USB TO RS485 Converter has onboard resettable fuse and protection diodes to ensure the current/voltage stable outputs, provide over-current/over-voltage proof, and improve shockproof performance
- USB TO RS485 Converter has 3 LEDs for indicating the power and transceiver status
Pin Description:

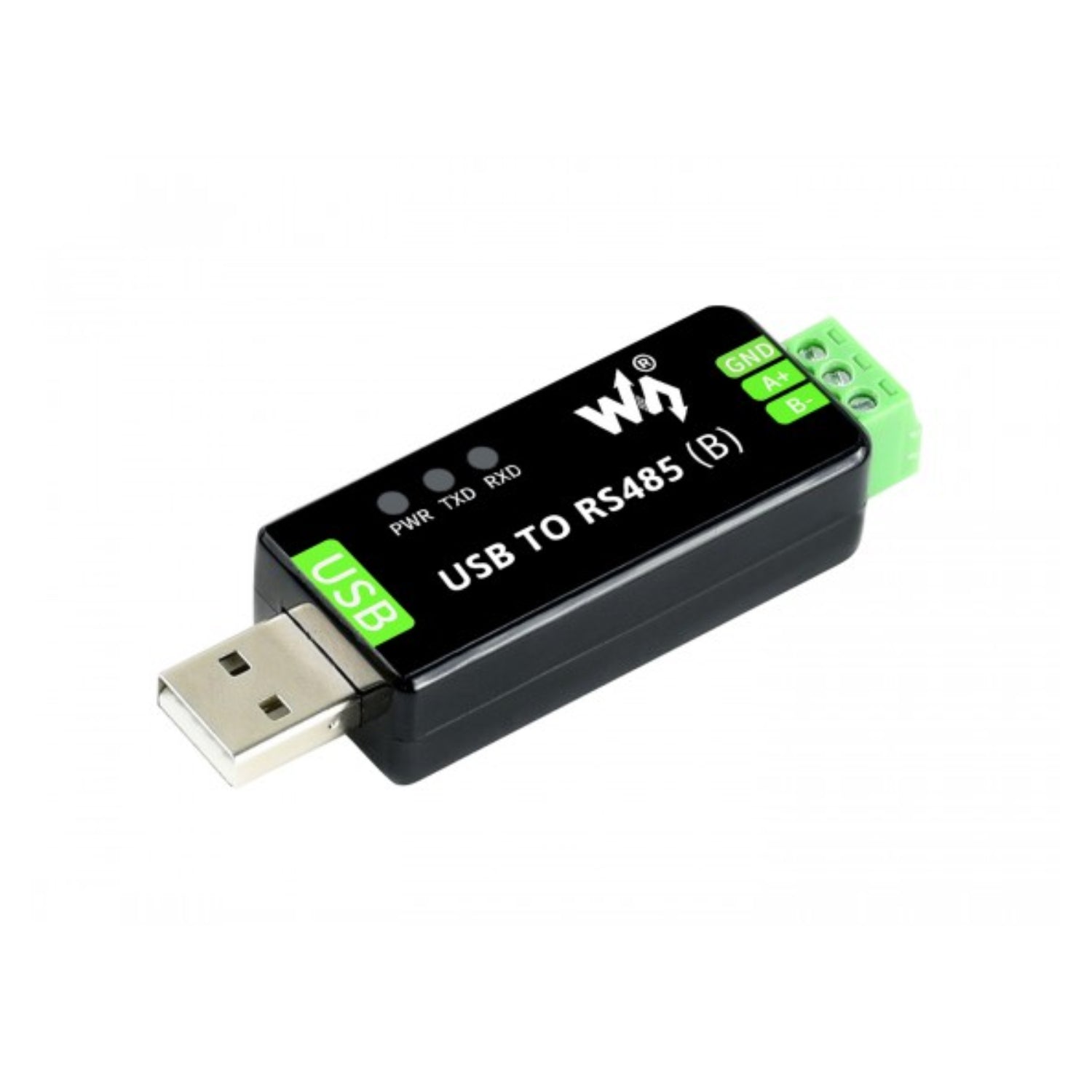

Front:-

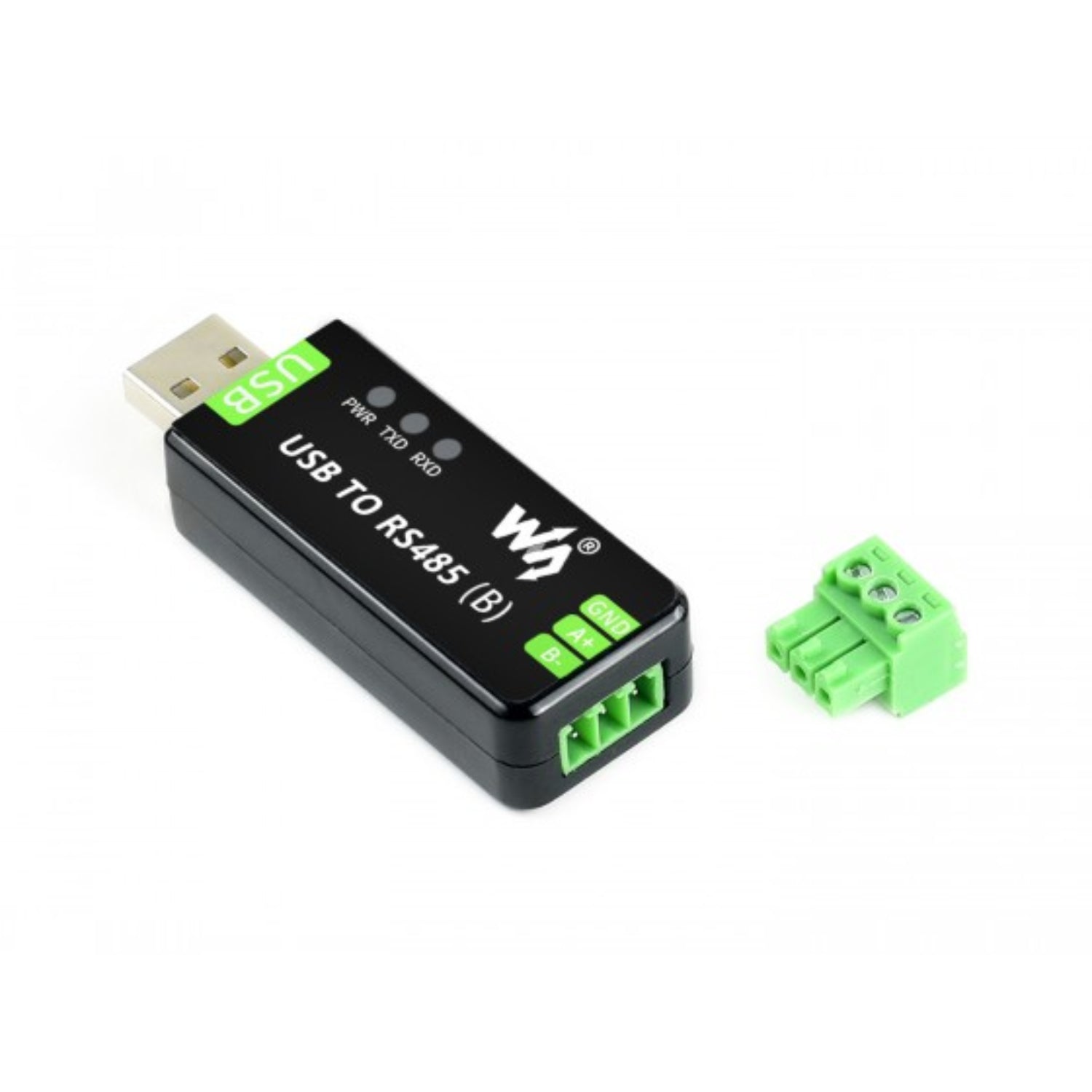

Back:-

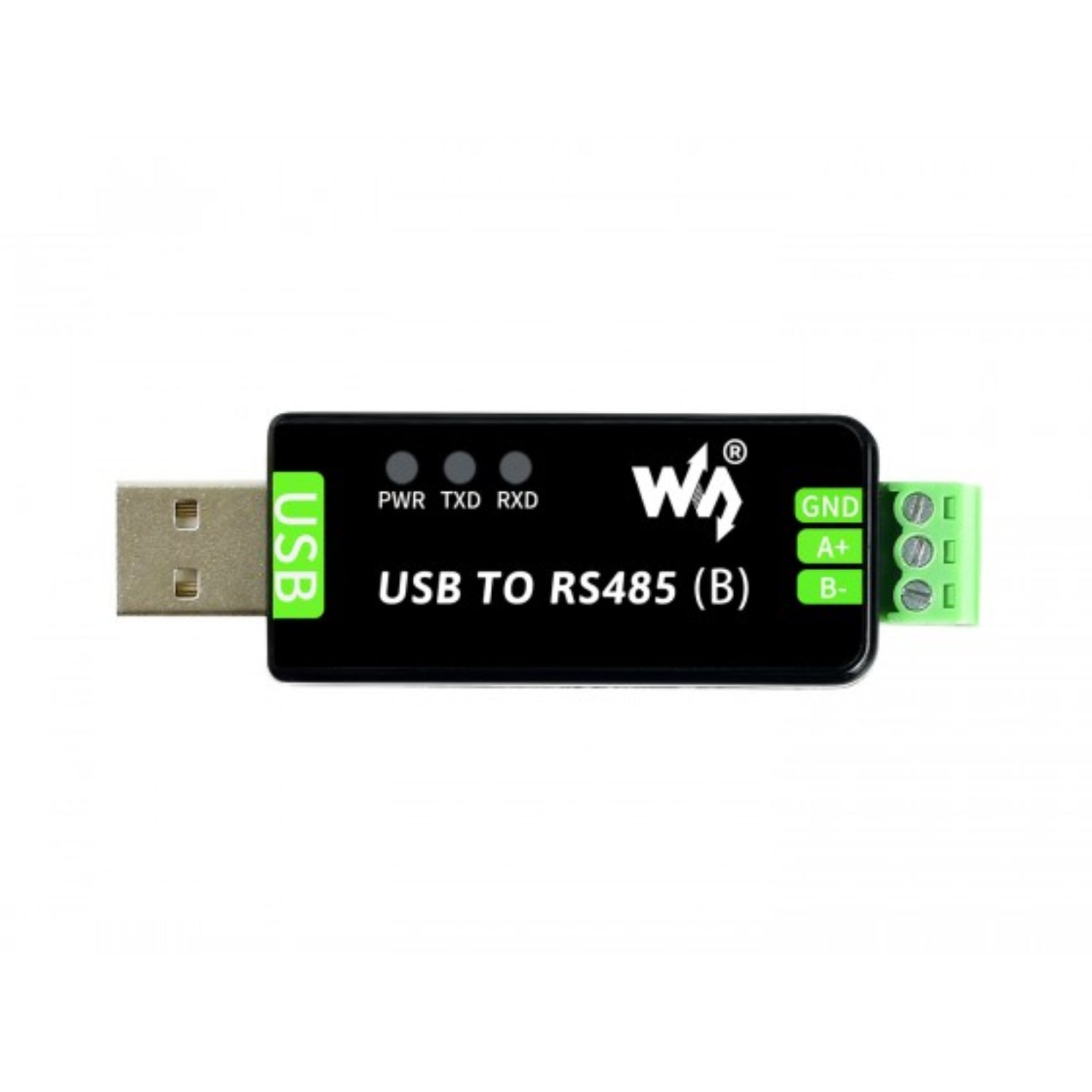

Working Status Indicator:
Onboard 3 LEDs for indicating the power and transceiver status
1. PWR: Light Up Red Power Connected
2. TXT: Blinking Red Data Transmitting
3. RXD: Blinking Red Data Receiving
Package Included:

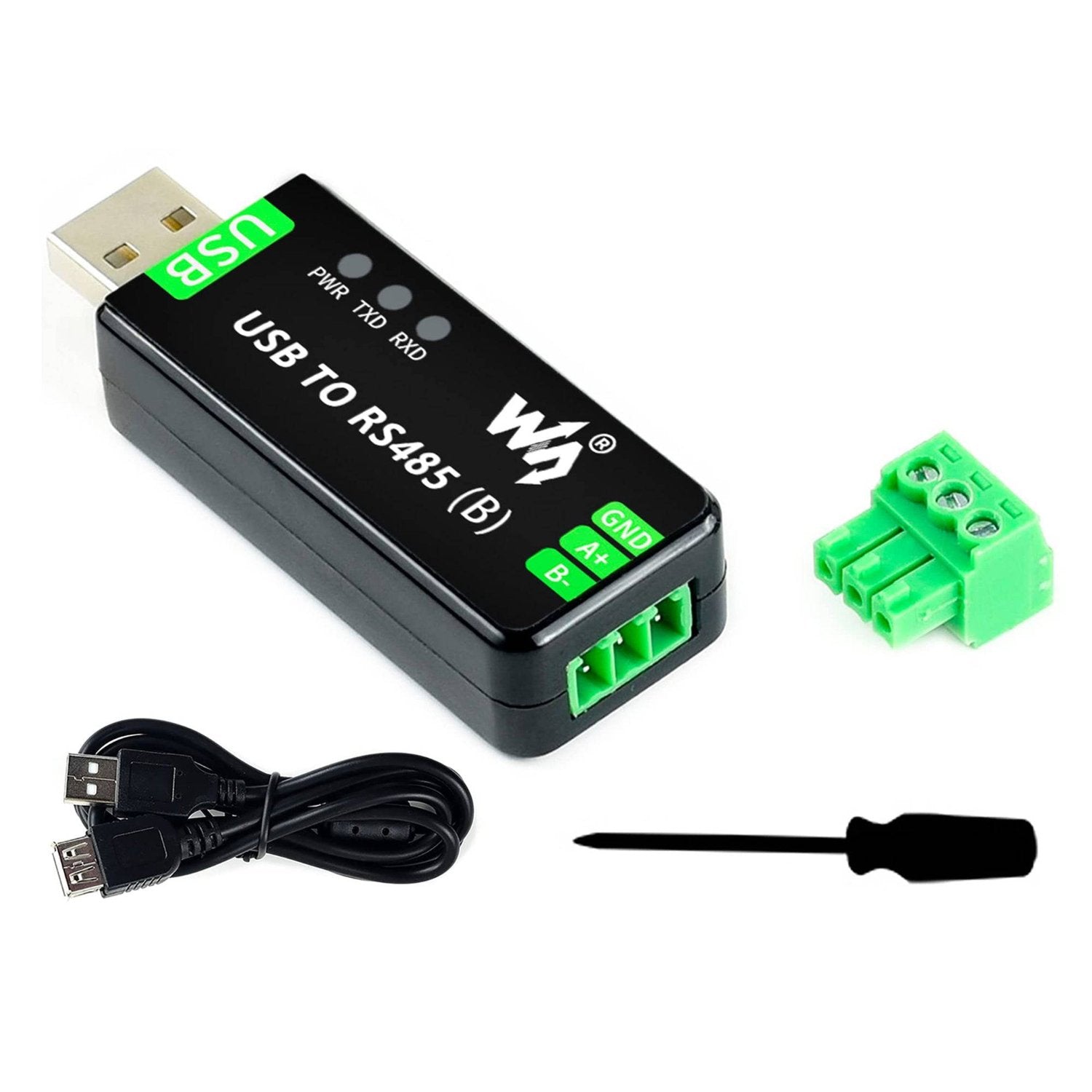

- 1 x USB TO RS485
- 1 x USB-A male-to-female cable
- 1 x Screwdriver
