Description:

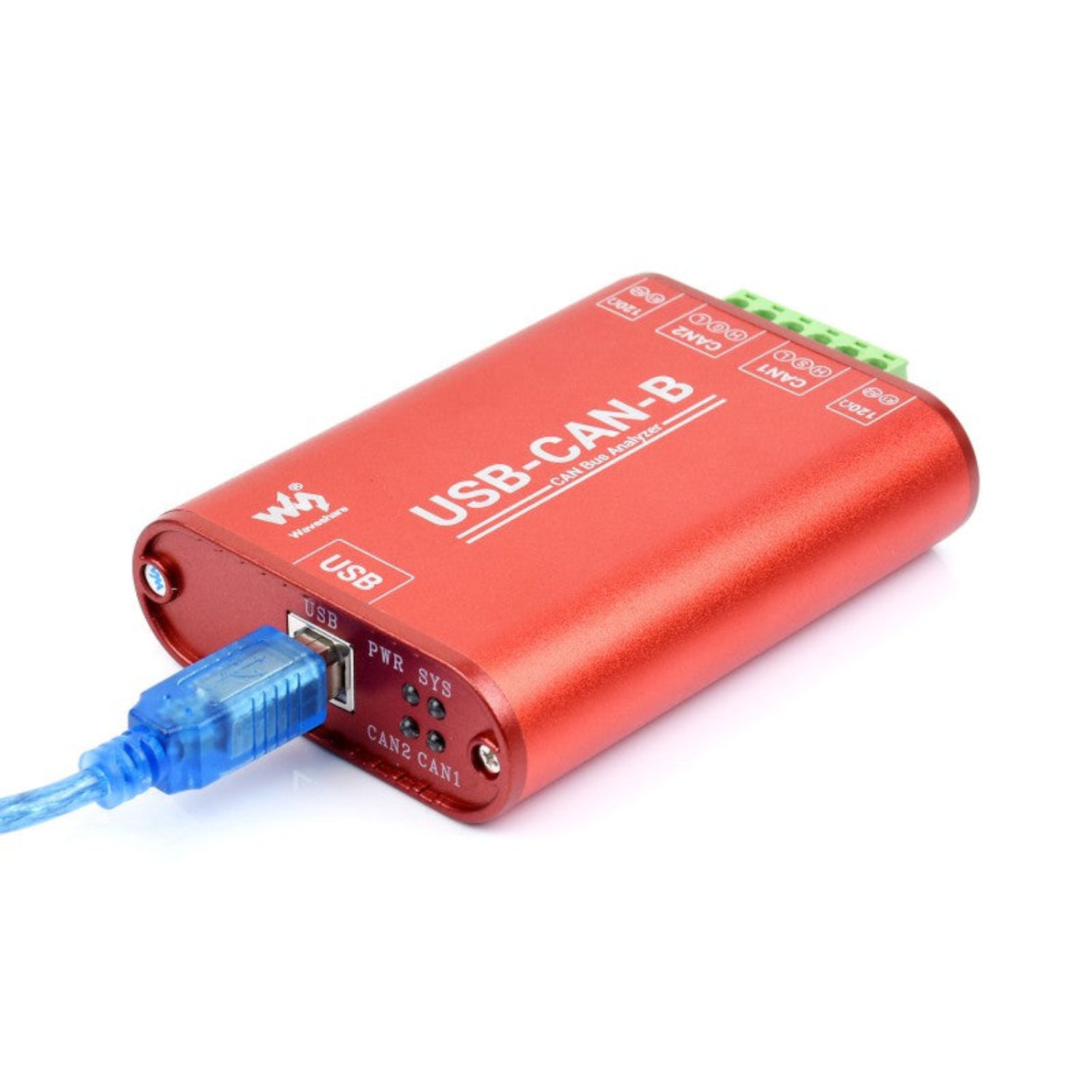

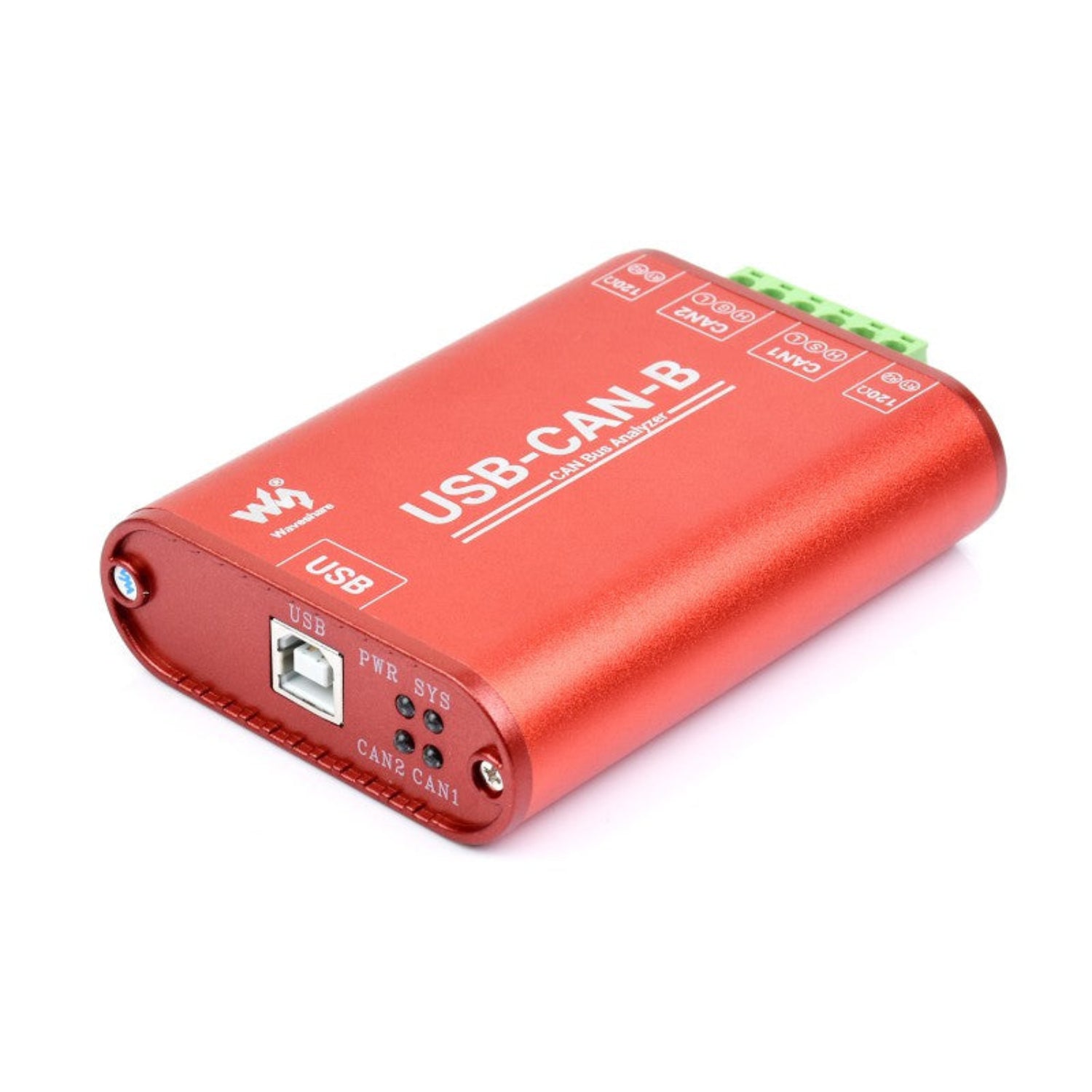

USB-CAN-B is an industrial high-performance USB-to-CAN adapter, CAN bus communication interface card, and CAN protocol data analyzer. Integrating dual independent channels with electrical isolation and multiple protection circuits. Supports Windows and Linux systems, and comes with drivers, CANTools-related software, secondary development examples, and tutorials.
It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection, and monitoring of the CAN bus network. Compact in size and easy to use, it can be used for learning and debugging of CAN bus, and secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN bus communication.
Specifications:
| Product type | Industrial grade: USB to CAN interface converter/CAN-bus communication interface card/CAN protocol data analyzer | |
|---|---|---|
| USB | Operating voltage | 5V (directly powered by USB port without external power supply) |
| Connector | USB-B | |
| CAN interface | CAN channel | Dual-channel: CAN1 and CAN2 (independent and isolated) |

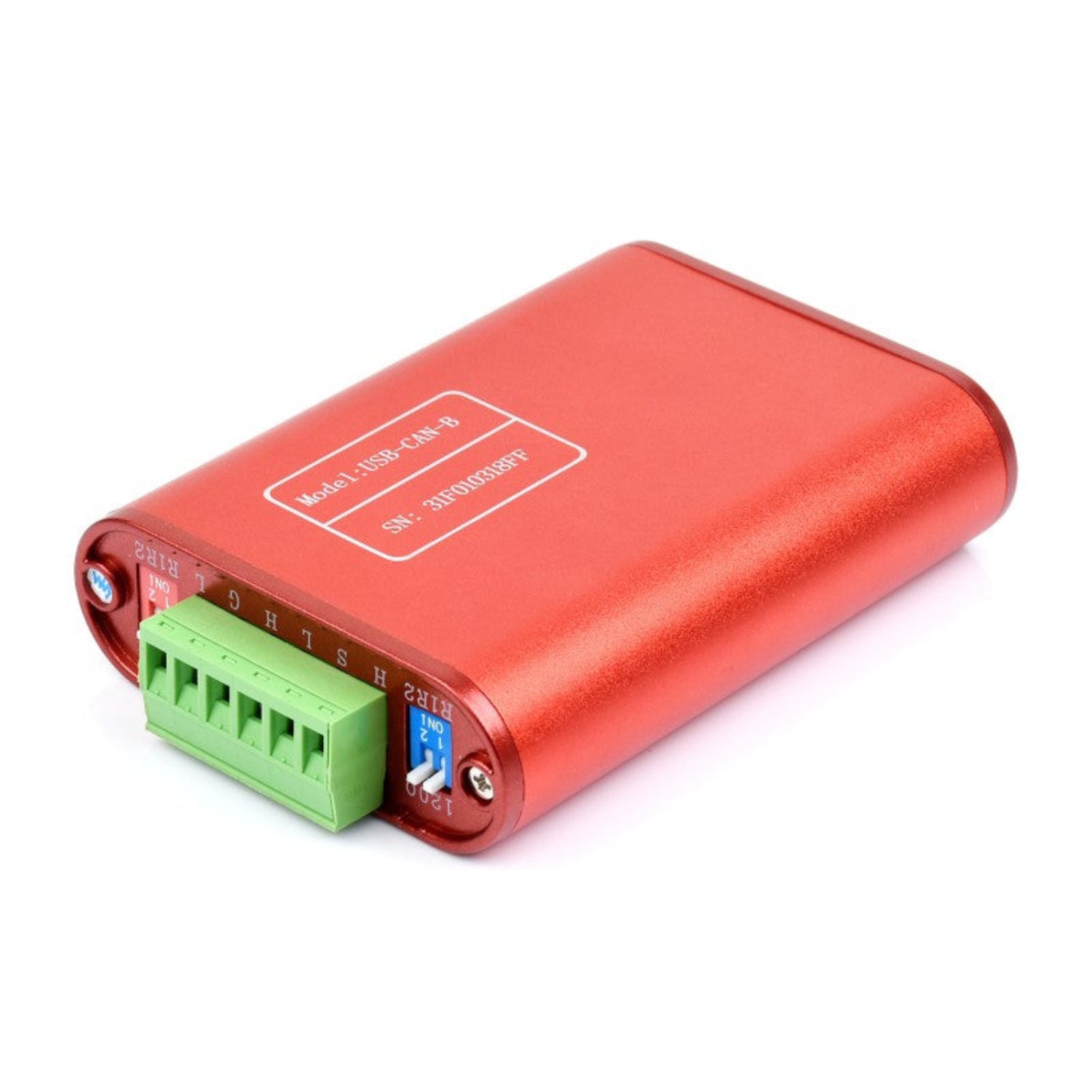

| Connector | CAN bus screw terminal (OPEN6 5.08mm pitch) | |
| Terminal resistor | Each CAN channel has two built-in 120Ω terminal resistors, which can be enabled by switch | |
| Baud Rate | 10Kbps~1Mbps (Configurable via software) | |
| Protocol Support | CAN2.0A, CAN2.0B, CANOpen, SAE J1939, DeviceNet, iCAN, ISO 15765 protocol | |
| Hardware Support | Single-wire CAN, High-speed CAN, Low-speed/Fault-tolerant CAN (CAN2 can be set by software to High-speed CAN or Low-speed/Fault-tolerant CAN) | |
| Transfer speed | The receiving and sending of each CAN channel can reach: 8500 frames/s | |
| Transmit buffer | 2000 frames receiving buffer and 1000 frames sending buffer per channel (automatically retransmit when transmission fails) | |

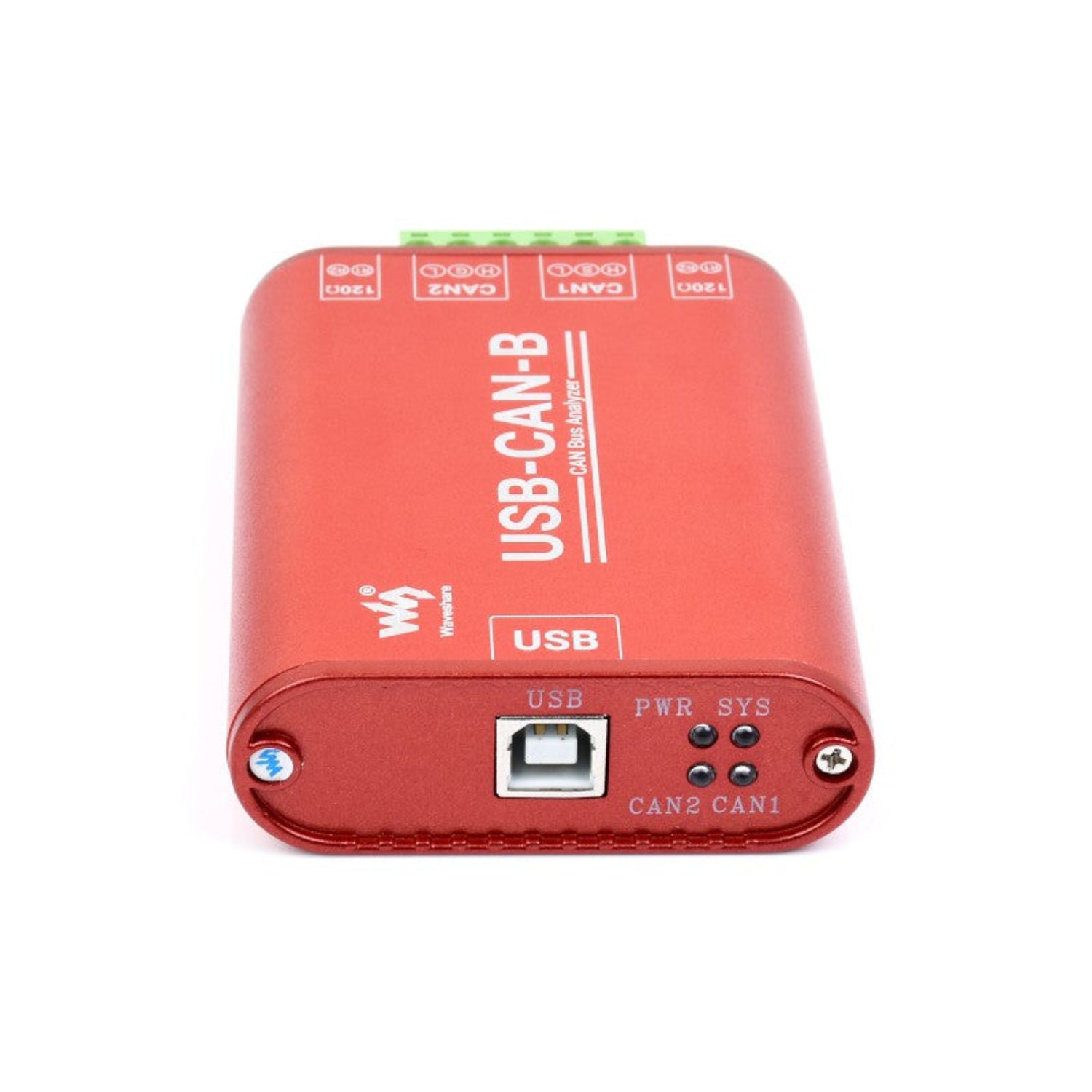

| Indicators | PWR | Power indicator |
| SYS | System status indicator, normally off; keeps on when there is a bus error | |
| CAN1 | CAN1 channel indicator (blinking when sending and receiving data) | |
| CAN2 | CAN2 channel indicator (blinking when sending and receiving data) | |
| System support | Windows | Windows XP/7/8/10/11 (32/64 bits) |
| Linux | Raspberry Pi OS, Ubuntu (Jetson Nano), VMware virtual PC and so on. | |
| Operating temperature | -40~85℃ | |
| Case material | Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life) | |
Features:
- Features two independent channels with electrical isolation and robust multi-protection circuits for enhanced safety and reliability.
- Works seamlessly with both Windows and Linux systems; drivers are included for easy setup.
- Connects effortlessly via USB to your PC or industrial control host for comprehensive transceiver control.
Product Interface:
Useful link:
Waveshare USB to CAN Bus Converter
Package Included:
- 1 x USB-CAN-B

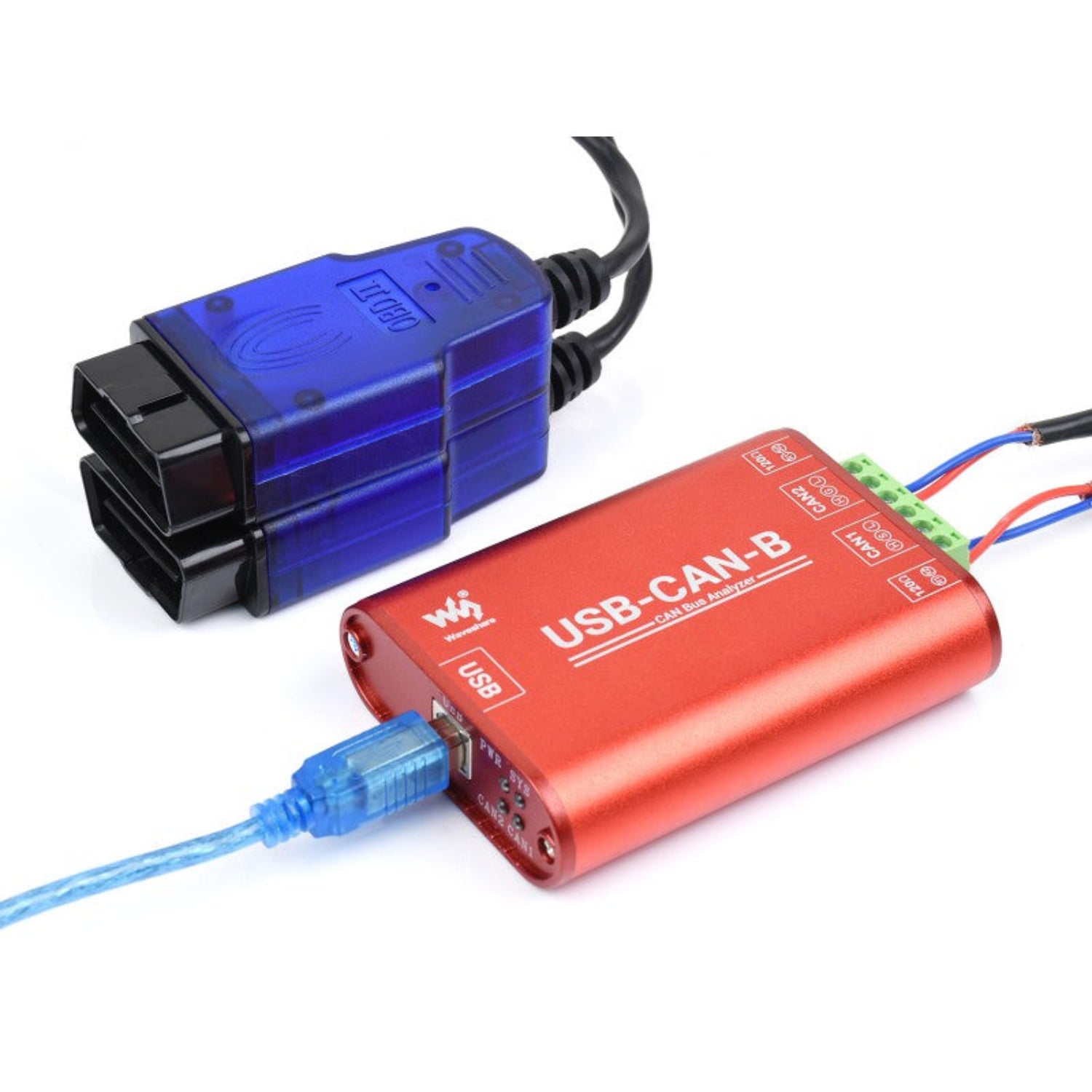

- 2 x Car OBD adapter
- 1 x USB type A plug to type B plug cable
- 1 x 4pin cable
- 1 x Screwdrive
