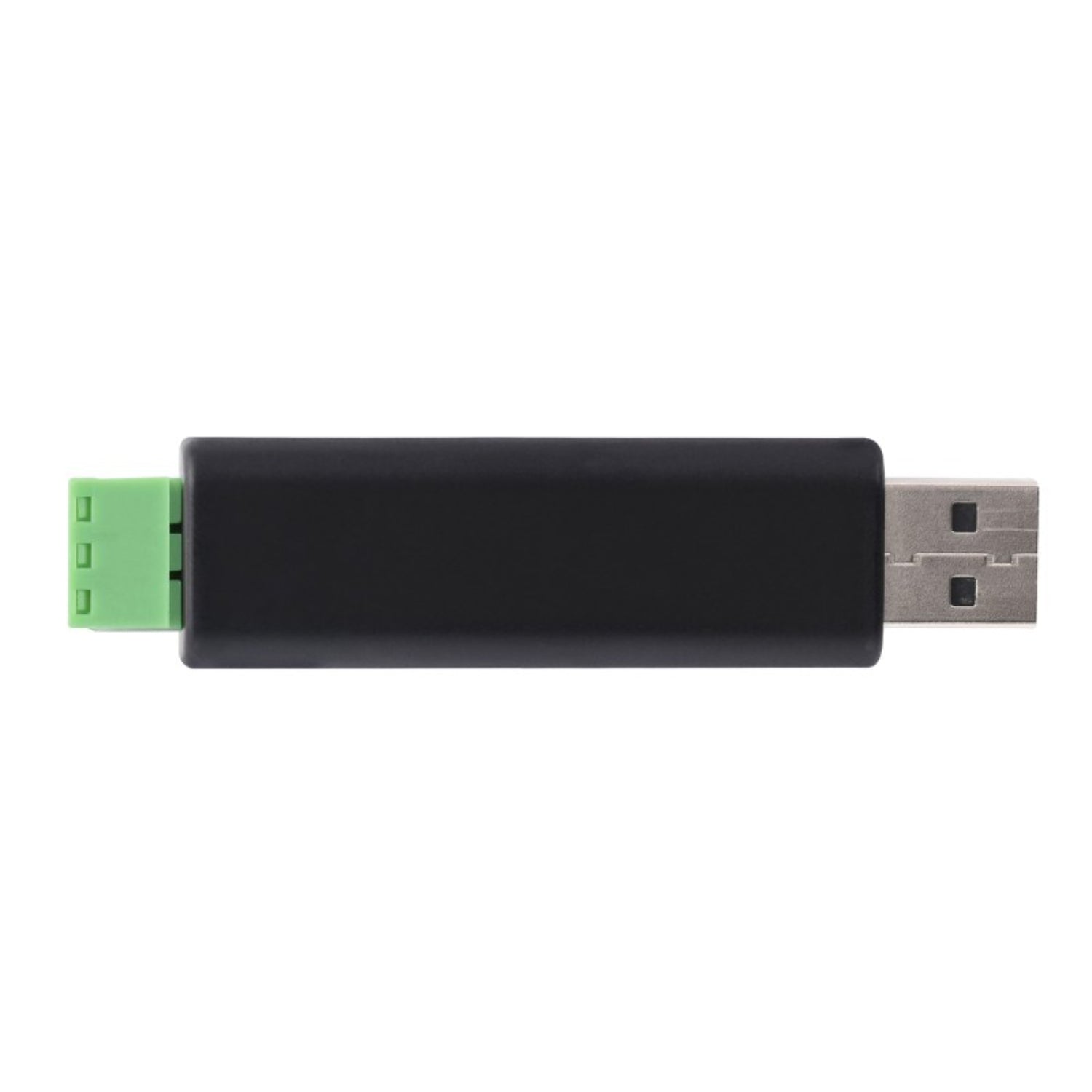

Description:
USB to CAN Adapter Model Collects data from CAN bus to PC via USB for transceiver control, data analysis, acquisition, and monitoring of CAN bus networks. Adopts the original STM32F103 chip, stable and reliable communication
It Supports 4 working modes normal mode, loopback mode, silent mode, and silent loopback mode. Supports multiple CAN data sending modes: single frame, multiple frames, manual, regular, and cyclic sending. Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data.
CAN Baud Rate Is Configurable In The Range Of 5Kbps-1Mbps. Support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, support secondary development.
Features:
- Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
- CAN baud rate is configurable in the range of 5Kbps-1Mbps
- Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
- Supports multiple CAN data sending modes: single frame, multiple frames, manually, regular, and cyclic sending
- Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
- Data can be saved as TXT or Excel
- Supports CAN bus detection for status-checking
- Sending/receiving CAN data with a time scale allows sequentially displaying
- The baud rate of the USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
- Supports setting working parameters by configuration software or serial command, can be saved after power off
- Adopts STM32 chip solution, stable and reliable communication
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit
- Comes with master computer software for Windows system, easy to use
- Easy secondary development, just need to modify the sending and receiving commands

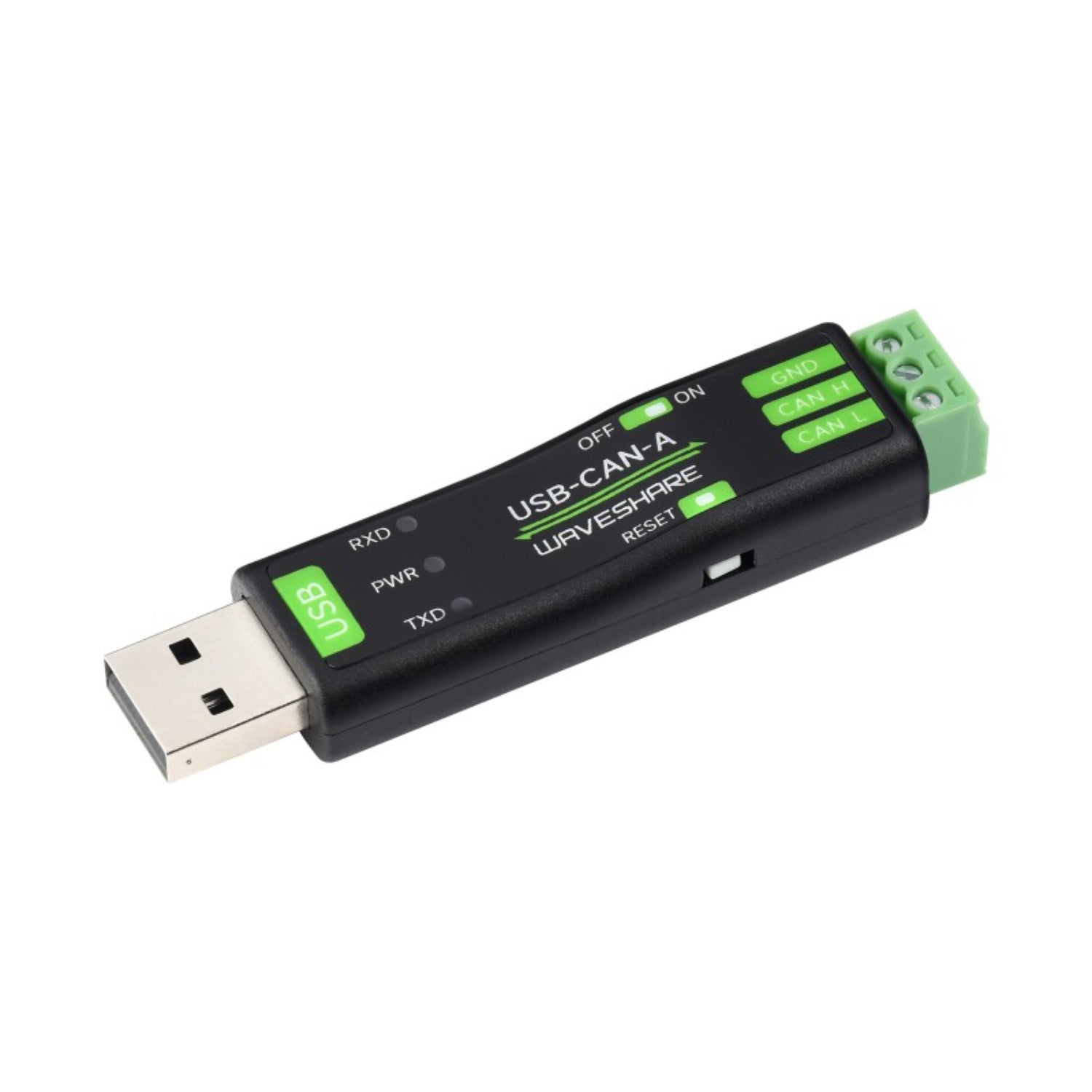

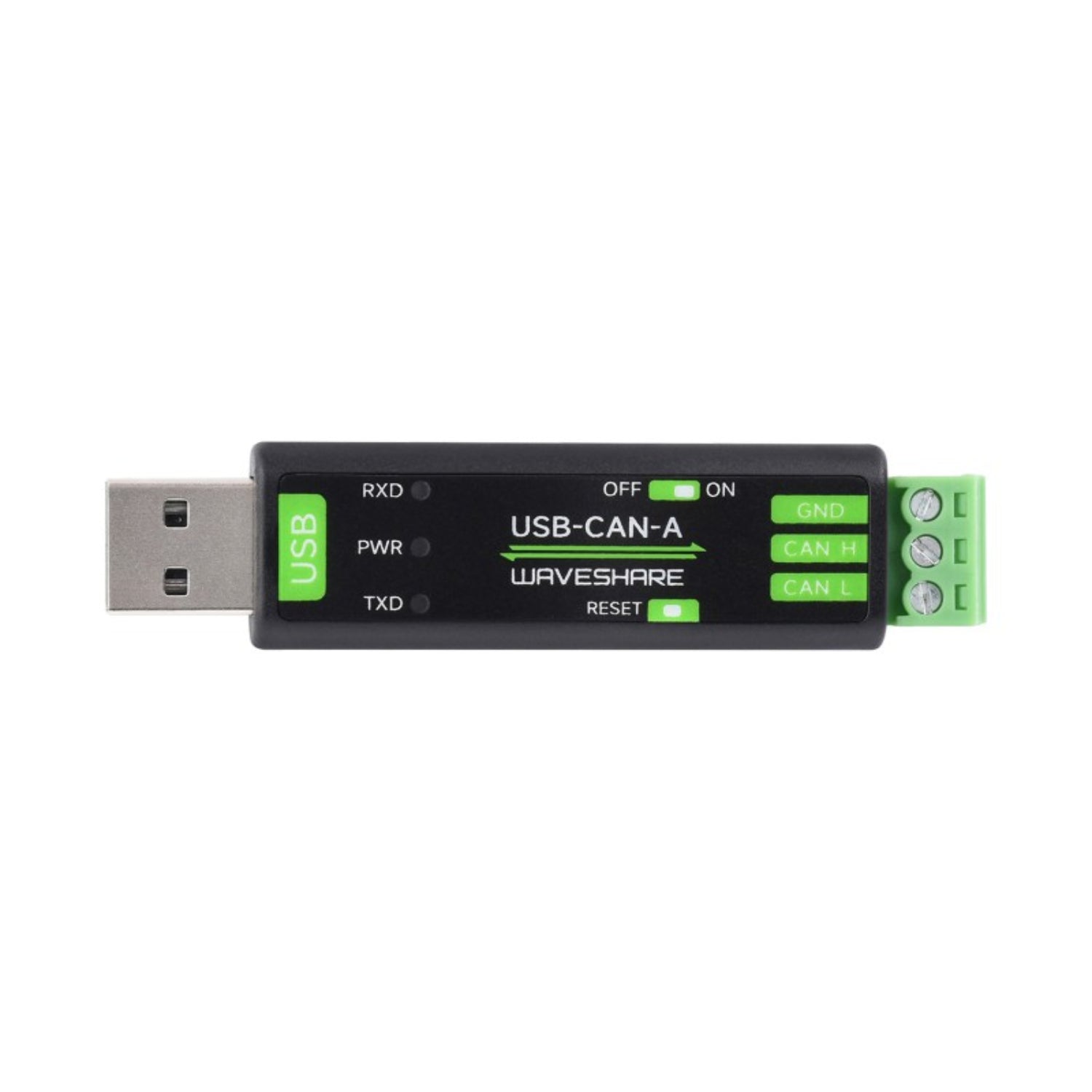

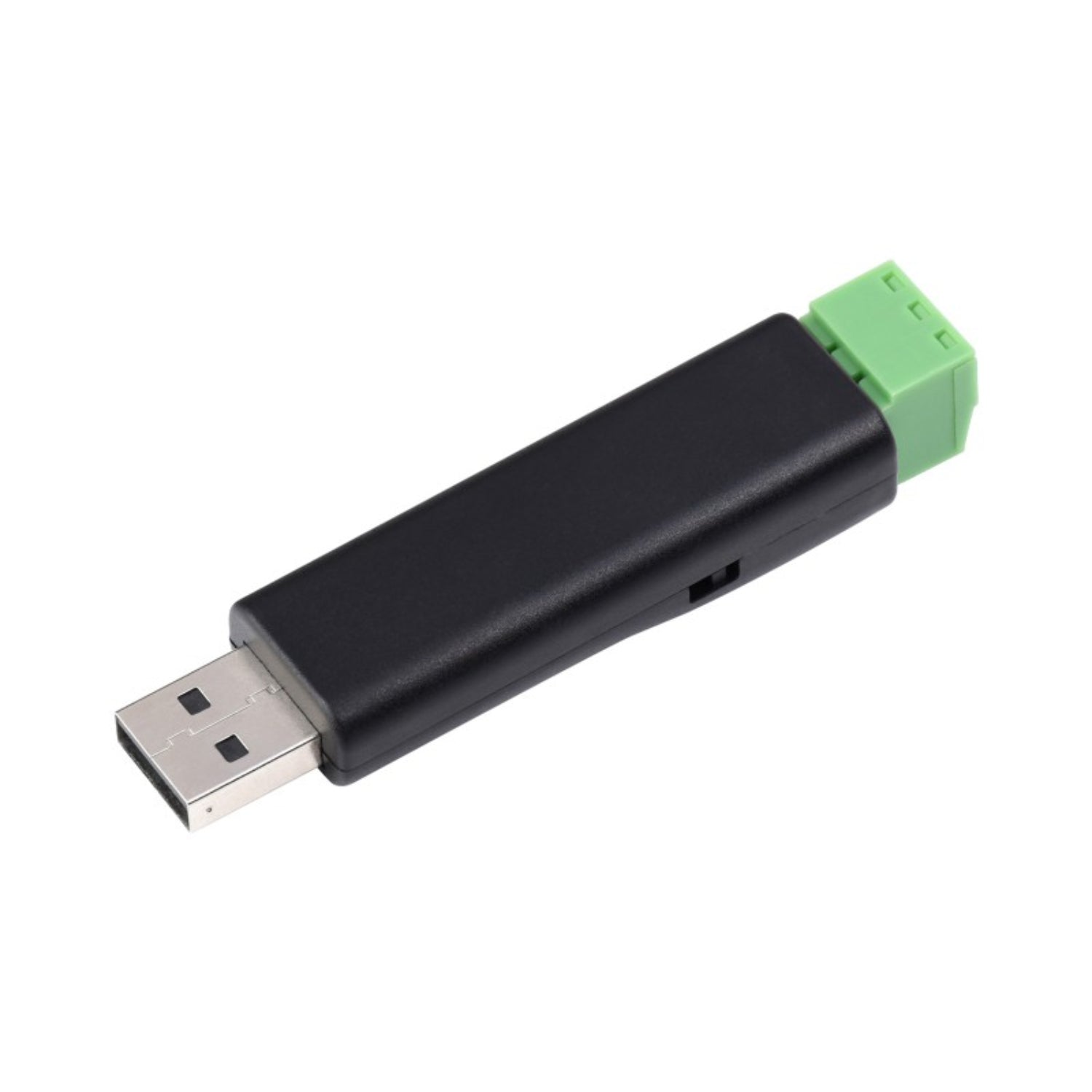

Pin Description:
- TX: Blinks when CAN is sending a data
- PWR: Power indicator, Lights up red when the USB port is connected
- RX: Blinks when receiving the data
- Reset Button: press before power on then release after power on to restore factory settings
- 120Ω resistor Switch: Switch to CAN terminal side to enable 120Ω resistor, switch to the other side to disable
Useful Link:
Waveshare USB To CAN Adapter Model A

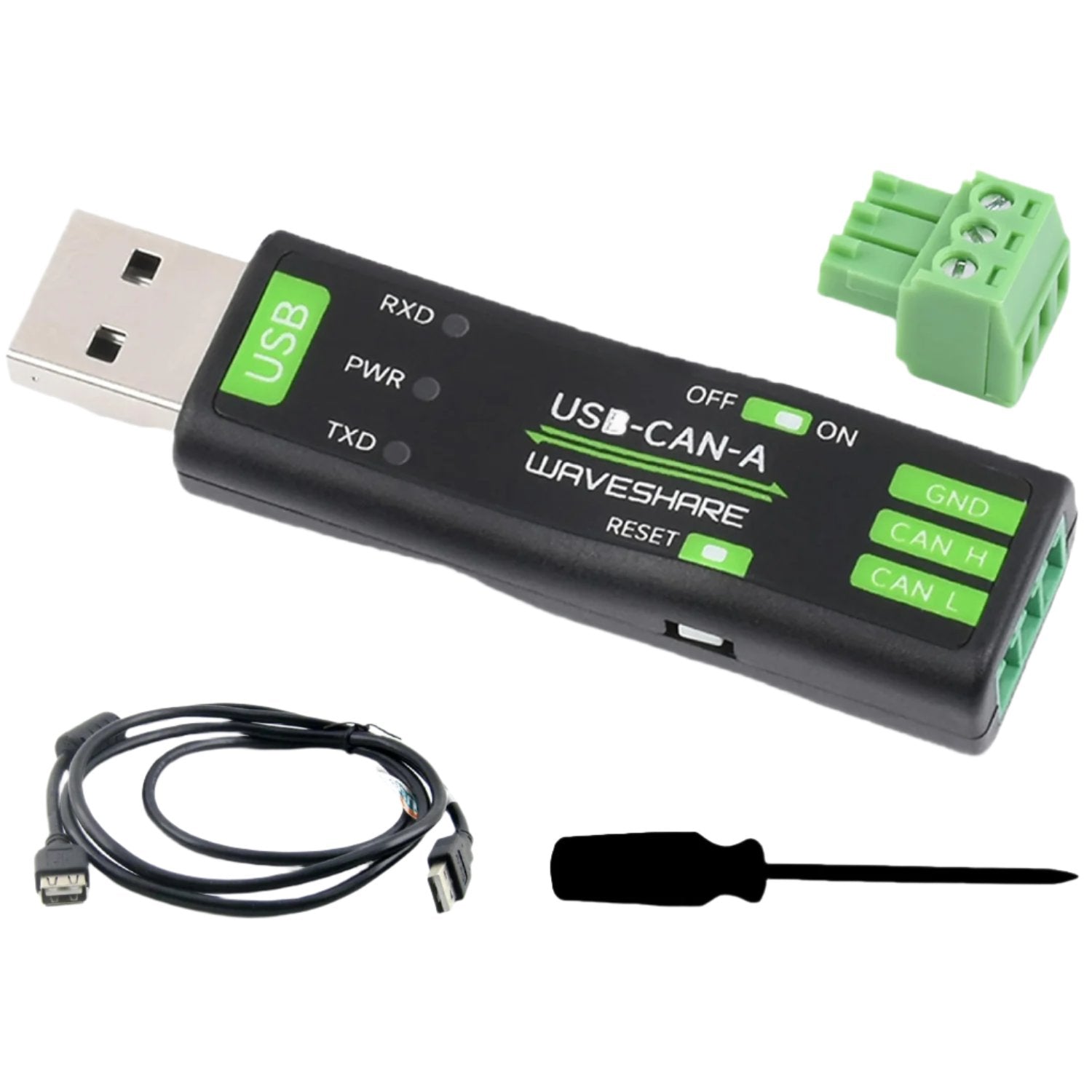

Package Included:
- 1 x Waveshare USB To CAN Adapter Model A
- 1 x USB Cable ~1.5m
- 1 x Screwdriver
