Description:

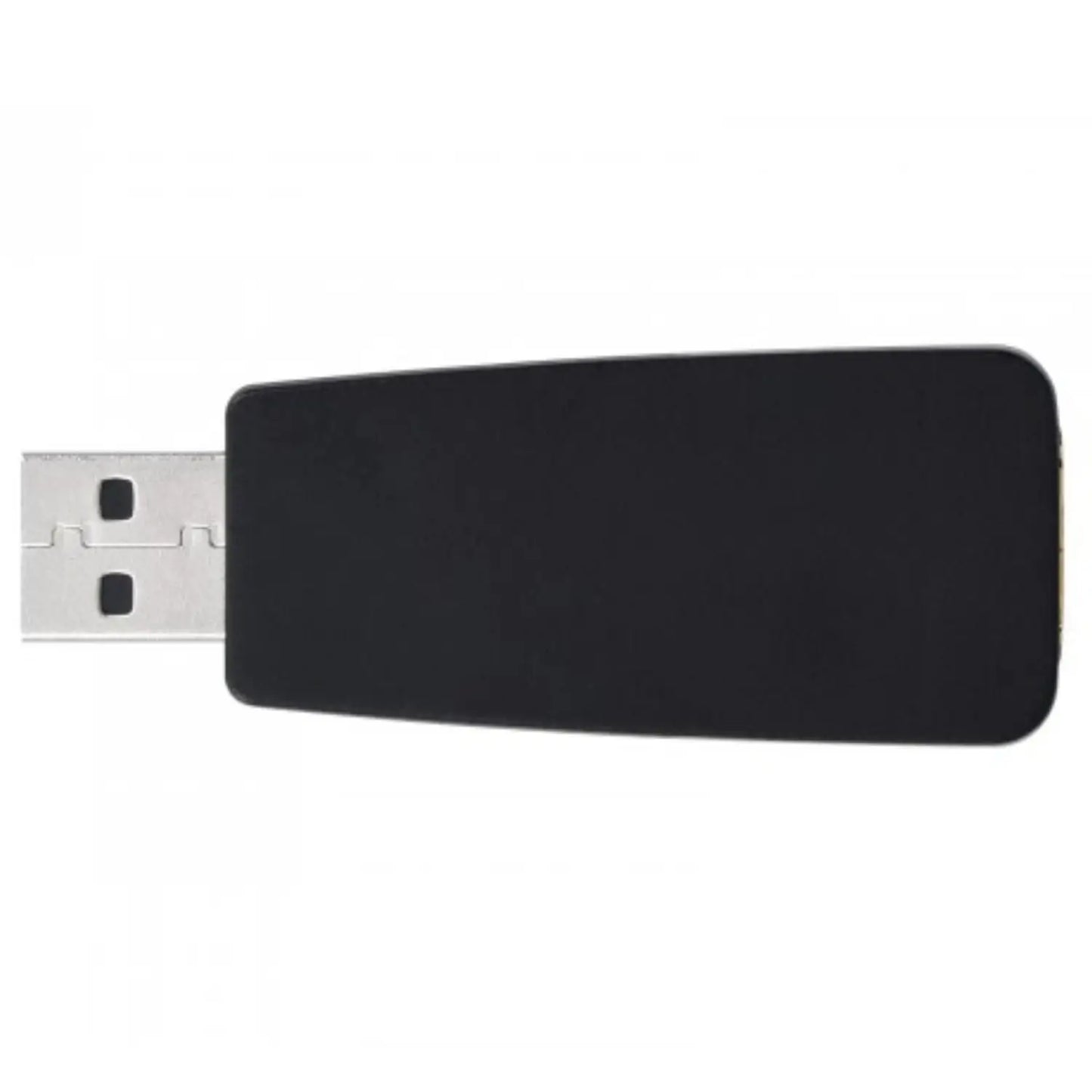

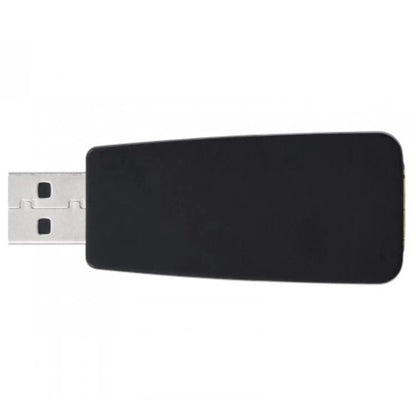

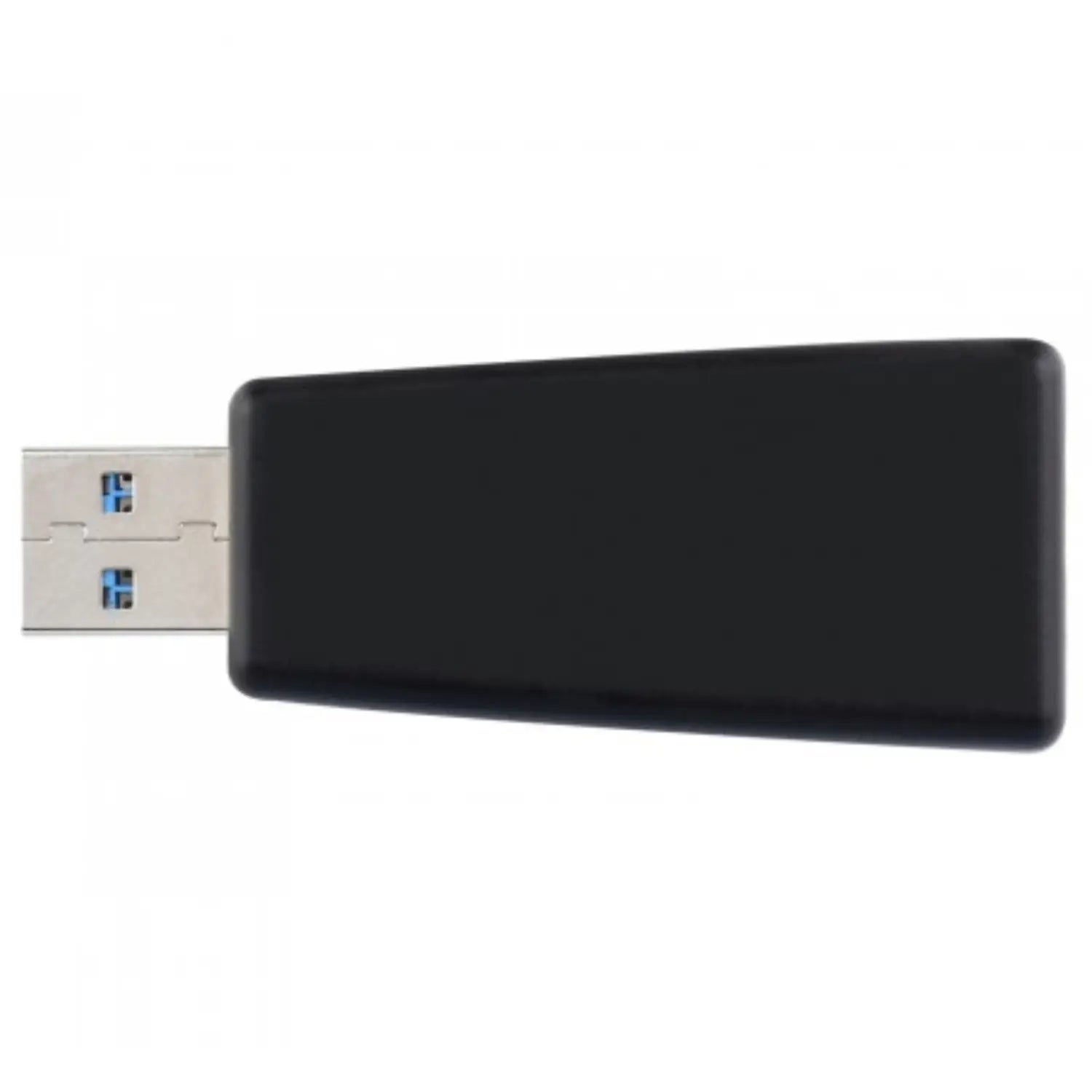

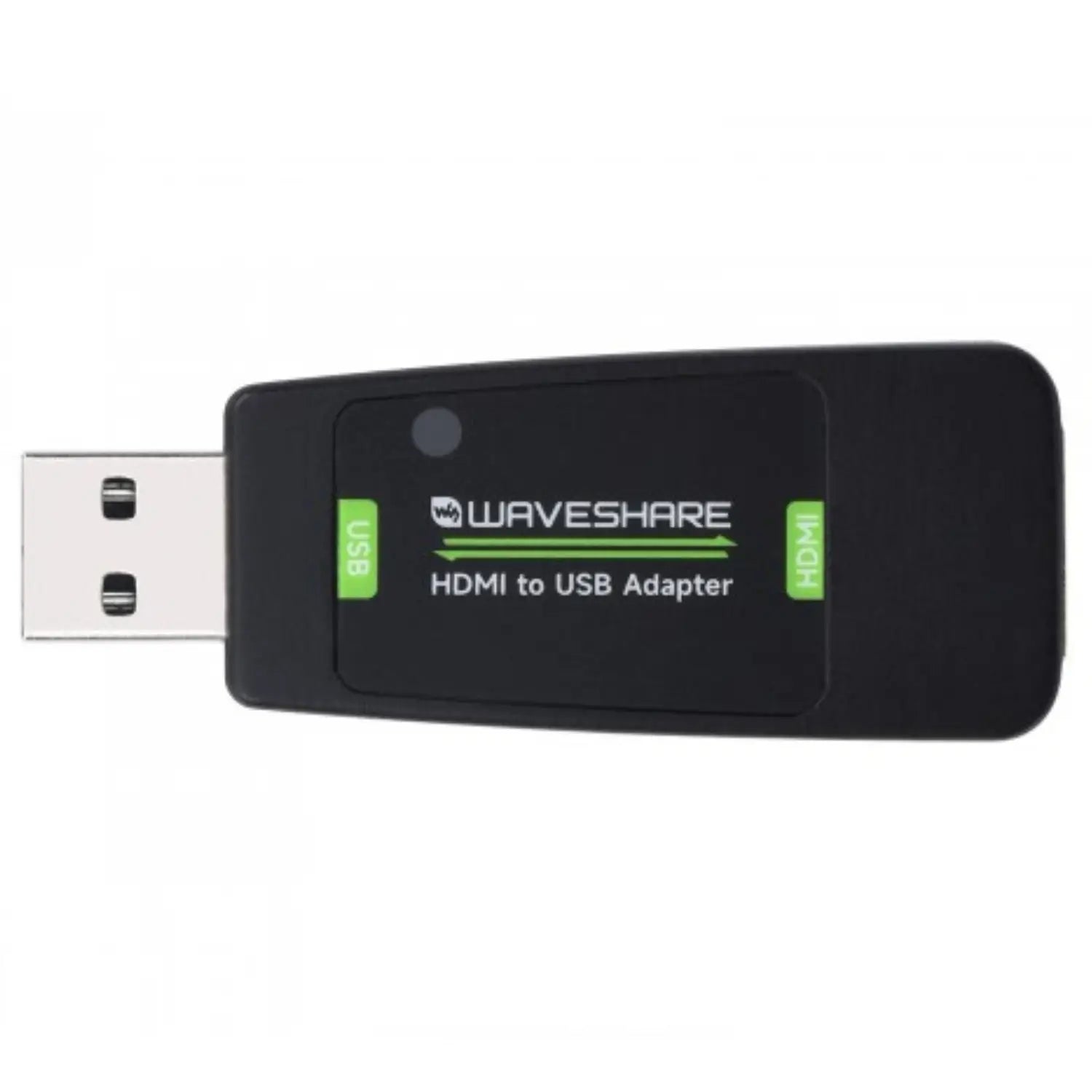

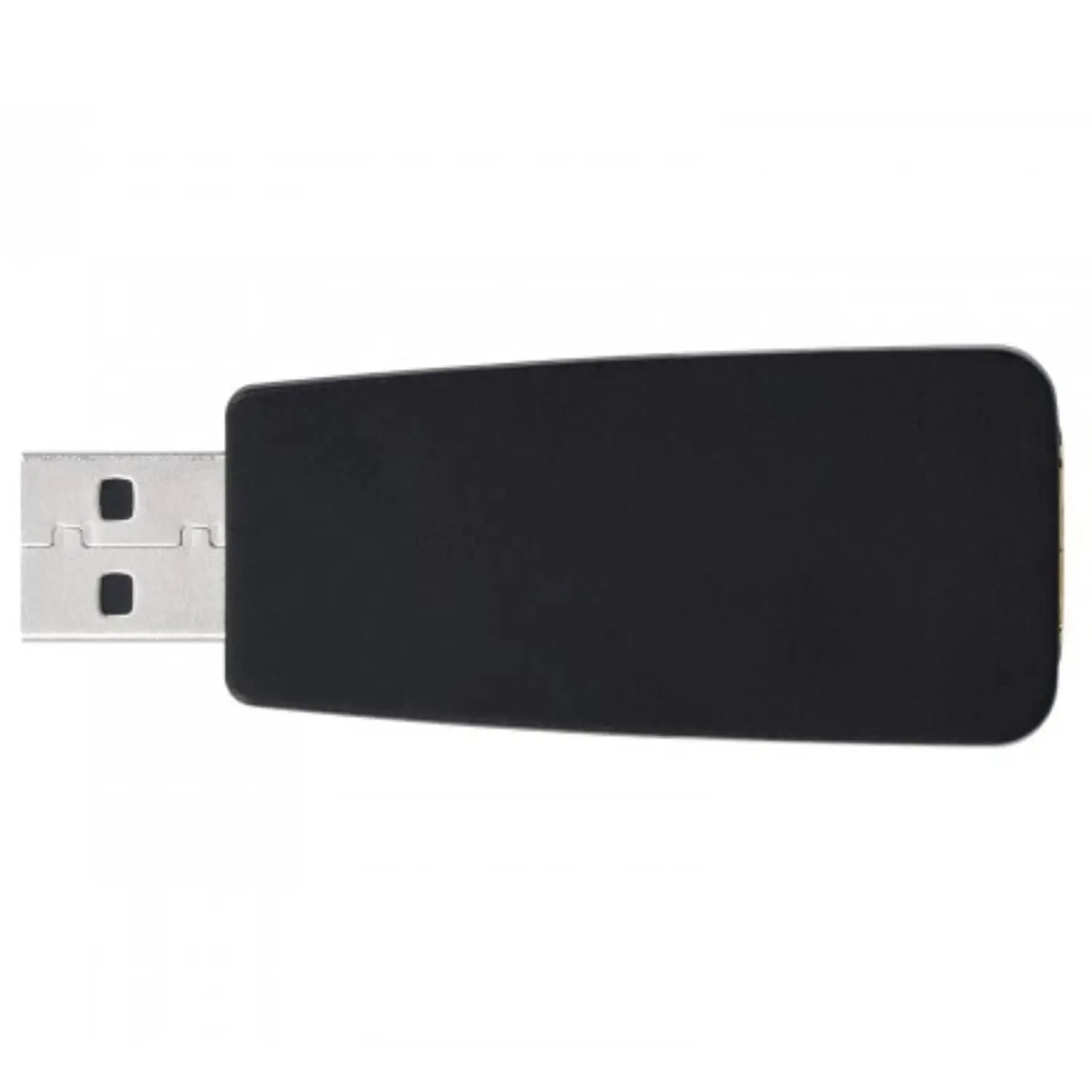

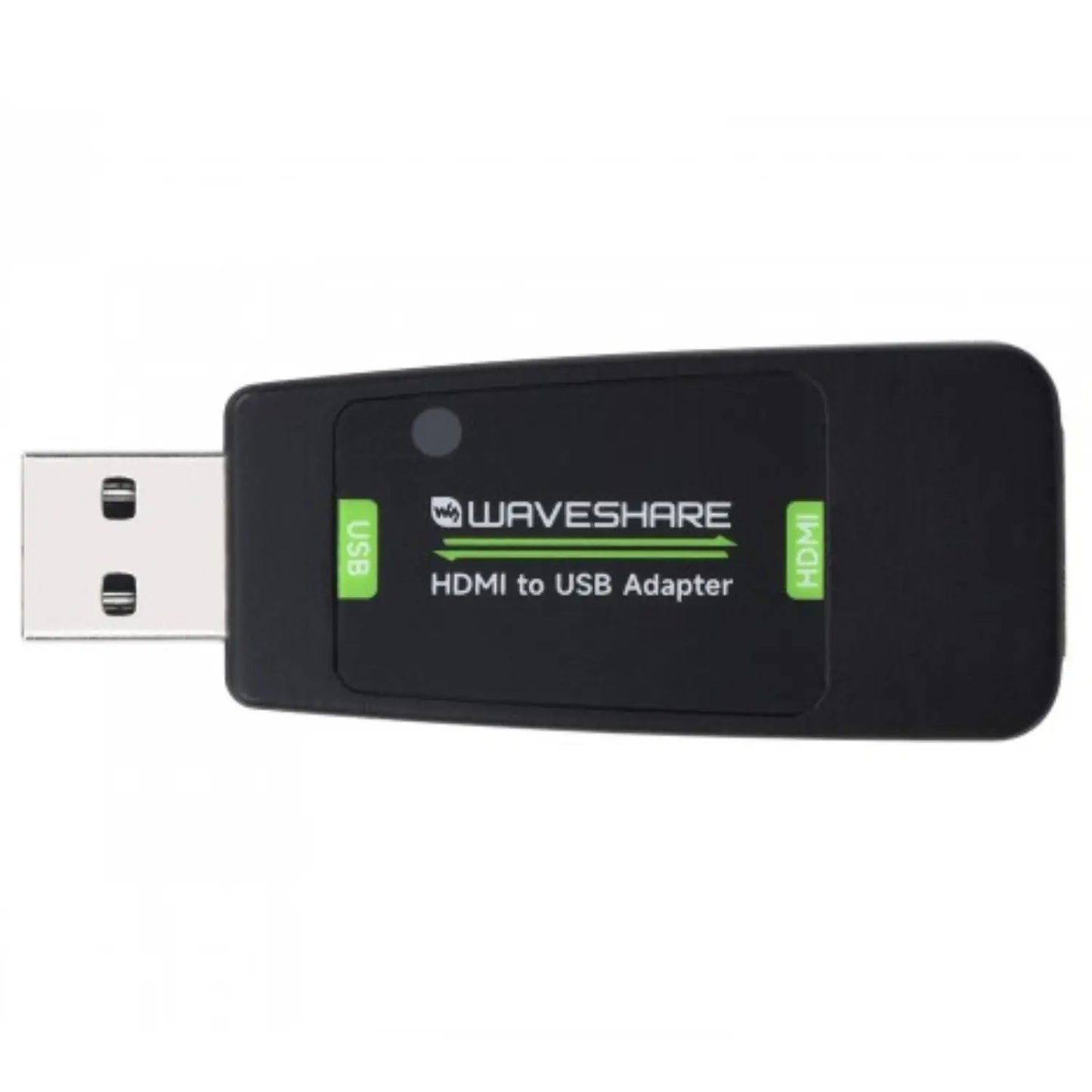

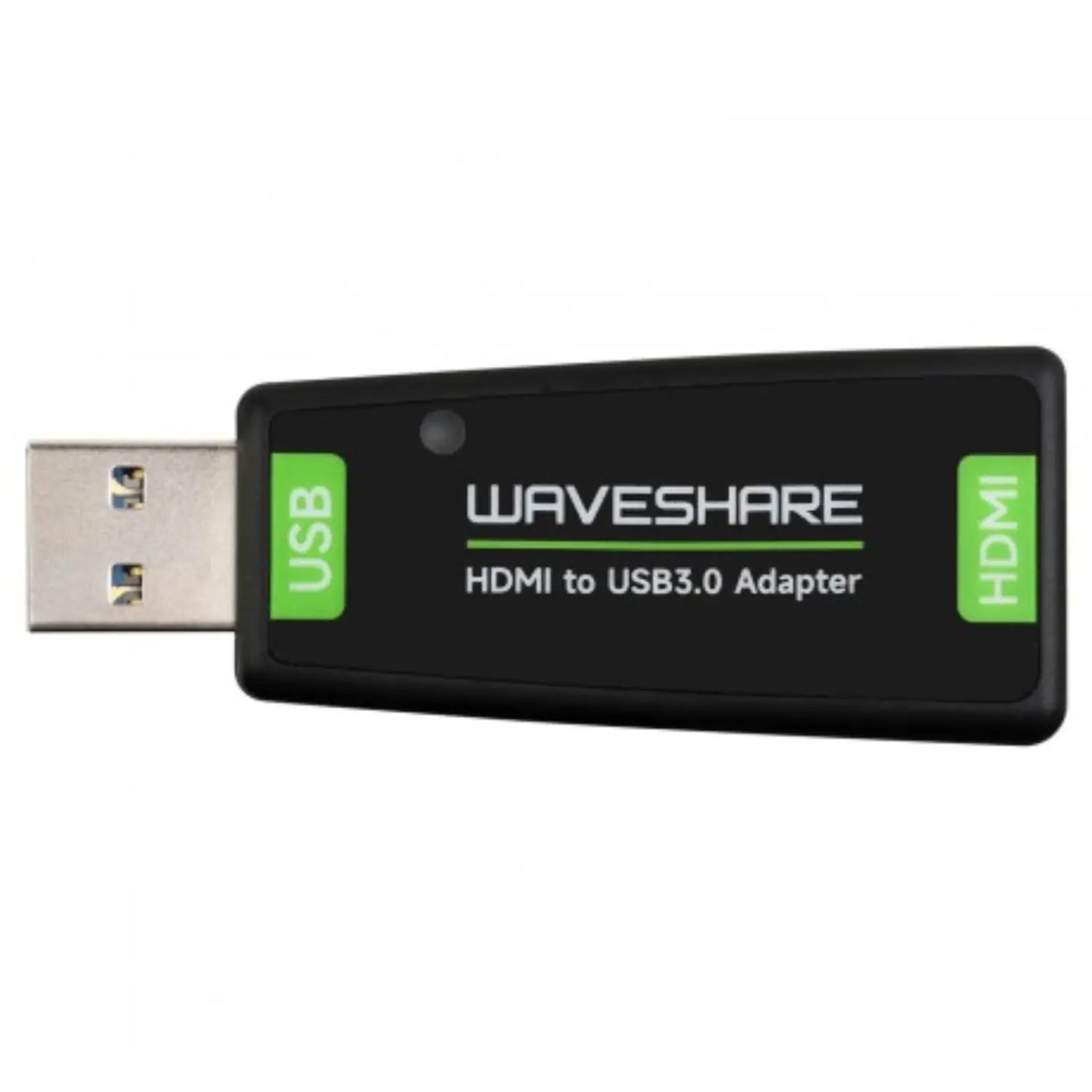

The Waveshare USB HDMI Video Capture Card is a plug-and-play HDMI to USB adapter designed for seamless video recording and streaming. Supporting driver-free installation, it works with Windows, Linux, and macOS, and is fully compatible with OBS, PotPlayer, and other popular recording software. With up to 4K input and 1080P output, this capture card ensures smooth, high-definition video capture for gaming, streaming, and camera applications.
Specification:
Product | HDMI to USB3.0 Adapter | HDMI to USB Adapter |
---|---|---|
Input | HDMI | |
Input resolution up to 4K (3840*2160@30Hz) | ||
HDMI 1.4B compliant | ||
Output | USB3.0 | USB2.0 |
Output resolution up to 1080P (1920*1080@60Hz) |
Output resolution up to 1080P (1920*1080@30Hz) |
|
Supports YUV422 and MJPEG modes | Supports YUV and JPEG modes | |
UVC1.0 and UAC1.0 protocol compliant | ||
Transmission Latency* | As low as 50ms | 100~150ms |
Audio | Default 48KHz stereo output | |
System support | Windows, Linux, macOS, Android | |
Software support | OBS, Potplayer, QuickTime, XSplit, etc. |
Features:
HDMI Input;
- Compatible with HDMI 1.4B
- Support DVI1.0
- Support HDCP1.4
- Support RGB444/YCBCR422/YCBCR444/YCBCR420
- Support color depth 24/30/36-bit mode
- Support CEA-861/CEA-861-F video format
- Max. support resolution: 4K(3840*2160@30Hz)
USB Video Output:
- Support YUV and JPEG modes
- Max. support resolution: 1080P(1920*1080@30Hz)
- Support user-defined resolution
- Compatible with USB 1.1 mode
- Compatible with UVC1.0 protocol
Useful Links:
Waveshare USB2.0 HDMI Video Capture Card High Definition HDMI to USB Adapter
Waveshare USB3.0 HDMI Video Capture Card High Definition HDMI to USB Adapter
Package Included:
1 x Waveshare USB2.0 HDMI Video Capture Card High Definition HDMI to USB Adapter
