Description:

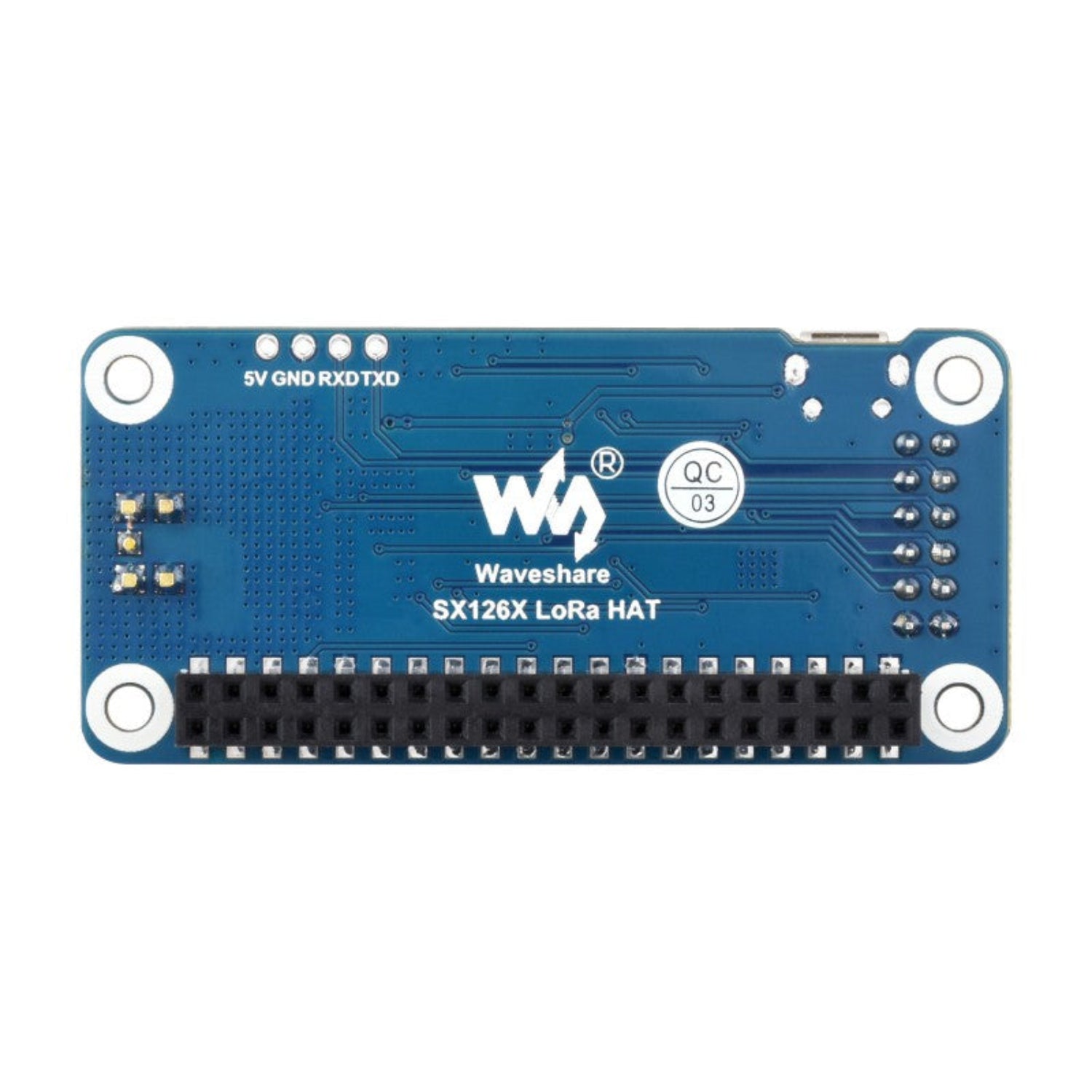

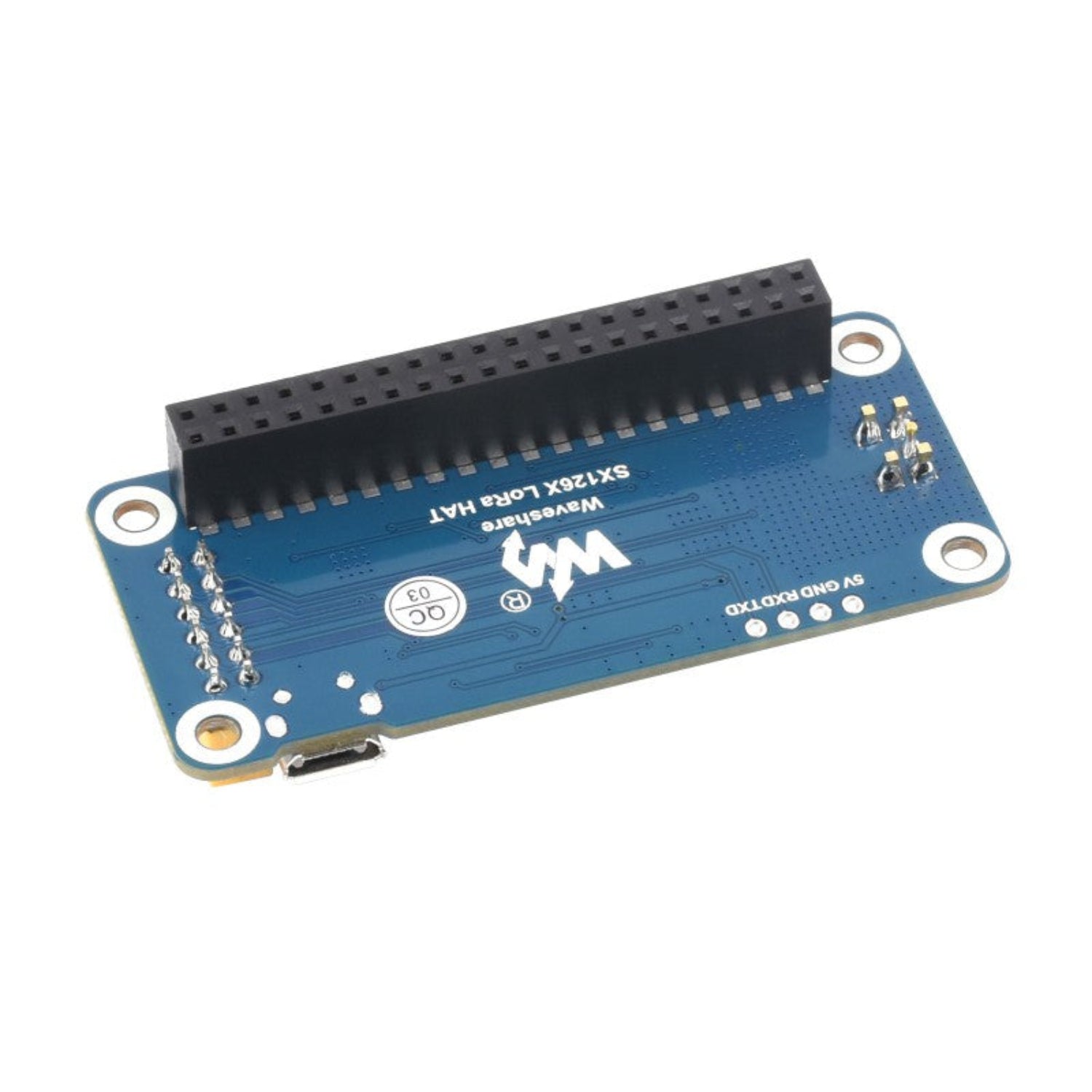

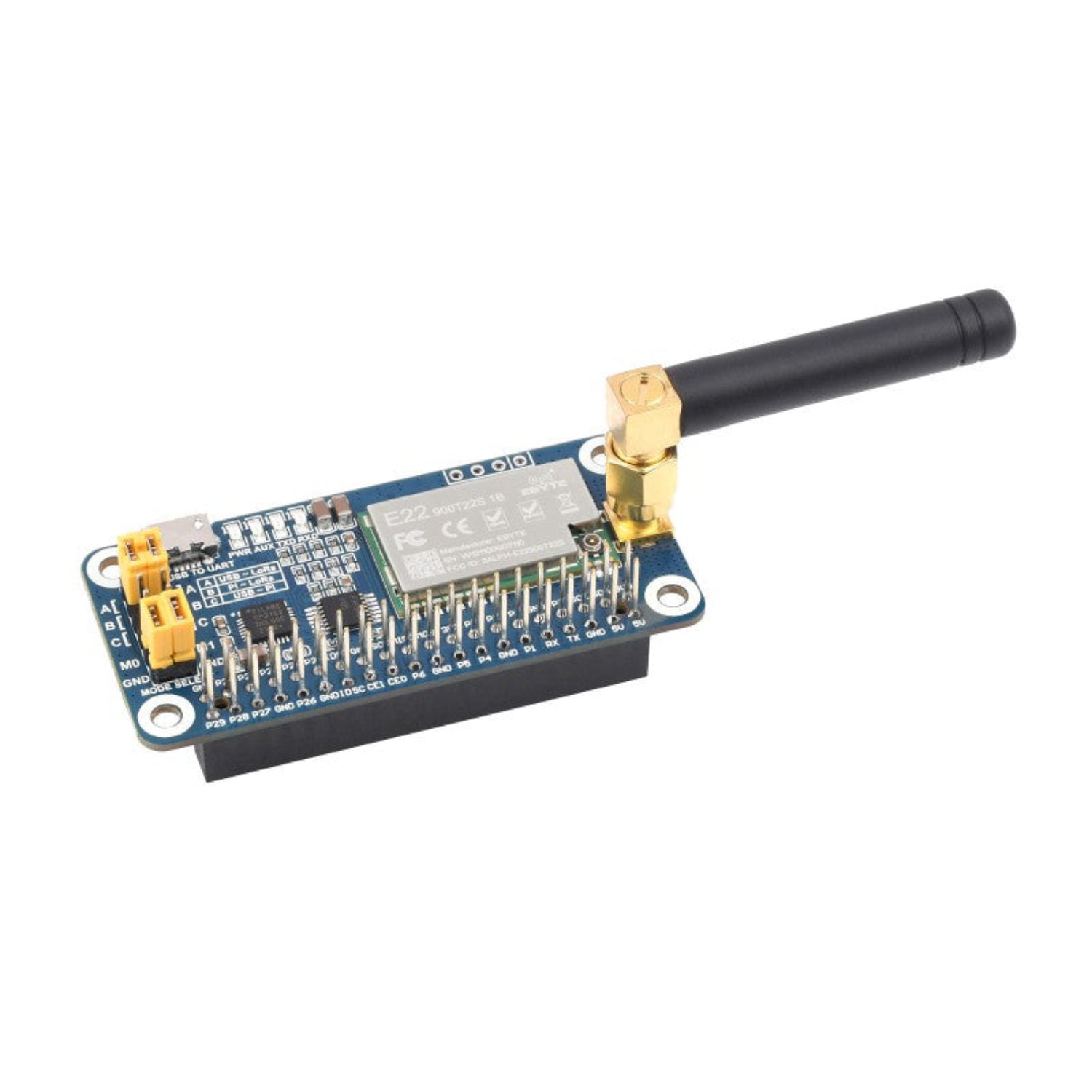

This Raspberry Pi LoRa Expansion HAT utilizes the Semtech SX1262 transceiver, providing robust 915MHz LoRa connectivity. It supports serial data transmission over distances up to 5 kilometers. Employing the latest LoRa spread spectrum modulation, the HAT offers extended range and includes an auto-repeating function for even greater distances.
Additional features encompass Wake on Radio for low-power operation, wireless parameter configuration, carrier sense capability, and communication encryption. The SX1262 chipset delivers significant advantages over conventional LoRa modules, including increased data rates, reduced power consumption, enhanced security, and improved immunity to interference. Suitable for industrial IoT, smart agriculture, and remote monitoring solutions.
Specifications:
- HAT Type: Lora HAT
- Receive Current: 11mA
- TRANSMIT CURRENT: 133mA
- Sleep Mode Current: 2uA
- Transmit Length: 240 Bytes (32, 64, 128, 240 Bytes Selectable)
- Max Transmit Power: 22.0dBm(10, 13, 17, 22dBm Selectable)
- Buffer: 1000 Bytes
- Receive Sensitivity: 147dBm@0.3Kbps (On-air)
- Frequency Band: 850.125 ~ 930.125MHz
- Range: 5KM(Sunny day; open area; Antenna: AUX 5dBi, Height 2.5m; Air Speed: 2.4kbps)
- Max. Working Voltage: 5V
- Logic Input: 3.3V
- Operating Temperature: 40 to 85°C
Features:
- Onboard CP2102 for direct USB to UART serial debugging.
- Seamlessly works with all Raspberry Pi series boards via standard 40-PIN GPIO.
- Exposes UART for easy connection to Arduino, STM32, and other host boards.
- 4x LEDs provide quick visual feedback on module operation.
- LoRa modulation with up to 81 channels for longer, interference-resistant communication.
- Deep sleep and Wake on Radio optimize for battery-powered use.
- Auto multi-level repeating enables extensive network coverage.
- Customizable key prevents unauthorized data access.
- LBT support ensures high success rates in noisy environments.
- RSSI indication aids in network optimization.
- Supports fixed-point, broadcast, and channel monitoring.
- Wirelessly configure and retrieve module parameters.

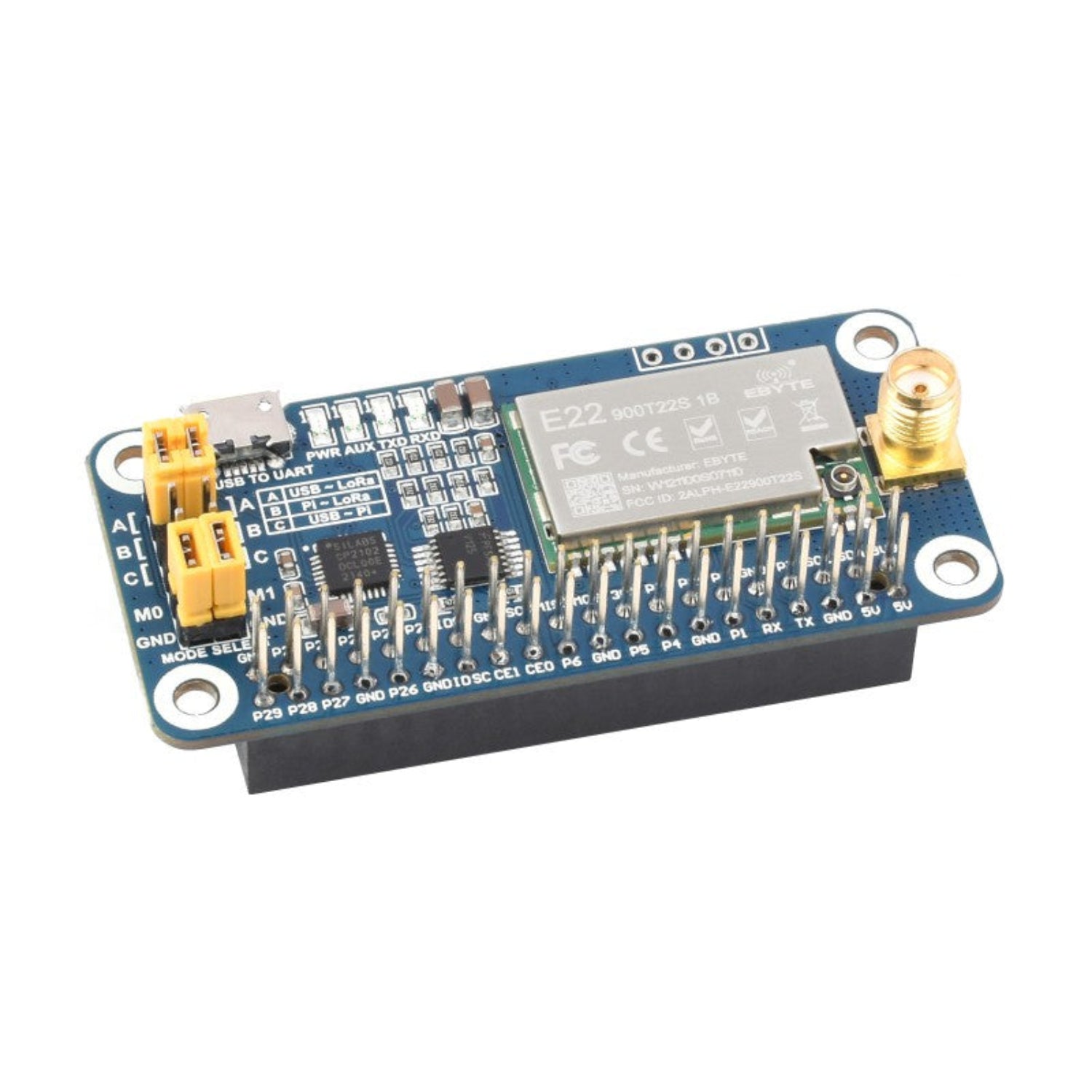

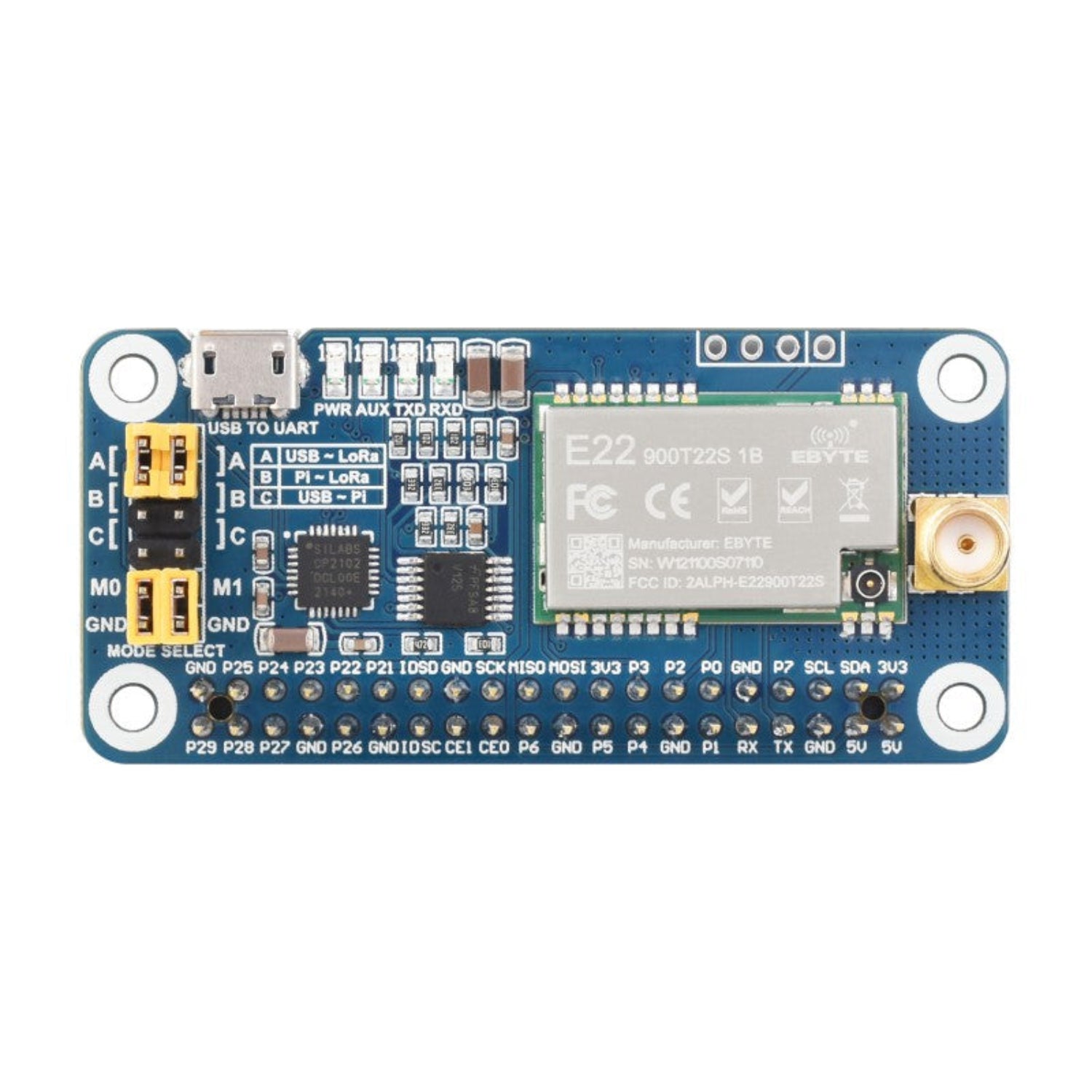

Product Included:
- SX1268/SX1262 LoRa module
- 74HC125V: voltage level translator
- CP2102: USB TO UART converter
- Raspberry Pi GPIO connector: for connecting with Raspberry Pi
- USB TO UART port
- UART header: for connecting MCU
- SMA antenna connector
- IPEX antenna connector
- Indicators:
- RXD/TXD: UART RX/TX indicator
- AUX: auxiliary indicator
- PWR: power indicator
- UART selection jumpers
- A: control the LoRa module through USB TO UART
- B: control the LoRa module through Raspberry Pi
- C: access Raspberry Pi through USB TO UART
- LoRa mode selection jumpers
- short M0, short M1: transmission mode
- short M0, open M1: configuration mode
- open M0, short M1: WOR mode
- open M0, open M1: deep sleep mode
Useful Link:
Package Included:
1 x Waveshare SX1262 LoRa Expansion HAT
