Description:

The Waveshare Solar Power Management Module, designed for 6V to 24V solar panels. It efficiently charges 3.7V Li batteries (solar or USB) and provides a clean 5V/1A regulated output. Featuring MPPT for maximum power conversion and multi-protection circuits, this module ensures high-efficiency, stable, and safe performance. Perfect for solar-powered setups, low-power IoT, and eco-friendly projects.

Specifications:

  • USB Input voltage: 5V
  • Charging Cut-off Voltage: 4.2V±1%V
  • OverDischarge Protect: 2.9V±1%V
  • Maximum Efficiency: ~78% Solar panel charge
  • USB: Charge efficiency ~82%
  • Quiescent Current: <2mA
  • Operating Temperature: -40℃~85℃

Features:

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Supports solar panel / USB connection battery charging
  • For 6V~24V solar panel, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
  • Onboard two power output interfaces: USB port for 5V output, pinheader for 3.3V or 5V output
  • Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V rechargeable Li batteries.
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use

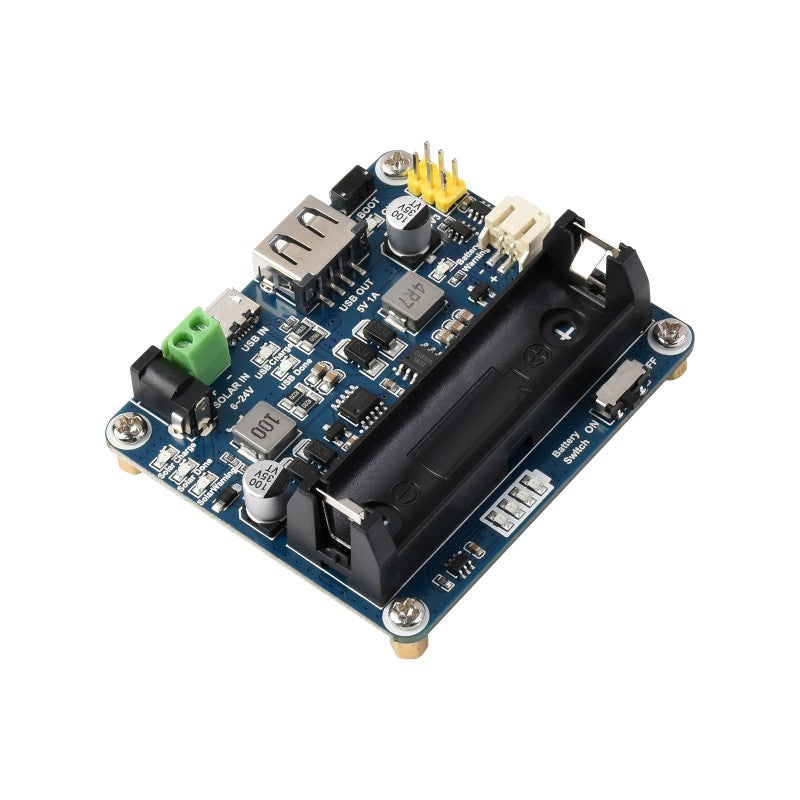

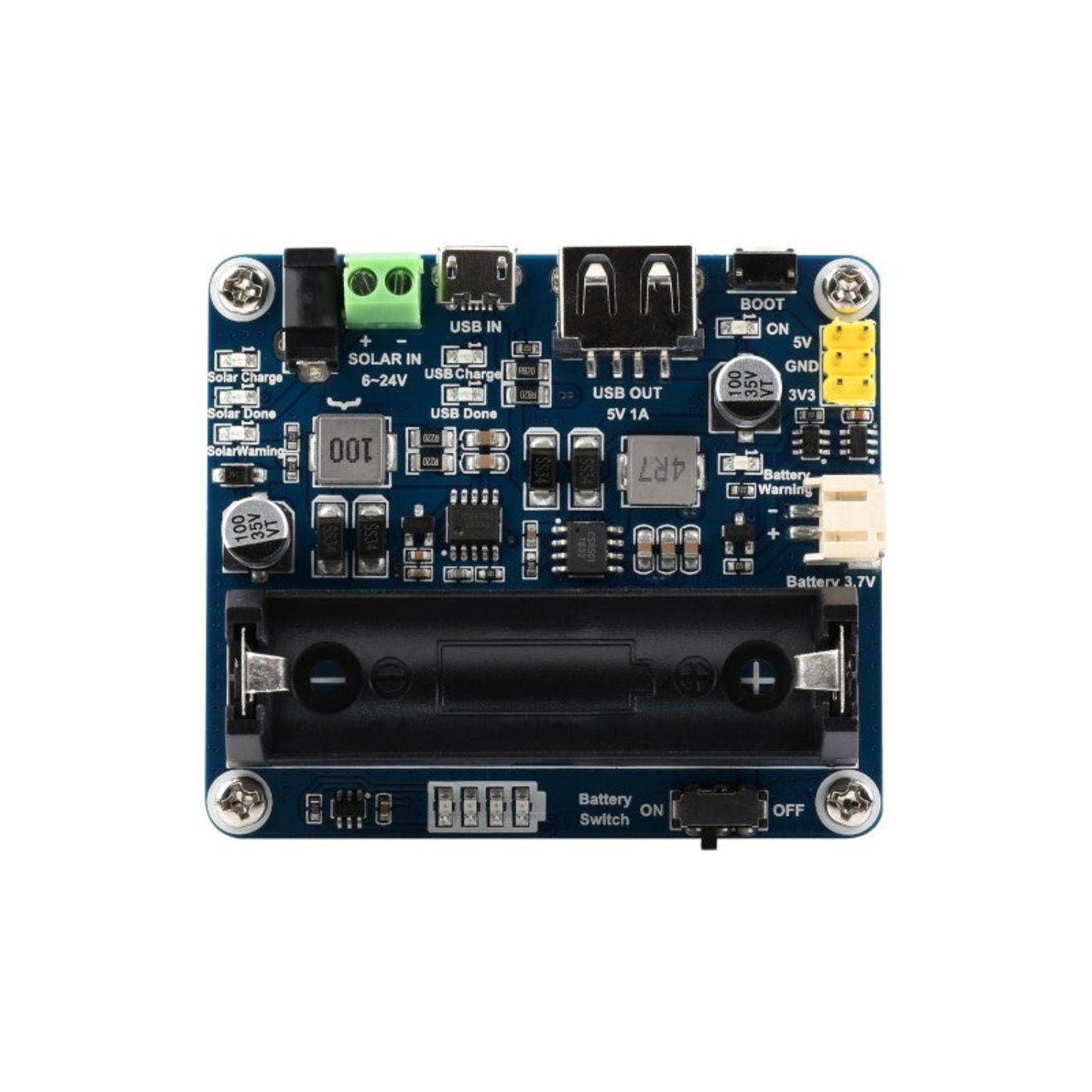

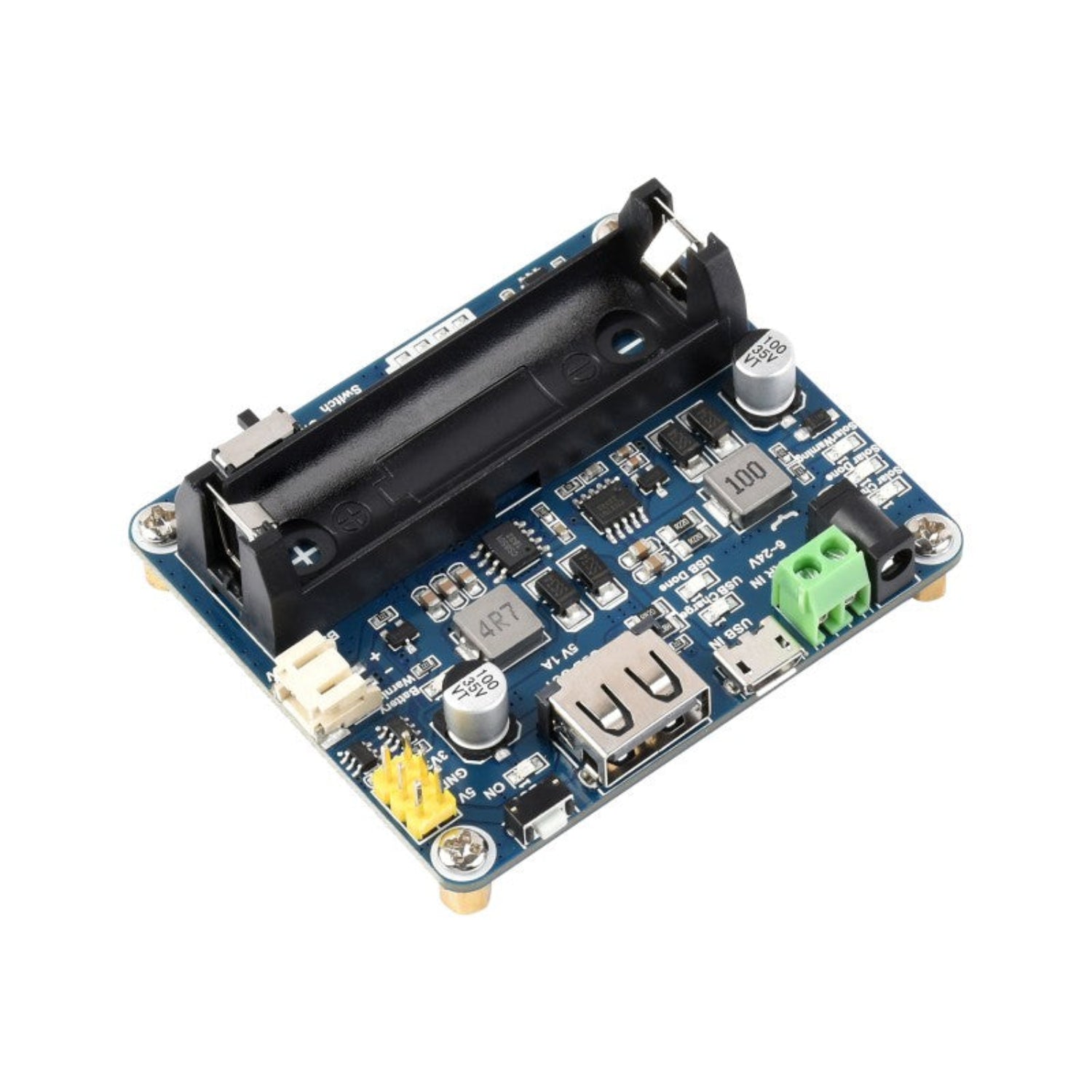

Product Interface:

  1. Solar panel charging input: Charged by solar panel, DC-002 jack or screw terminal
  2. USB charging input: Charged by USB connection, connect a 5V power adapter through the Micro USB port
  3. Power output:
    USB port: 5V/1A output
    pinheader: 5V/1A or 3.3V/1A
  4. Battery interfaces: for connecting 3.7V rechargeable Li battery, PH2.0 connector or 14500 battery holder
  5. CS8501: USB power management chip, for USB charging and 5V/1A boost output
  6. CN3791: Solar power management chip, for solar panel charging and buck input
  7. Li battery protection chip: Li battery over charge / over discharge protection
  8. Battery switch

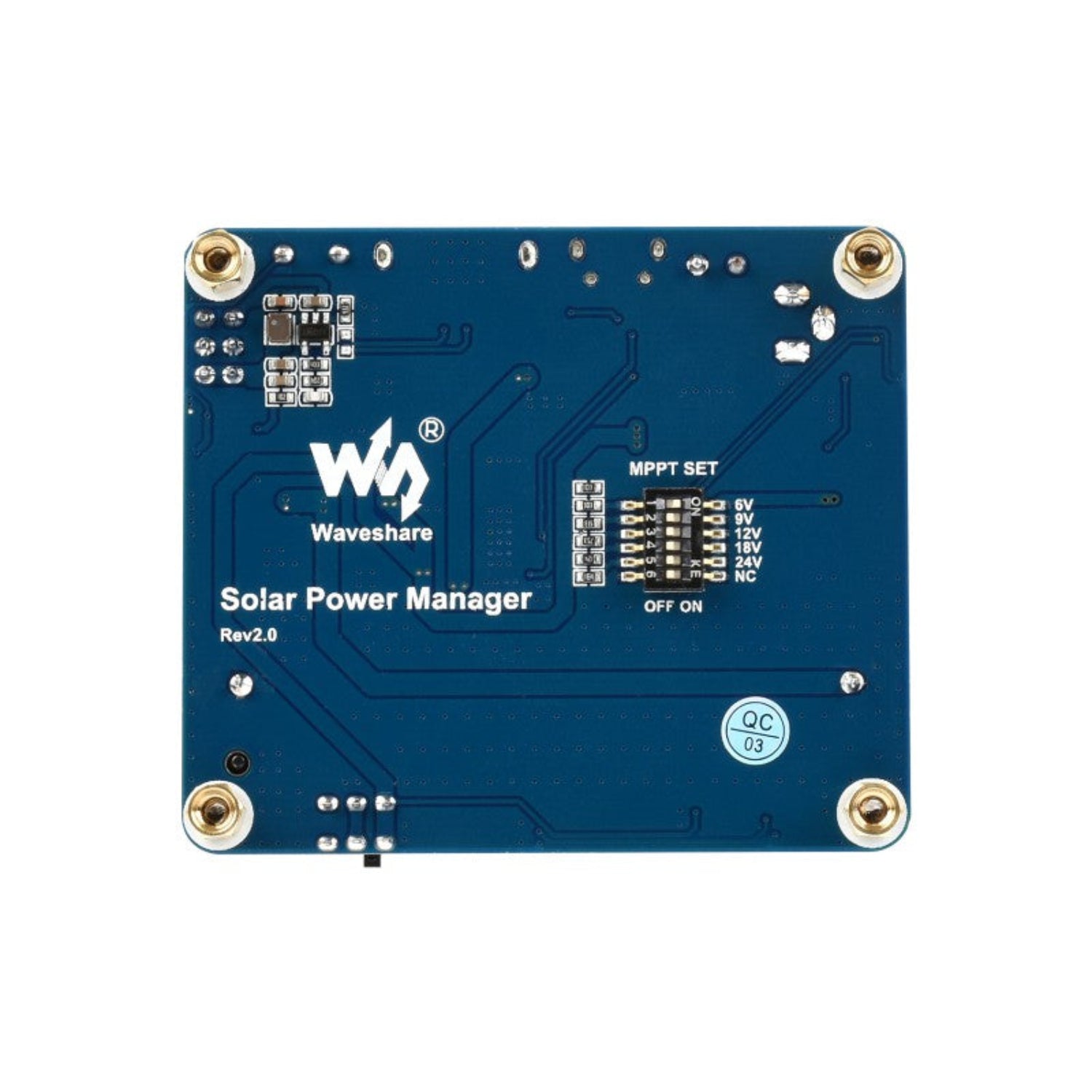

  9. MPPTSET switch (bottom side):
    supported level: 6V/9V/12V/18V/24V
    select the level closed to input level to improve charging efficiency
  10. BOOT key
  11. Battery capacity indicators
  12. USB charging indicators:
    USB Charge: on when USB charging
    USB Done: on when the battery is full charged by USB
  13. Solar panel charging indicators:
    Solar Charge: on when solar panel charging
    Solar Done: on when the battery is full charged by solar panel
    Solar Warning: on when solar panel reverse connection
  14. Battery warning: on when battery reverse connection
  15. Power output indicator: 5V/1A output

Safety Cautions:

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage if they're not properly recharged or used.
  • Do not reverse the polarities when recharging or discharging the battery. Do not use an inferior charger/charging panel to recharge the battery.
  • Do not mix old batteries with new ones, and avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reach their max cycle life, or after working for over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
