Description:

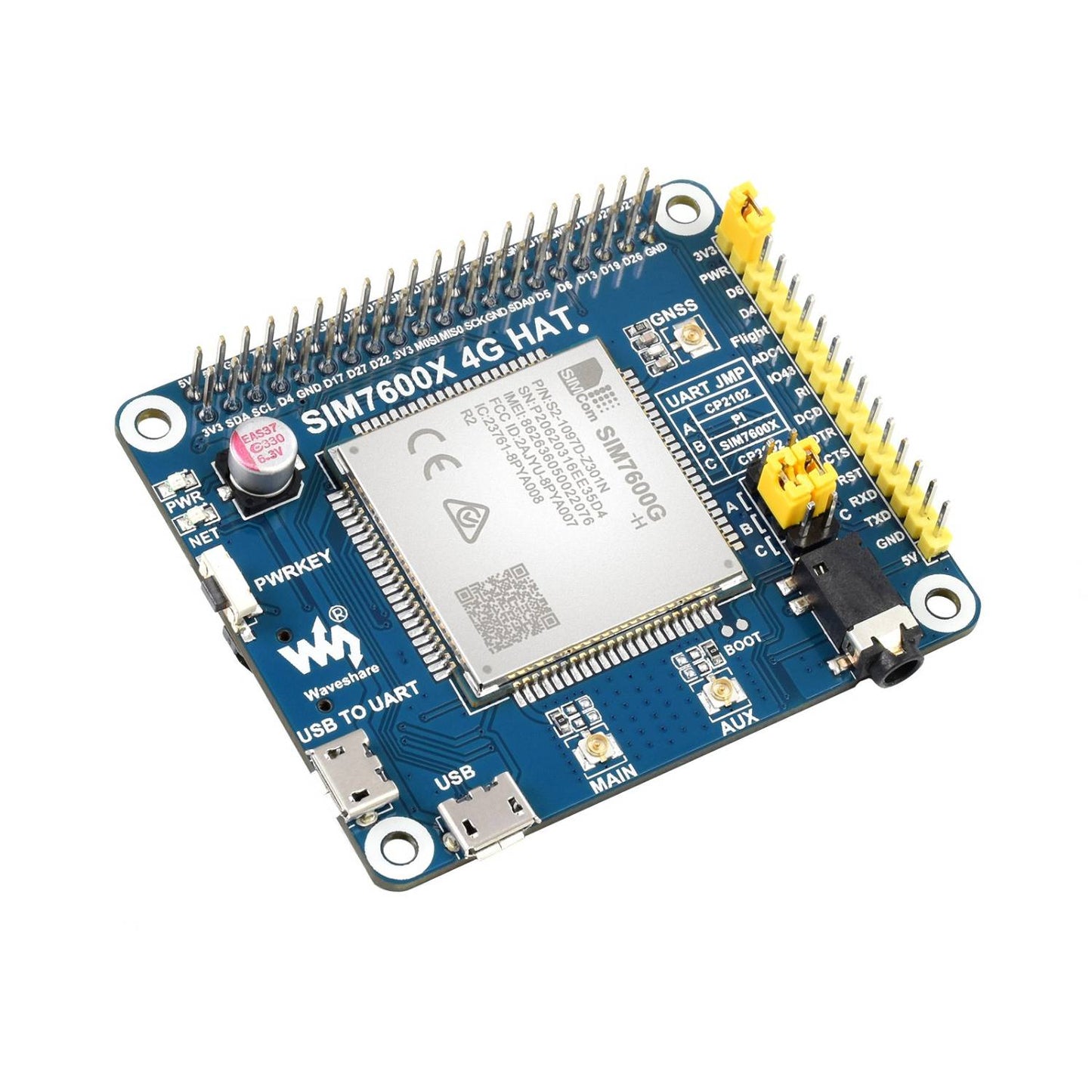

The SIM7600G-H 4G HAT is a high-performance LTE CAT4 module supporting 150Mbps downlink speeds. It offers low-power consumption and integrates GNSS positioning capabilities.
The SIM7600G-H HAT is a versatile 4G module that can connect your devices to the internet, allowing you to surf the web, make calls, send texts, and track your location.
Specifications:
Frequency Band |
|
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 |
| 3G | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
GNSS |
|
| Satellite systems | GPS/Beidou/GLONASS/GALILEO/QZSS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
SMS and Audio |
|
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
Other |
|
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.21mm × 65.15mm |
Features:

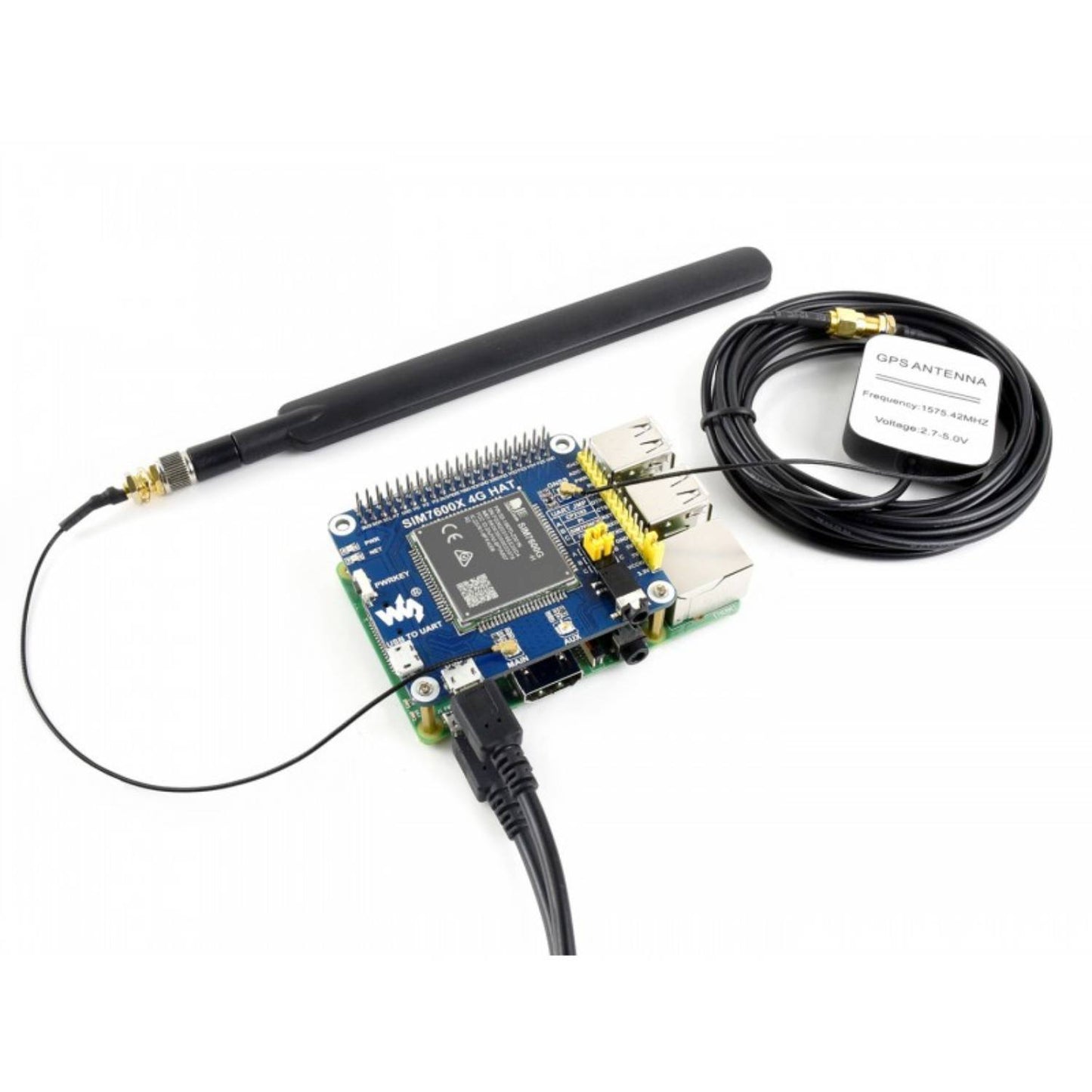

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

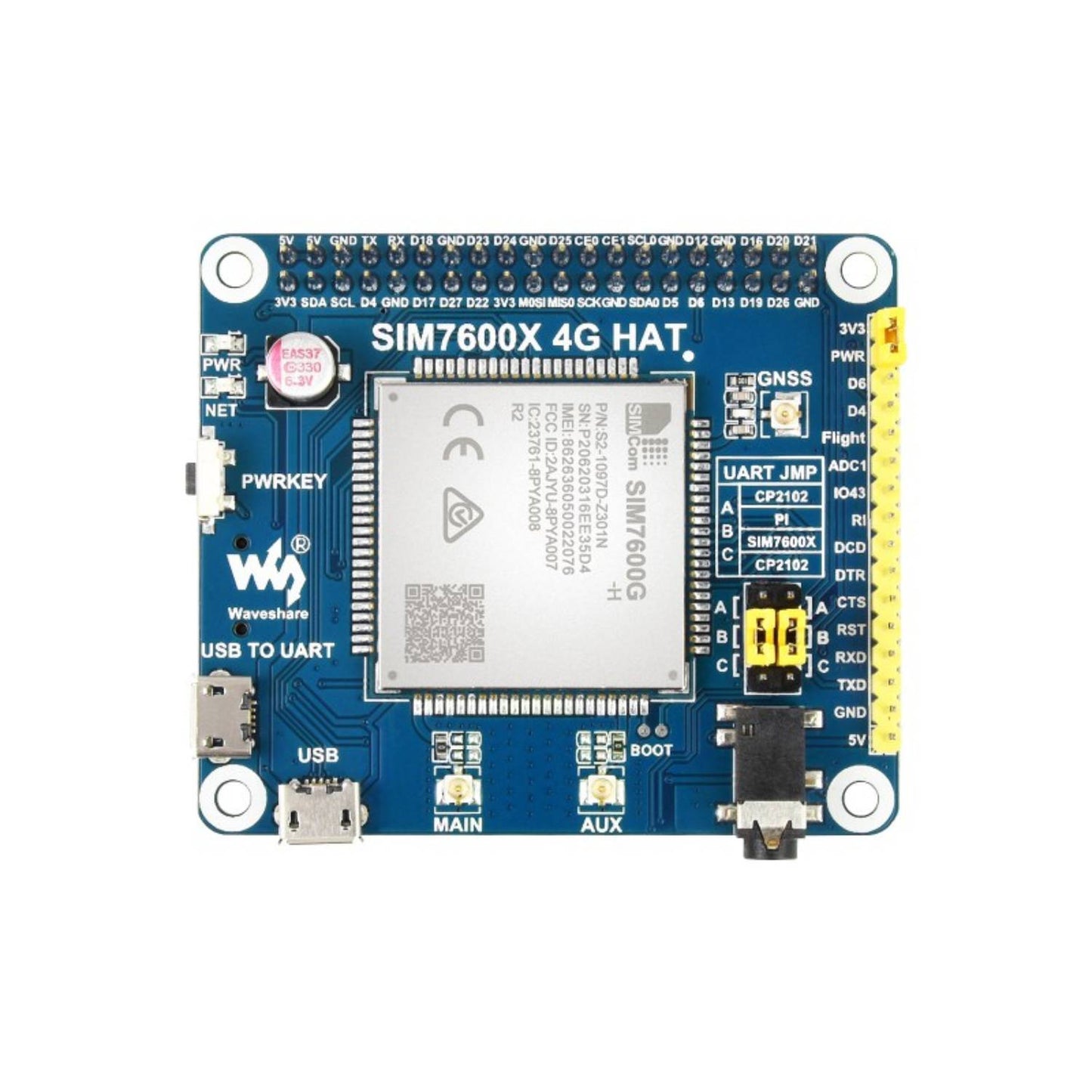

- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Arduino/STM32

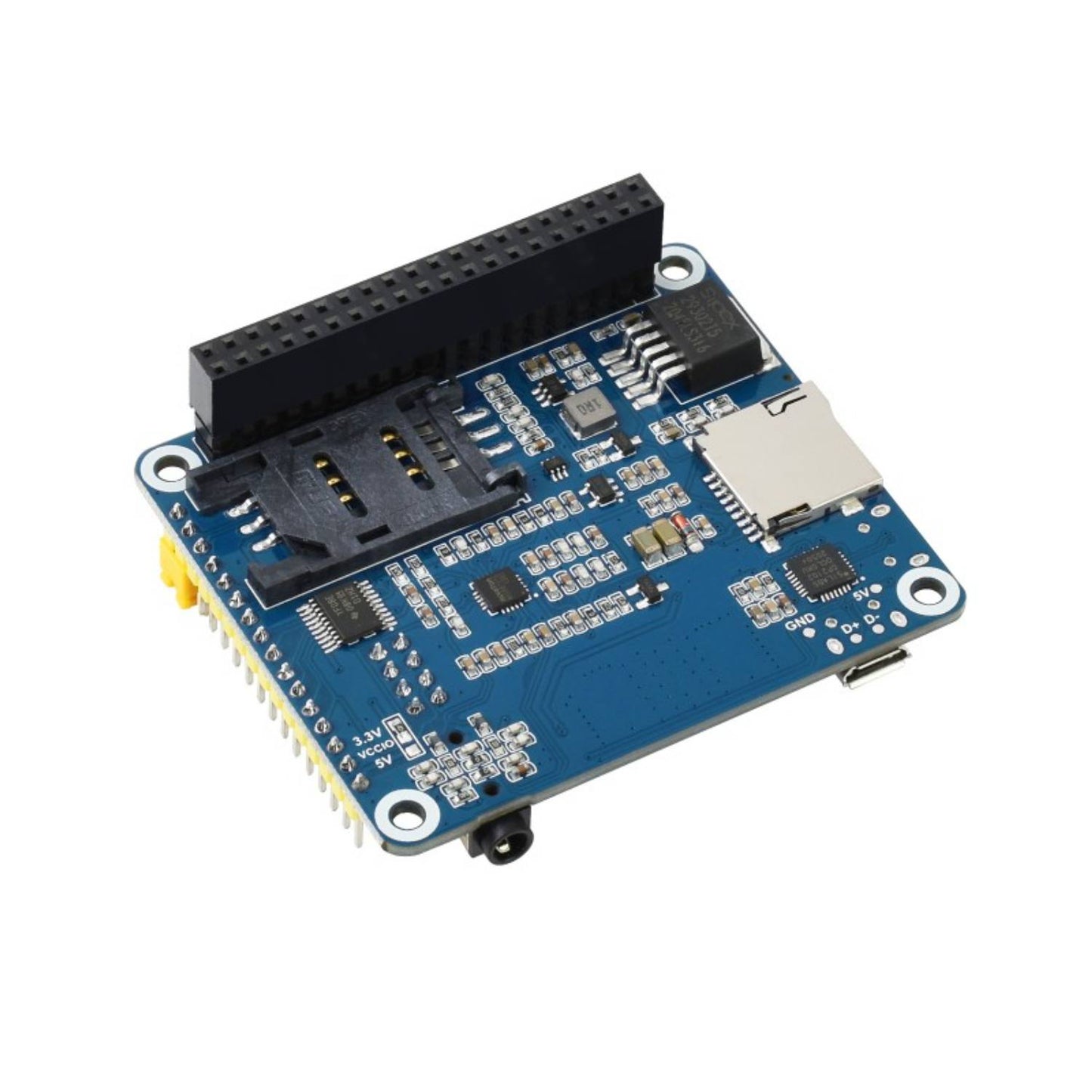

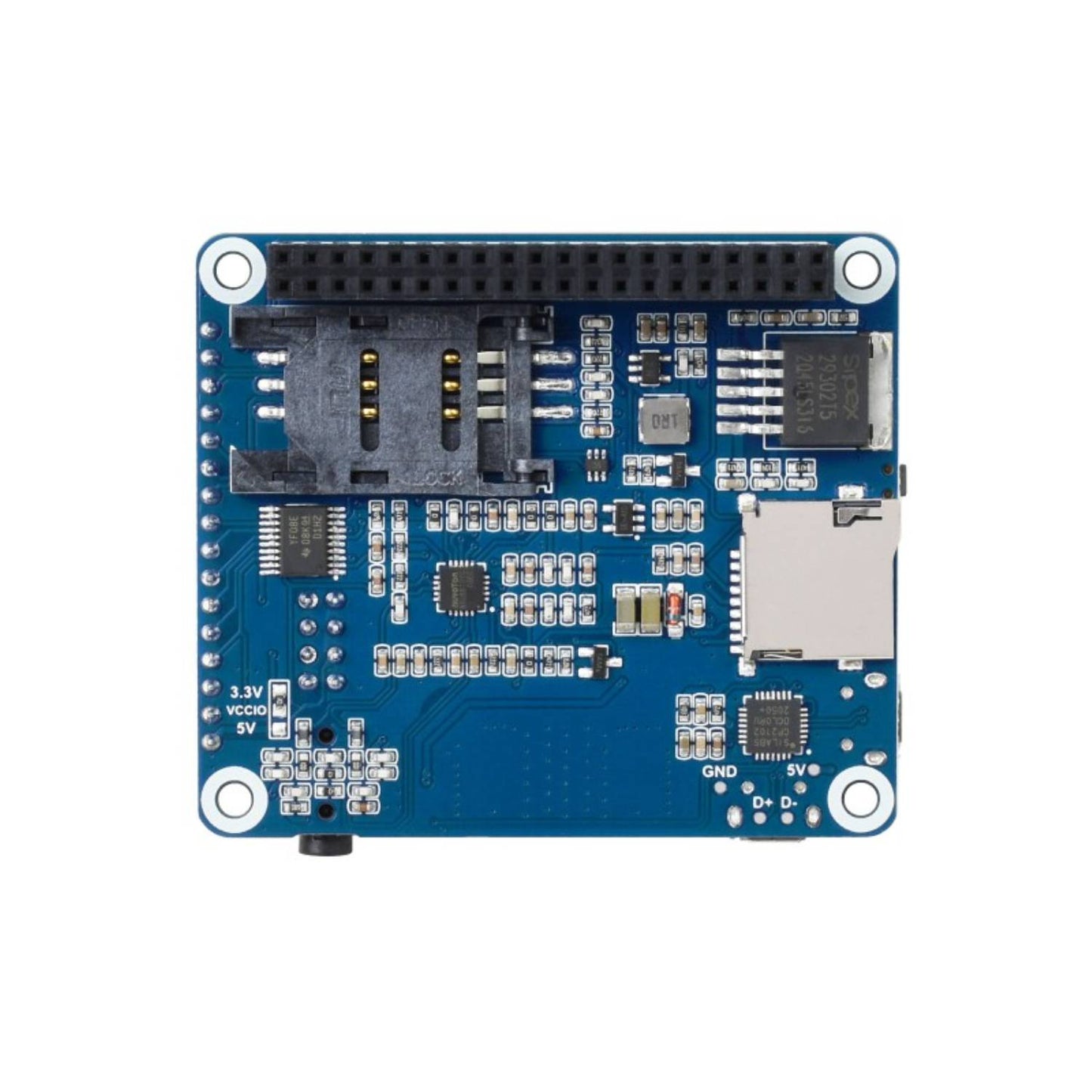

- SIM card slot supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone calls
- 2x LED indicators, easy to monitor the operating status
- Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baud rate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Useful Link:
Package Included:
1 x Waveshare SIM7600G-H 4G HAT LTE Cat-4 4G/3G/2G HAT for Raspberry Pi 4G HAT for Raspberry Pi 4G Module for RPi, GNSS Positioning, Global Band
