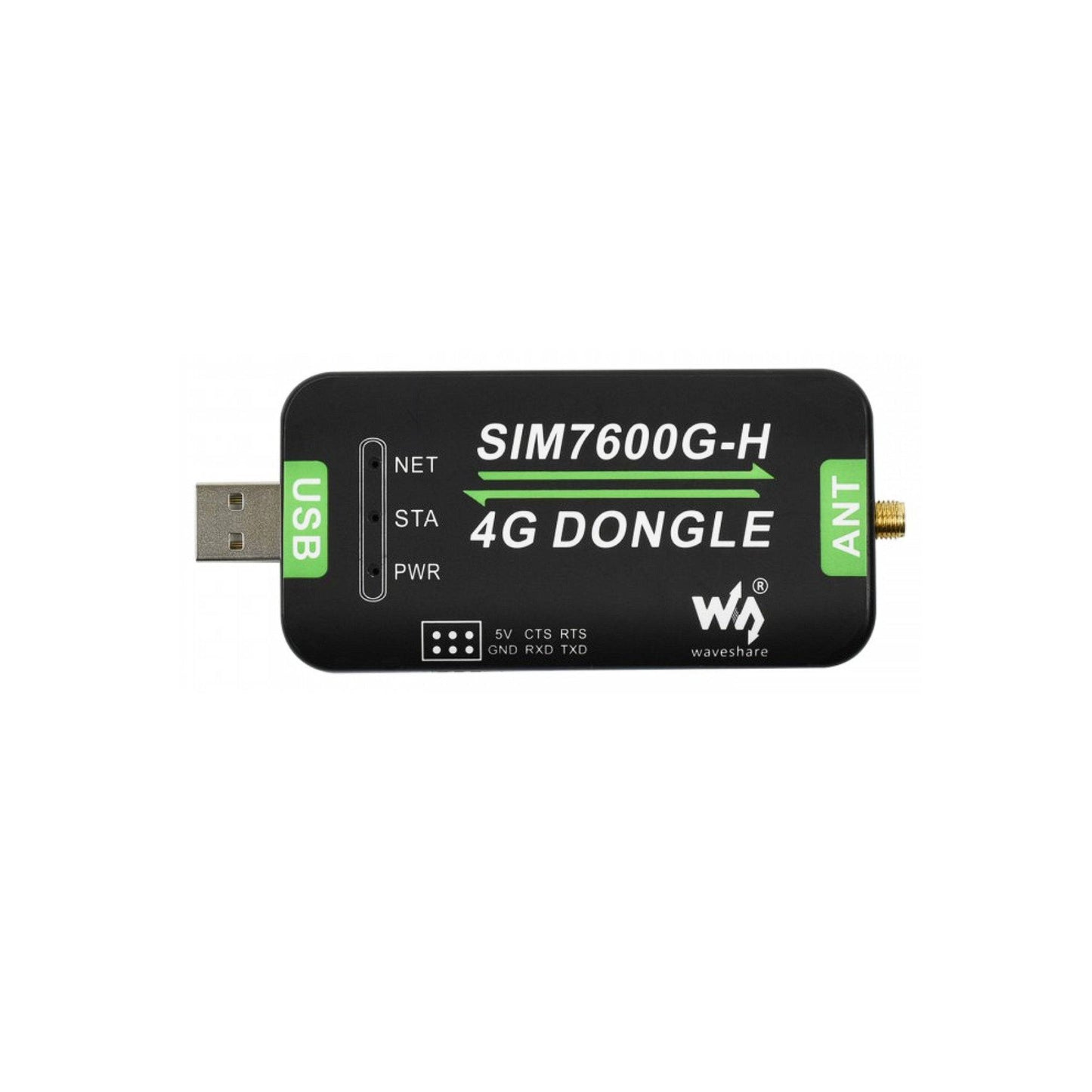

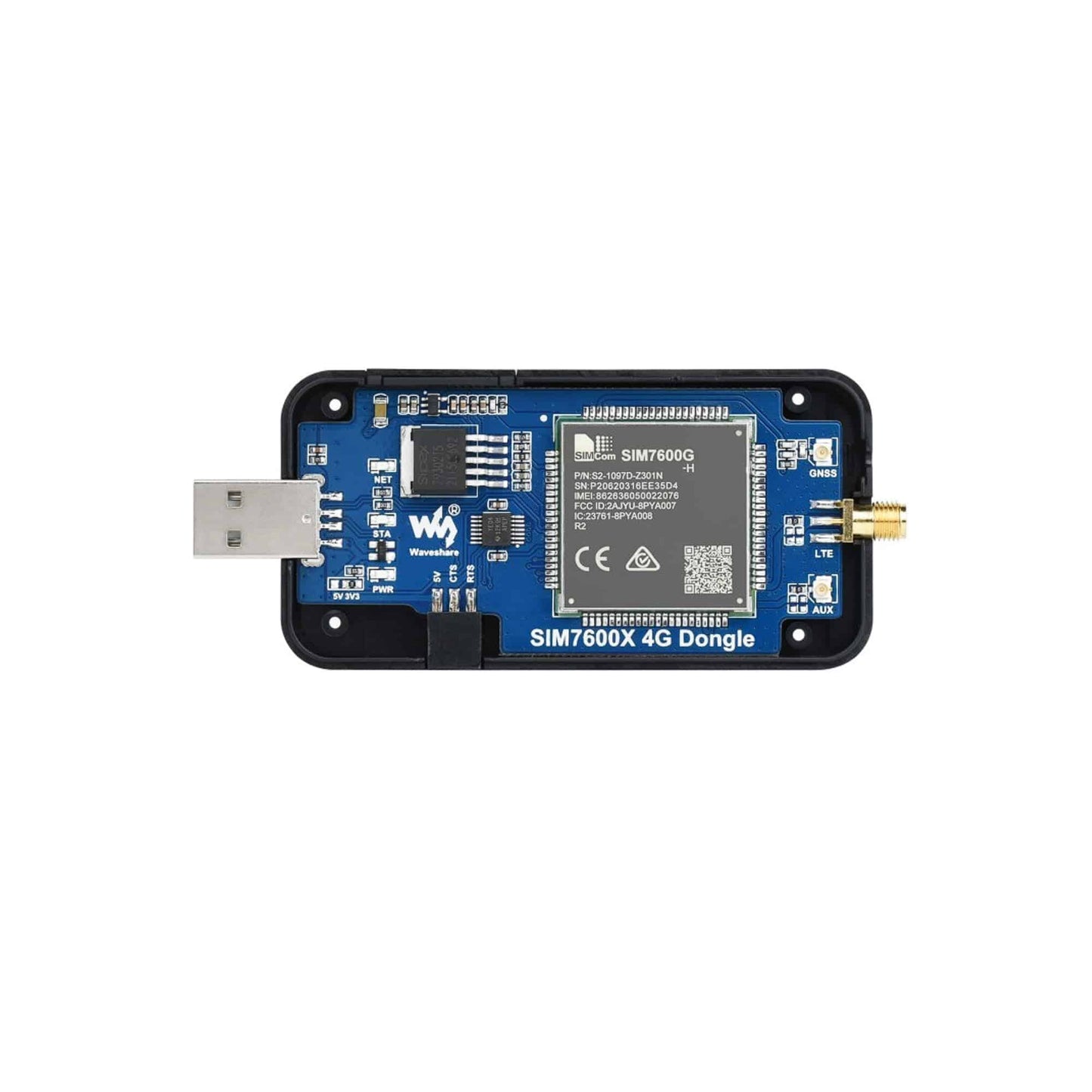

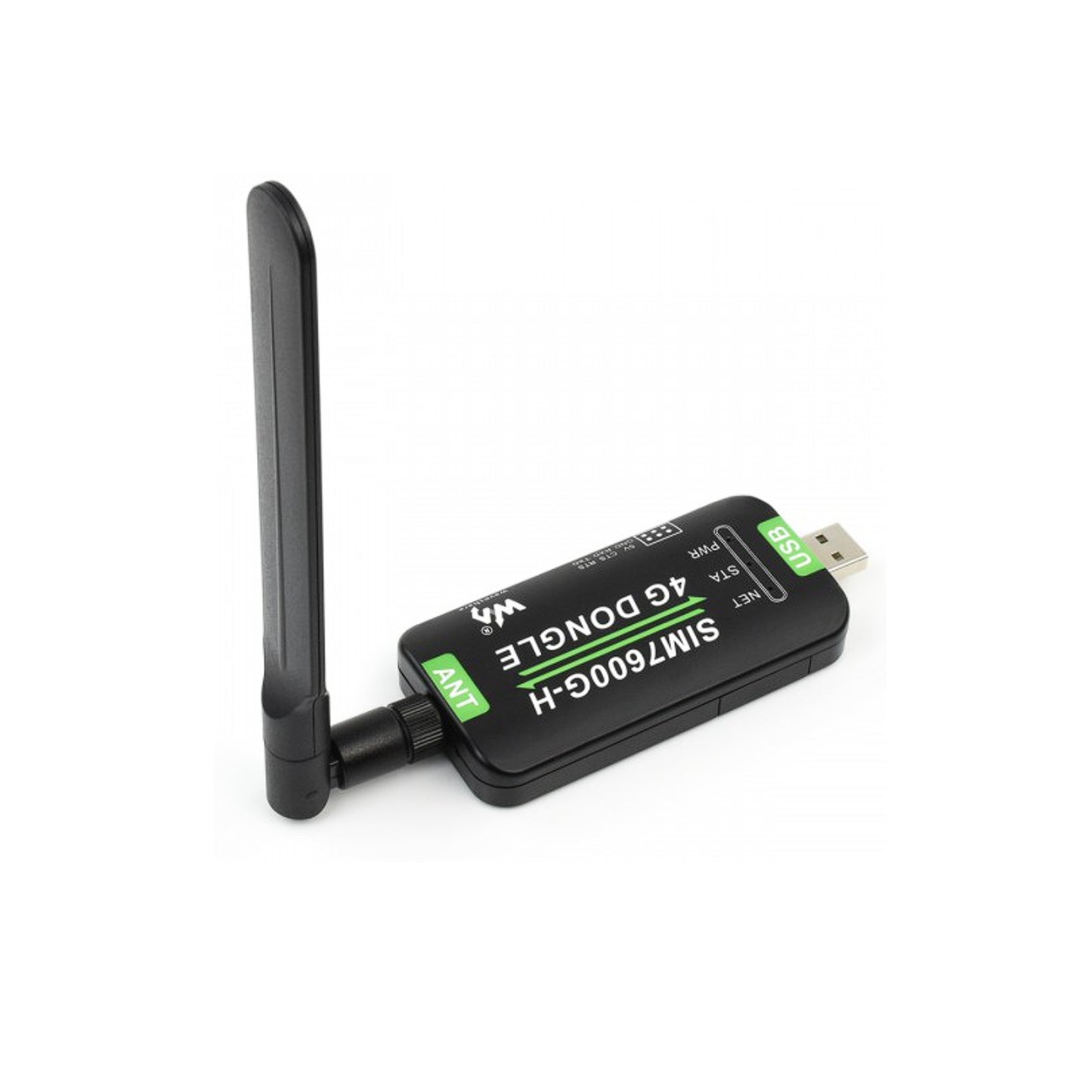

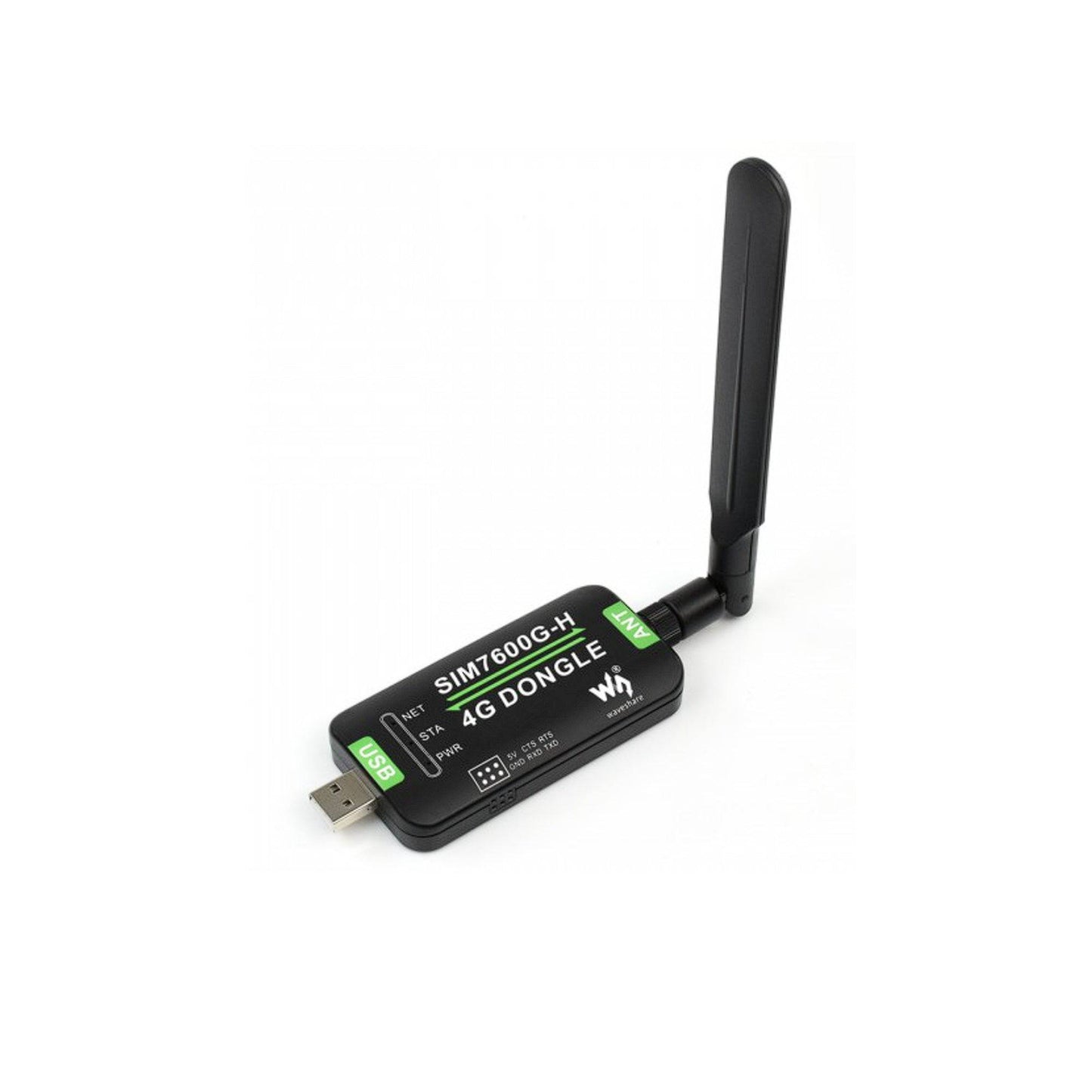

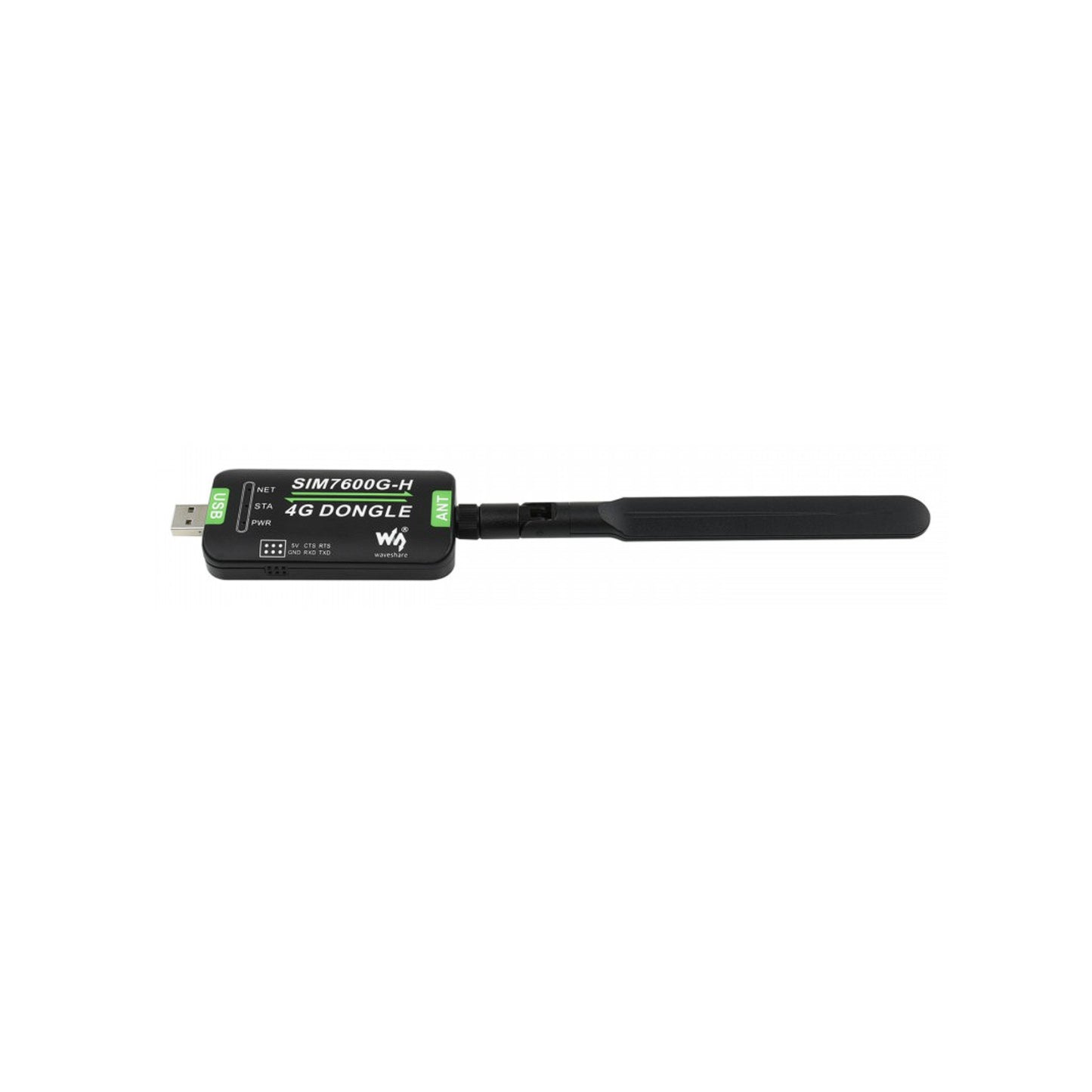

Description:
SIM7600G-H 4G DONGLE is an industrial-grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, and supports operating systems including Windows/Linux/Android. By simply connecting it to a laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, SIM7600G-H 4G DONGLE is easy to use a 4G network connection on the go.
Specifications:
- Operating system: Windows/Linux
- Network protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Dial-up protocol: NDIS/RNDIS/PPP
- Communication interface: USB / UART
- SIM card support: Nano SIM card (1.8V / 3V)
- Power supply: 5V
- Logic level: 3.3V
- UART baud rate: 300bps ~ 4Mbps (115200bps by default)
- Baudrate support: 300bps ~ 4Mbps (115200bps by default).
- Baudrate auto-negotiation: 9600bps ~ 115200bps.
Features:
- SIM7600G-H 4G DONGLE has a nano SIM card slot that supports a 1.8V / 3V nano-SIM card.
- 3 x LED indicators, easy to monitor the working status.
- Portable customized enclosure, mini size, nice looking.
- SIM7600G-H 4G DONGLE supports 2G/3G/4G network connection.
- Driver provided, for operating systems including Windows/Linux/Android.
- Supports TCP/UDP/FTP/FTPS HTTP/HTTPS protocols.
- SIM7600G-H 4G DONGLE supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS.
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computers.
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32.
Package Included:
1 x Waveshare SIM7600G-H 4G DONGLE, GNSS Positioning, Global Band Support
