Description:

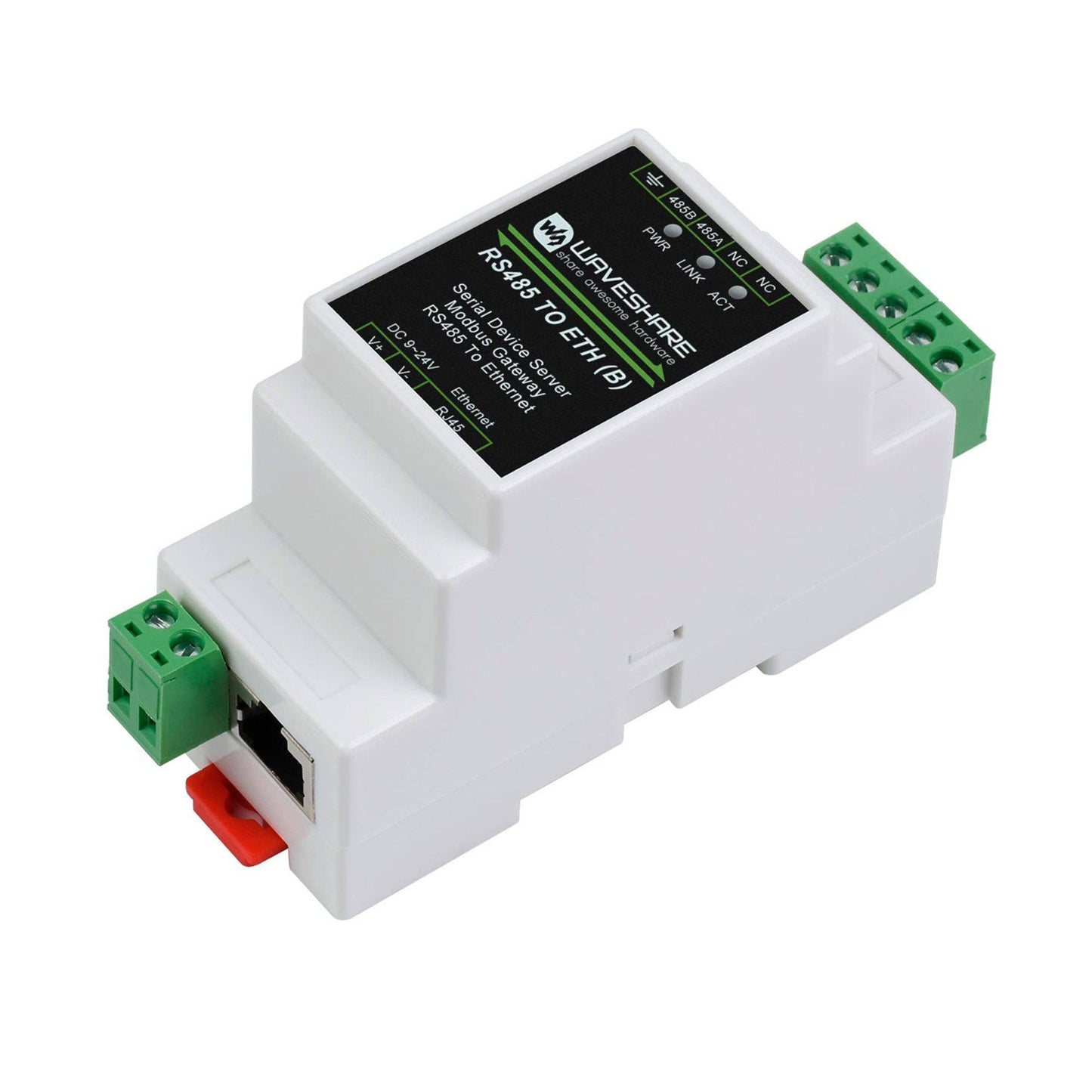

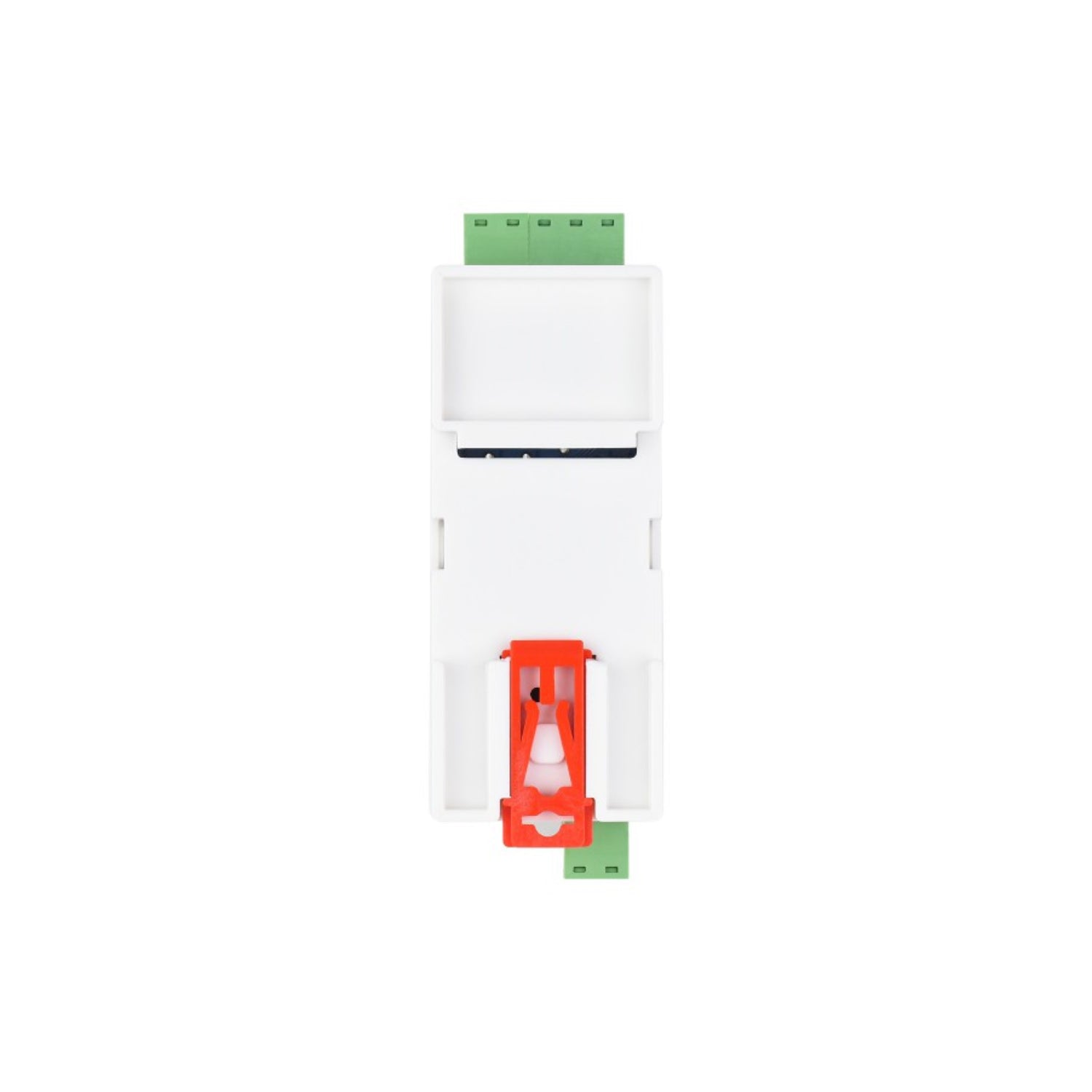

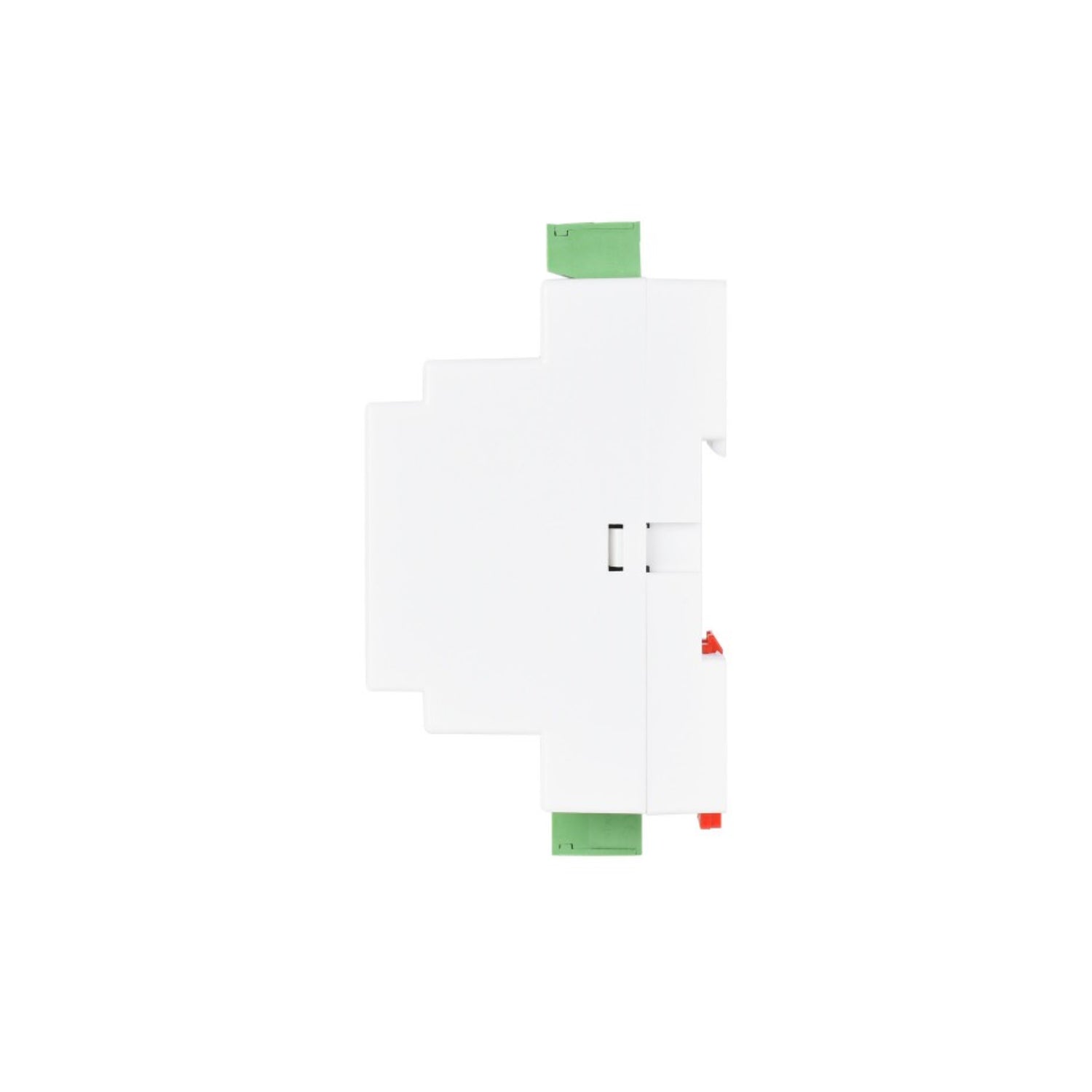

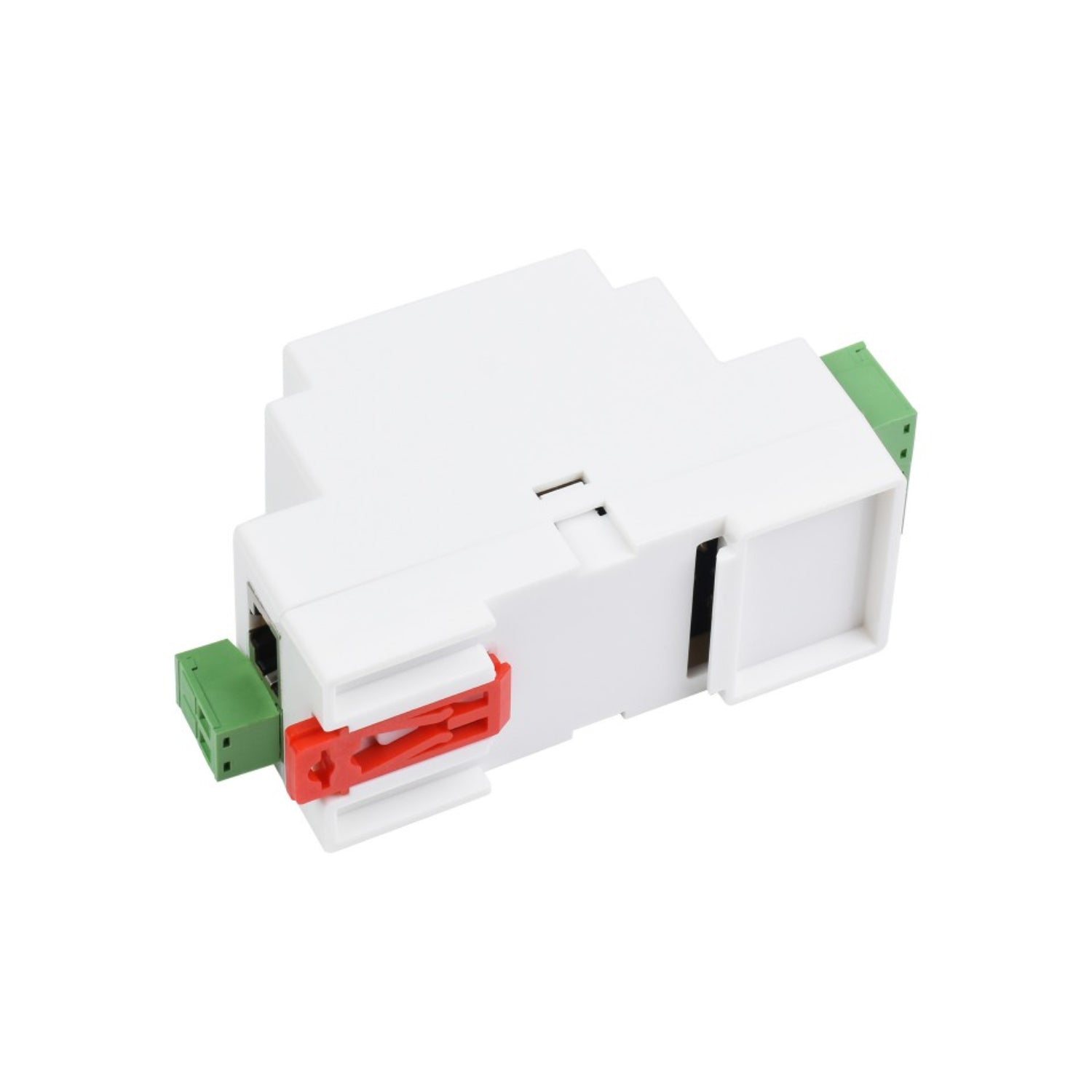

This is an RS485 device data collector/IoT gateway specially designed for the industrial environment, which combines serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and other functions. RS485 to RJ45 Ethernet Converter has an RS485 interface and an Ethernet interface. RS485 to RJ45 Ethernet Converter adopts the rail-type installation, which is compact and easy to install. RS485 to RJ45 Ethernet Converter is very suitable for the collection of various RS485 instruments and sensors in the industrial field, including the collection of the local network or the autonomous collection of uploading to the cloud server.
Specifications:
Model |
RS485 TO ETH (B) |
RS485 TO POE ETH (B) |
|---|---|---|
| Product Types | Serial server, Modbus gateway, MQTT gateway | |
| Basic Functions | Realize RS485 to Ethernet bidirectional transparent transmission | |
| Communication Interface | RS485 × 1, Network Port × 1 | |
| Power Supply | Screw Terminal DC 9~24V | Screw terminal DC 6~36V or PoE port |
| Isolation Protection | No Isolation | Power isolation, signal isolation protection |
Communication Port |
||
| Ethernet | Normal Network Port | PoE port, support IEEE 802.3af standard |
| 10 / 100M self-adaptive RJ45 port, 2 KV grade anti-surge protection | ||
| Serial Port | RS485 | Isolated RS485 |
UART Parameter |
||
| Baud Rate | 300 ~ 115200 bps | |
| Parity Bit | None, odd parity, even parity, mark, space | |
| Data Bit | 5 ~ 9 bit | |
| Flow Control | No Flow Control | |
Software |
||
| Protocol | Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | |
| Config Way | Host computer configuration, WEB browser, device management function library | |
| Communication Way | TCP/IP direct communication, virtual serial port mode | |
| Working Mode | TCP server, TCP client (the TCP server also coexists), UDP, UDP multicast | |
Others |
||
| Operating Temperature | -40℃ ~ 85℃ | |
| Humidity Range | 5% ~ 95% relative humidity | |
| Dimensions | L × W × H: 87 × 36 × 59 mm | |
Features:
- RS485 to RJ45 Ethernet Converter support TCP server, TCP client, UDP mode, and UDP multicast. When acting as a TCP client, it also supports TCP server-side functions. RS485 to RJ45 Ethernet Converter supports 30 TCP connections as a TCP server and 7 destination IPs as a TCP client.
- The baud rate supports 1200~115200bps, the data bit supports 5~9 bits, and the check digit can be no check, odd check, even check, mark, or space.
- RS485 to RJ45 Ethernet Converter supports the function of sending MAC addresses when the device is connected, which is convenient for cloud management of the device.
- RS485 to RJ45 Ethernet Converter provides a secondary development kit DLL development library for searching and configuring devices on the computer side.
- RS485 to RJ45 Ethernet Converter supports Web browser configuration, supports DHCP to obtain IP dynamically, and DNS protocol to connect domain name server address.
- RS485 to RJ45 Ethernet Converter supports cloud remote search for devices, the configuration of device parameters, and device program upgrades.
- RS485 to RJ45 Ethernet Converter supports remote viewing of the device's TCP connection status, and serial port data sending and receiving status through software. The virtual serial port supports the data monitoring function.
- Multi Communication Modes:
supports TCP server / TCP client / UDP mode / UDP multicast
- Multi-Host Roll- Roll-pulling supports
different network devices will be identified and responded to respectively,
with no more crosstalk issues while communicating with multi-network devices

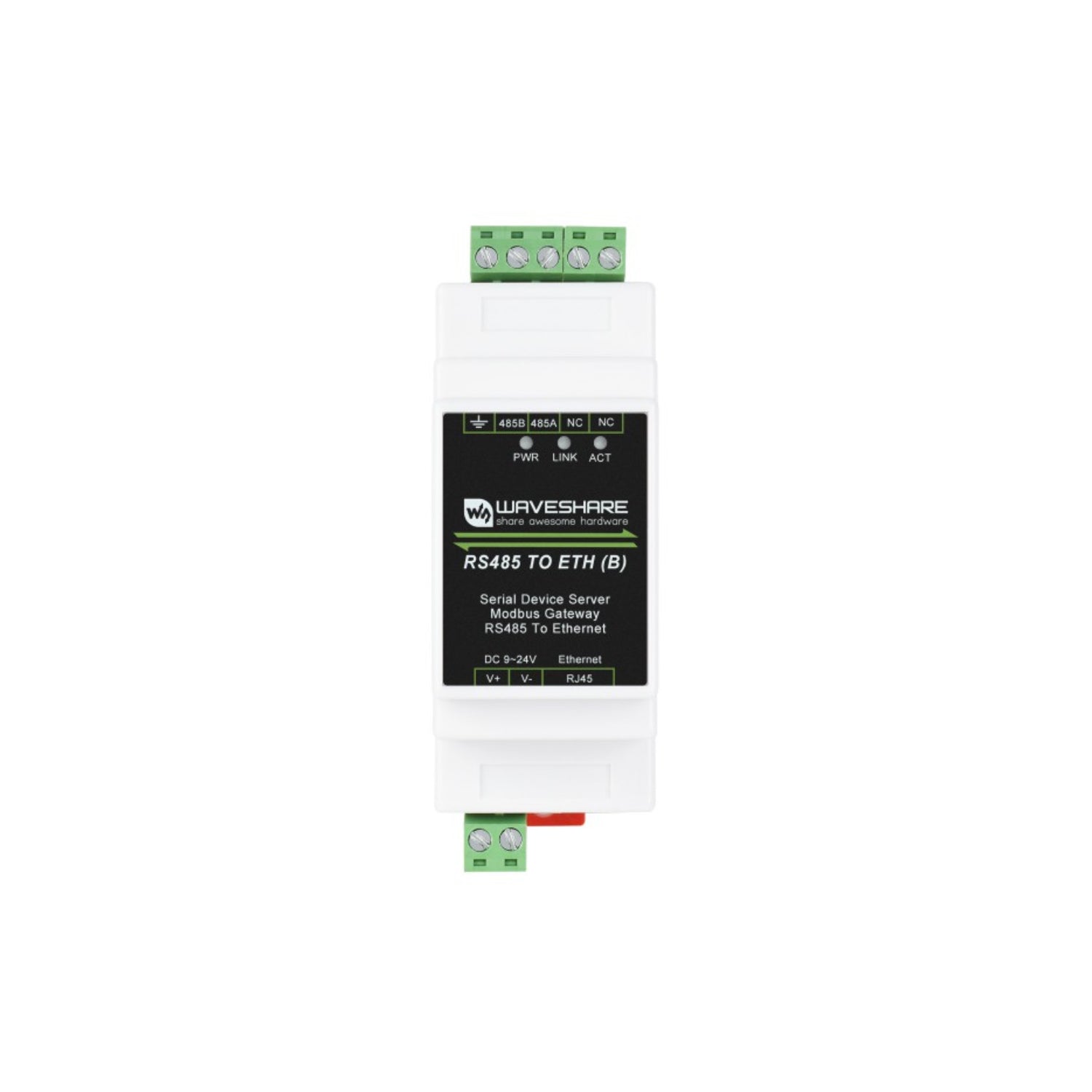

Pin Description:
Applications:
- As an IoT gateway as a communication bridge between devices and the cloud.
- Power, Smart Meter, and Energy Monitoring.
- Remote monitoring and program download of various automation PLCs.
- Various configuration software and equipment communication interfaces.
- Access control security field equipment networking.
Package Included:
1 x Waveshare RS485 To RJ45 Ethernet Converter RS485 TO POE ETH (B) Industrial Serial Server, RS485 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support, With POE Function
