Description:

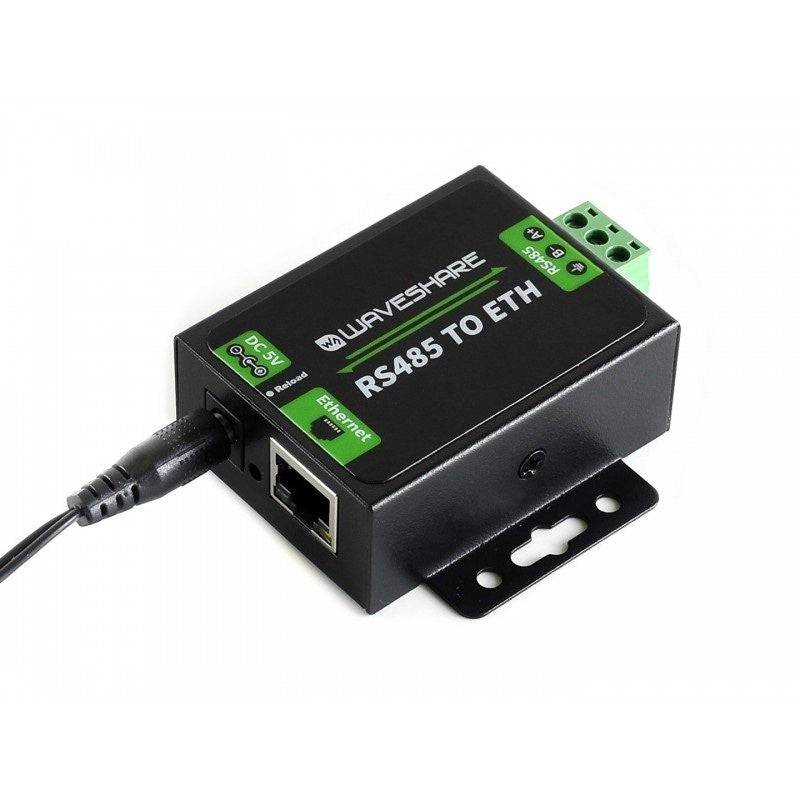

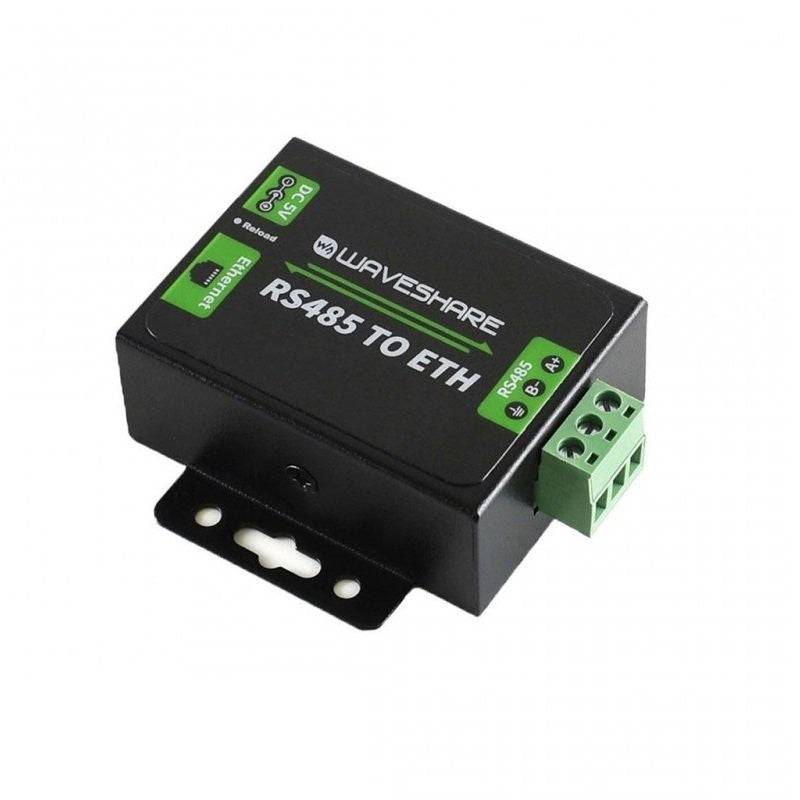

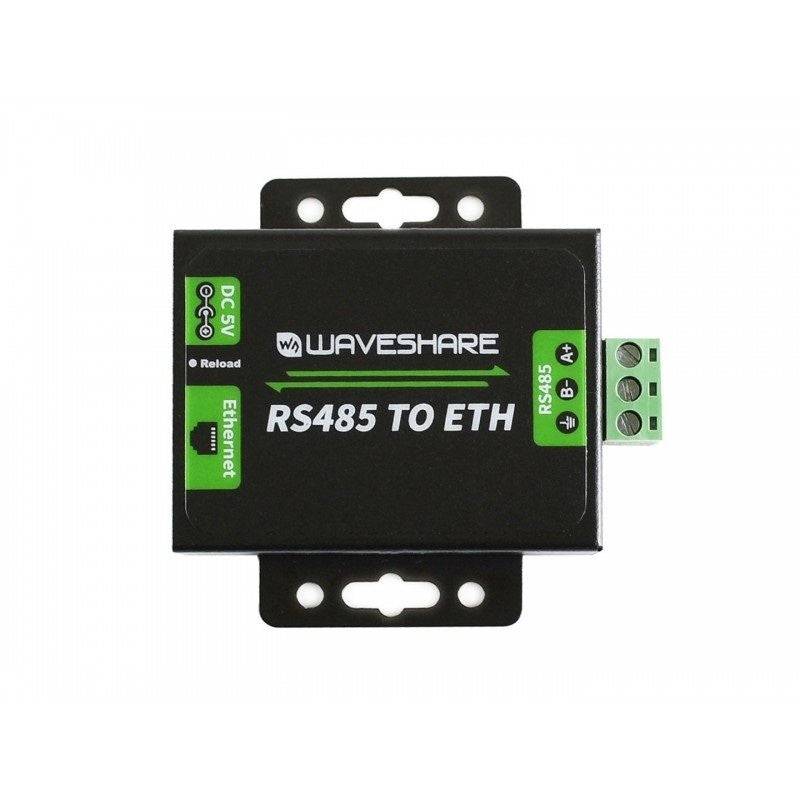

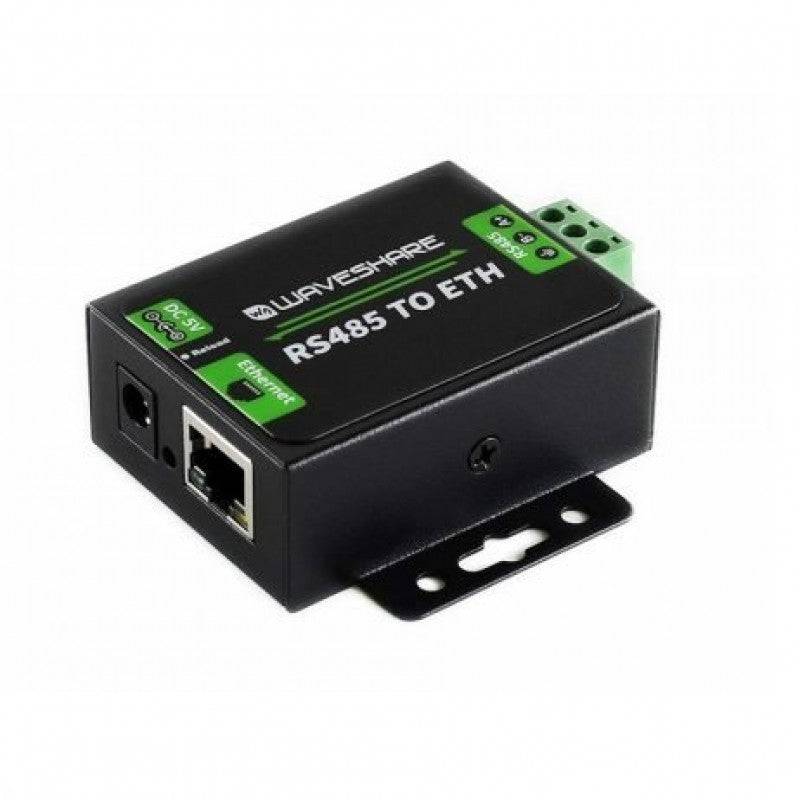

The RS485 to Ethernet Converter Module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via a webpage.
Specifications:
- Ethernet:
- Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 1.5KV electromagnetic isolation
- Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
- TX cache: 6Kbyte
- RX cache: 4Kbyte
- RS485:

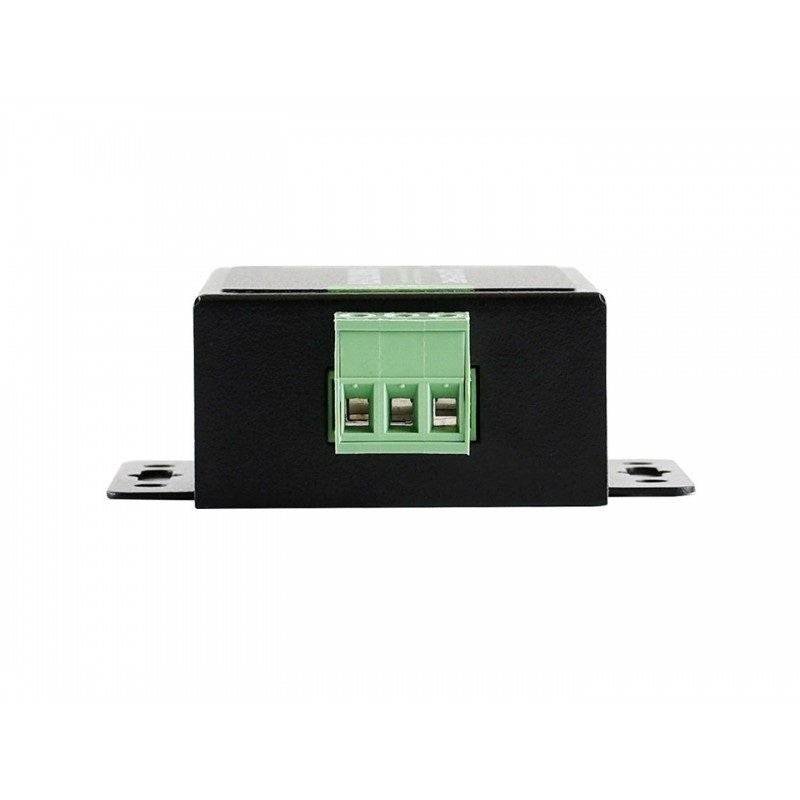

- Connector: screw terminal (A+, B-, GND)
- Data bit: 5bit, 6bit, 7bit, 8bit
- Stop bit: 1, 2
- Parity bit: None, Odd, Even, Mark, Space
- Baudrate: 600bps~230.4Kbps
- RX cache: 800byte
- Hardware flow control: none
- Interface protection:
- 2KV ESD protection
- RS485 pull up/down registers: 2.2KΩ
- Power:
- Power supply: 5.0~7.0V (5V recommended)
- Operating current: 150mA (@5V)
- Power consumption: <1W
- Interface protection: reverse-proof, ESD protection, anti-surge
- Environment:
- Operating temperature: -25~75°C
- Storage temperature: -40~105°C
Features:
- M0 series 32-bit ARM processor, fast speed, high efficiency
- 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable
- Configurable RS485 baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- Available working modes: TCP Server, TCP Client, UDP Server, UDPClient, HTTPDClient (supports GET and POST)
- RS485 to Ethernet Converter supports DNS domain name resolution, configurable DNS server
- RS485 to Ethernet Converter supports DHCP, auto-obtained IP, or static IP
- Firmware is upgradable via the network
- Restore to factory settings via software and/or hardware
- RS485 to Ethernet Converter comes with a default MAC address, which is customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Useful Link:
Waveshare RS485 to Ethernet Converter
Package Included:
- 1 x RS485 to Ethernet Converter
- 1 x 5V Power Adapter with US Input Plug
