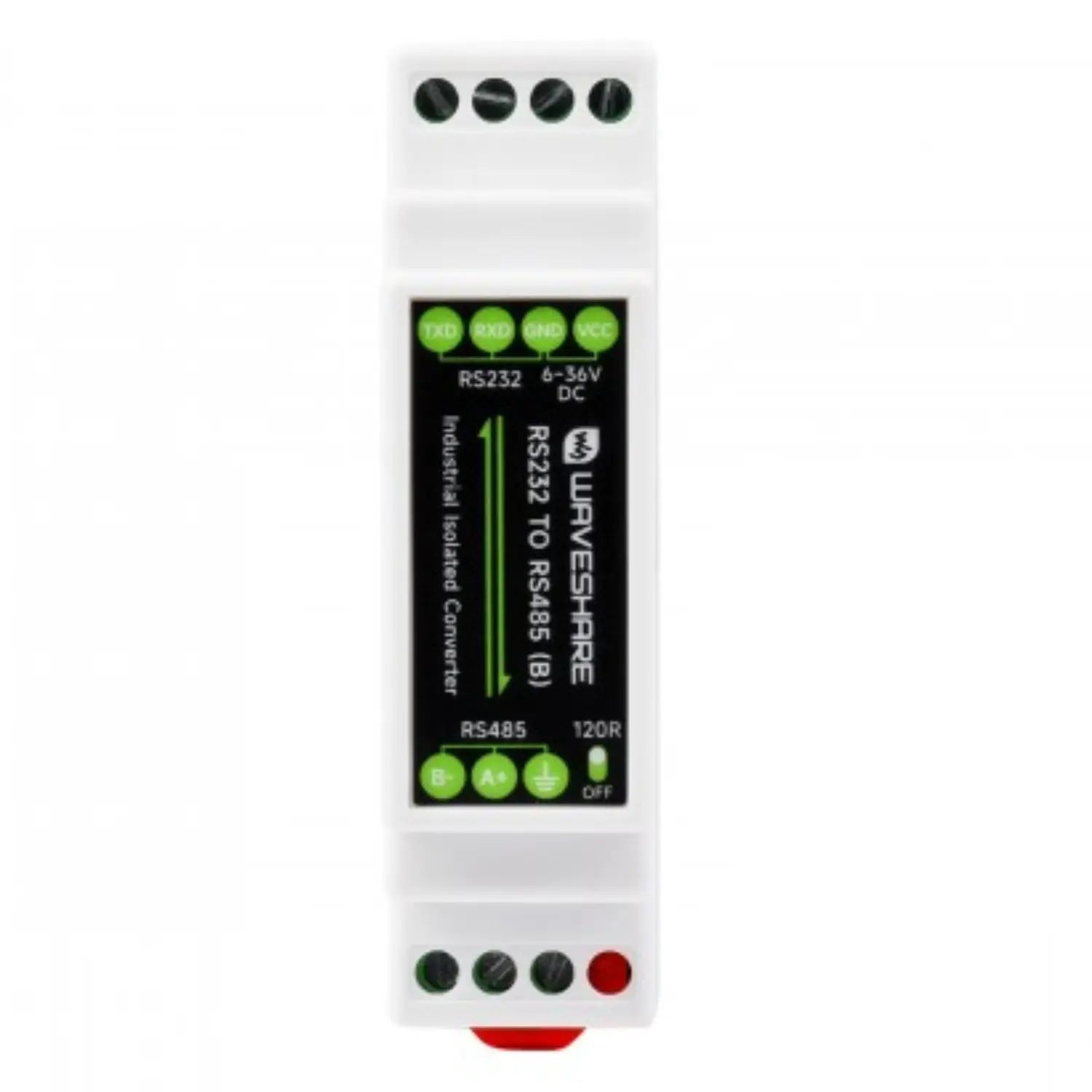

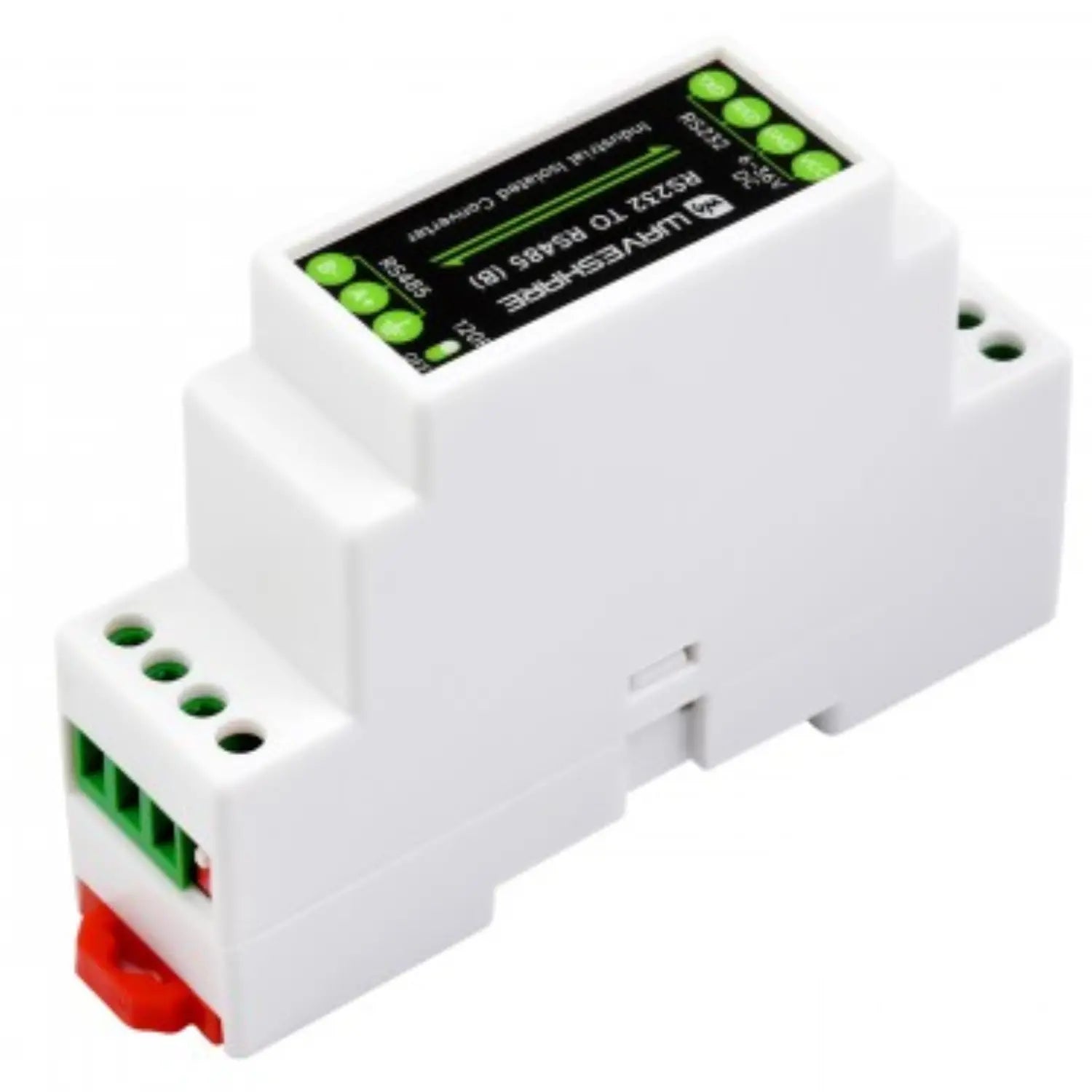

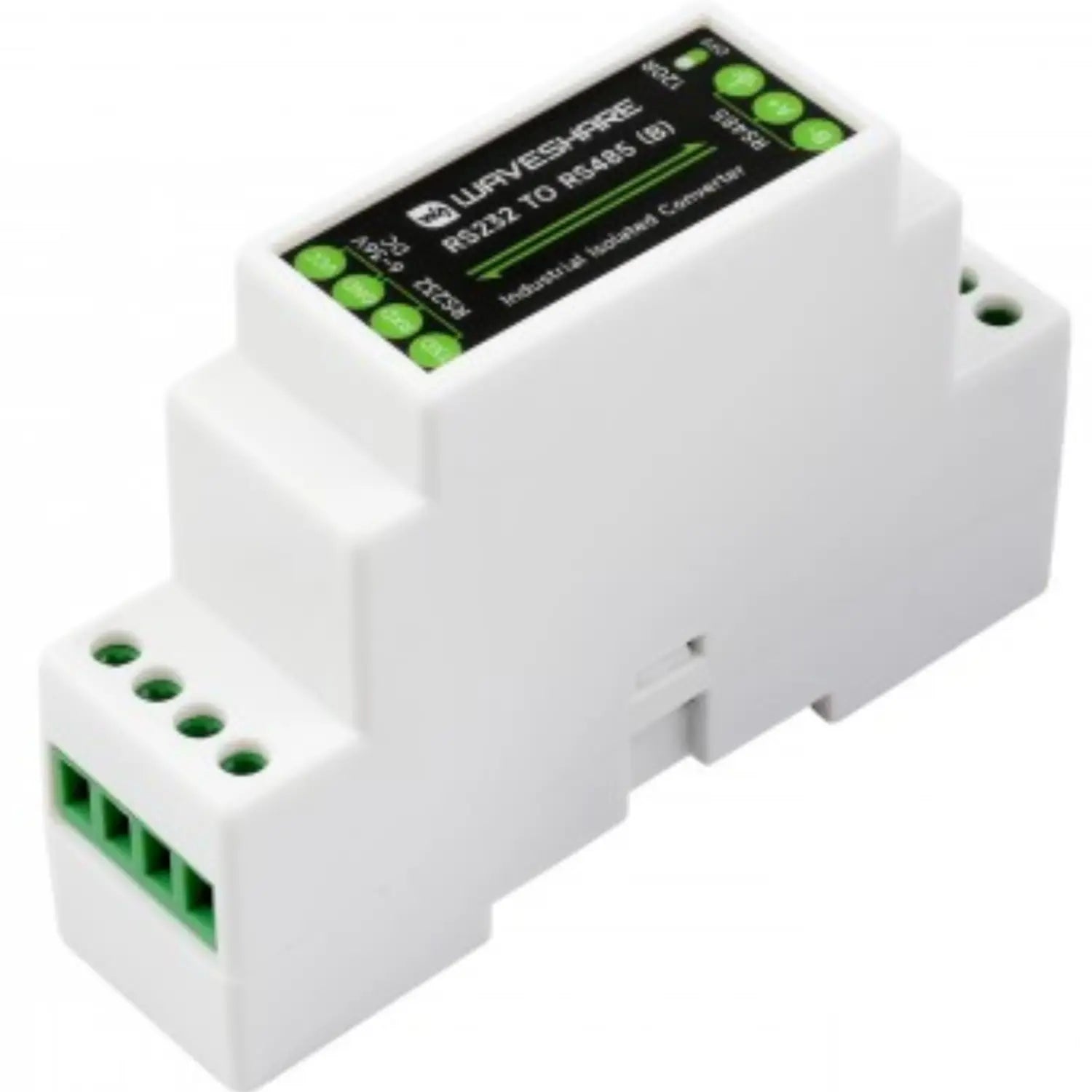

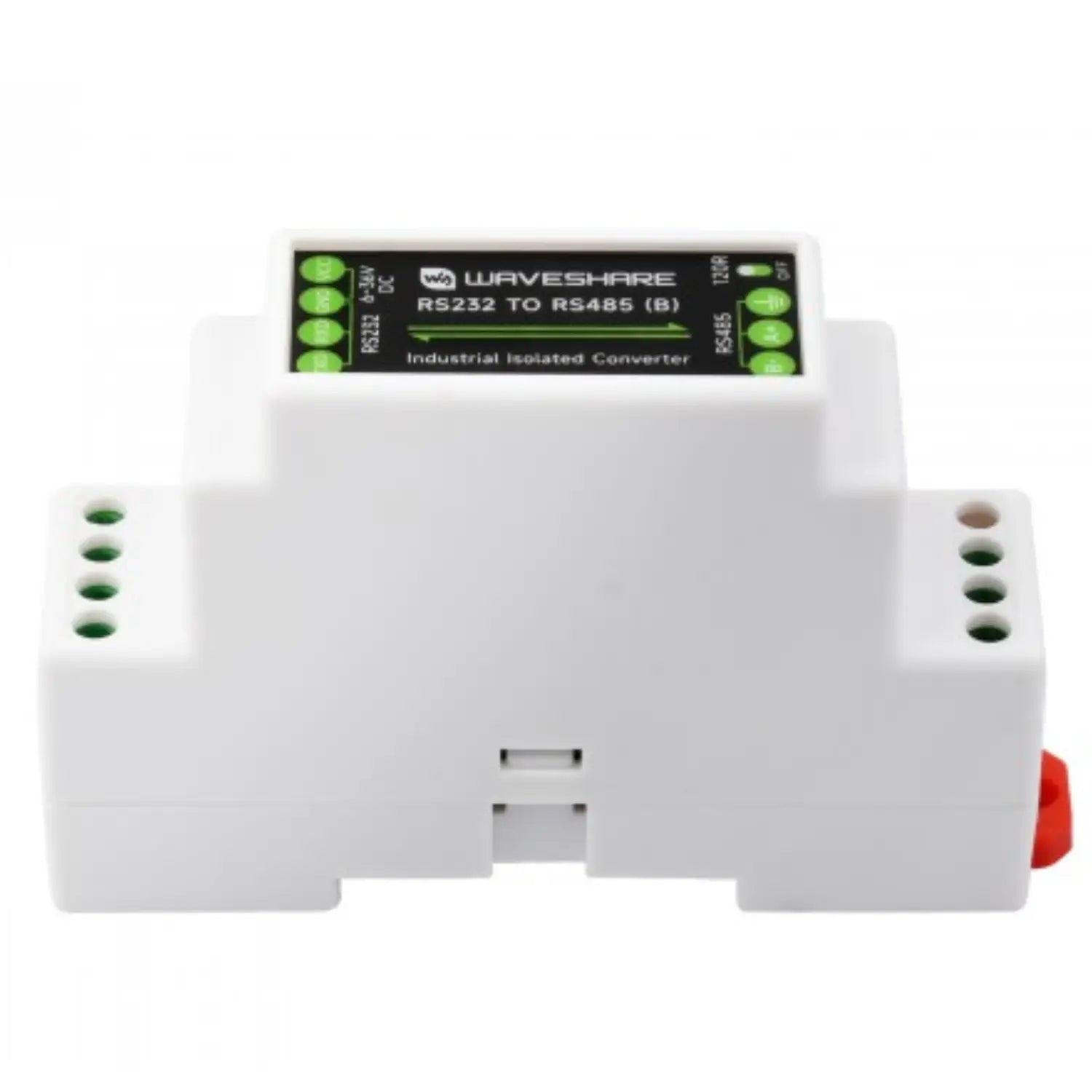

Waveshare RS232 to RS485 (B) Converter – Industrial-Grade Rail-Mount Module with Active Digital Isolation, 600W Lightning Protection & Anti-Surge Circuit without LED indicator
Waveshare RS232 to RS485 (B) Converter – Industrial-Grade Rail-Mount Module with Active Digital Isolation, 600W Lightning Protection & Anti-Surge Circuit without LED indicator
SKU:
In stock
Regular price
Rs. 871.00
Regular price
Sale price
Rs. 871.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
RS232 TO RS485 (B) is an active electromagnetic isolated RS232 TO RS485 asynchronous bi-directional converter.
Specification:
- Model Type: Converter
- Power Supply: 6~36V DC
- Baud Rate: 300~115200bps
- Device Port: RS232/RS485 standard compatible
Application Examples:
Features:
- Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal
- Stable transmission at the rate of 300~115200bps
- Onboard unibody power supply isolation provides a stable isolated voltage and needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation allows signal isolation, high reliability, strong anti-interference, and low power consumption
- Onboard TVS (Transient Voltage Suppressor) effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof, and anti-electrostatic
- Onboard resettable fuse and protection diodes ensure the current/voltage stable outputs, provide over-current/over-voltage protection, and improve shock resistance
- Integrates an optional RS485 output terminal, 120R resistor, enabled/disabled via a switch
- The onboard power supply screw terminal allows 6V~36V DC wide-range input
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Product Interface:
| Top side screw terminal | Bottom side screw terminal | ||
|---|---|---|---|
| VCC | Power Input DC 6~36V power supply |
120R | 120R resistor switch |
| GND | Ground / RS232 signal ground | SGND | RS485 signal ground |
| TXD | RS232 transmit data pin | A+ | RS485 differential signal A+ |
| RXD | RS232 receive data pin | B- | RS485 differential signal B- |
RS232:
- Connector: screw terminal
- Transmission distance: about 15m
- Transmission mode: point-to-point
RS485:
- Connector screw: terminal
- Direction control, Hardware automatic control
- Protection 600W: lightning proof and surge-suppress, 15KV ESD protection
- Terminal resistor: 120R, enabled/disabled via a switch
- Transmission Distance: About 1.2km
- Transmission Mode: point-to-multipoint (up to 32 nodes; it is recommended to use repeaters for 16 nodes or more)
Appearance:
- Case: Rail-mount ABS case
- Dimensions: 91.6 × 23.3 × 58.7mm
Useful Link:
Waveshare RS232 to RS485 (B) Converter
Package Included:
- 1 x RS232 TO RS485 (B)
- 1 x Screwdriver
