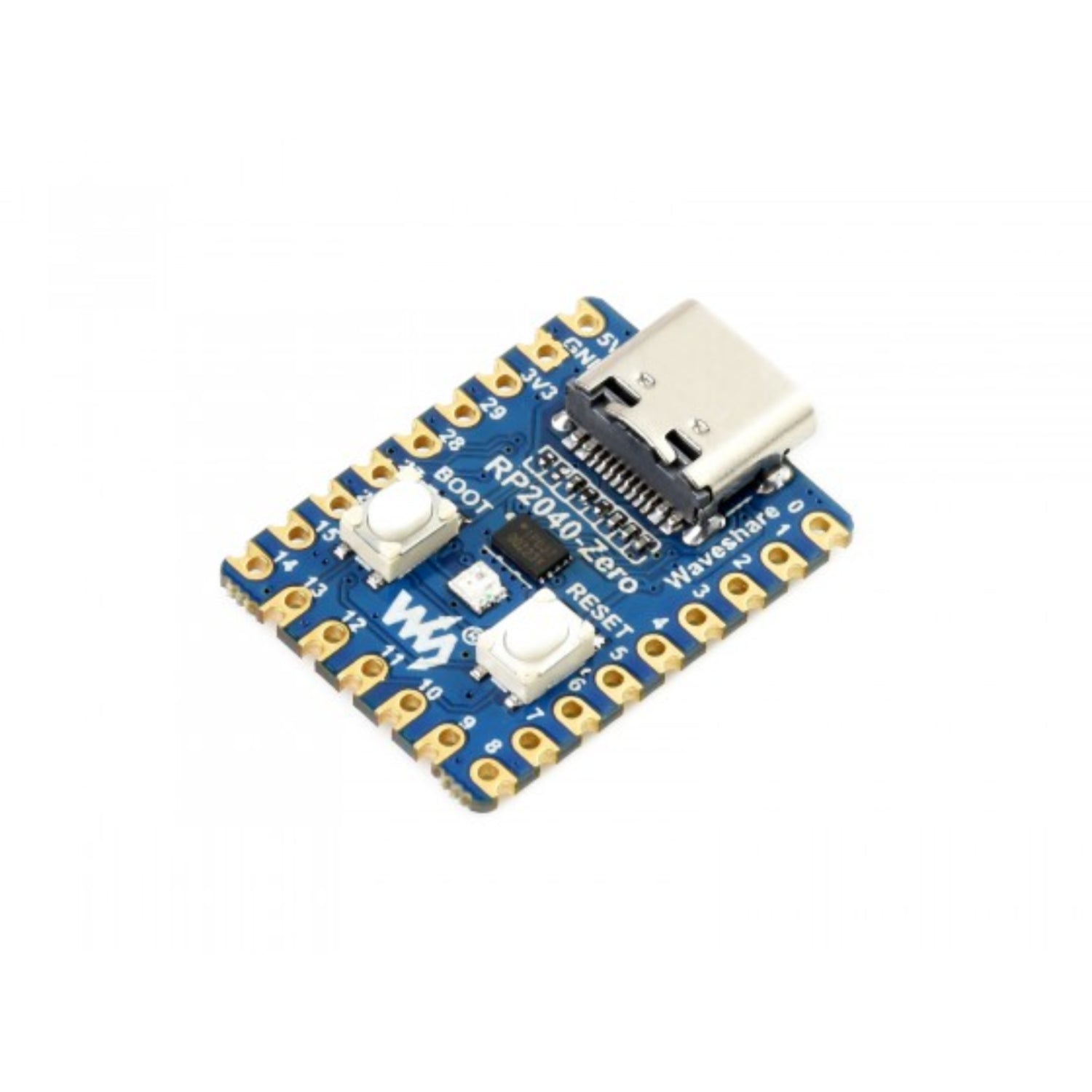

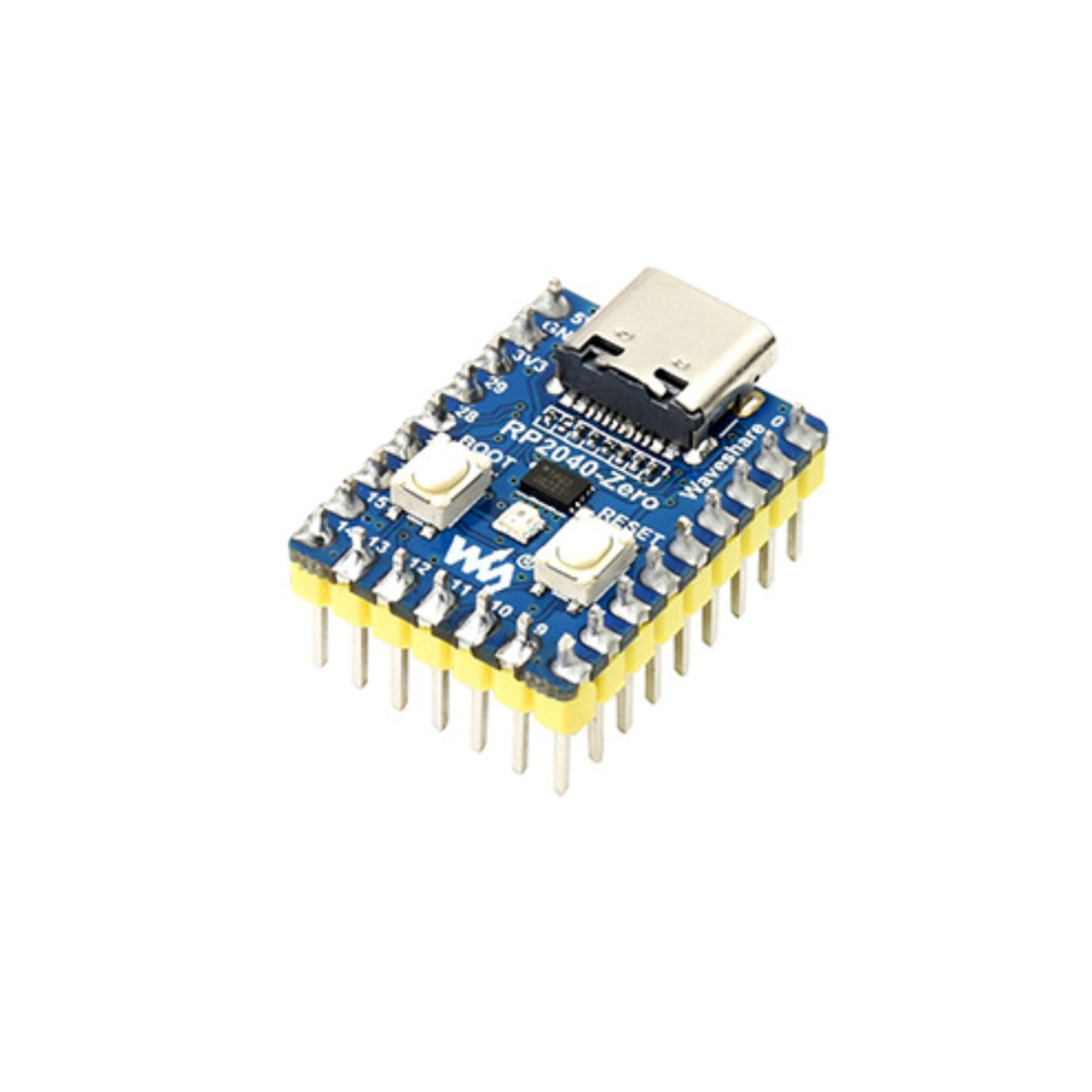

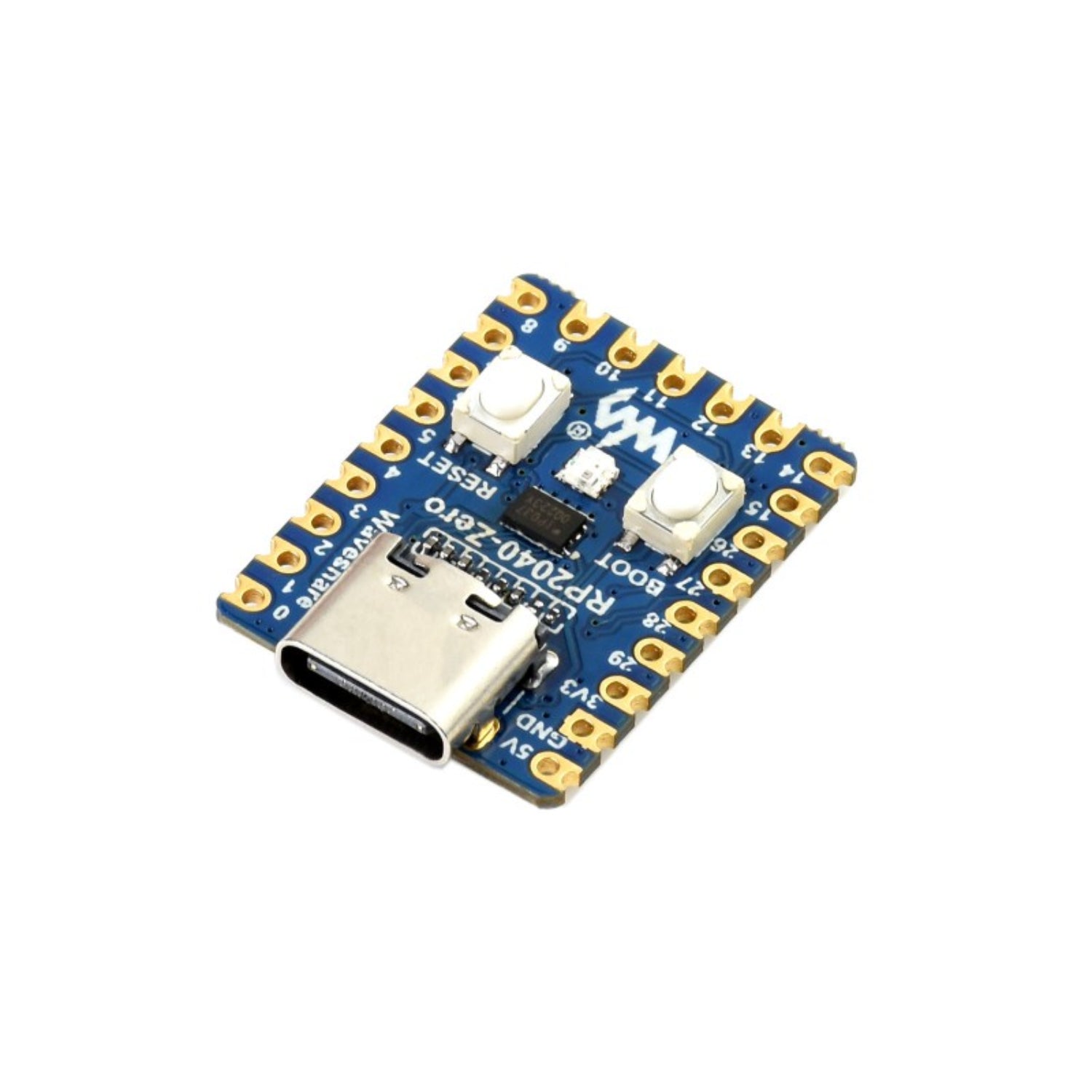

Waveshare RP2040-Zero With/Without Headers Raspberry Pi-based MCU RP2040 Module Compact Mini Version of Raspberry Pi Pico For Experience RP2040 Power In the RP2040-Zero - RS7211

Waveshare RP2040-Zero With/Without Headers Raspberry Pi-based MCU RP2040 Module Compact Mini Version of Raspberry Pi Pico For Experience RP2040 Power In the RP2040-Zero - RS7211

RS7211

Low stock: 8 left

Rs. 289.00
Rs. 289.00
Sale Sold out
Shipping calculated at checkout.
Pinhader Option

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Waveshare RP2040-Zero High-Performance Pico-Like MCU Board. The Waveshare RP2040-Zero MCU Board is a powerful microcontroller board based on the Raspberry Pi RP2040 castellated module. It offers high-performance capabilities in a compact form factor, making it an ideal choice for a range of projects.

Specifications:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • The castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pin Description:

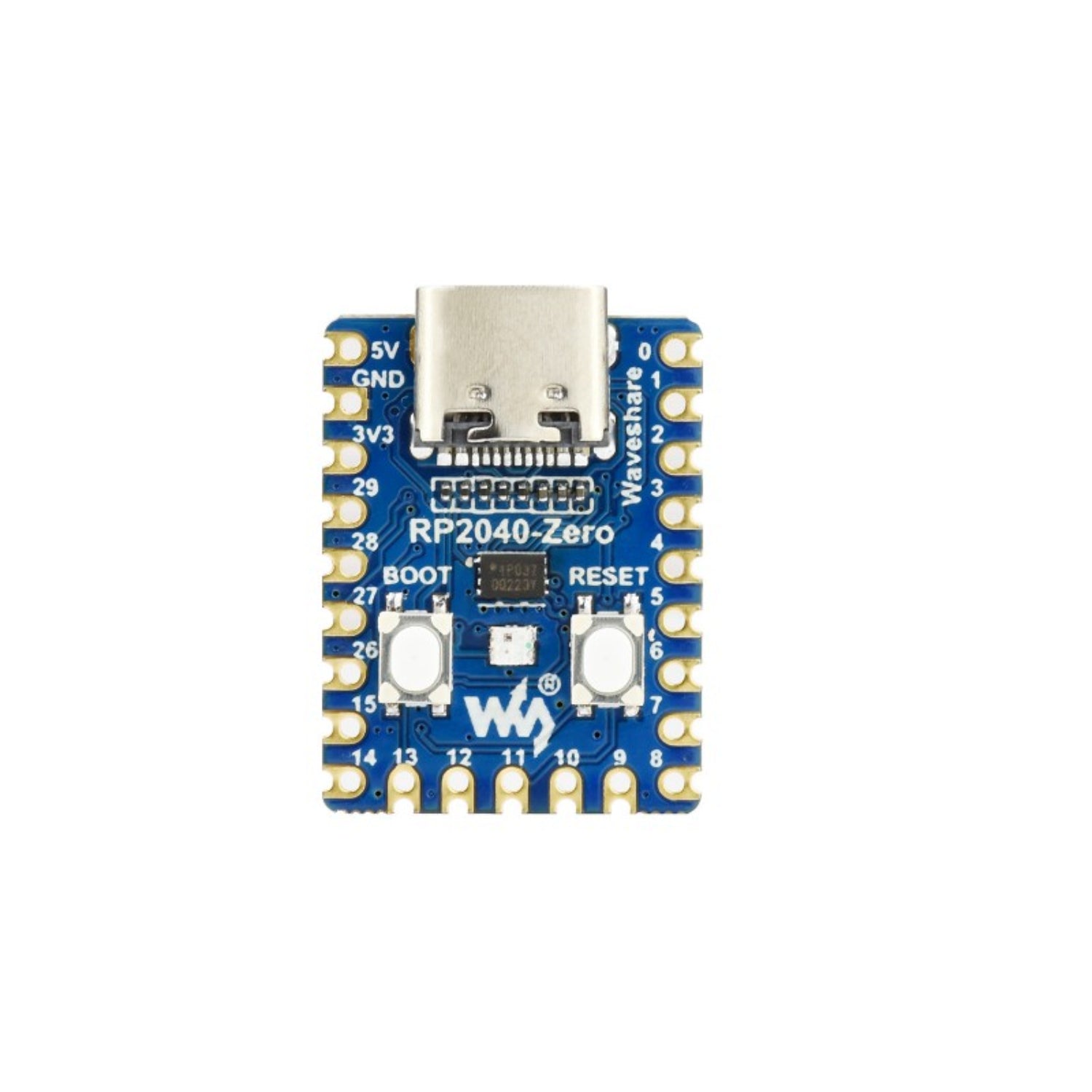

What's On Board:

  1. USB Type-C connector
  2. W25Q16JVUXIQ: 2MB NOR-Flash
  3. BOOT button: press it when resetting to enter download mode
  4. RESET button
  5. WS2812: cool RGB LED
  6. ME621: low dropout LDO, max current 800MA

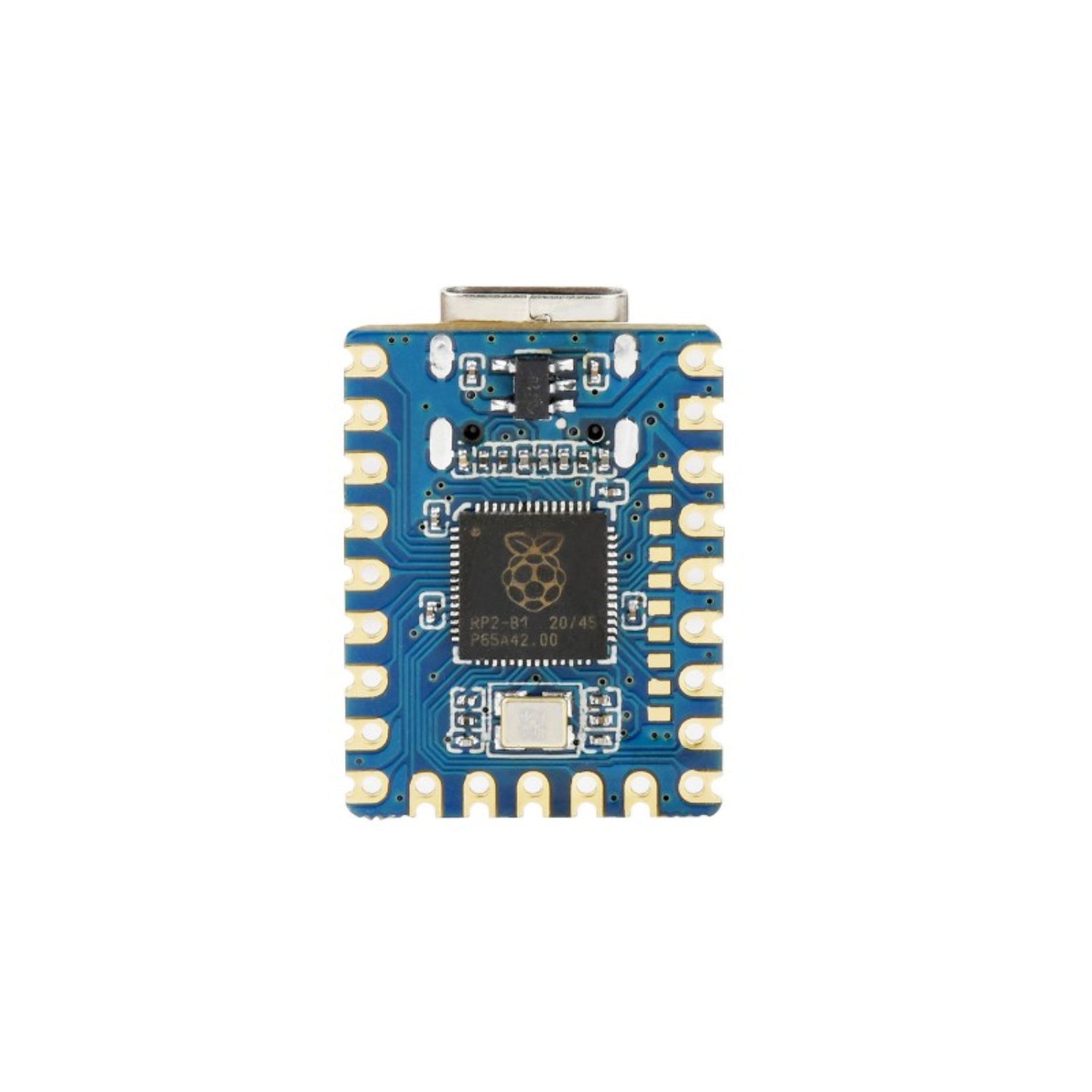

  7. RP2040: dual-core processor, up to 133MHz operating frequency
  8. RP2040 pins: 10x solder points, 9 of which are for GPIO

Useful Link:

Package Included:

1 x Waveshare RP2040-Zero
