Description:

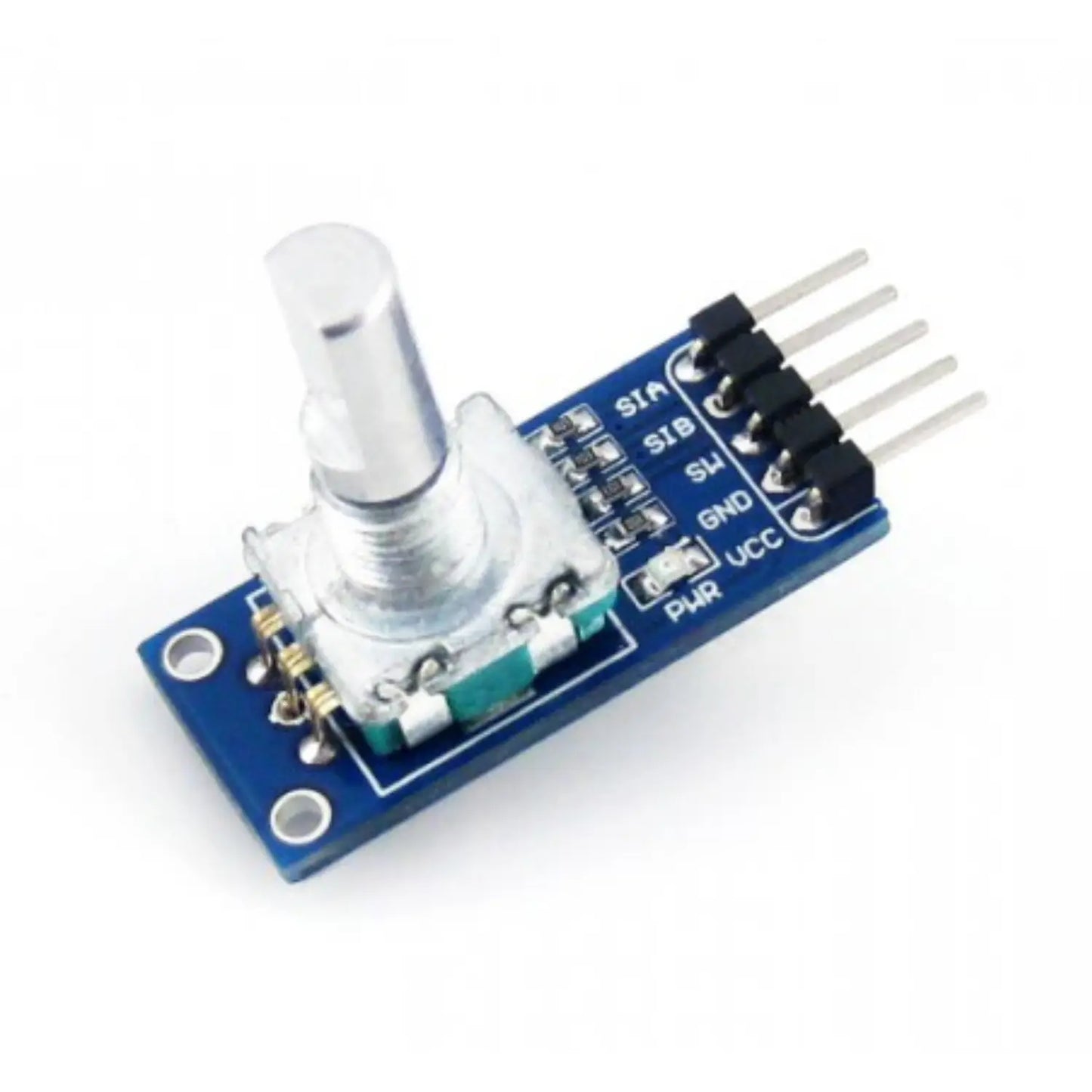

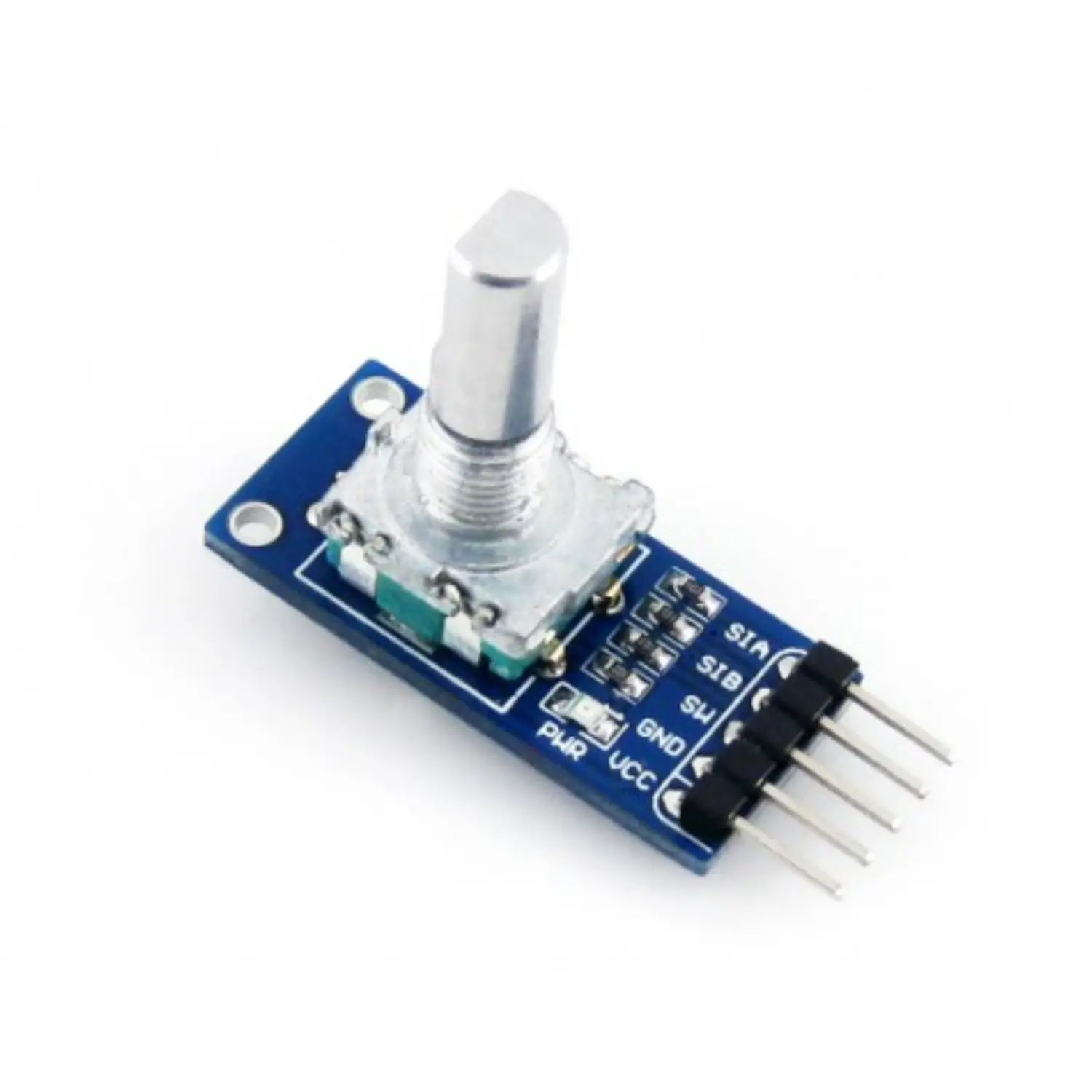

This Waveshare Rotation Sensor is an encoder-style knob with an integrated button, perfect for creating intuitive user interfaces. As you rotate the knob, the module sends digital signals on its SIA and SIB pins, with the signal pattern indicating the direction of rotation. It's highly versatile, operating within a voltage range of 3V to 5.3V. For easy integration, the sensor features a 5-pin connector with digital outputs for SIA, SIB, and SW (for the button), allowing direct connection to microcontroller pins like those on an Arduino.
Specification:
- Model Type: Rotation Sensor

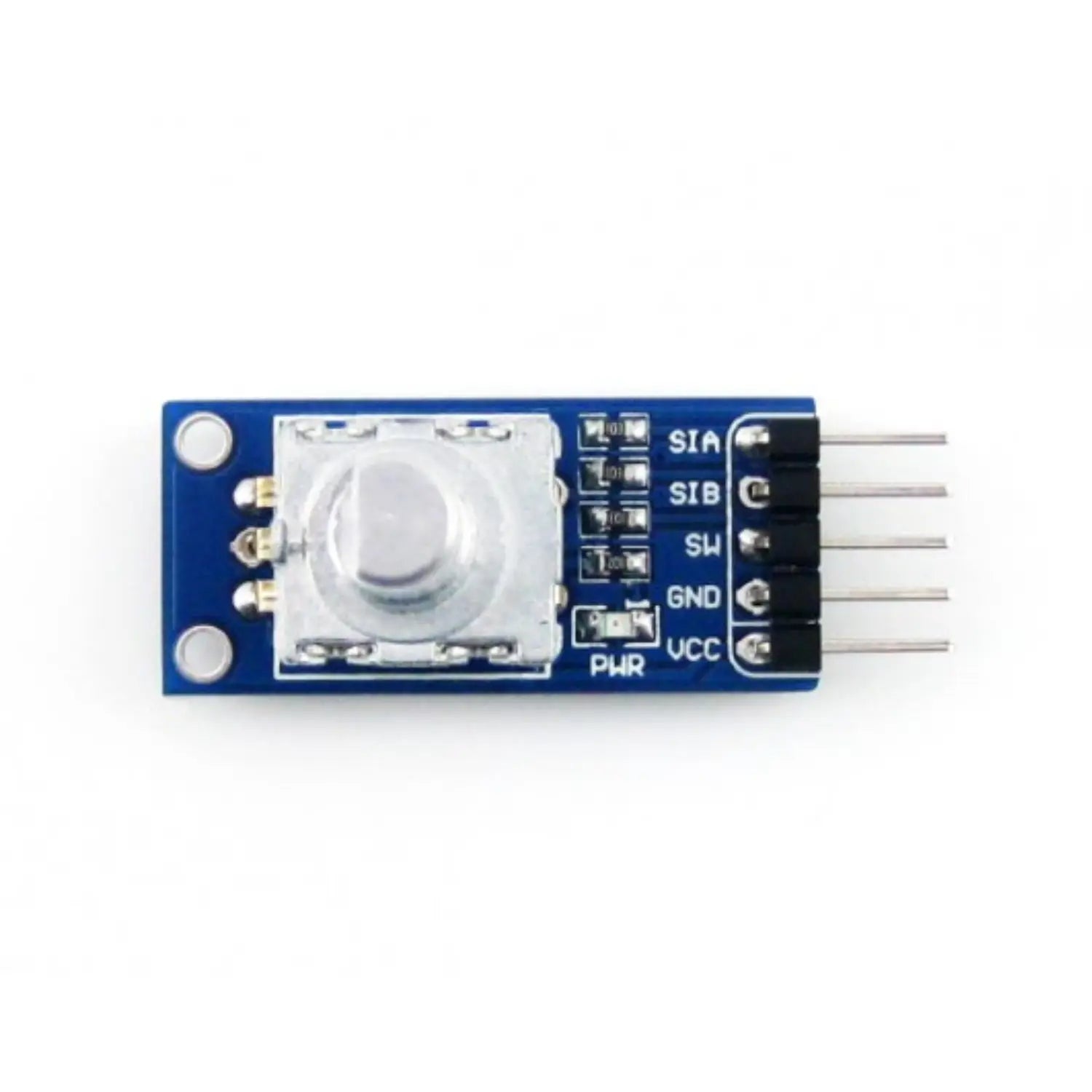

- Interface: GND, SIA, SIB, SW, VCC
- Mounting Hole Diameter: 2.0mm
- Dimensional Accuracy: 32.1mm * 15.4mm
Features:
- It detects the clockwise and counterclockwise rotation
- The number of steps in 360°: 20 steps
- Button in the knob
- Module dimensions: 32 x 15 mm
Useful Link:
Waveshare Rotation Sensor ModulePackage Included:
- 1 x Rotation Sensor
- 1 x 5-pin custom connector jumper wire
