Description:

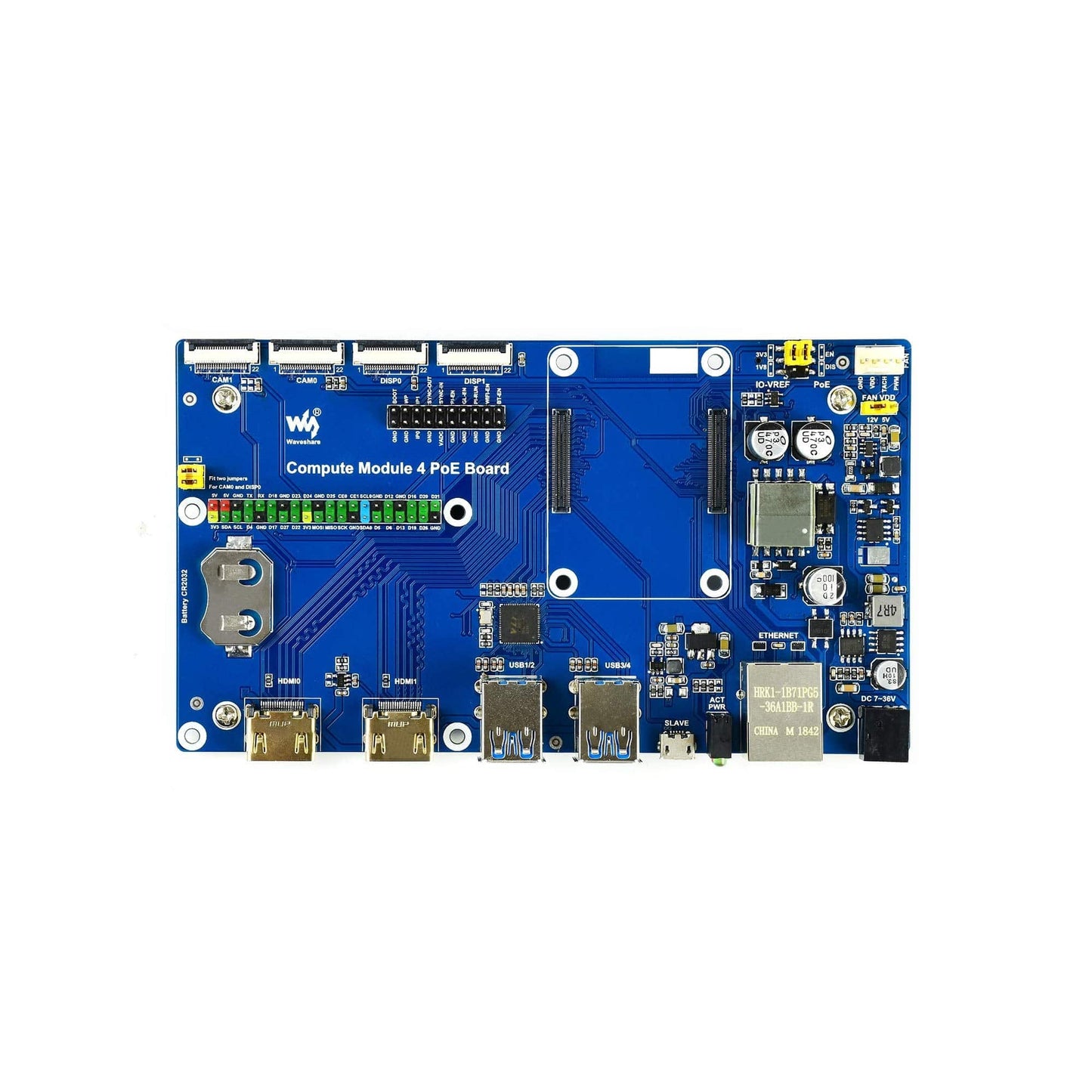

This is a Raspberry Pi Compute Module 4 IO Board for evaluating the Raspberry Pi CM4 or being integrated into end products. the board features the PoE function, which can be used for all variants of CM4.
Specifications:
| CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A) |
| CONNECTOR | Raspberry Pi 40PIN GPIO header |
| USB | USB 3.2 Gen1 × 4 |
| DISPLAY | MIPI DSI display port × 2 (22pin 0.5mm FPC connector) |
| CAMERA | MIPI CSI-2 camera port × 2 (22pin 0.5mm FPC connector) |
| VIDEO | HDMI port × 2, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| STORAGE | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER | allows speed adjustment and measurement, 5V / 12V |
| POWER INPUT | 7V-36V |
Useful Link:
Waveshare Raspberry Pi Compute Module 4 IO Board
Package Included:
1 x Waveshare Raspberry Pi Compute Module 4 IO Board With PoE Feature
