- POE power input: 37V ~ 57V DC in
- Power Output: 5V 2.5A DC out
- Network standard: IEEE 802.3af-compliant PoE
- Dimensions: 23.10 × 65.00 mm
Description :

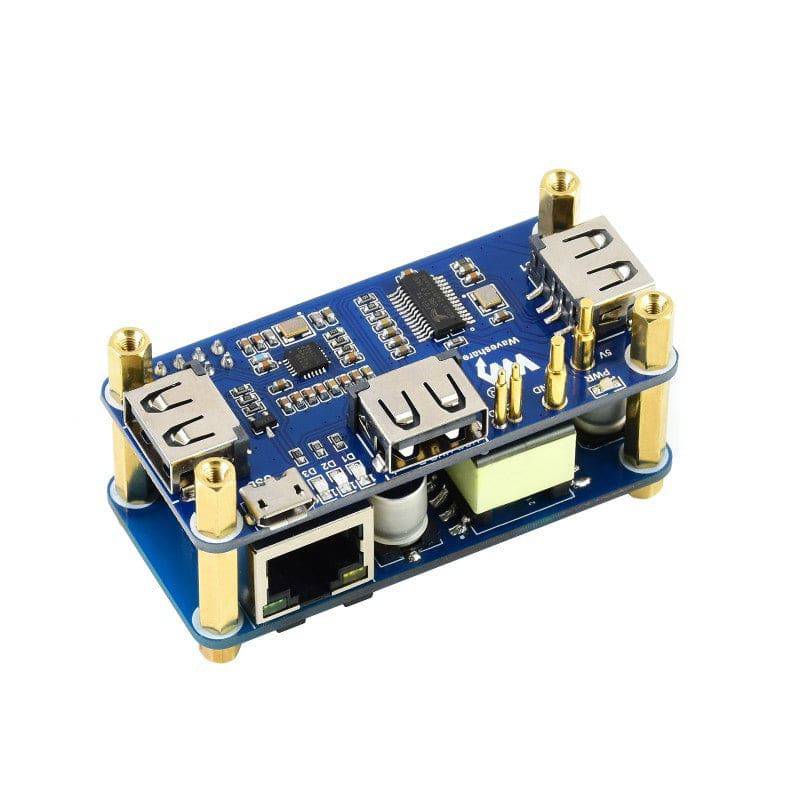

The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power supply equipment, it is possible to provide both network connection and power supply for your Raspberry Pi with only one Ethernet cable, along with 3x extended USB ports.
Features
- Designed for Raspberry Pi Zero, compatible with Zero series boards.
- Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port.
- PoE (Power over Ethernet) feature, 802.3af-compliant.
- Fully isolated SMPS (Switch Mode Power Supply).
- 3 x extended USB ports, compatible with USB 2.0 / 1.1.
Specification
- POE power input: 37V ~ 57V DC in
- Power Output: 5V 2.5A DC out
- Network standard: IEEE 802.3af-compliant PoE
- Dimensions: 23.10 × 65.00 mm

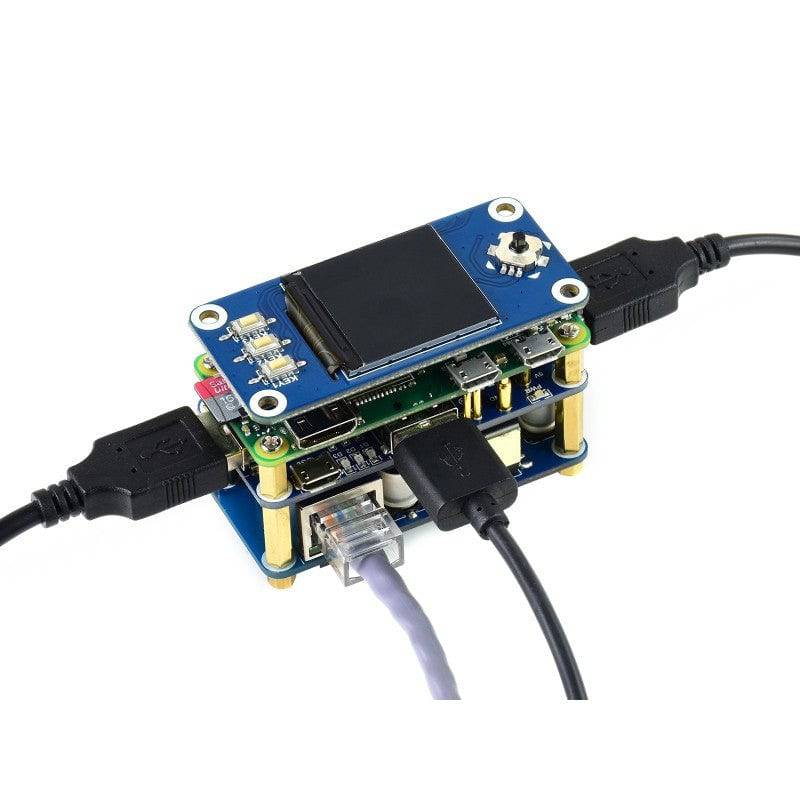

Hardware connection
Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH
Package Included :

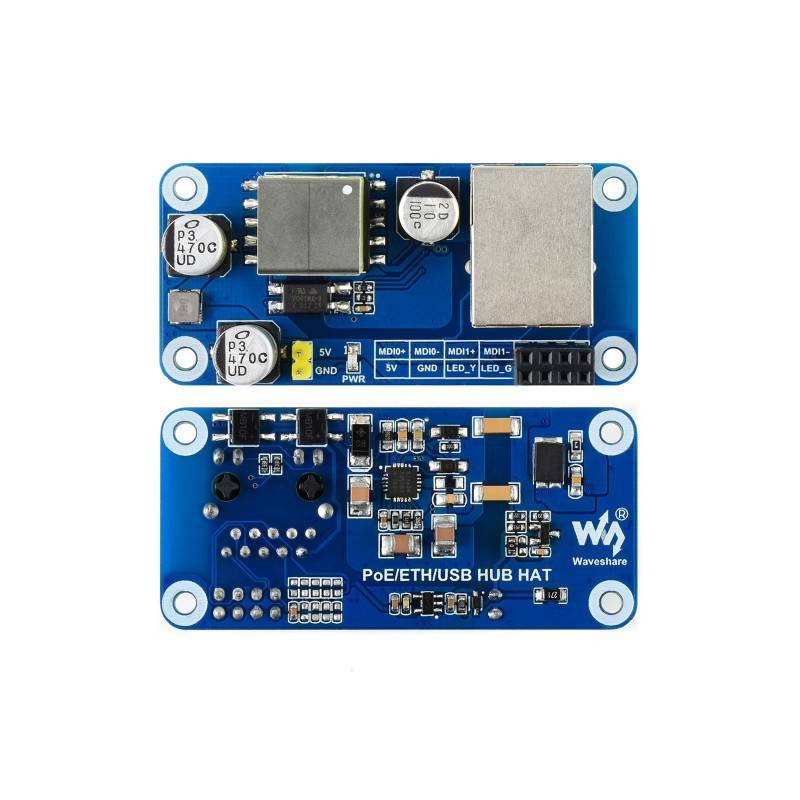

- PoE/ETH/USB HUB HAT x1

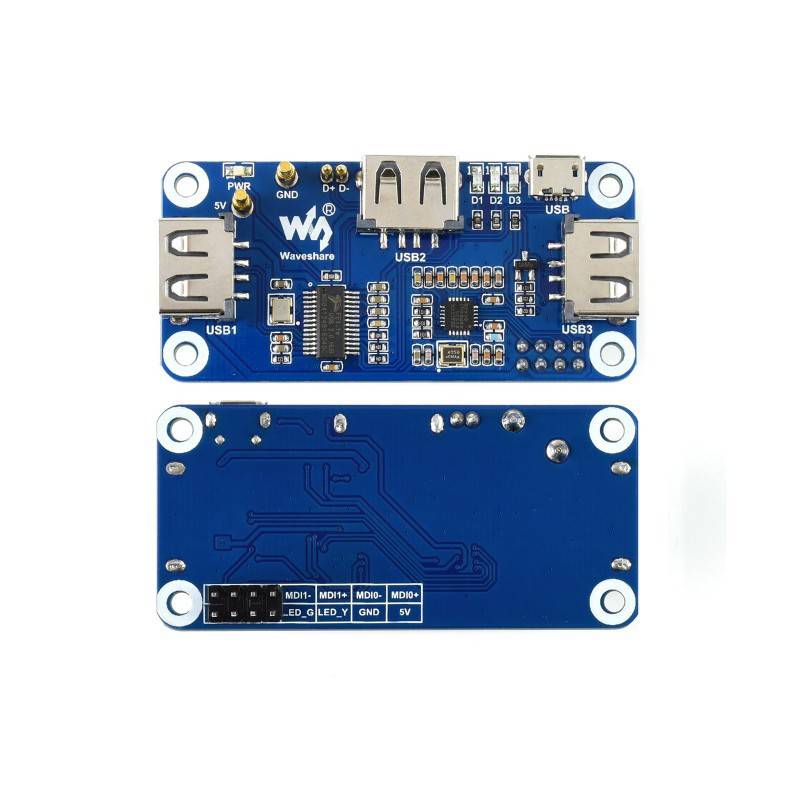

- USB HUB Board x1
- Screws pack x1
- Screwdriver x1
