Waveshare

Waveshare PoE Ethernet / USB HUB BOX for Raspberry Pi Zero Series, 3x USB 2.0, 802.3af-Compliant - RS746

Waveshare PoE Ethernet / USB HUB BOX for Raspberry Pi Zero Series, 3x USB 2.0, 802.3af-Compliant - RS746

SKU:RS746

Regular price Rs. 2,099.00
Regular price Sale price Rs. 2,099.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

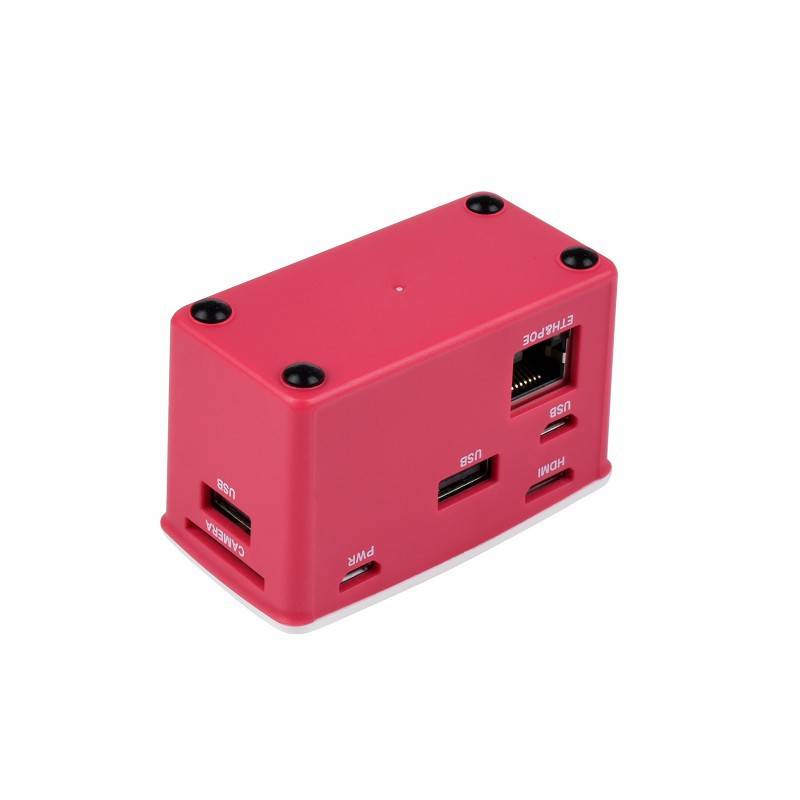

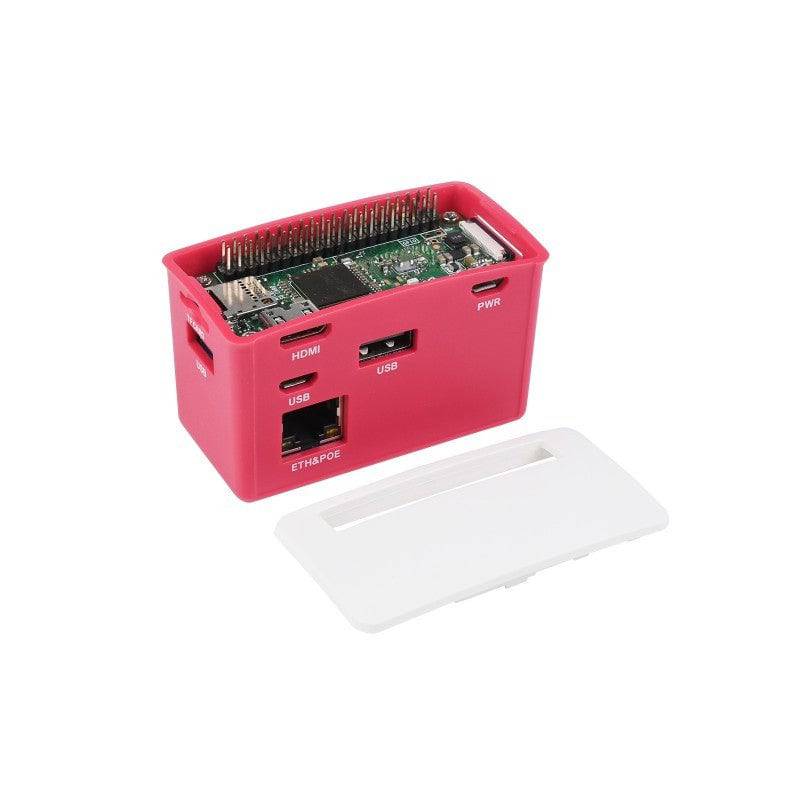

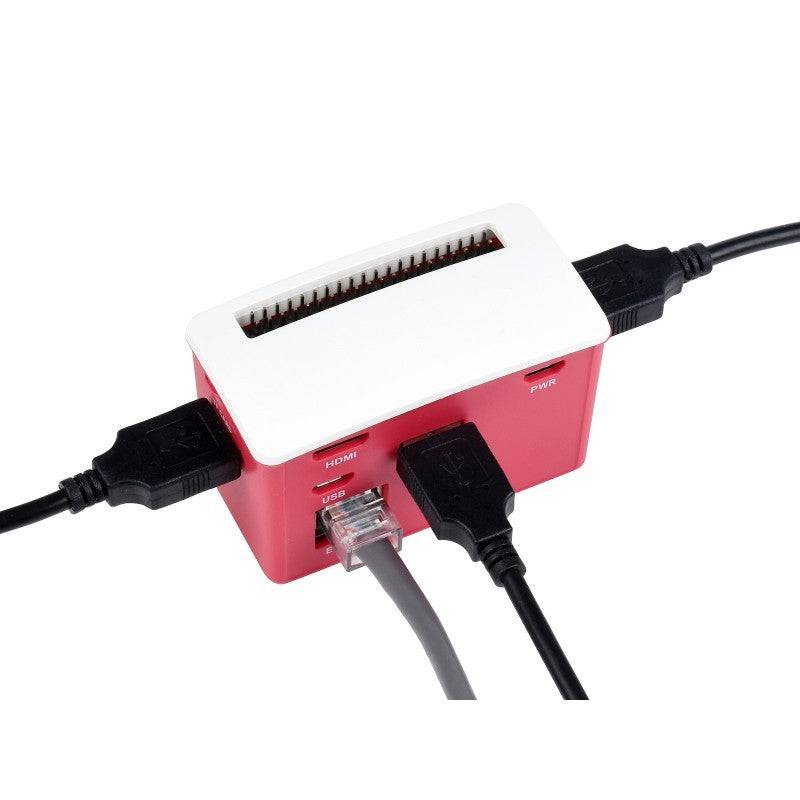

The PoE Ethernet / USB HUB BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. PoE Ethernet / USB HUB BOX is tailored for the Raspberry Pi Zero series, small in size, and each cut-out of the case is exactly aligned with the connector. The case adopts a classic Raspberry Pi red/white colour combination, with a quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

Specifications:

POE Power Input 37V ~ 57V DC in
Power Output
5V 2.5A DC out
Network Standard IEEE 802.3af-compliant PoE
Dimension
72.80 × 37.50 × 45.80 mm

Features:

  • PoE Ethernet / USB HUB BOX is designed for Raspberry Pi Zero, compatible with Zero series boards
  • Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
  • PoE (Power over Ethernet) feature, 802.3af-compliant
  • Fully isolated SMPS (Switch Mode Power Supply)
  • 3x extended USB ports, compatible with USB 2.0 / 1.1
  • PoE Ethernet / USB HUB BOX has angle rounded design, smooth hand feeling, "simple snap" case lid
  • Quality ABS material, dull polish surface, anti-fingerprint
  • PoE Ethernet / USB HUB BOX comes with two different lids, changing as you like

    Package Included:

    • 1 x PoE/ETH/USB HUB HAT kit
    • 1 x ABS case
    • 1 x Rubber feet 4PCS
    • 1 x Screws Pack
