Description:

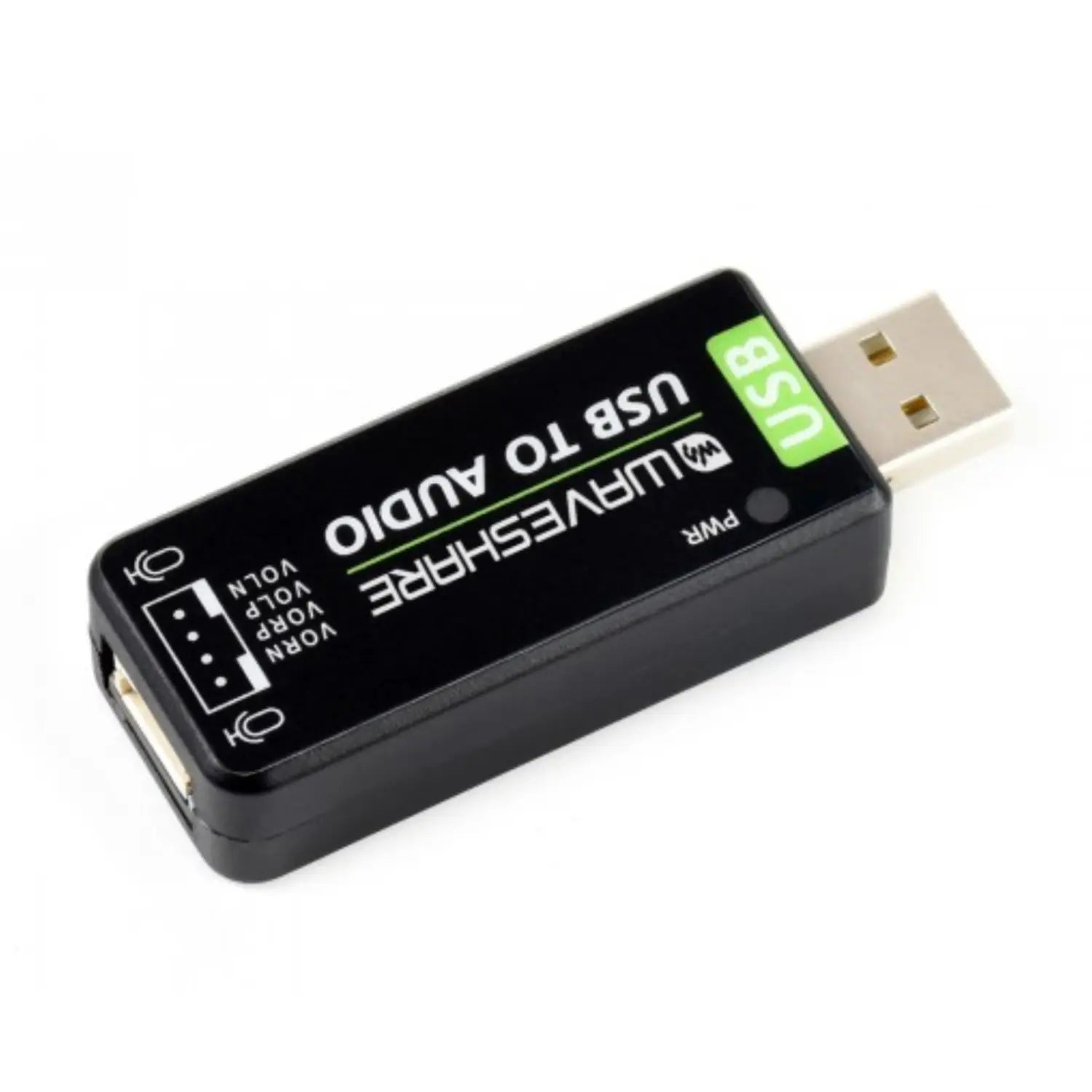

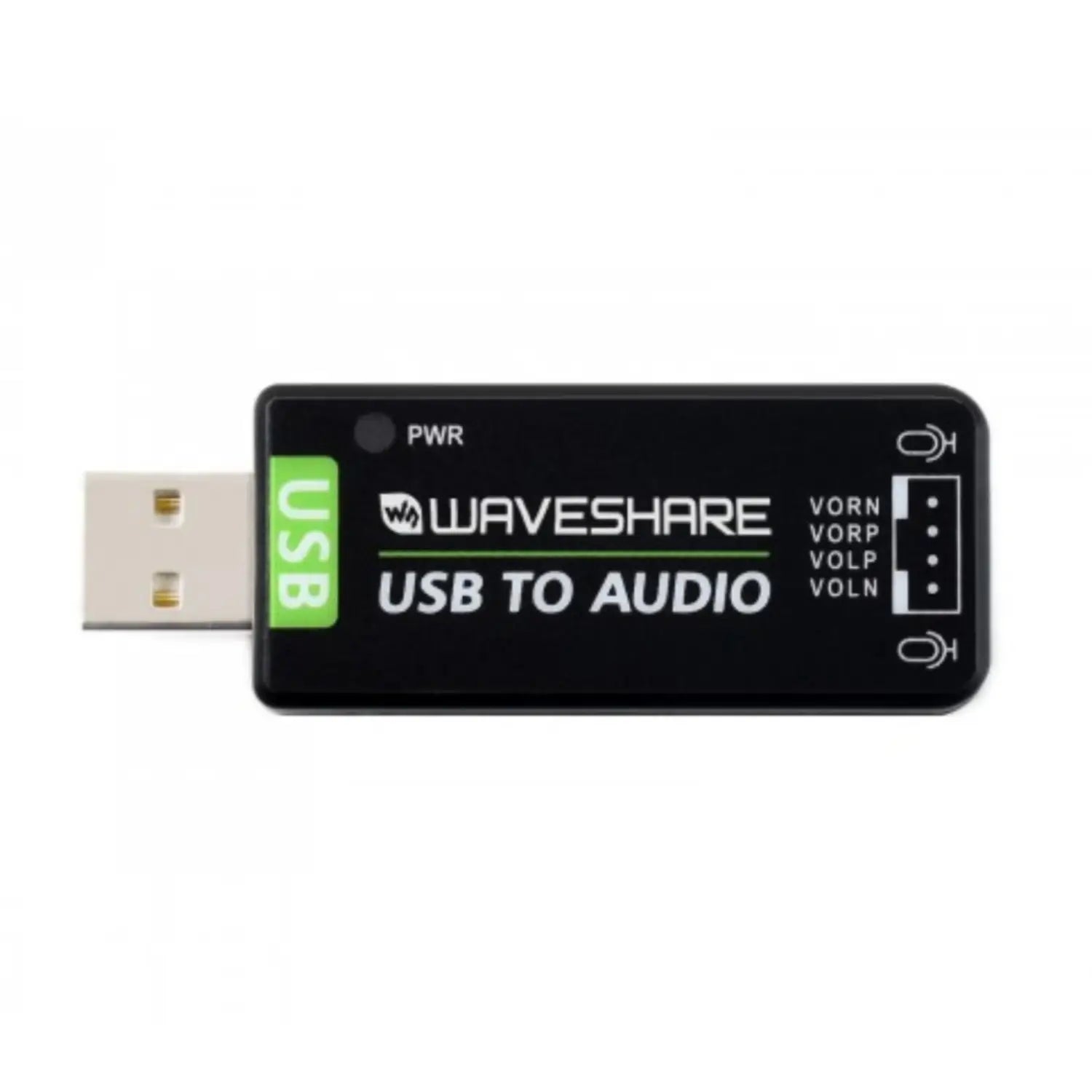

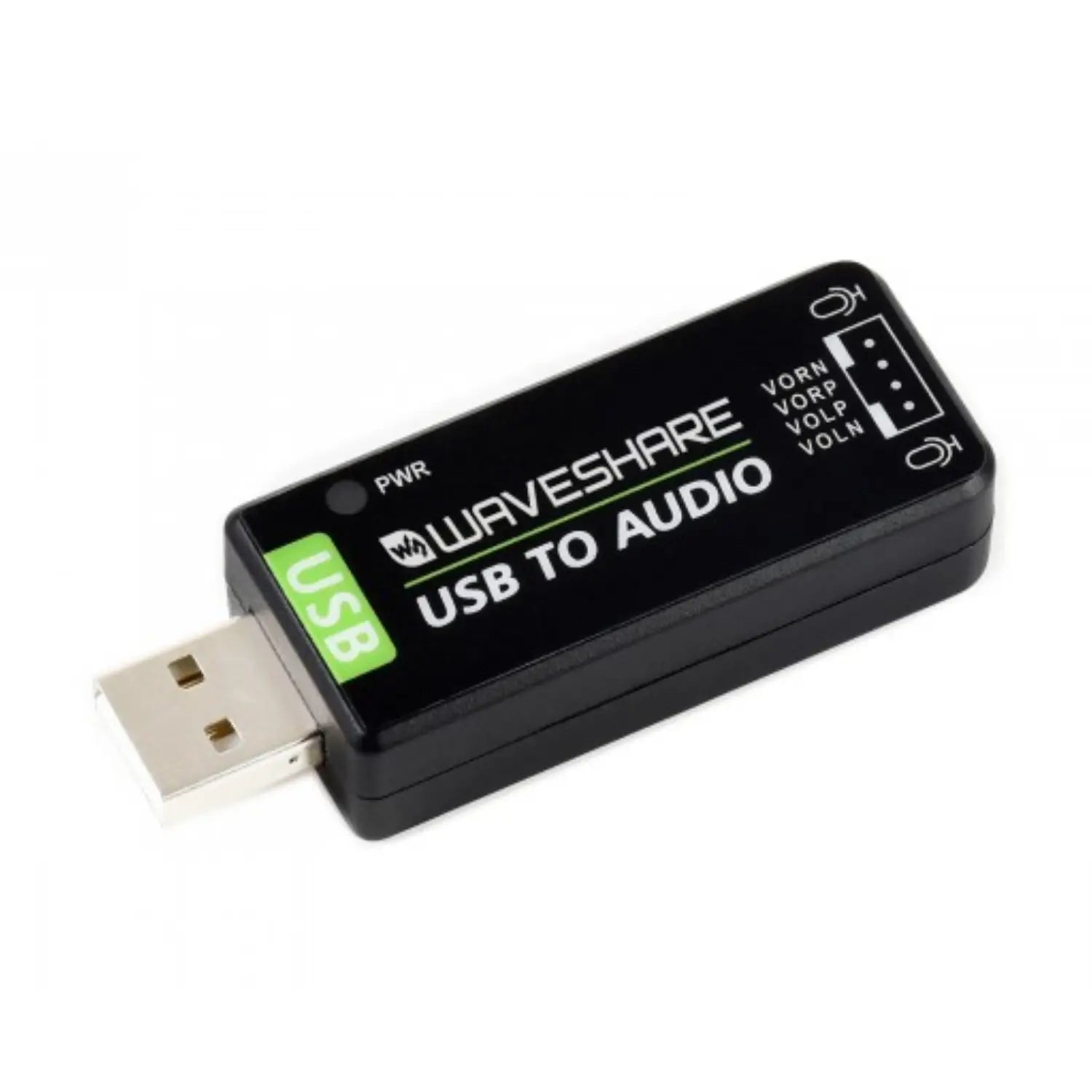

The Waveshare USB Sound Card is a compact, driver-free external audio module designed for seamless audio input and output on devices like the Raspberry Pi, Jetson Nano, and other platforms. With plug-and-play USB 2.0 connectivity, it supports both recording and playback, making it ideal for projects requiring reliable sound functionality without complicated setup.
Equipped with a built-in microphone and speaker, as well as a stereo codec, this sound card enables clear audio capture and output. Simply connect the module and select "USB PnP Audio Device" from your system’s audio settings. Speaker volume and microphone levels can be easily adjusted through USB device controls.
The module supports a wide range of sampling rates, including 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K, and the default 48K Hz, ensuring compatibility with various audio applications and recording standards.
Compatible with major operating systems, including Windows 7/8/8.1/10, Mac OS, Linux, Android, and WinCE, this portable USB sound card is a practical solution for adding audio capabilities to embedded systems, DIY projects, and development platforms.
Specification:
- Power supply: 5V
- Audio encoder/decoder: SSS1629A5
- Control port: USB
- Audio port: PH2.0
- Speaker driver: 2.6W per channel (4Ω BTL)
Features:
- Onboard PWR indicators for operating status.
- Onboard microphone and speaker support audio input/output.
- Driver-free, plug-and-play. Compatible with Windows, Mac OS, Linux, and Android.
- Standard USB 2.0 port, portable size.
Product Interface:
Useful Link:
Waveshare Plug & Play USB Sound Card
Package Included:
1 x Waveshare Plug & Play USB Sound Card – Driver-Free Audio Adapter with USB cable
