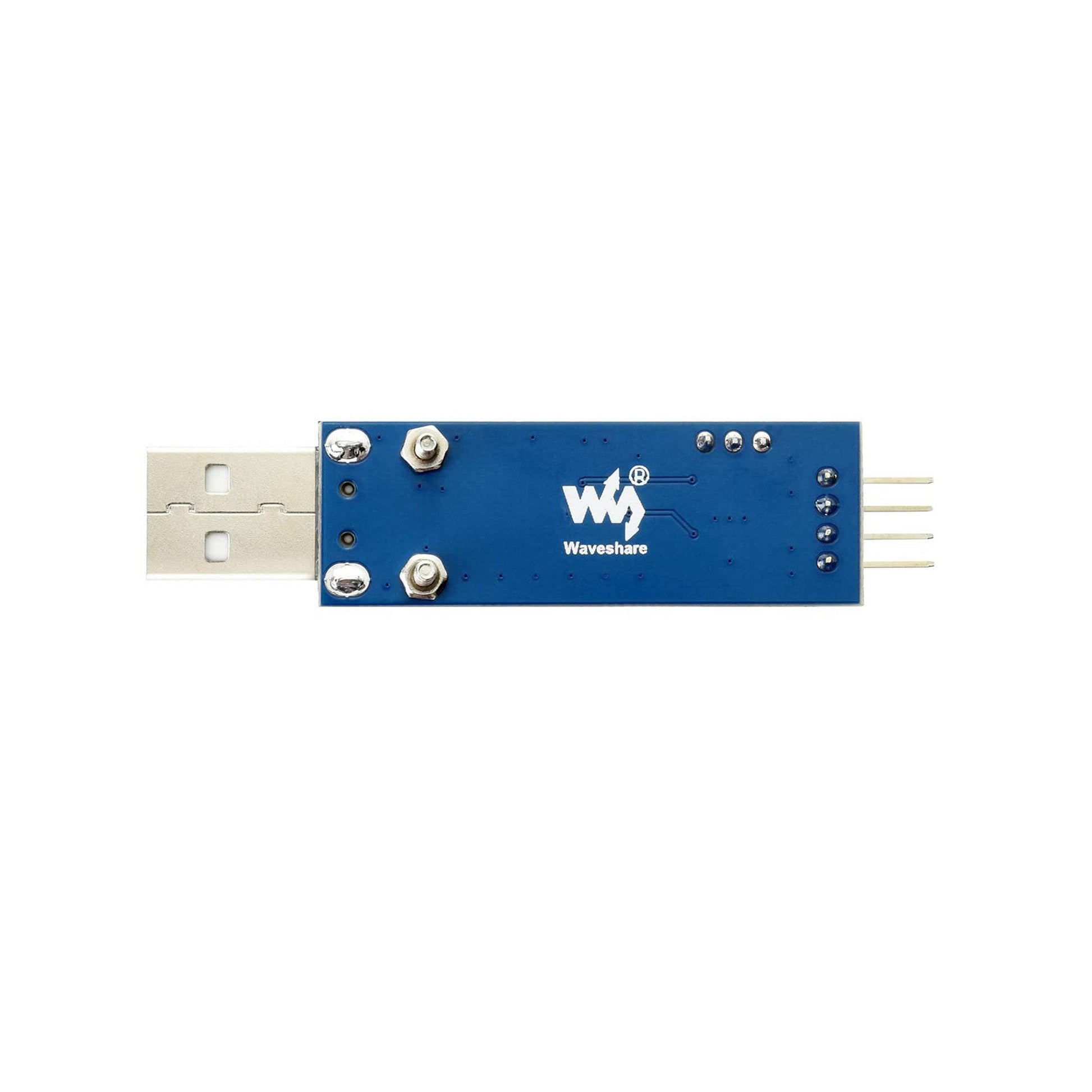

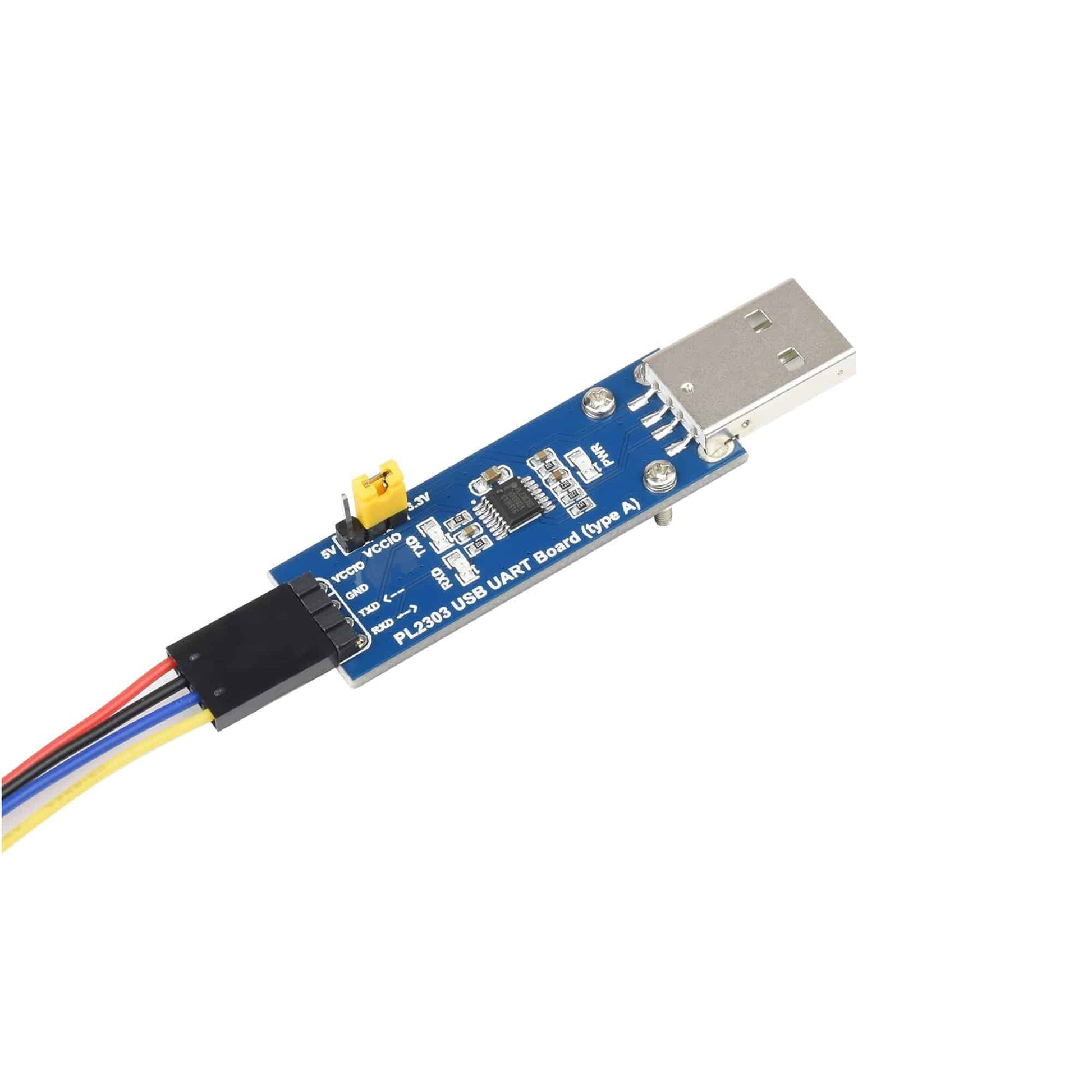

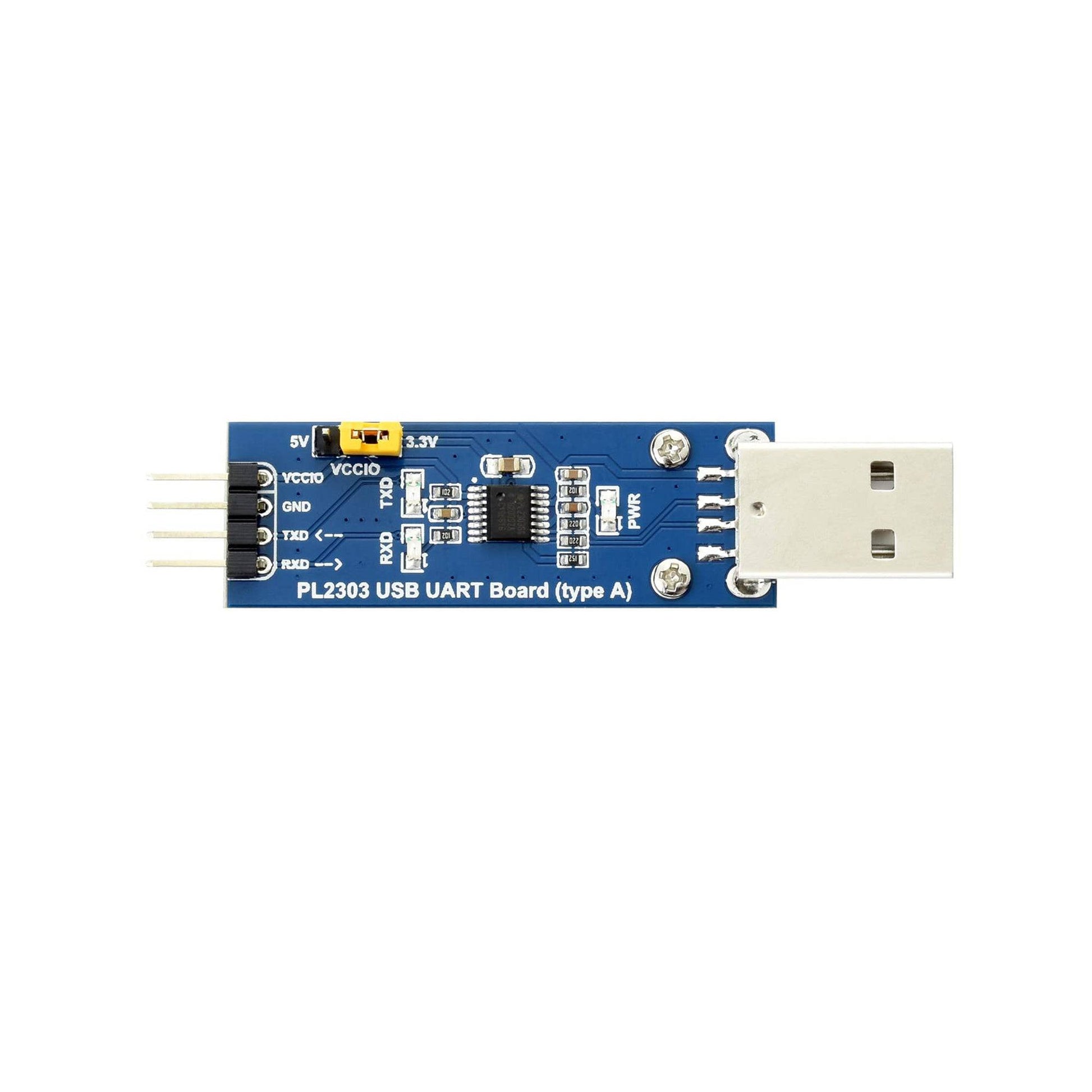

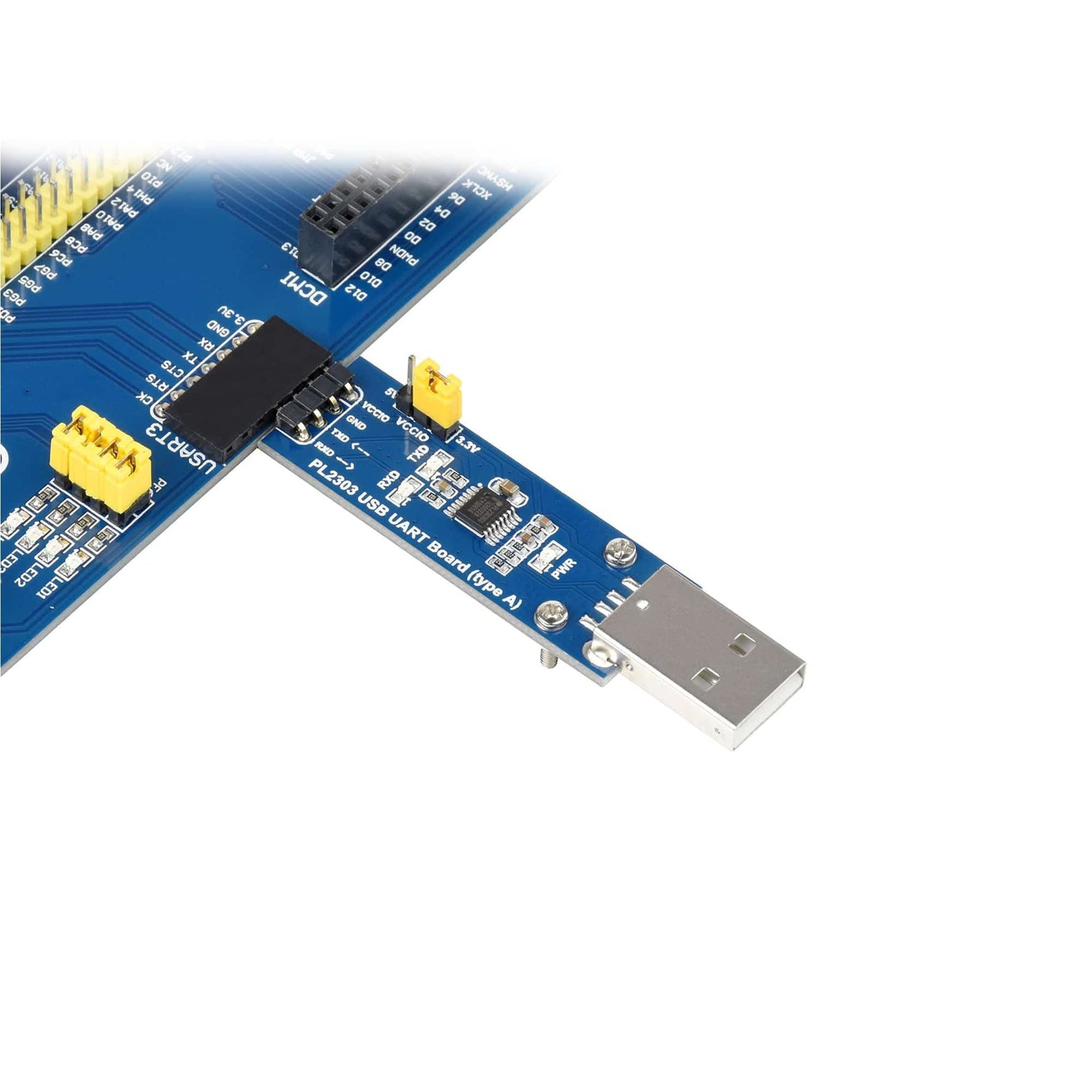

Waveshare PL2303 USB UART Board V2 PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector Compatible with 1.8V/2.5V/3.3V/5V Logic Level Supports Windows XP/7/8/10/11 - RS2416

Waveshare PL2303 USB UART Board V2 PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector Compatible with 1.8V/2.5V/3.3V/5V Logic Level Supports Windows XP/7/8/10/11 - RS2416

RS2416

Low stock: 2 left

Rs. 249.00
Rs. 249.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

PL2303 USB To UART (TTL) Communication Module supports Windows XP/7/8/10/11/ etc. and is compatible with 1.8V/2.5V/3.3V/5V logic voltage.

Specifications:

  • Communication Interface: USB/UART
  • Chip: PL2303
  • USB Interface voltage: 5V
  • UART interface voltage: 1.8V/2.5V/3.3V/5V
  • Product size: 16.51mm x 48.26mm

Features:

  • Adopt the PL2303GS chip of the new version
  • Support windows XP/7/8/10/11/...
  • Without jumper cap: powered by external (1.8V/2.5V/3.3V/5V)
  • Onboard 3 LED indicators: TXD, RXD, PWR

Useful Link:

Waveshare PL2303 USB UART Board V2

    Package Included:

    1 x Waveshare PL2303 USB UART Board V2 PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector Compatible with 1.8V/2.5V/3.3V/5V Logic Level Supports Windows XP/7/8/10/11
