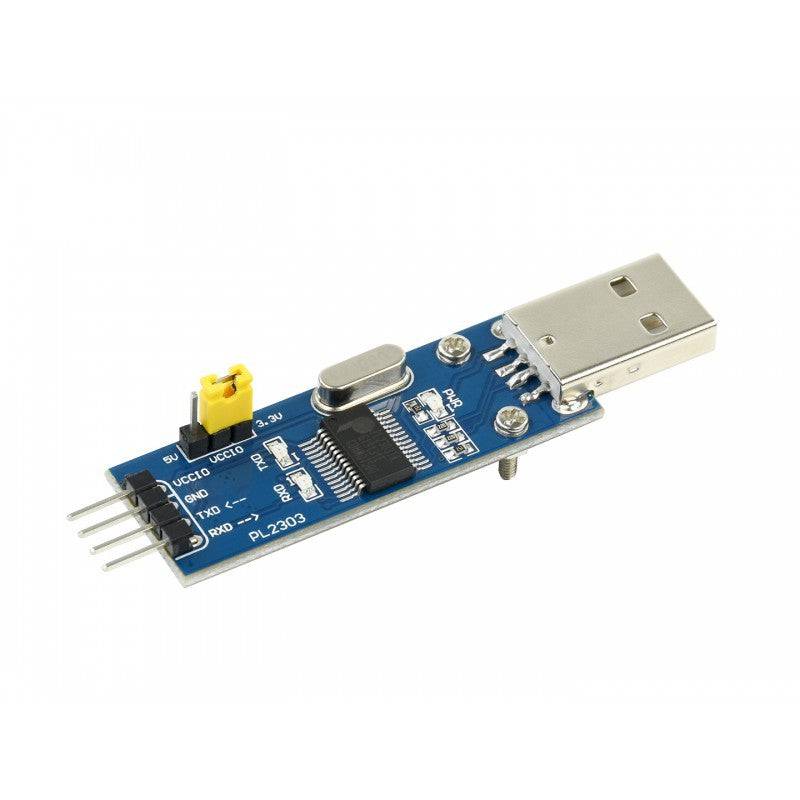

Waveshare PL2303 USB UART Board (type A) - RS3130

Waveshare PL2303 USB UART Board (type A) - RS3130

SKU:RS3130

Regular price Rs. 287.00
Regular price Sale price Rs. 287.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 3.3 ~ 5V DC
  • Crystal Oscillator: 12 MHz
  • Fully Compliant with USB Specification v2.0 (Full-Speed)
  • On-chip USB 1.1 transceiver, 5V to 3.3V regulator, and 12 MHz crystal oscillator

Description:

The PL2303 is a low-cost and high-performance USB-to-Serial Bridge Controller. The PL2303 provides a convenient solution for connecting an RS-232 like a full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host.

The PL2303 highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready.

The PL2303 is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit into any connectors and handheld device. With very small power consumption in either operating or suspend mode, the PL2303 is perfect for bus-powered operation with plenty of power left for the attached devices.

Specification:

  • Operating Voltage: 3.3 ~ 5V DC
  • Crystal Oscillator: 12 MHz

Features:

  • Fully Compliant with USB Specification v2.0 (Full-Speed).
  • On-chip USB 1.1 transceiver, 5V to 3.3V regulator, and 12 MHz crystal oscillator.
  • Supports RS-232 like serial interface.
  • Programmable baud rate from 75 bps to 6,000,000 bps.
  • Configurable 256-byte outbound buffer and 256-byte inbound buffer or 128-byte outbound buffer and 384-byte
    inbound buffer.
  • Supports remote wake-up from MODEM input signals
  • Two general-purpose I/O (GPIO) pins
  • Optional external EEPROM for startup device configurations
  • Small footprint 28-pin SSOP IC package
  • Pin compatible with PL-2303HXA and PL-2303XA

Pin Description:

  • VCCIO 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
  • GND GND
  • TXD MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

This breakout also allows you to connect the TX/RX pins of your favourite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Package Included:

1 x Waveshare PL2303 USB UART Board (type A)
