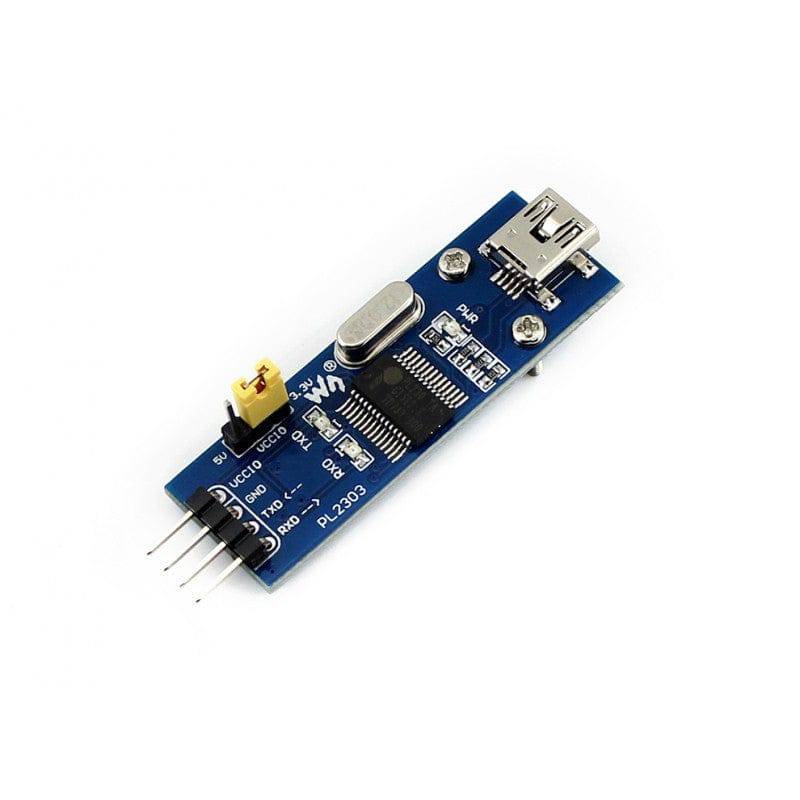

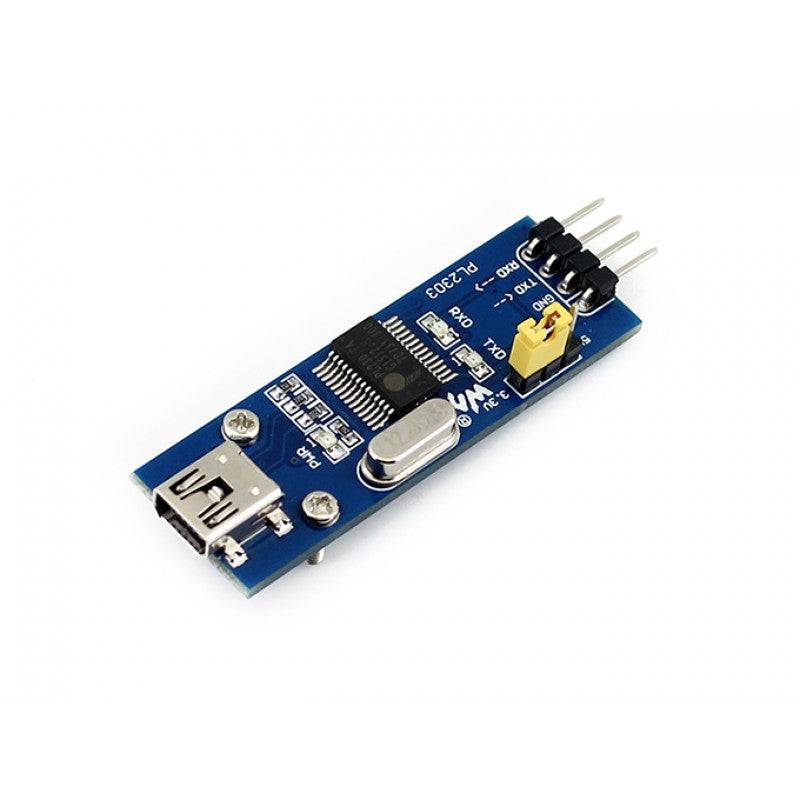

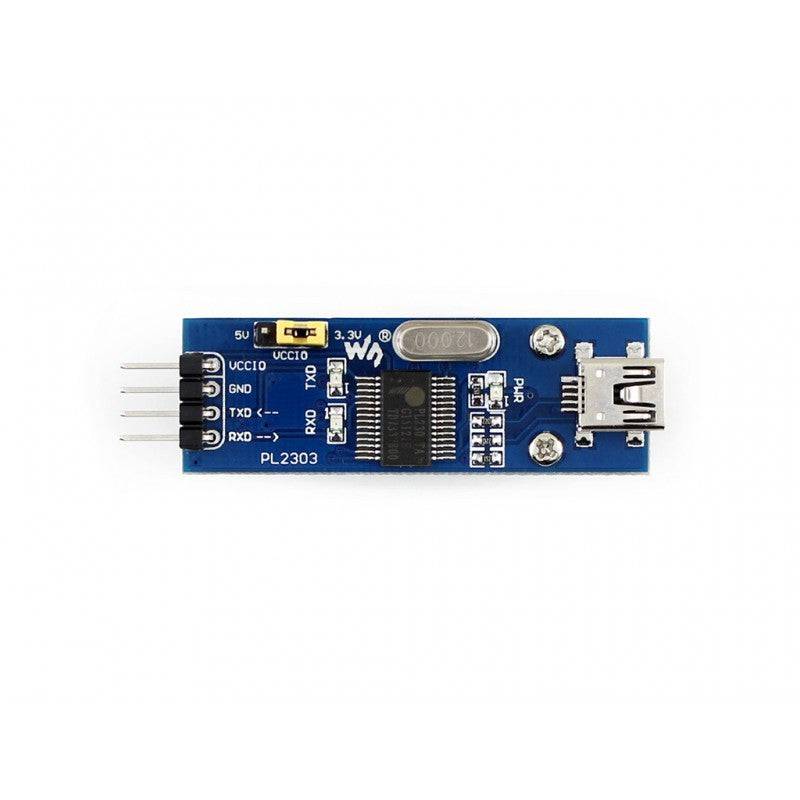

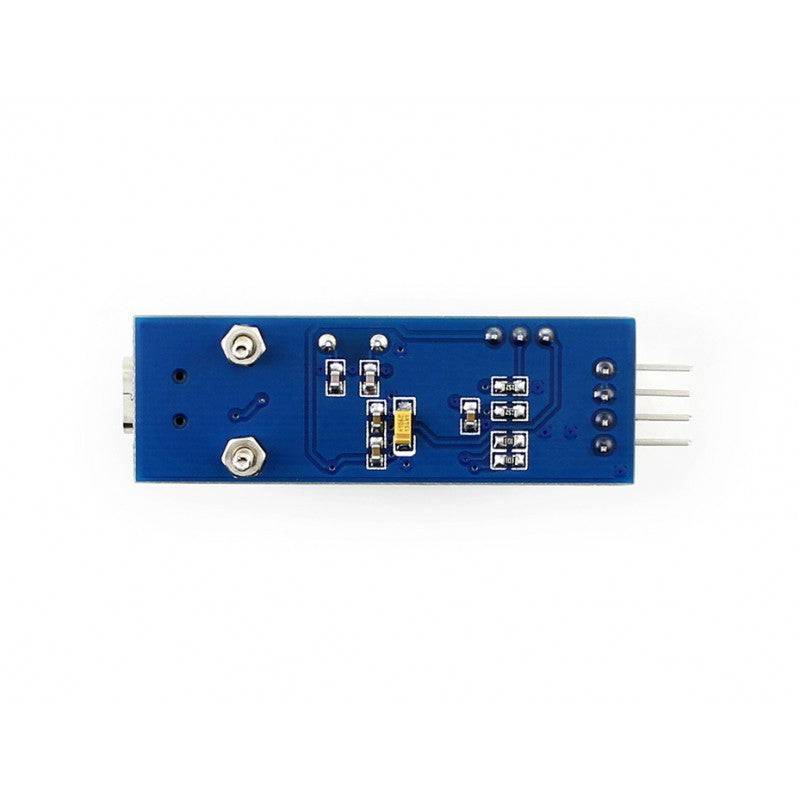

Waveshare PL2303 USB UART Board (Mini) PL2303 USB to UART Module - RS2414

Waveshare PL2303 USB UART Board (Mini) PL2303 USB to UART Module - RS2414

SKU:RS2414

Low stock: 10 left

Regular price Rs. 259.00
Regular price Sale price Rs. 259.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

PL2303 USB to UART Module supports Windows XP/7/8/10/ etc. and is compatible with 1.8V/2.5V/3.3V/5V logic voltage. The PL2303 USB to UART Module is equipped with the PL2303TA new version device. The PL2303 USB to UART Module offers 3x VCCIO power modes through jumper settings: 5V output, 3.3V output, or power from the target board (1.8V/2.5V/3.3V/5V). Additionally, it features 3x LED indicators for TXD, RXD, and PWR.

Specifications:

  • Communication Interface: USB/UART
  • Chip: PL2303
  • USB Interface Voltage: 5V
  • UART Interface Voltage: 1.8V/2.5V/3.3V/5V

Features:

  • PL2303TA onboard (the latest device, compatible with PL2303HXA)
  • Supports Windows XP/7/8/8.1/10.
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED

How to Use:

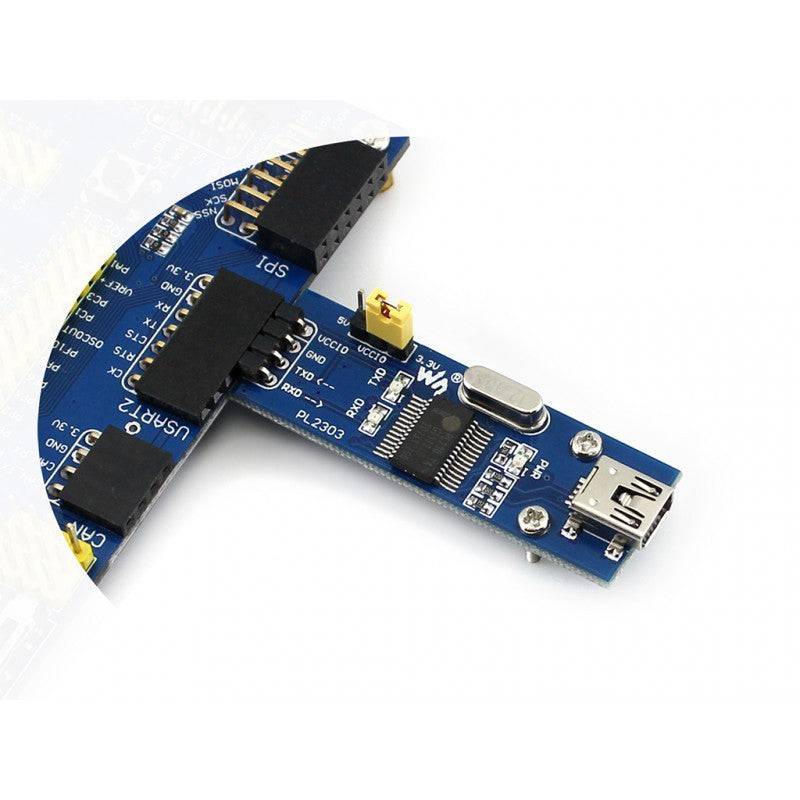

In the case of working with an MCU:

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

Package Included:

1 x Waveshare PL2303 USB UART Board (Mini) PL2303 USB to UART Module
