Description:

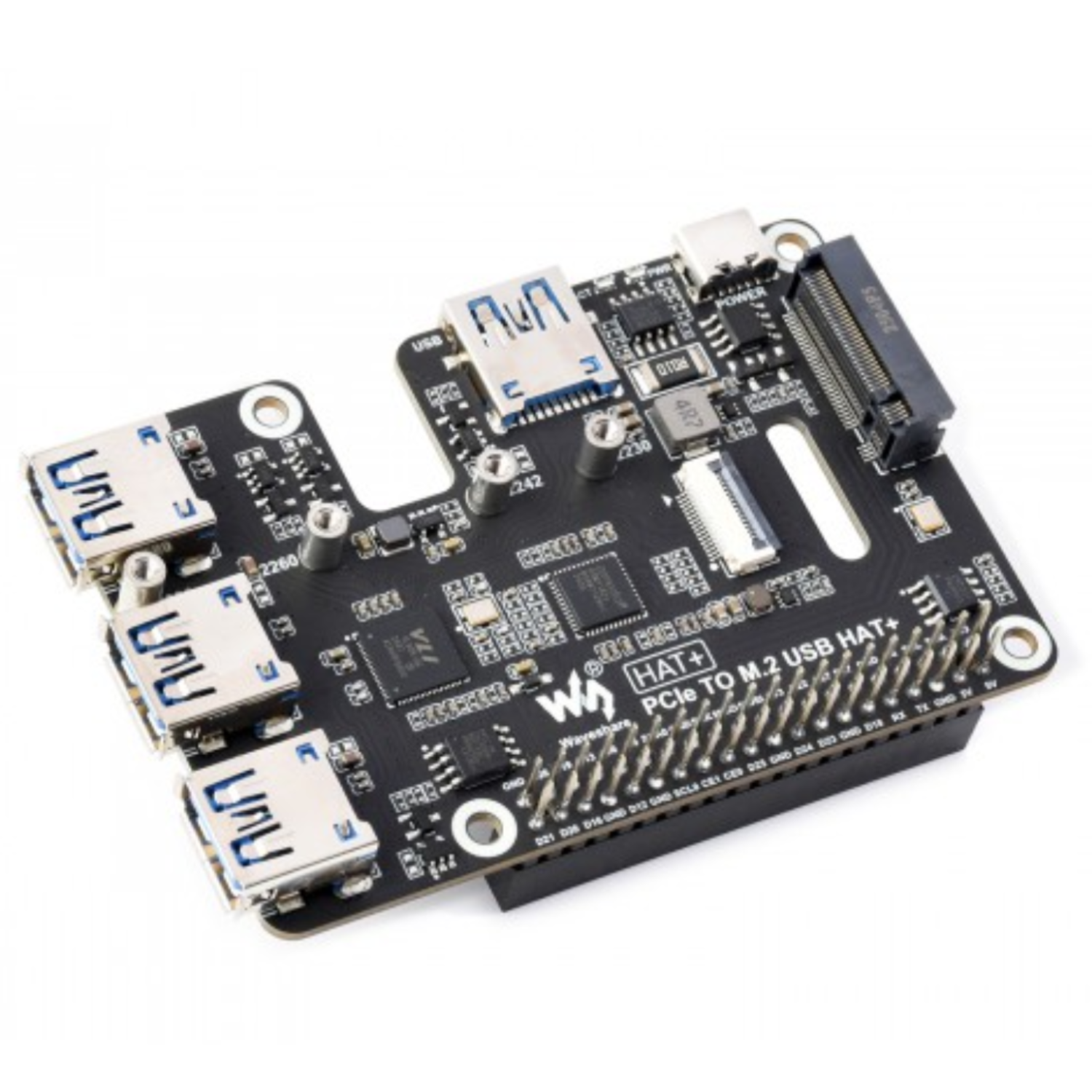

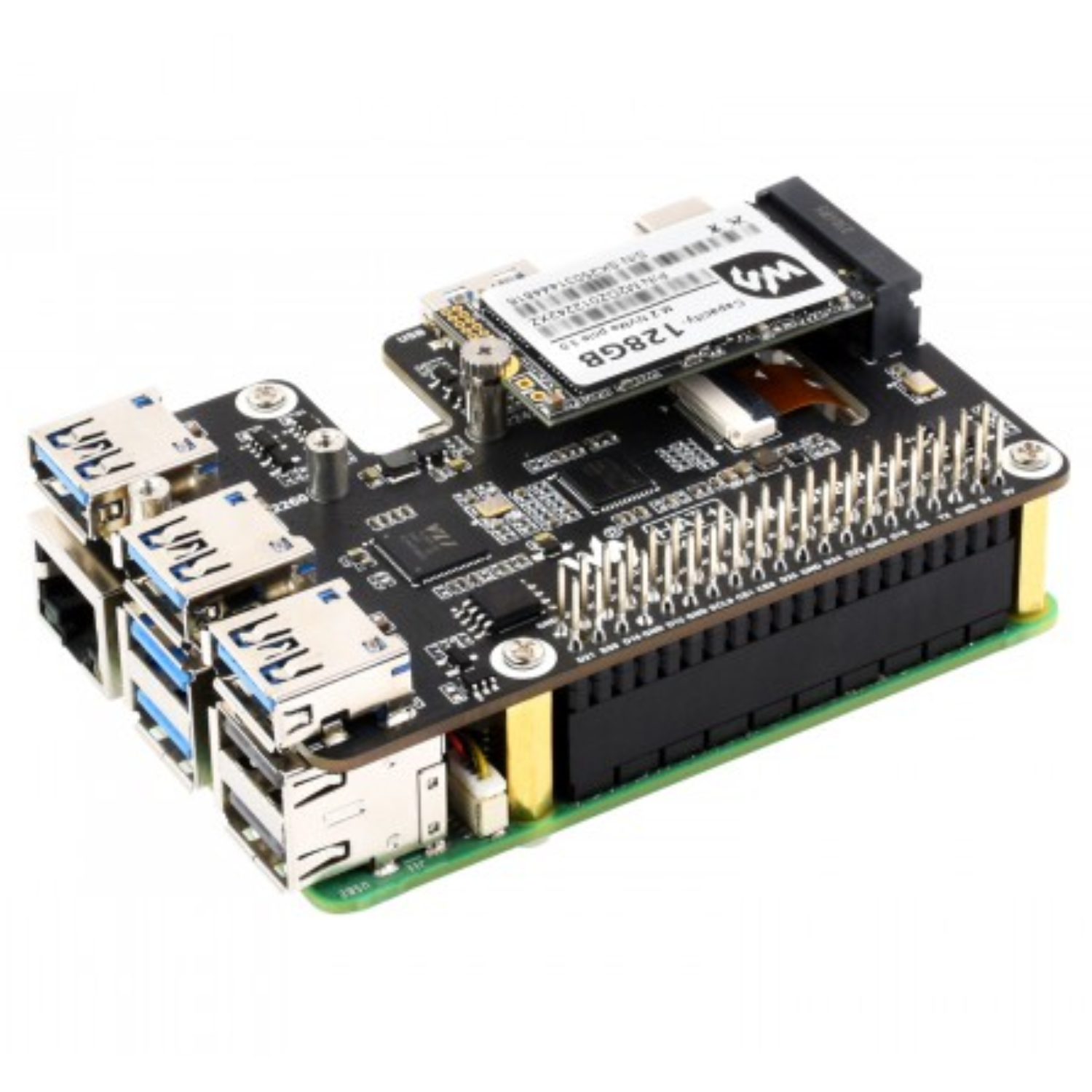

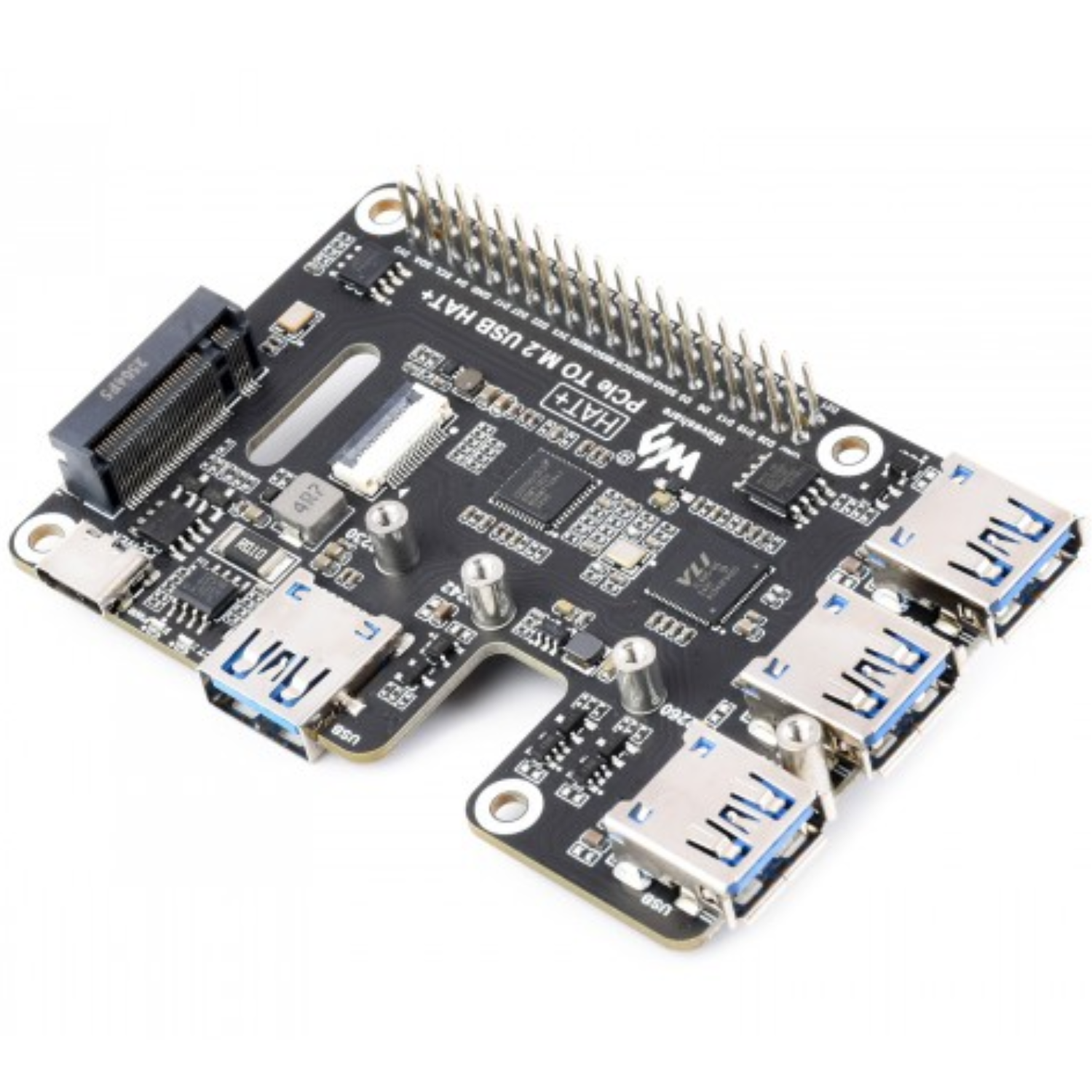

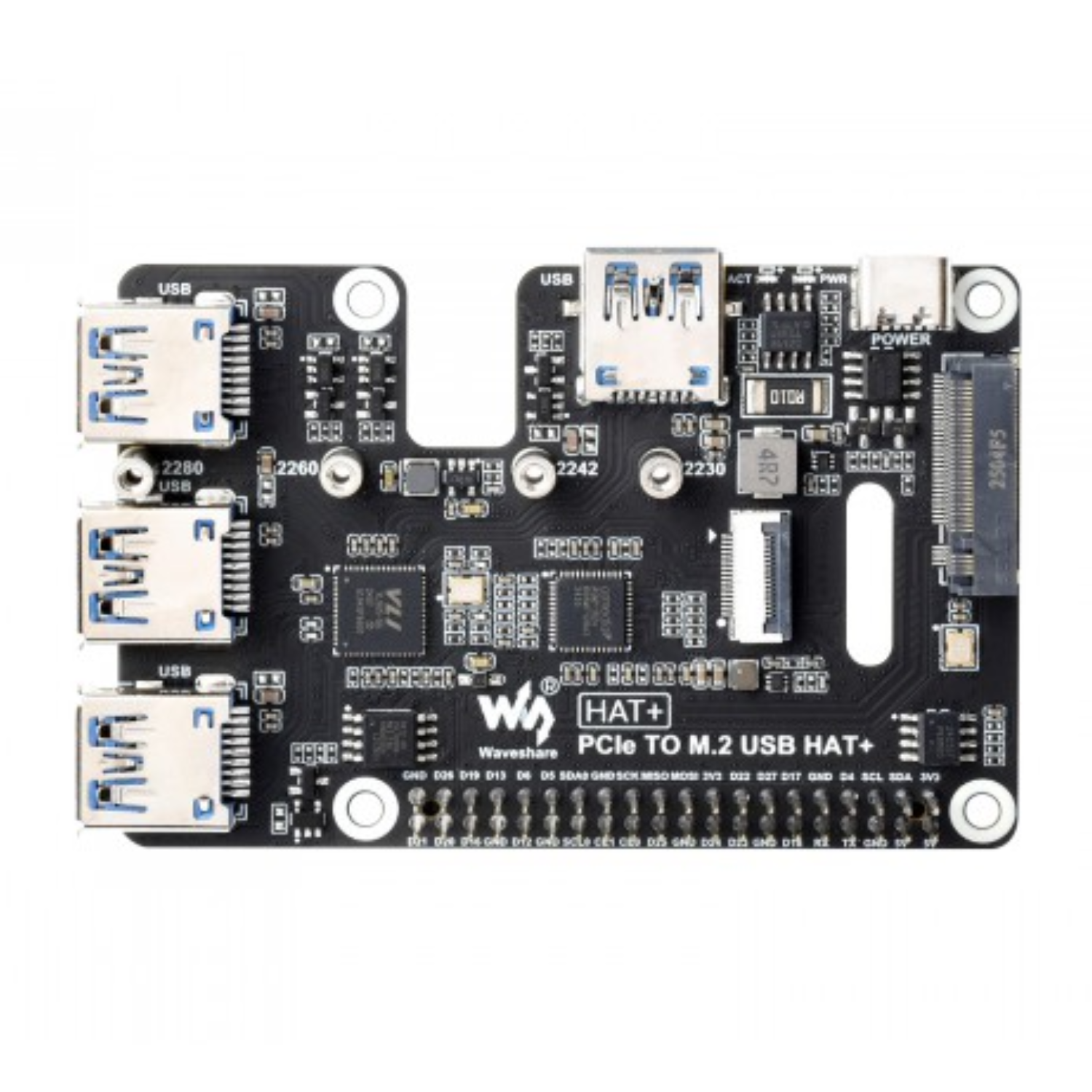

The PCIe to USB 3.2 Gen1 and M.2 adapter board is specifically designed for the Raspberry Pi 5 and expands M.2 hard drives and USB ports in 2230 / 2242 / 2260 / 2280 sizes. It supports Gen2 mode only and supports booting the PI5 from an SSD.

Specification:

  • Product Type: PCIe to USB 3.2 Gen1 M.2 NVMe SSD HAT
  • Compatibility: Raspberry Pi 5
  • HAT Standard: HAT+ Standard
  • Host Interface: PCIe
  • Storage Interface: M.2 M-Key (NVMe Protocol SSD)
  • Supported SSD: M.2 NVMe Solid State Drive (2230/2242/2260/2280)
  • USB Speed: Up to 5Gbps (USB 3.2 Gen1)
  • Storage Speed: High-Speed PCIe NVMe Data Transfer
  • Power Supply: Powered via Raspberry Pi 5 PCIe Interface / External DC Input (if required)
  • Operating System Support: Raspberry Pi OS and other compatible Linux distributions
  • Board Material: High-Quality PCB

Features:

  • Supports NVMe protocol M.2 interface hard drives, featuring high-speed read and write, and high work efficiency
  • Only supports PCI-E×1 Gen2 mode
  • Only supports PI5B
  • Compatible with M.2 hard drives of 2230 / 2242 / 2260 / 2280 sizes
  • Onboard operational indicator lights: the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible
  • Equipped with original VL805 high-performance main control chip
  • Supports USB power control

Useful Link:

Waveshare PCIe to USB 3.2 Gen1 and M.2 NVMe SSD HAT

Package Included:

  • 1 x PCIe TO M.2 USB HAT+
  • 1 x 16-PIN PCIe cable
  • 1 x Screws pack
