Waveshare PCIe to M.2 4G/5G & USB 3.2 HAT for Raspberry Pi 5 Compatible with SIMCom & Quectel 4G/5G Modules

Waveshare PCIe to M.2 4G/5G & USB 3.2 HAT for Raspberry Pi 5 Compatible with SIMCom & Quectel 4G/5G Modules

RS10058

In stock

Rs. 2,223.00
Rs. 2,223.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Waveshare PCIe to 4G/5G M.2 USB 3.2 HAT+ is a high-performance adapter board designed specifically for the Raspberry Pi 5. It expands the Pi’s connectivity by providing both PCIe-to-USB 3.2 and M.2 interfaces, making it ideal for integrating advanced 4G/5G modules. Supporting M.2 modules in 3042 and 3052 sizes, this HAT is fully compatible with popular SIMCom and Quectel 5G modules. With Gen2 mode support, it ensures stable, high-speed communication, enabling seamless networking, data transfer, and IoT applications.

Specification:

  • Model Name: Raspberry Pi 5
  • Ram Memory Technology: LPDDR4
  • Operating System: Ubuntu
  • Processor Brand: ‎Broadcom
  • Processor Count: ‎1
  • Hardware Interface: ‎PCI
  • Compatible Devices: ‎Personal Computer
  • Batteries Included: No
  • Batteries Required: ‎No
  • Wireless Type:‎ 802.11ax
  • Total USB ports: ‎3
  • Connector Type: ‎Ethernet, HDMI, USB

Features:

  • Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion.
  • Support PCI-E×1 Gen2 mode.
  • Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals.
  • Onboard M.2 (NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages.
  • Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input.
  • Onboard power monitoring chip for real-time measurement of voltage, current and power.
  • Onboard SIM card slot for NANO-SIM card.
  • Onboard Reset button, Power and Network indicators for easy debugging and monitoring operating status.
  • Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation.
  • Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation.

Product Interface:

PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, pinout definition

Pin Description:

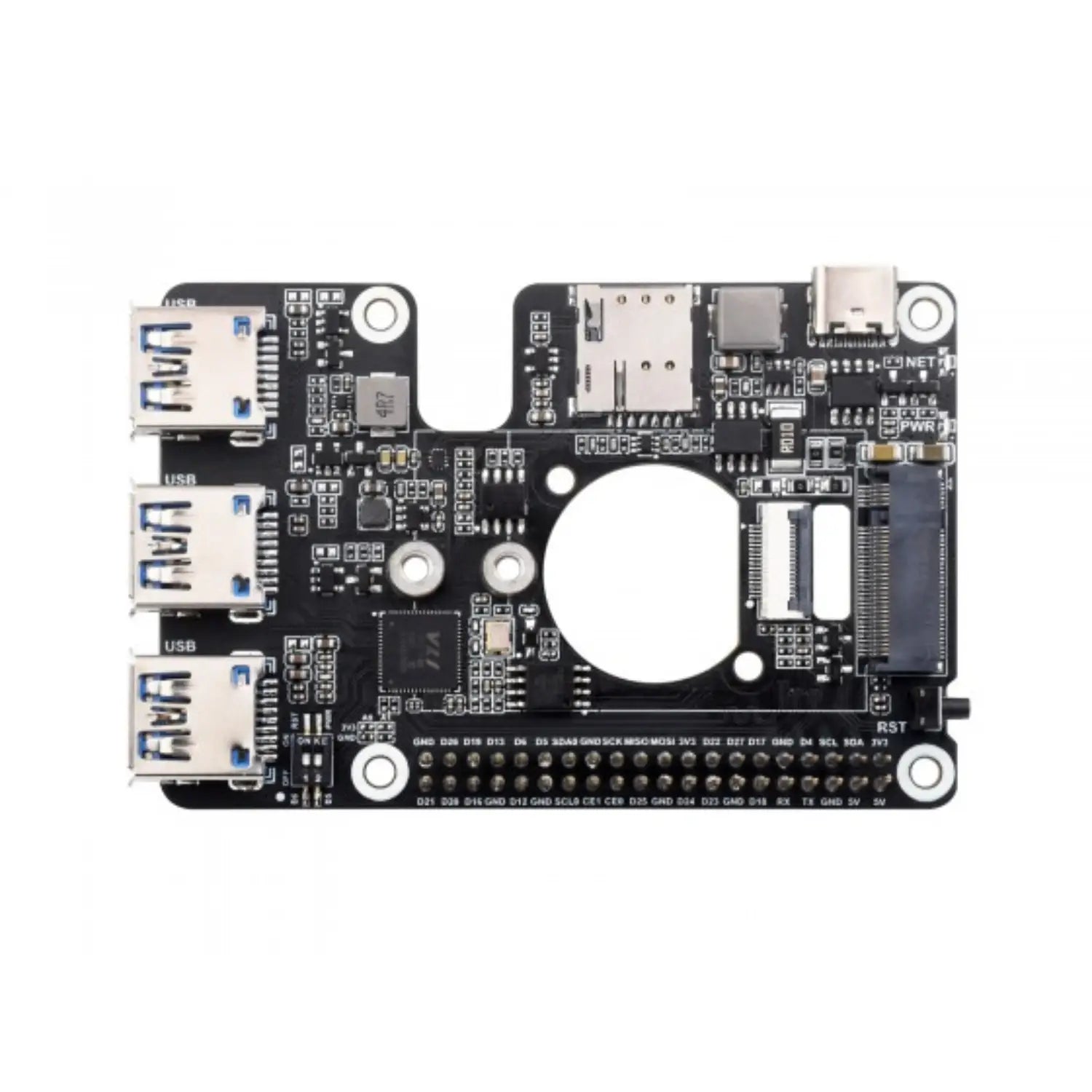

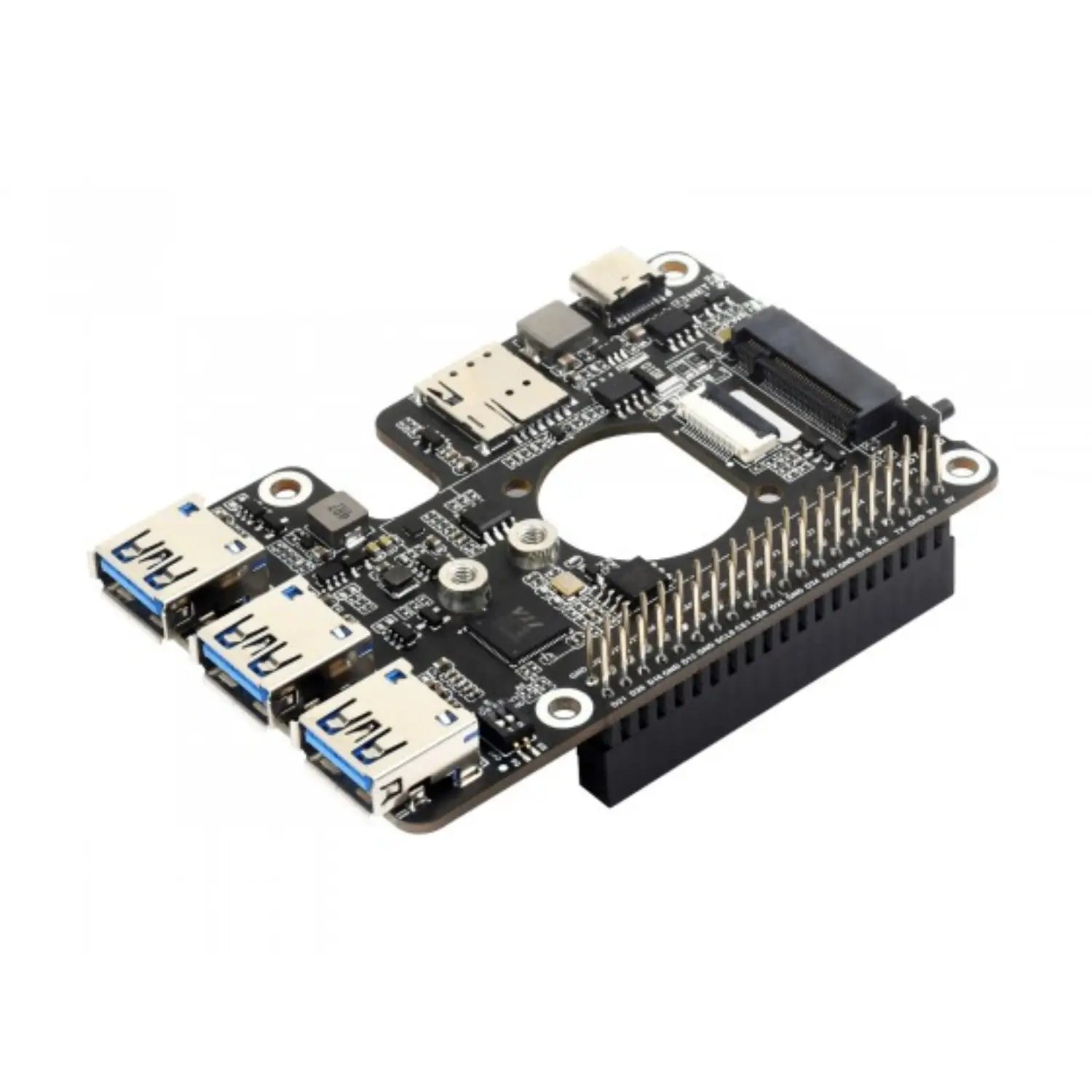

PCIe to M.2 4G/5G And USB 3.2 HAT, onboard components

  1. VL805: PCIe to USB 3.2 Gen1 HUB chip
  2. EEPROM: for saving HAT ID and product information
  3. INA219: Power monitoring chip
  4. 16PIN PCIe interface: for connecting to the PCIe interface of Raspberry Pi 5
  5. M.2(NGFF) Key B slot: Compatible with 3042/3052 packages M.2 4G/5G modules
  6. Raspberry Pi GPIO header: for connecting Raspberry Pi 5
  7. USB 3.2 Gen1 expanded ports: USB1~USB3
  8. Nano SIM card slot: for installing a Nano-SIM card
  9. Type-C interface: for 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
  10. DIP switch: for switching to use GPIO pins to control power on/off and reset of the module
  11. Reset button: Press it to reset the module
  12. PWR indicator: Power indicator
  13. NET indicator: Module Network status indicator

How to Install:

how to install PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5

Application Scenarios:

PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, application scenarios

NOTE: for reference only, the Raspberry Pi 5 and 5G module are NOT included.

Useful Link:

Waveshare PCIe to M.2 4G/5G & USB 3.2 HAT

Package Included:

  • 1 x PCIe TO 4G/5G M.2 USB3.2 HAT+
  • 1 x 5G-4IN1-PCB Antenna
  • 1 x 16P-Cable-40mm cable
  • 1 x IPEX1 to IPEX4 cable ~13cm 4PCS
  • 1 x Screws pack
