Waveshare PCIe to 4-Port SATA 3.0 Expander Card 6Gbps High-Speed Adapter For Raspberry Pi CM4 - RS2055
Waveshare PCIe to 4-Port SATA 3.0 Expander Card 6Gbps High-Speed Adapter For Raspberry Pi CM4 - RS2055
SKU:RS2055
Low stock: 3 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

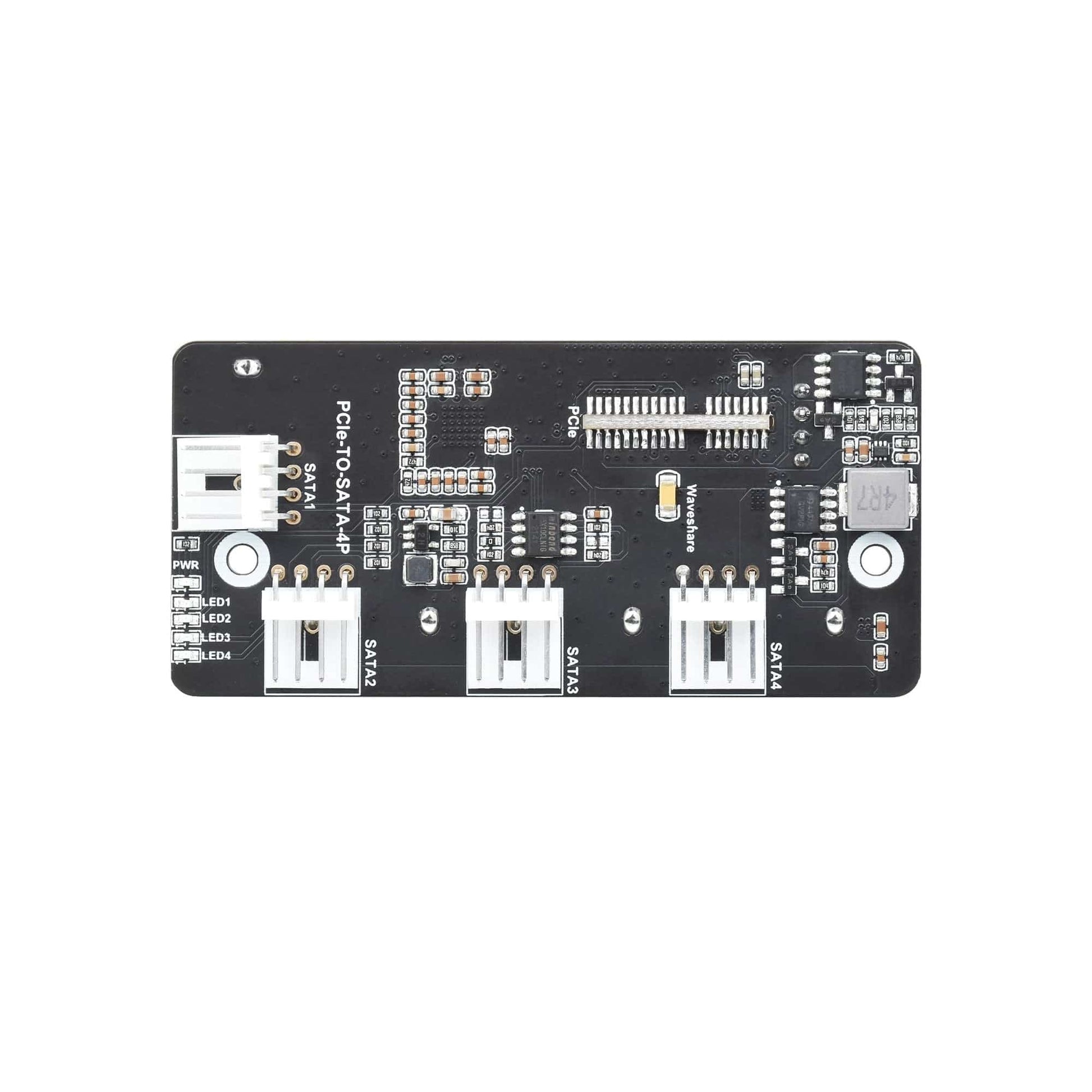

PCIe to 4-channel SATA expansion card supports PCIe Gen3 x1, the maximum speed of a single channel is 6Gbps. Onboard SATA host controller (AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It's a low-latency, low-cost cost and low-power AHCI controller. With four SATA ports and cascaded port multipliers, the PCIe TO 4-Ch SATA 3.0 Expander can enable users to build up various high-speed IO systems, including servers, high-capacity system storage, or surveillance platforms.
Features:
- Supports single-channel PCI Express.
- Four power-saving modes of L0s/L1/L23/L3.
- Supports L1 sub-state deep power-saving mode.
- PCIe TO 4-Ch SATA 3.0 Expander supports SRIS, AER, and LTR.
- Supports SATA LED.
- Supports NCQ and AHCI SPEC 1.4.
- Four SATA3.0 (6Gbps) ports.
- Supports port multiplier command-based switching.
- Supports SATA Partial/Dormancy power management.
- Does not support direct access to the PC motherboard.
- Supporting 5V and 12V SATA HDDs (2.5" and 3.5" HDDs), but it does not support the M.2 interface.
Useful Link:
Waveshare PCIe TO 4-Ch SATA 3.0 Expander

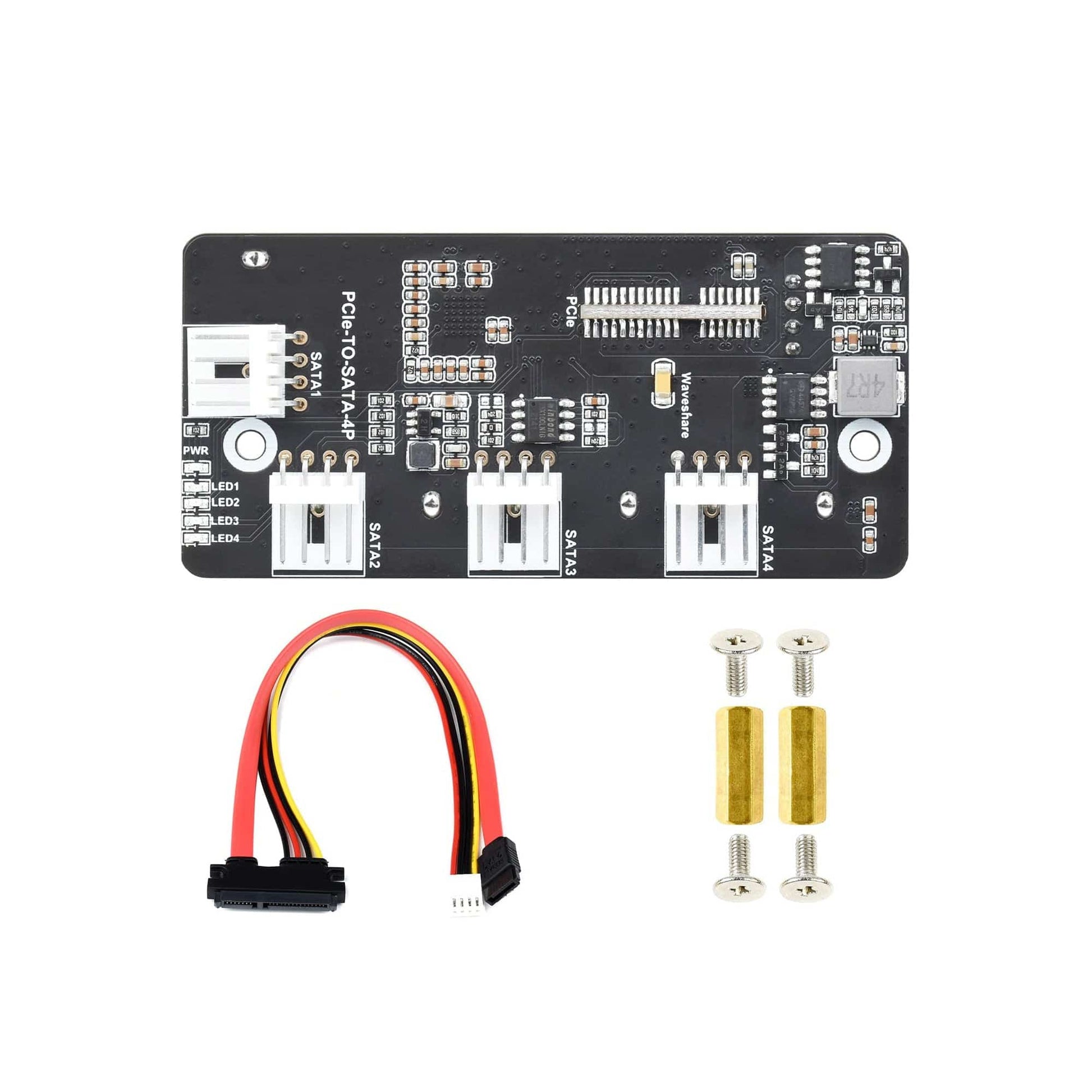

Package Included:
- 1 x PCIe TO 4-Ch SATA 3.0 Expander
- 1 x SATA Adapter Cable
- 1 x Screws pack
