Description:
At its core, the 1/4-inch OV5640 (color) CMOS image sensor utilizes cutting-edge OmniBSI™ technology to deliver superior image quality in a remarkably small footprint. It supports full-frame, sub-sampled, windowed, or scaled 8-bit/10-bit images in various formats.
Applications:
- Cellular phones
- PDAs
- Toys
- Other battery-powered products
- ARM-based platforms
Specification:
Pixels | 5MP | |
---|---|---|
Sensor | OV5640 | |
Interface | USB 2.0 | |
Camera | Sensor size | 1/4 inch |
Aperture (F) | 2.8 | |
Focal length (EFL) | 3.29 mm | |
Field of view (FOV) | 68° | |
Distortion | < 1% | |
Focusing | (B): AF Auto-Focus (C): FF Fixed-Focus |
|
Image | Format support | MJPG, YUV422 |
Static image resolution | 2592 × 1944 | |
Video recording | 15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
Operating voltage | 5V ± 5% | |
Camera size | 8.5 × 8.5 mm | |
Module size | 9 × 62 mm | |
Note | Select OV5640 5MP USB Camera (B)for Auto-focus, Select OV5640 5MP USB Camera (C) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same. |
Features:
- Working voltage:5V ± 5%
- Working Temperature:0°C ~ 50°C
- Support OS Windows, Linux, Mac OS
- Working with Raspberry Pi
- Working with the Jetson Nano developer kit
- Interface: USB 2.0
Useful Link:
Waveshare OV5640 5MP USB Camera (B)
Package Includes:

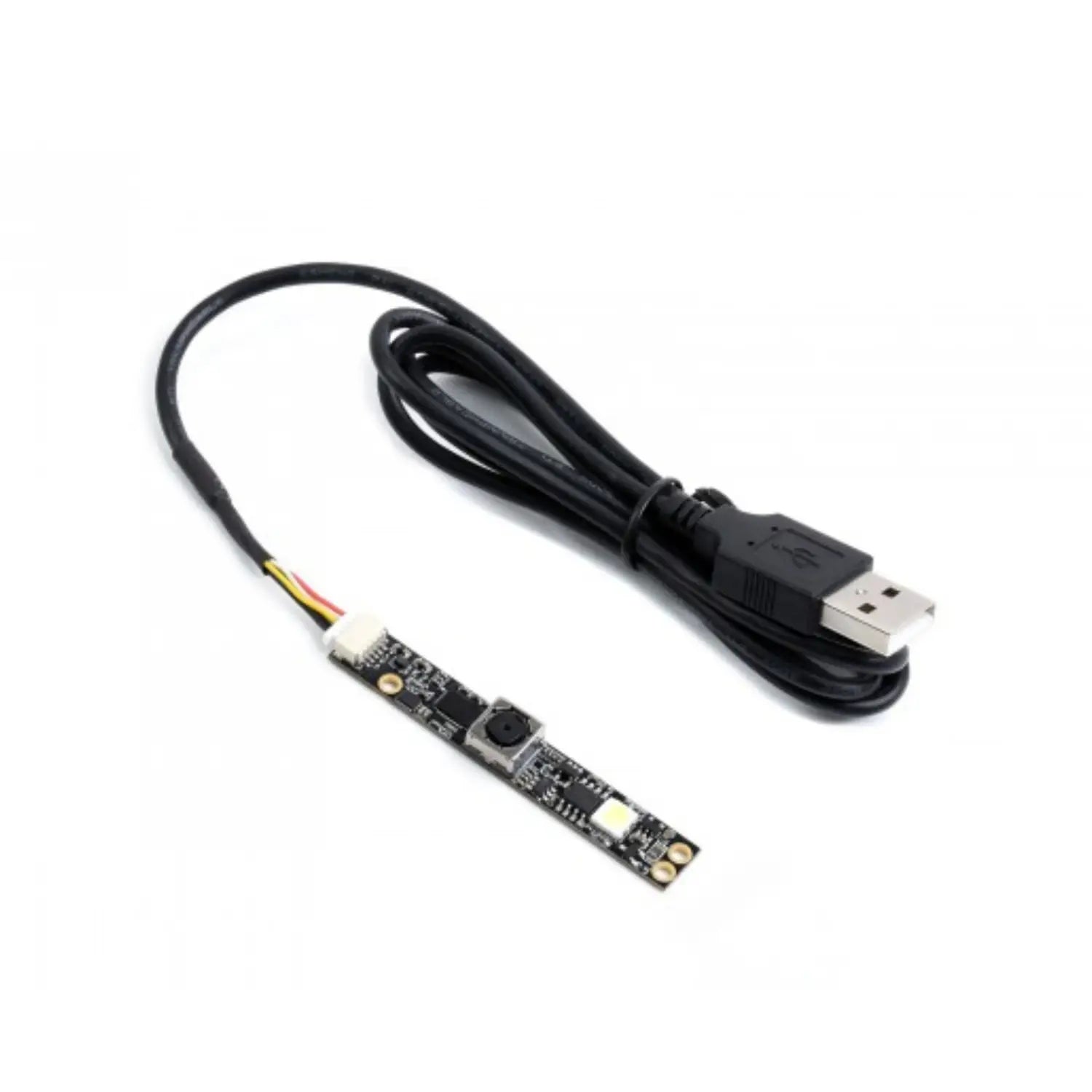

1 x Waveshare OV5640 5MP USB Camera (B)
