Waveshare

Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia -RS2052

Waveshare NB-IoT HAT for Raspberry Pi, for Europe, Asia, Africa, Australia -RS2052

RS2052

11 in stock

Rs. 1,529.00
Rs. 1,529.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Power supply: 5V
  • Logic level: 5V/3.3V (3.3V by default)
  • Overall current (idle mode): ~18mA
  • Single module current (VBAT=3.3V):
    • Idle mode: 5.6mA
    • Sleep mode: 0.4mA
    • PSM mode: 5uA
    • eDRX mode: 70uA (eDRX=655.36s)
  • Dimension: 30.5mm x 65.0mm

Description :

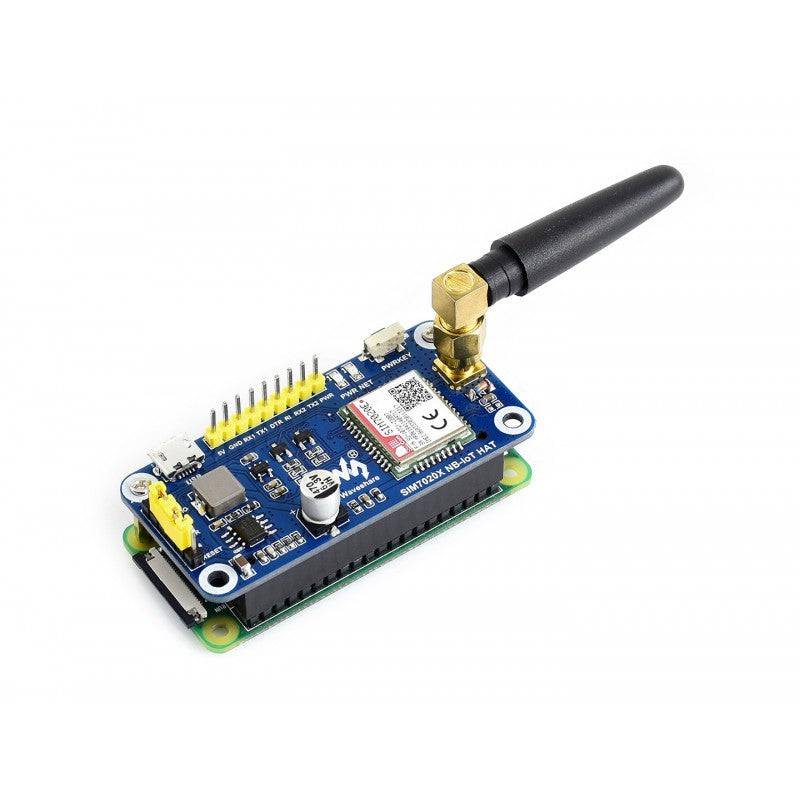

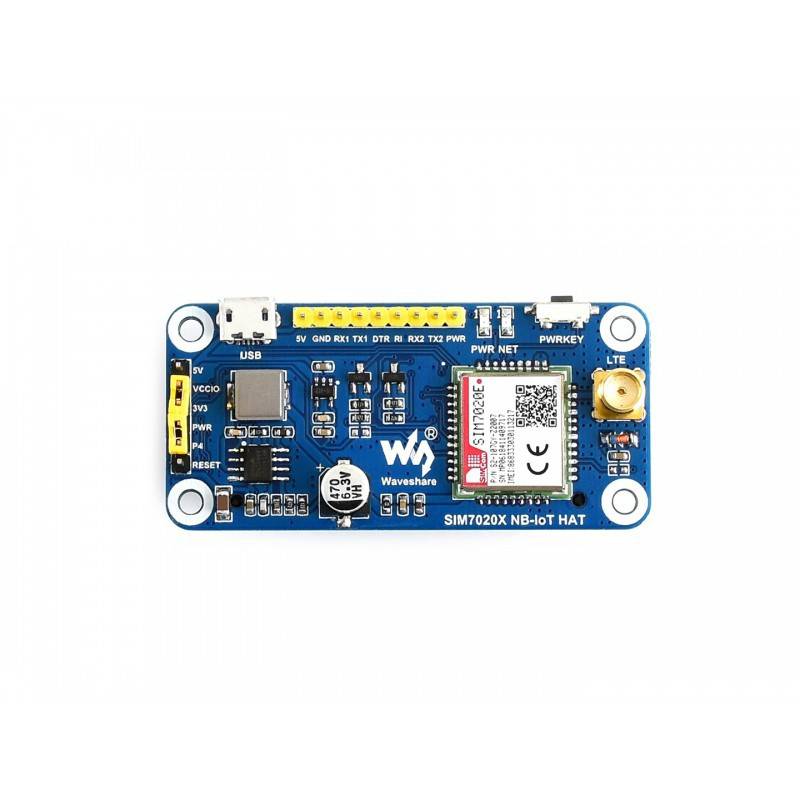

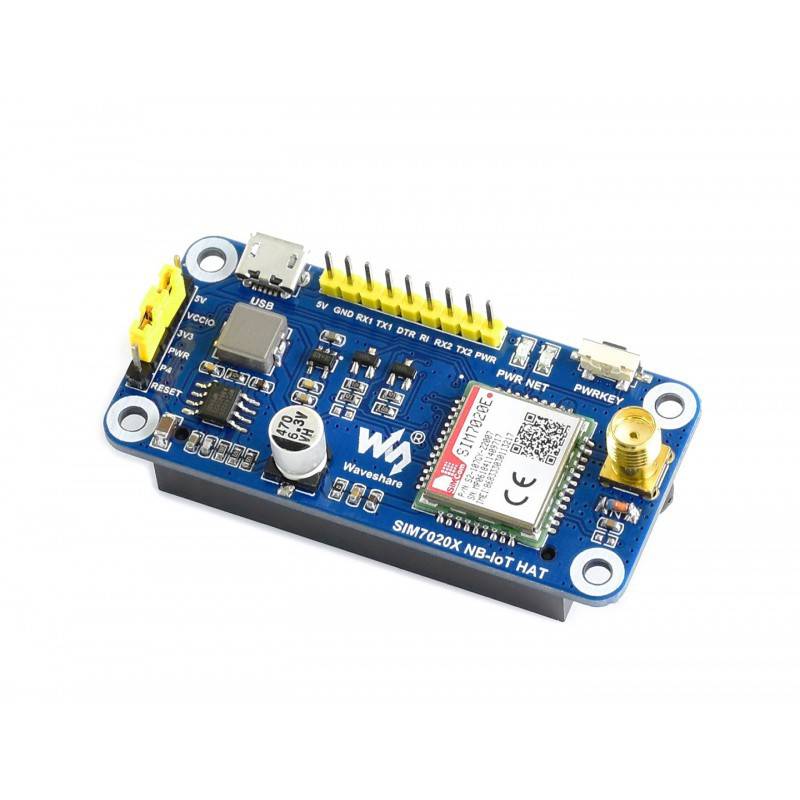

This is an NB-IoT (NarrowBand-Internet of Things) HAT for Raspberry Pi, controlled via serial AT commands, supports communication protocols like LWM2M/COAP/MQTT, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports communication protocols such as LWM2M/COAP/MQTT/TCP/UDP/HTTP/HTTPS, etc.
  • Onboard USB interface, for power supply OR debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

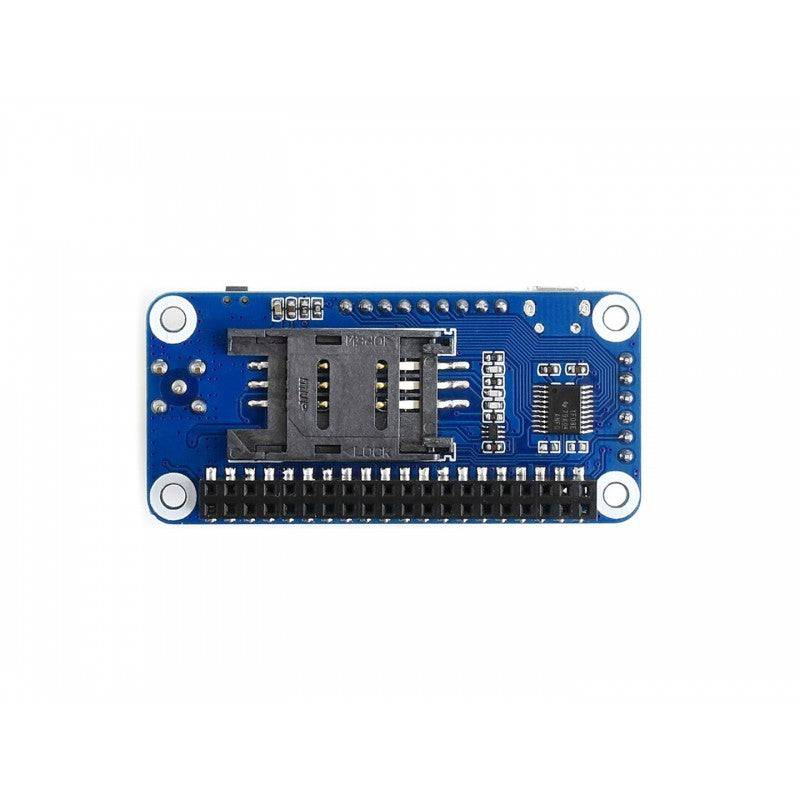

  • SIM card slot, supports NB-IoT specific card
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300bps~921600bps (115200bps by default)
  • Control via AT commands (V.25TER, 3GPP TS 27.007, and SIMCOM AT Commands)
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32/Python)

Communications Specifications

Band : FDD-LTE B1/B3/B5/B8/B20/B28
Data rate

  • Uplink≤62.5Kbps
  • Downlink≤26.15Kbps

SMS :Text mode and PDU mode (depends on the NB card)

General Specifications

  • Power supply: 5V
  • Logic level: 5V/3.3V (3.3V by default)
  • Overall current (idle mode): ~18mA
  • Single module current (VBAT=3.3V):
  • Idle mode: 5.6mA
  • Sleep mode: 0.4mA
  • PSM mode: 5uA
  • eDRX mode: 70uA (eDRX=655.36s)
  • Dimension: 30.5mm x 65.0mm

Development Resources

Wiki :www.waveshare.com/wiki/SIM7020E_NB-IoT_HAT

Recommendation

CP2102 USB UART Board(micro) is recommended for easy testing.

Package Included :

  1. SIM7020E NB-IoT HAT x1
  2. Antenna x1
  3. USB type A plug to micro plug cable x1
  4. RPi screws pack (2pcs) x1
