Waveshare NB-IoT / eMTC / EDGE / GPRS / GNSS HAT for Raspberry Pi, for Asia-Pacific region-RS740

Waveshare NB-IoT / eMTC / EDGE / GPRS / GNSS HAT for Raspberry Pi, for Asia-Pacific region-RS740

SKU:RS740

In stock

Regular price Rs. 2,773.22
Regular price Sale price Rs. 2,773.22
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
  • Supports GNSS positioning (GPS, GLONASS, and BeiDou)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

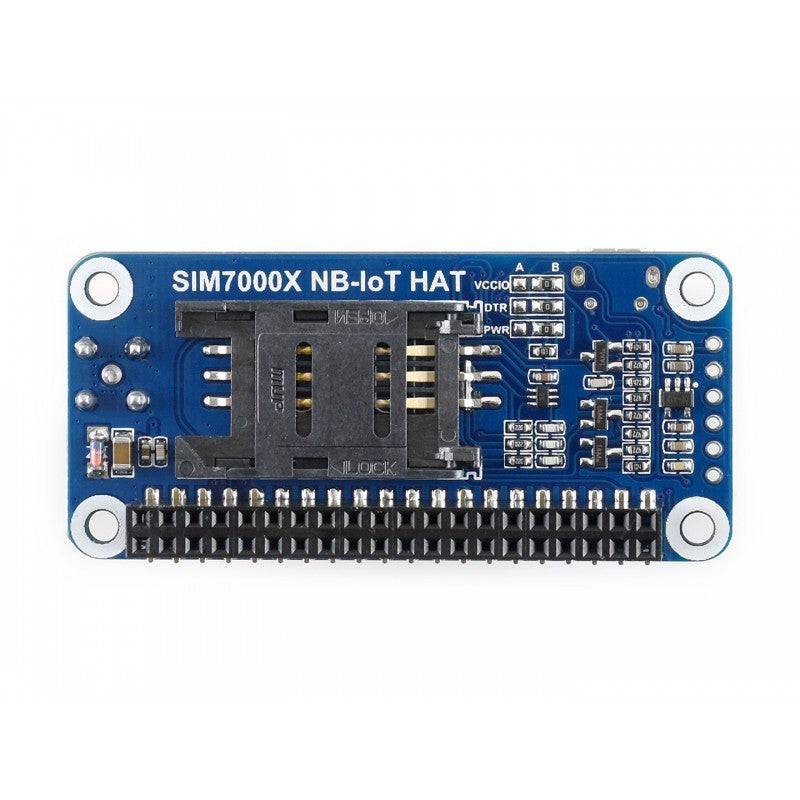

  • SIM card slot, compatible with both normal SIM card and NB-IoT specific card
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300bps~3686400bps

Description :

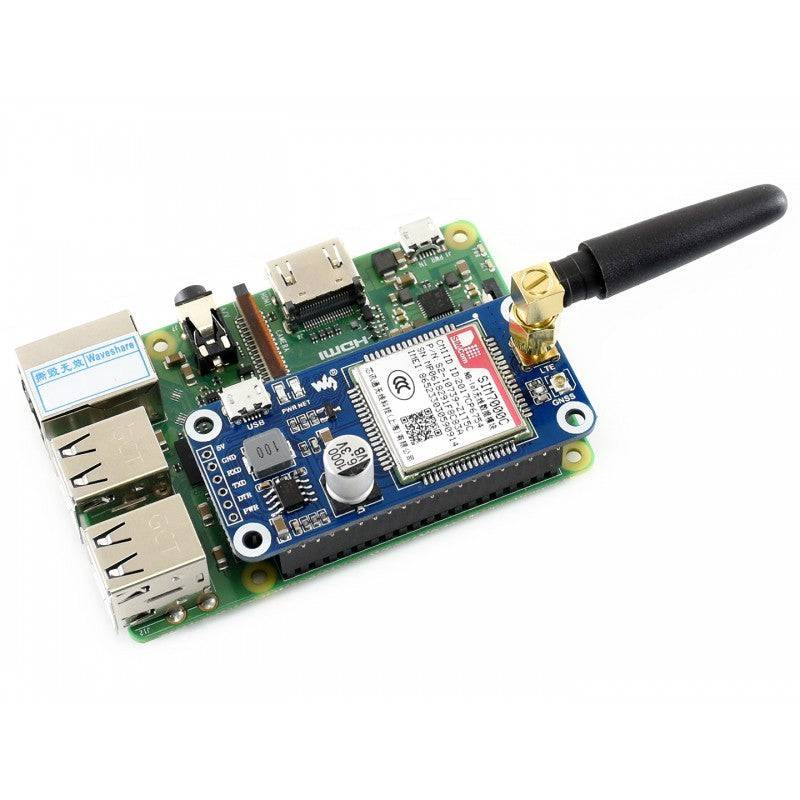

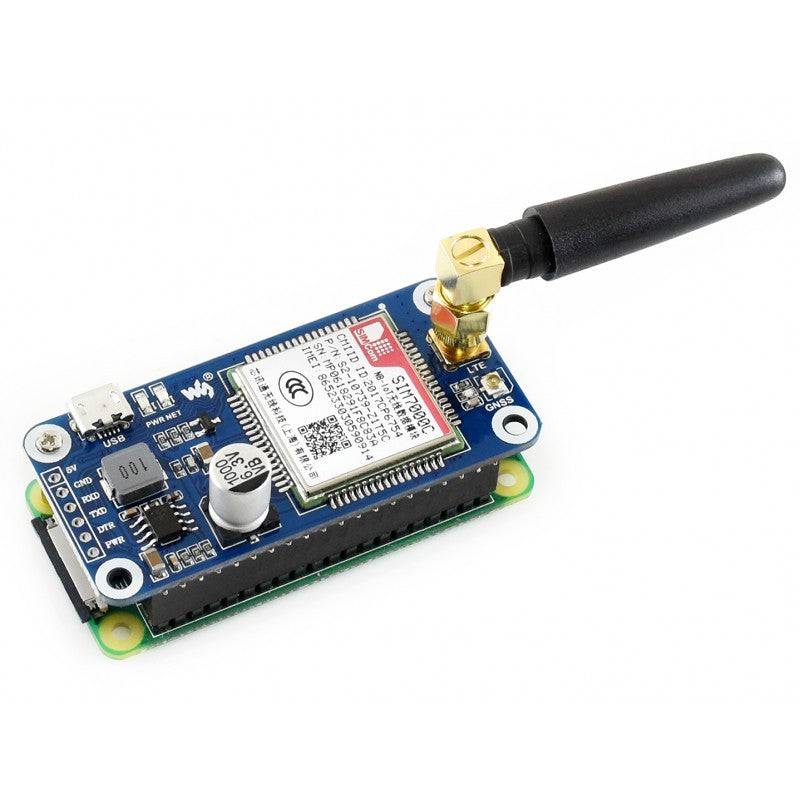

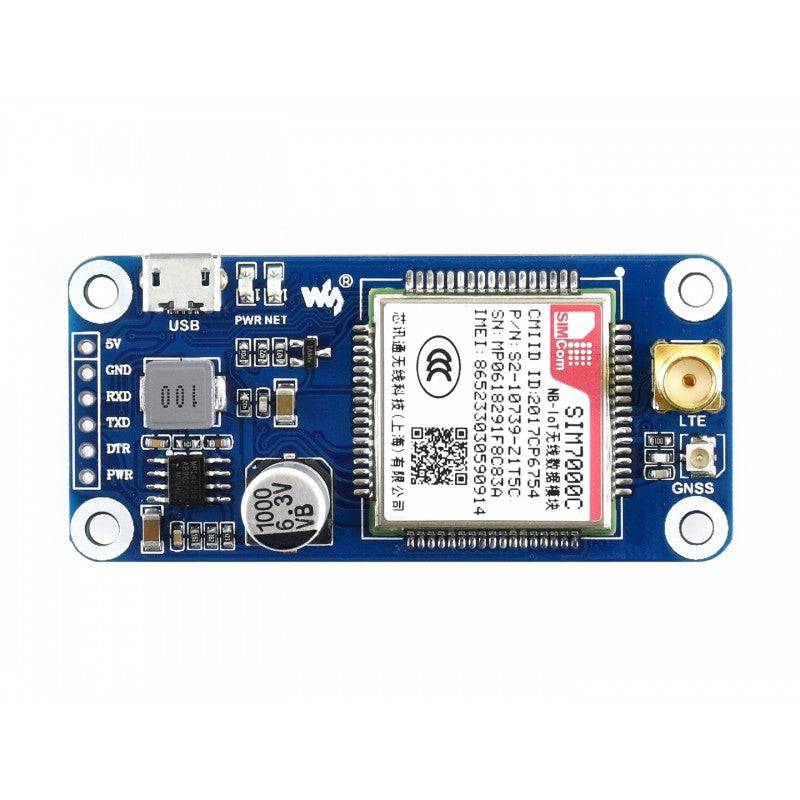

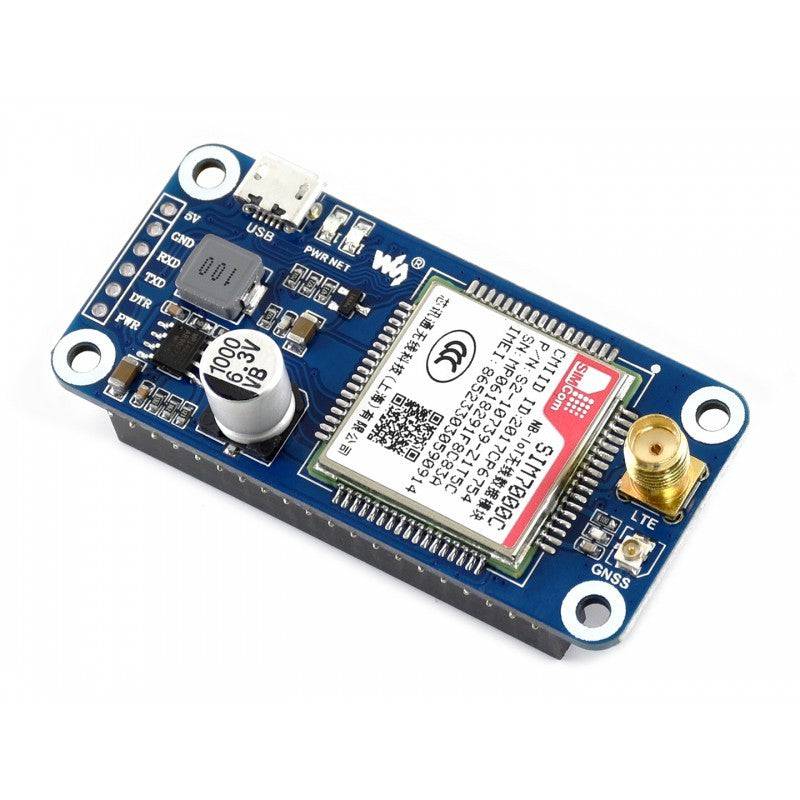

This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.

The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.

Therefore, the SIM7000C NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways.

Features

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
  • Supports GNSS positioning (GPS, GLONASS, and BeiDou)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
  • SIM card slot, compatible with both normal SIM card and NB-IoT specific card
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300bps~3686400bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Communications Specifications

  NB-IOT EMTC EDGE GSM/GPRS
Band SIM7000E: FDD-LTE B3/B8/B20/B28 GPRS/EDGE 900/1800 MHz
SIM7000C: FDD-LTE B1/B3/B5/B8
Power saving Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA.
Emitting power Class 3 (0.25W@LTE) Class E2 (0.5W@EGSM900)
Class E1 (0.4W@DCS1800)
Class 4 (2W@GSM900)
Class 1 (1W@DCS1800)
Data Speed Uplink≤66kbps
Downlink≤34kbps
Uplink≤375kbps
Downlink≤300kbps
Uplink≤236.8kbps
Downlink≤236.8kbps
Uplink≤85.6kbps
Downlink≤85.6kbps
SIM Card NB Specific (Not Included) Normal SIM (Not Included)

GNSS Specifications

  • Receiver type

    • 16-channel
    • C/A code
  • Sensitivity

    • Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
    • Cold starts: -148 dBm
  • Time-To-First-Fix

    • Cold starts: <35s
    • Hot starts: <1s
  • Accuracy

    • Position: <2.5m CEP

Other Specifications

  • Power supply: 5V
  • Operating voltage: 5V/3.3V (3.3V by default)
  • Sleep Mode current: 1.2mA(@DRX=2.56s)
  • Power Save Mode current: 9uA
  • Operating temperature: -40°C ~ 85°C
  • Storage temperature: -45°C ~ 90°C
  • Dimension: 30.2mm x 65mm

Dimension


Development Resources

Wiki : www.waveshare.com/wiki/SIM7000C_NB-IoT_HAT

Package Included :

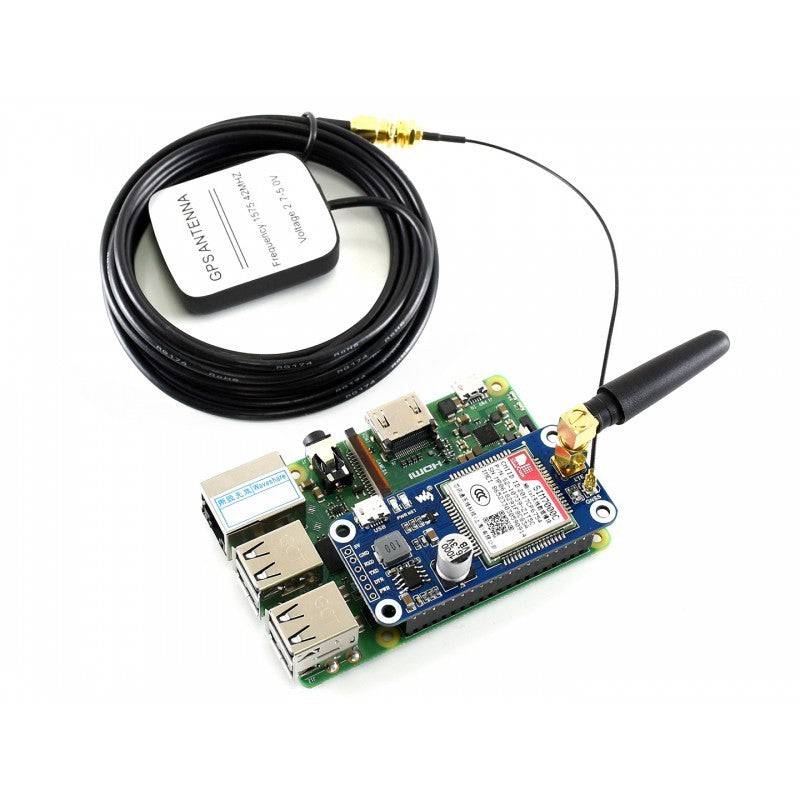

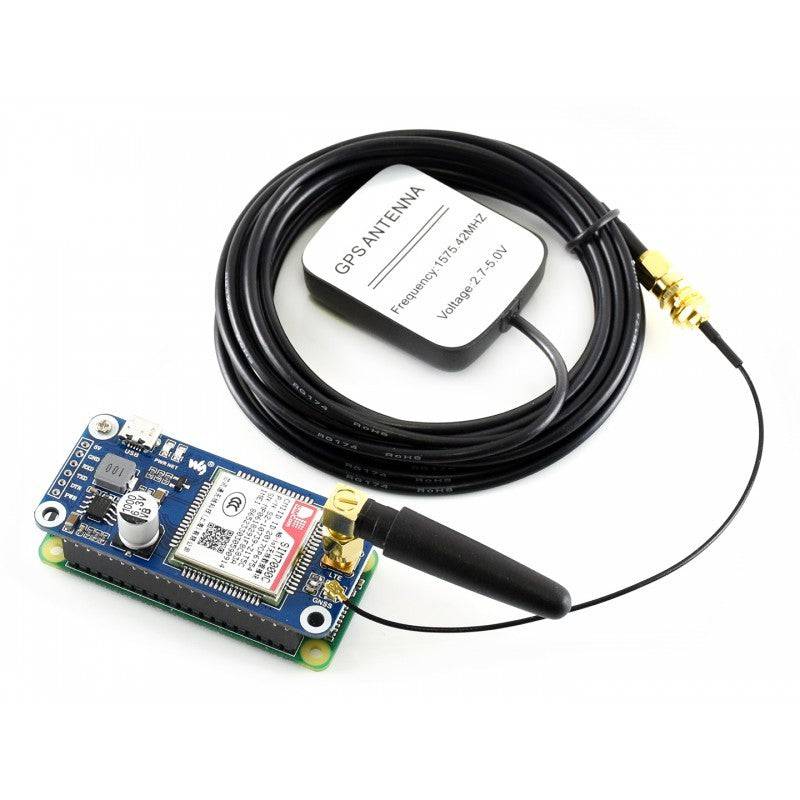

  • SIM7000C NB-IoT HAT x1
  • GSM Antenna x1
  • GPS External Antenna (B) x1
  • USB type A plug to micro plug cable x1
  • RPi screws pack (2pcs) x1
