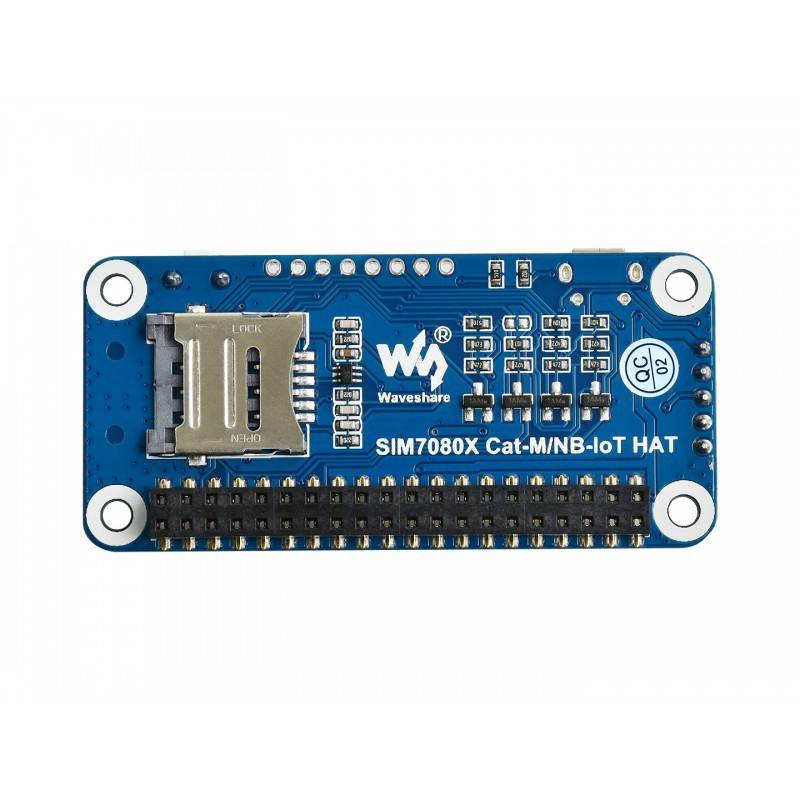

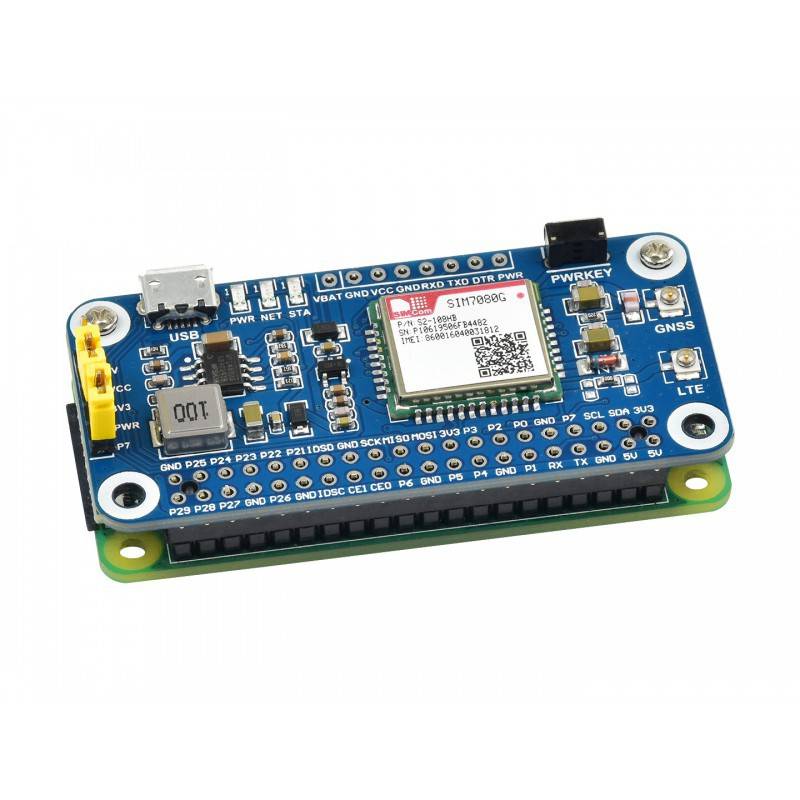

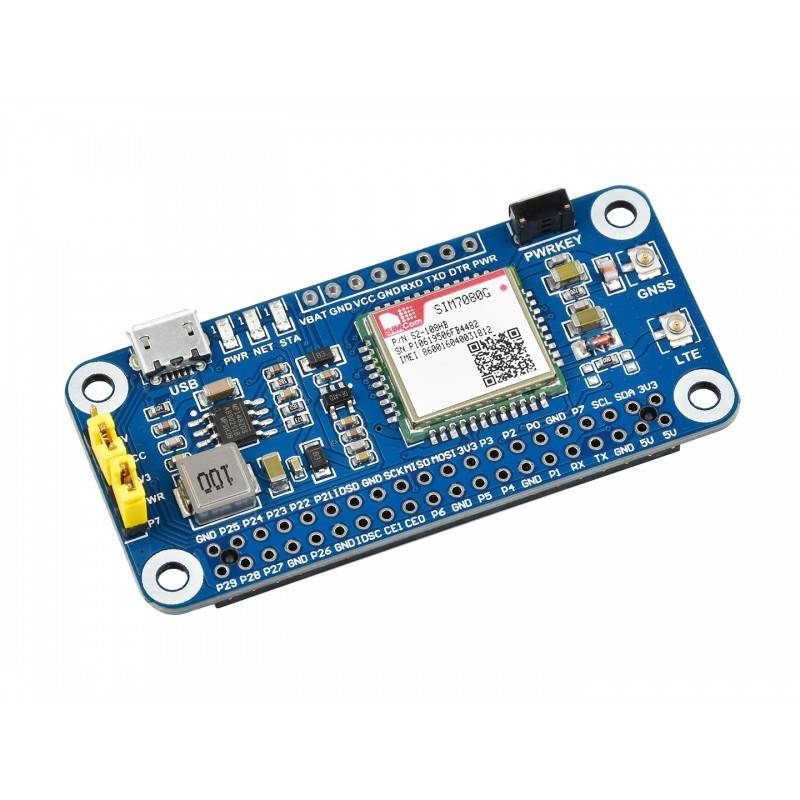

Waveshare NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi, Globally Applicable - RS2054

Waveshare NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi, Globally Applicable - RS2054

RS2054

Low stock: 9 left

Rs. 2,650.00
Rs. 2,650.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Standard Raspberry Pi 40-pin GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
  • Onboard USB interface, to test AT commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

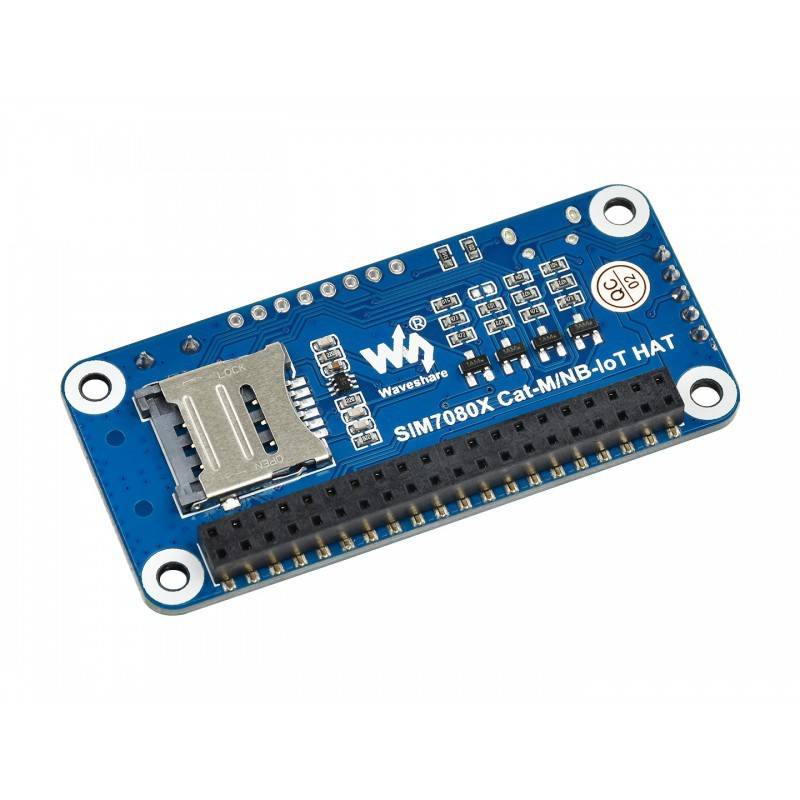

  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM cards are not available)
  • 3x LED indicators, easy to monitor the working status

Description:

This is a telecommunication HAT that features multi-communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System).

With the development of LTE telecommunication technology, 2G/3G networks are fading away; the future world would be dominated by IoT technologies consisting of low-bandwidth NB-IoT/Cat-M and high-bandwidth 4G/5G standards.

This HAT supports global bands of NB-IoT and Cat-M, as well as a positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Features:

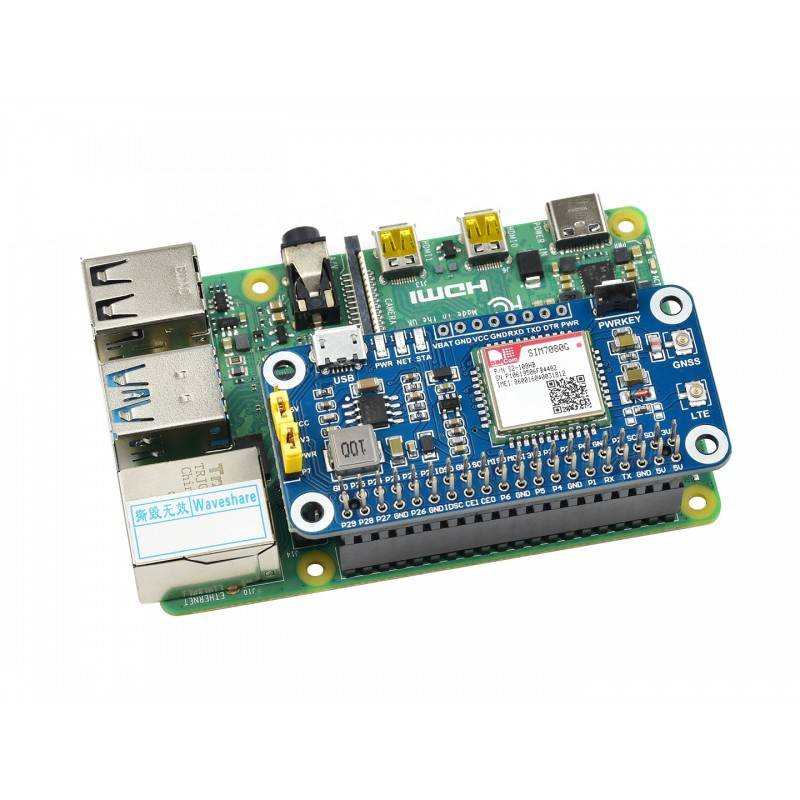

  • Standard Raspberry Pi 40-PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
  • Onboard USB interface, to test AT commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM cards are not available)
  • 3x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Communications Specifications:



NB-IOT

CAT-M (EMTC)

Band

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85

Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Emitting power

Class 5 (0.125W@LTE)

Data rate

Uplink ≤ 150 kbps

Downlink ≤ 136 kbps

Uplink ≤ 1119 kbps

Downlink ≤ 589 kbps

Supported SIM Card

NB-IoT / Cat-M card (1.8V SIM card ONLY)

Applicable region

Global

GNSS Specifications:

  • Receiver type
    • 16-channel
    • C/A code
  • Bands Update frequency: 1 Hz (default)
    • GNSS L1: 1575.42±1.023 MHz
    • GLONASS: 1597.5~1605.8 MHz
    • BeiDou: 1559.05~1563.14 MHz
    • Galileo L1: 1575.42±1.023MHz
  • Data format: NMEA-0183

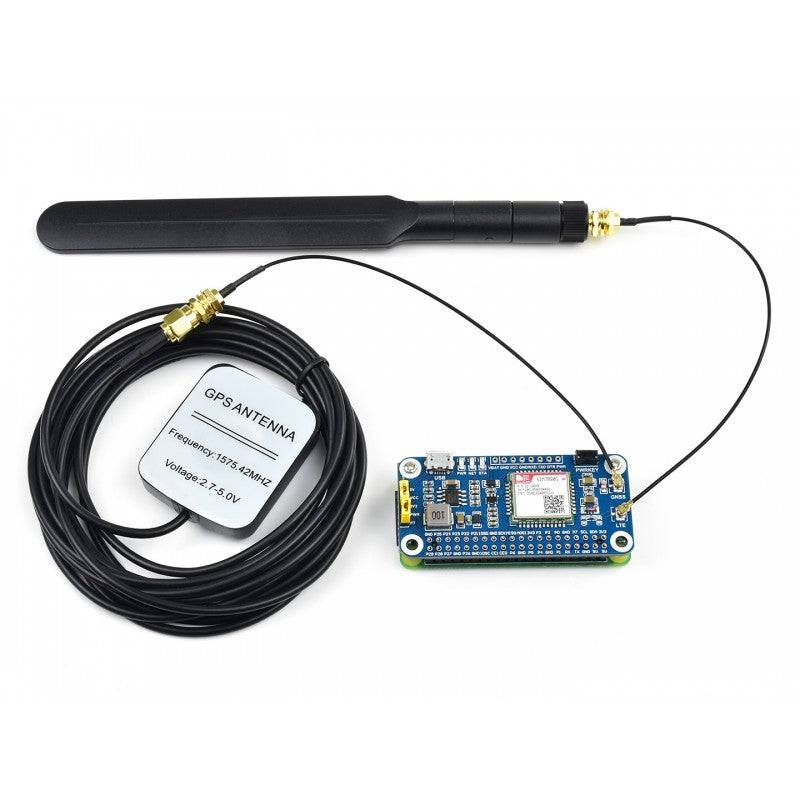

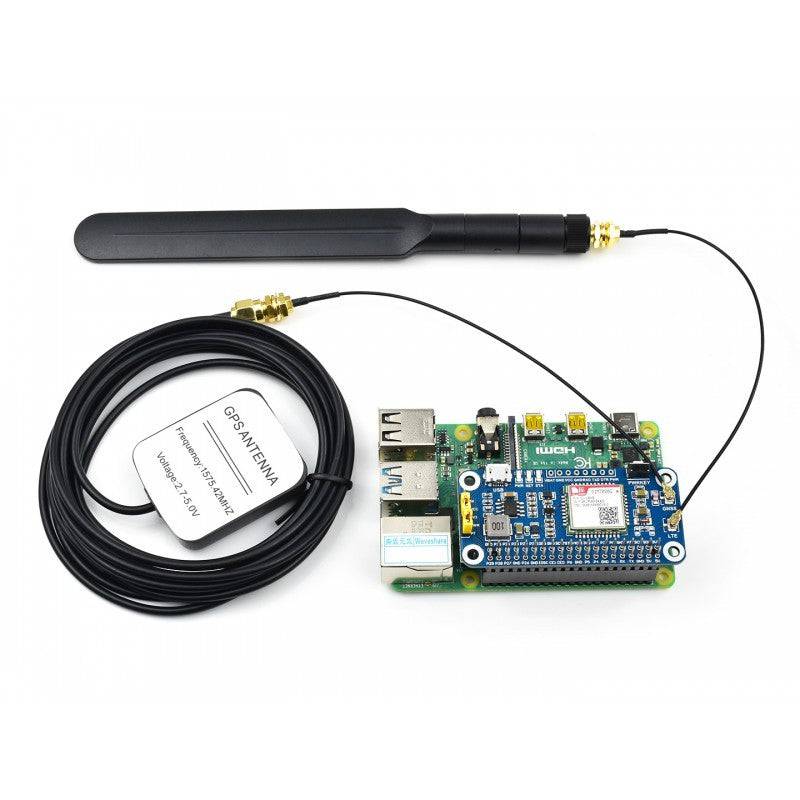

  • Antenna: active antenna

Other Specifications:

  • Power supply voltage: 5V
  • Logic level: 5V / 3.3V (configured via jumper)
  • Overall current (idle mode): 39mA
  • Module sole current (VBAT=3.8V): Operating temperature: -40°C ~ 85°C
    • Idle mode: 10mA
    • Sleep mode: 1.2 mA
    • PSM mode: 3.2uA
    • eDRX mode: 0.59 mA (eDRX = 81.92 s)
  • Storage temperature: -45°C ~ 90°C
  • Dimension: 30.2mm x 65mm

Package Included:

1 X NB-IoT / Cat-M(eMTC) / GNSS HAT
