Description:

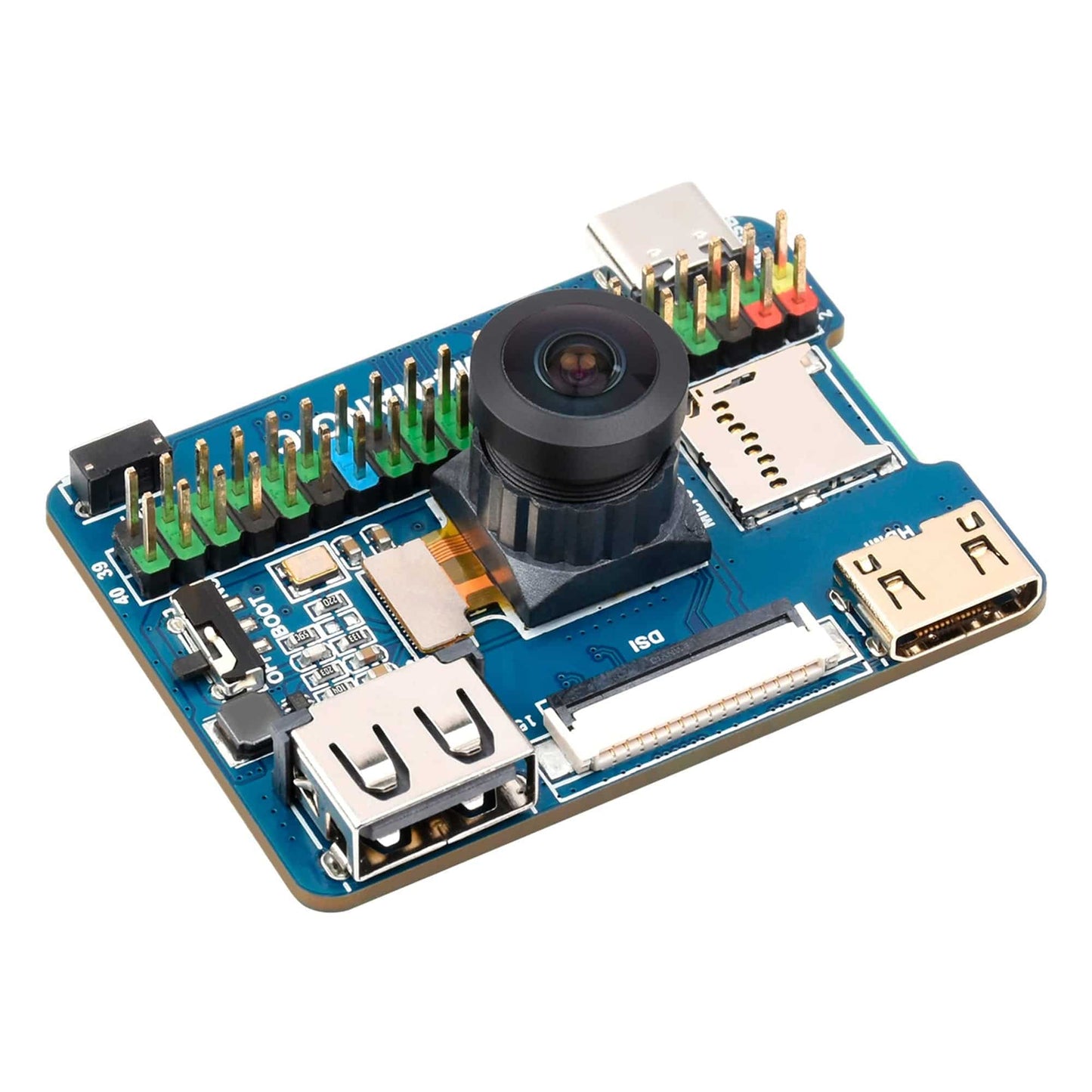

The Nano Base Board (C) from Waveshare is a compact carrier board for your Raspberry Pi Compute Module 4 (CM4) which includes an 8MP IMX219 camera module alongside a host of other features, great for evaluating the CM4 or prototyping a Compute Module project. Your CM4 simply clicks into the carrier board and can be powered by th port, which can also be used for programming.

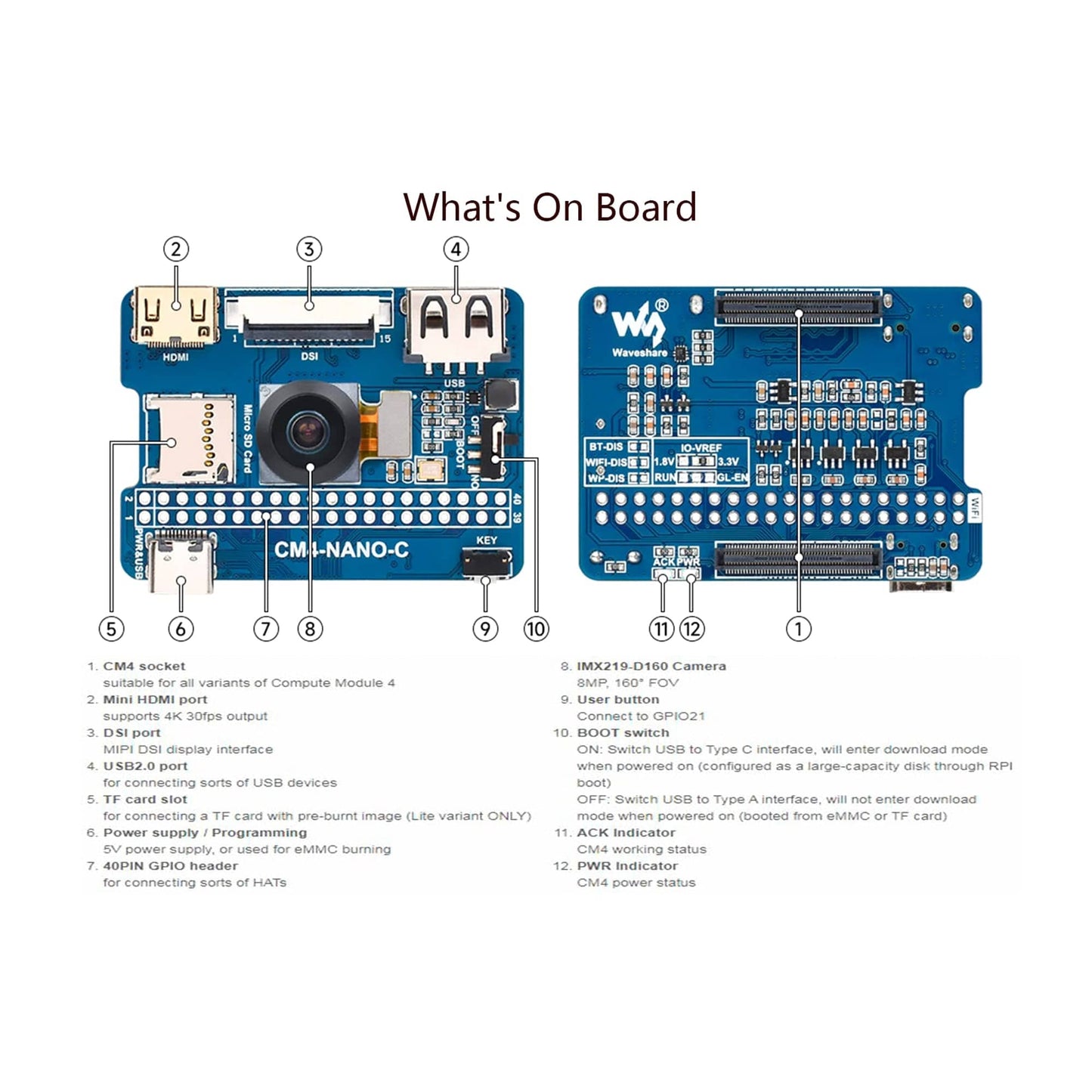

Specifications:
| CM4 Socket | Suitable for all variants of Compute Module 4 |
|---|---|
| Connector |
Raspberry Pi 40PIN GPIO header × 1 |
| USB | USB 2.0 Type-A port × 1 |
| Display |
MIPI DSI port × 1 (15pin 1.0mm FPC connector) |
| Camera |
IMX219-D160 (8MP, 160°FOV) |
| Video |
Mini HDMI port × 1, supports 4K 30fps output |
| Storage |
TF card socket for Compute Module 4 Lite (without eMMC) variants |
| Power Input |
5V |
| Dimension |
55.0 × 40.0mm |
Features:
- Nano Base Board (C) have multiple Interfaces, Onboard 8MP Camera
- 5V power supply, or used for eMMC burning

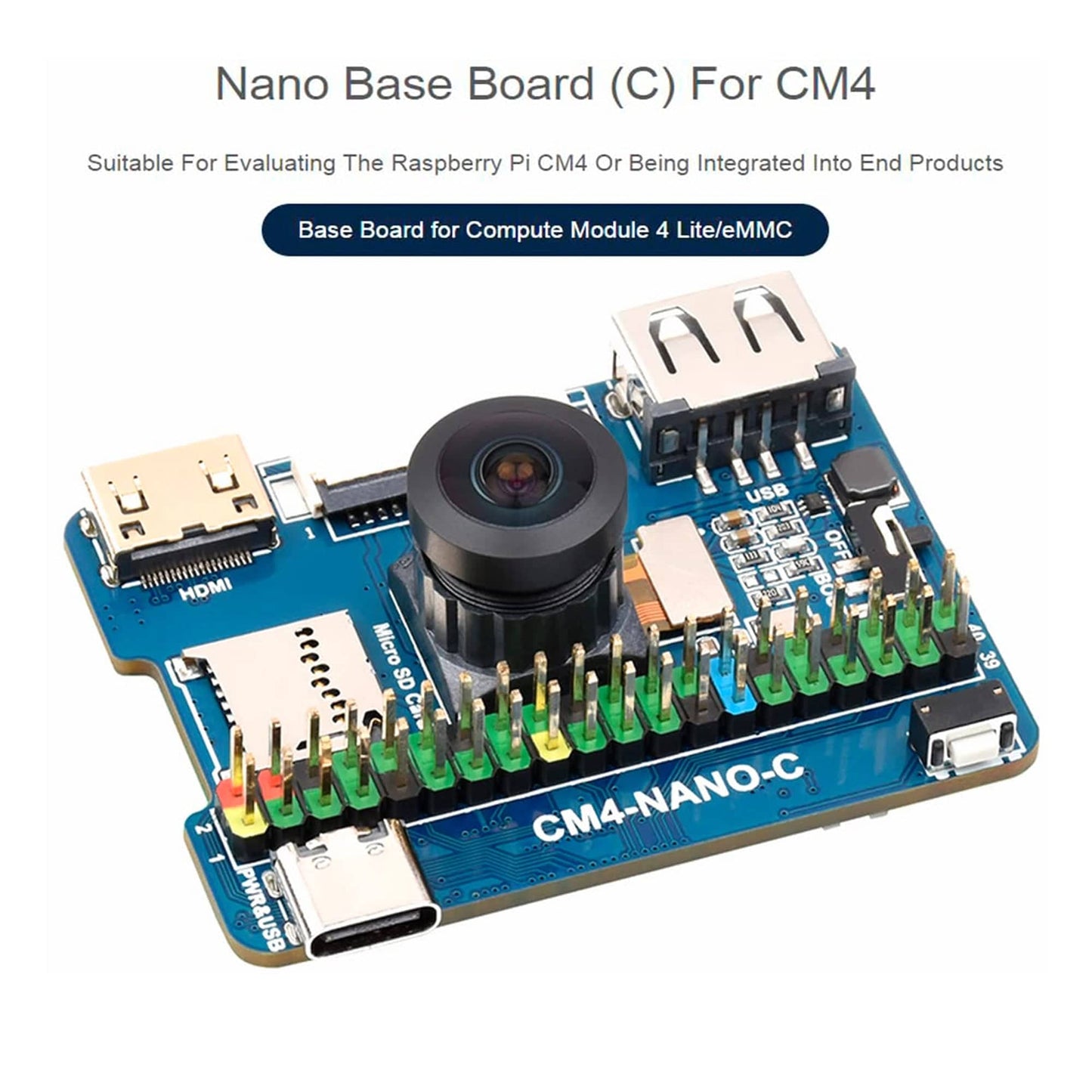

- Nano Base Board (C) is suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
- ON: Switch USB to a Type C interface, which will enter download mode when powered on.
Package Included:
1 x Waveshare Nano Base Board (C) for Raspberry Pi Compute Module 4, Same Size as the CM4, Onboard 8MP Camera
