Description:

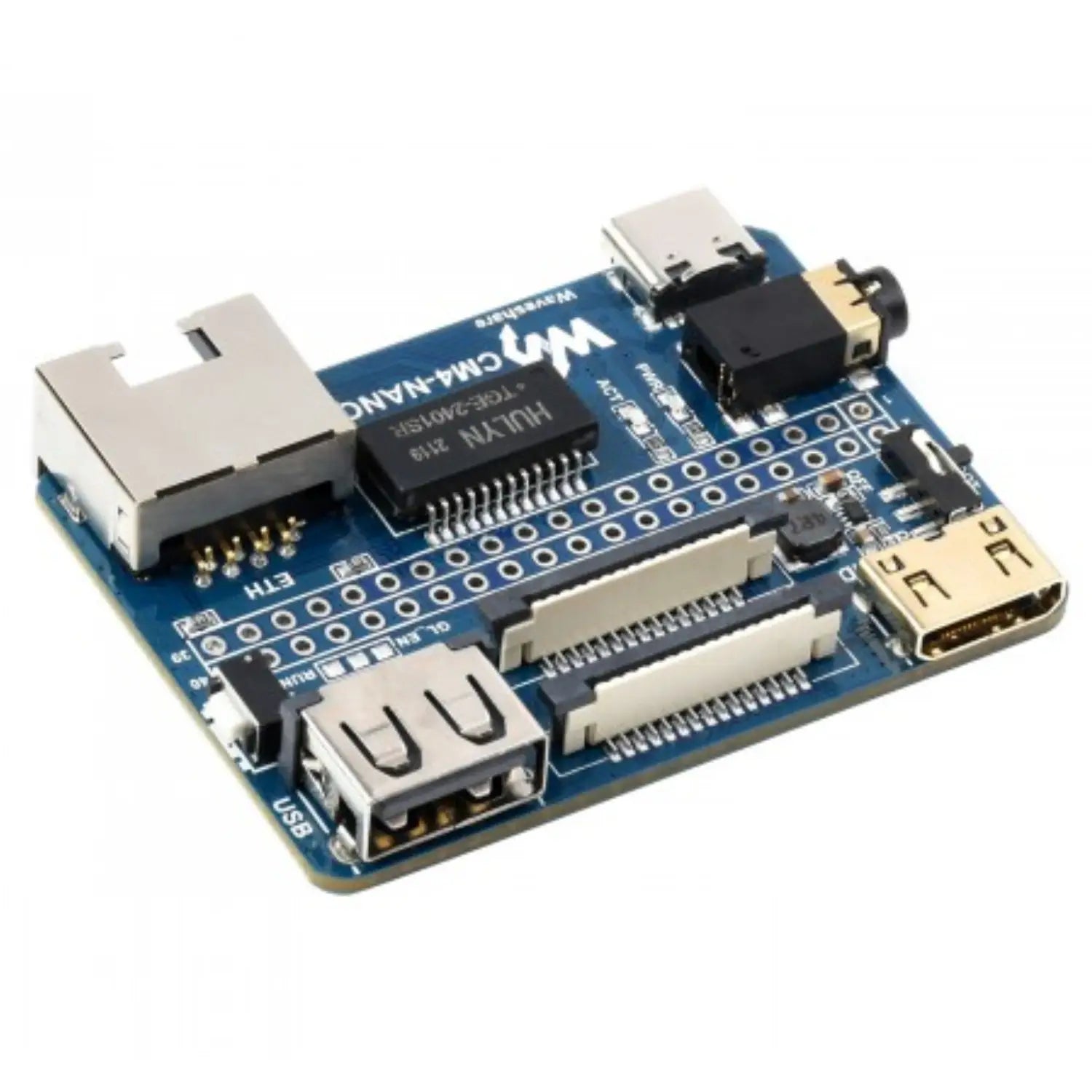

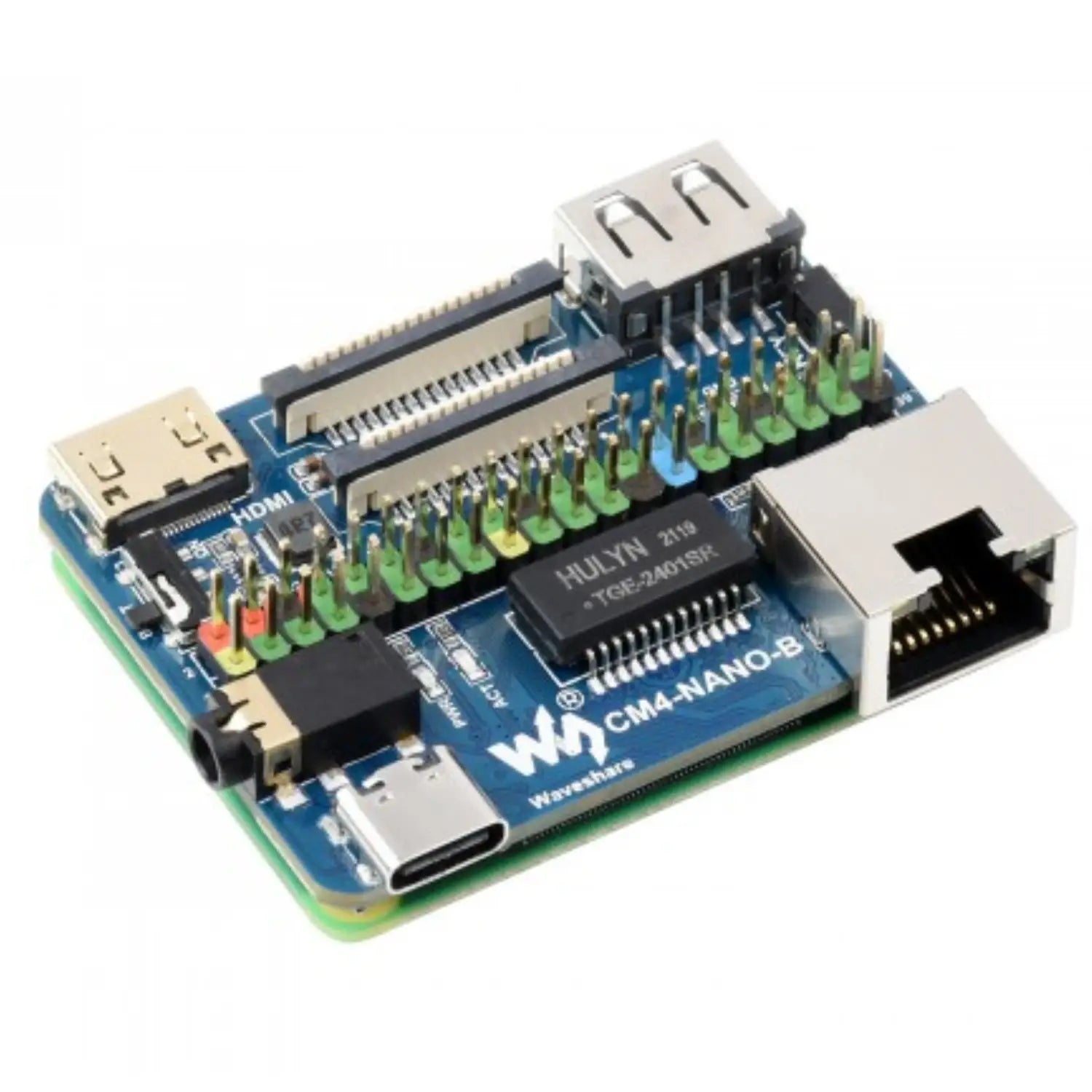

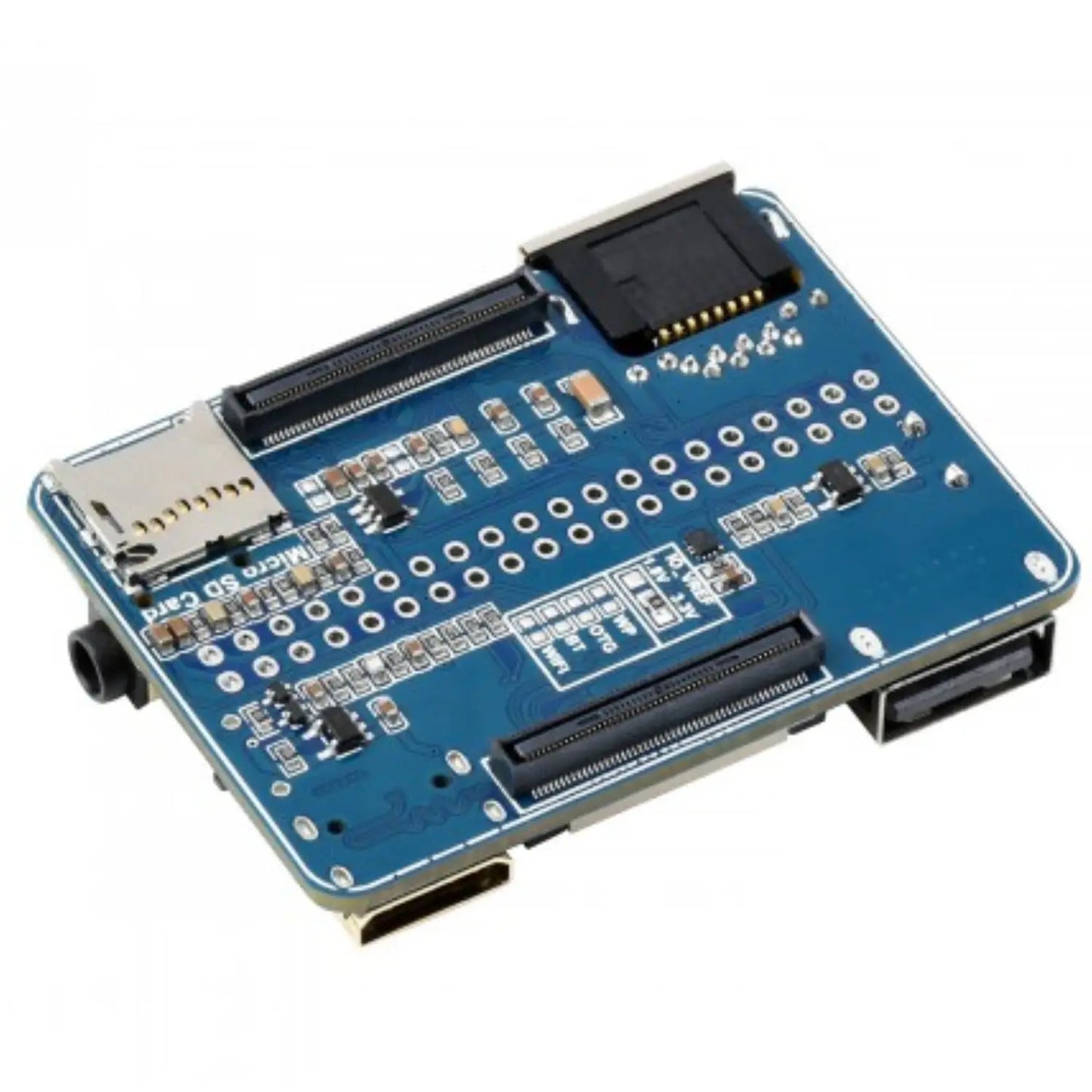

The CM4-NANO-B is an ultra-compact expansion board designed specifically for the Raspberry Pi Compute Module 4 (CM4). Despite its small footprint, this Type B baseboard efficiently breaks out all the essential interfaces of the CM4, enabling easy integration into embedded systems and space-constrained applications. Its form factor matches the size of the CM4 itself, making it ideal for minimalistic and high-density setups without compromising functionality.

Specification:

CM4 socket suitable for all variants of Compute Module 4
Networking Gigabit Ethernet RJ45 connector
Connector Raspberry Pi 40PIN GPIO header × 1
USB USB 2.0 Type A connector × 1
Display MIPI DSI port × 1 (15pin 1.0mm FPC connector)
Camera MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
Video Mini HDMI port × 1, supports 4K 30fps output
Audio 3.5mm jack

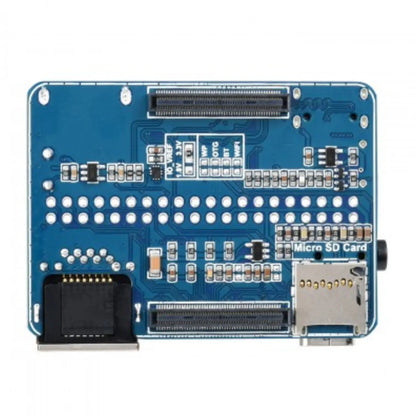

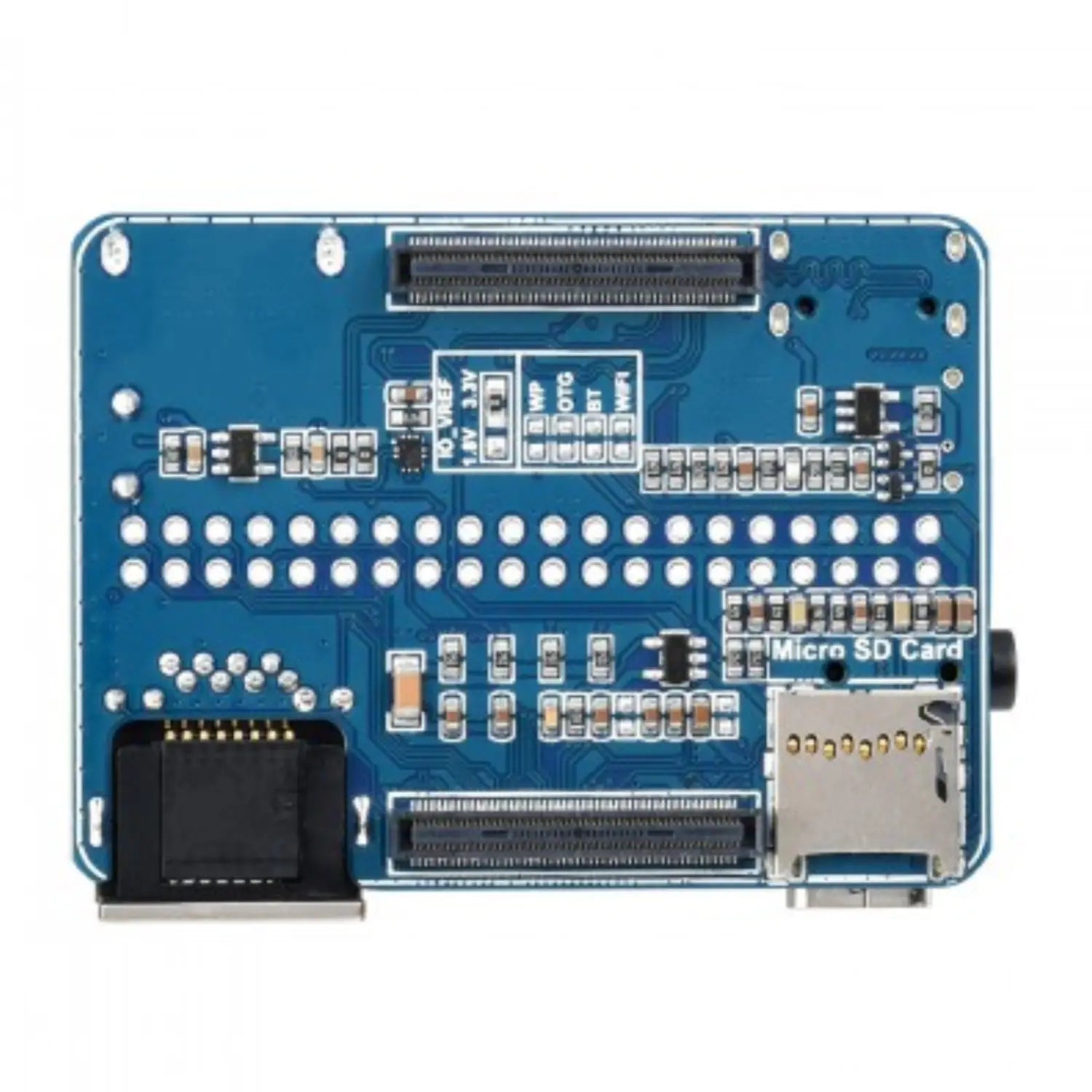

Storage Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
Power input 5V
Dimensions 56 × 41mm

Features:

  • Micro SD card slot
  • CSI interface
  • USB2.0 interface
  • Easy to use
  • Color: green
  • Raspberry Pi Compute Module 4
  • 40PIN GPIO interface
  • PWR indicator
  • ACT indicator
  • AMS1117-3.3
  • BOOT switch

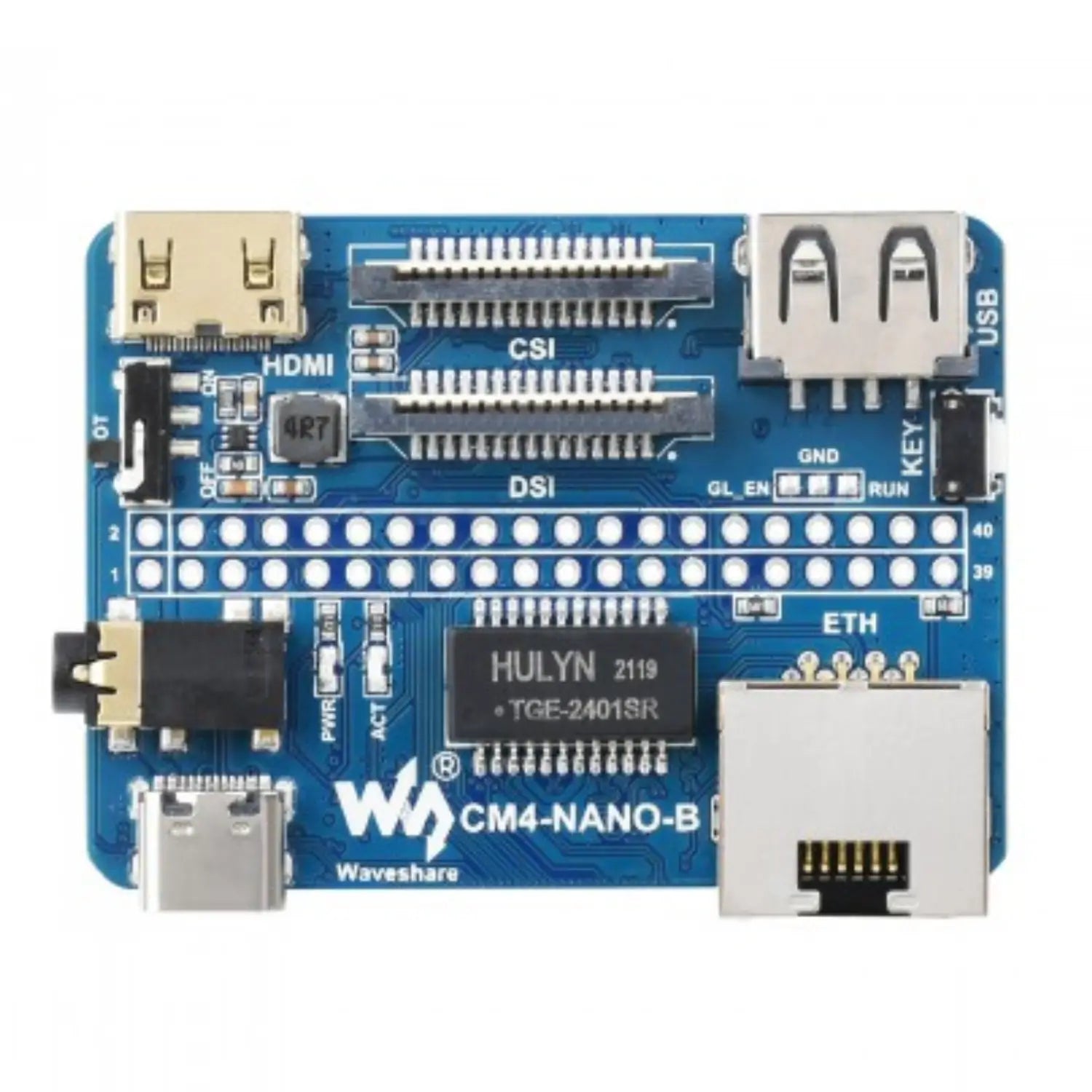

Pin Description:

  1. CM4 socket: suitable for all variants of Compute Module 4
  2. Micro SD card slot: for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  3. 40PIN GPIO header: for connecting sorts of HATs
  4. Gigabit Ethernet RJ45 connector
  5. Power supply / Programming: 5V power supply, or used for eMMC burning
  6. 3.5mm audio jack
  7. User button
  8. USB 2.0 connector: for connecting sorts of USB devices
  9. CSI connector: MIPI CSI camera interface
  10. DSI connector: MIPI DSI display interface
  11. MP1658
  12. Mini HDMI connector: Supports 4K 30fps output
  13. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Note: the CM4 is NOT included. Please buy it separately if necessary.

Useful Link:

Waveshare Nano Base Board (B) CM4 Development Board

Package Includes:

  • 1 x CM4-NANO-B
  • 1 x 2*20PIN color-coded straight pinheader
