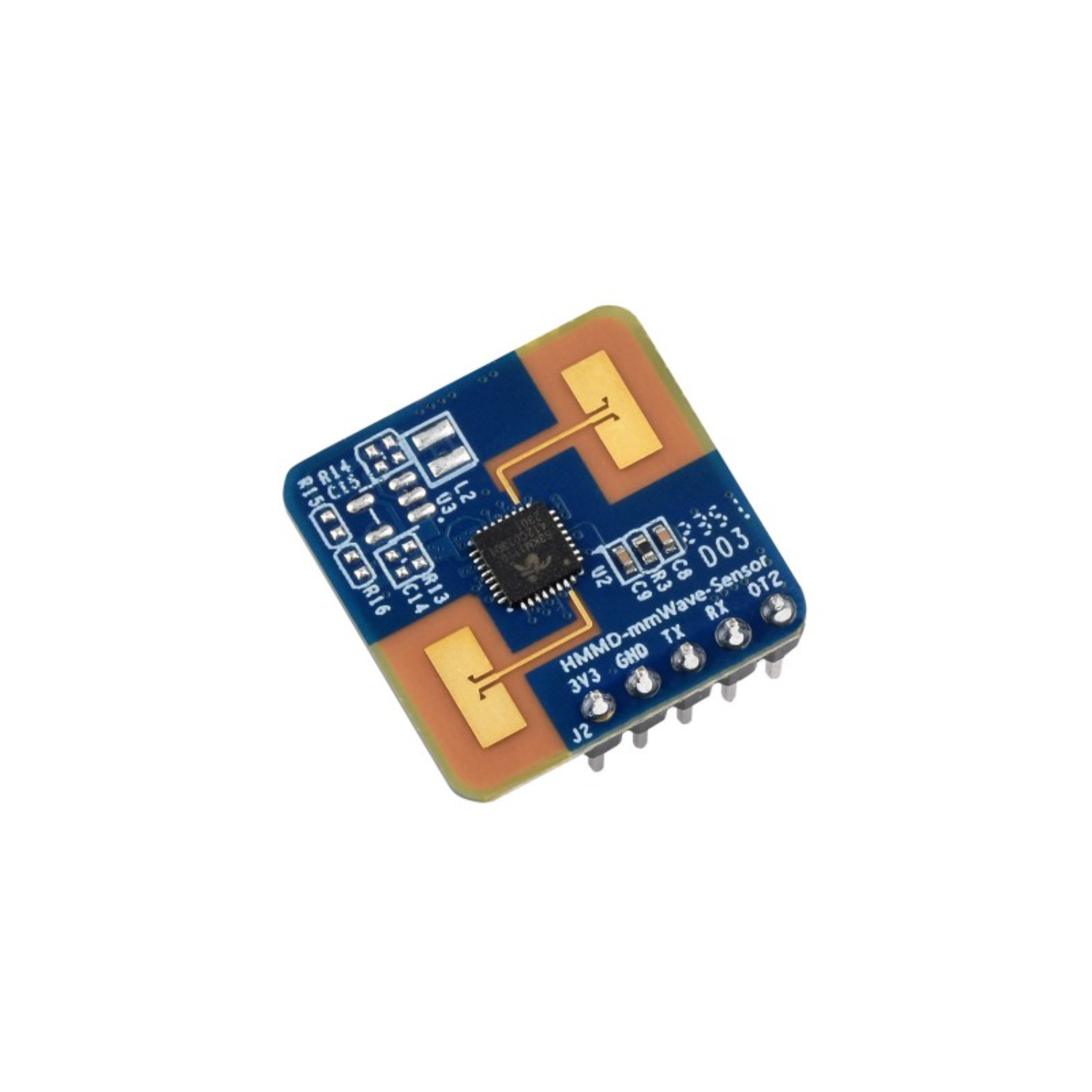

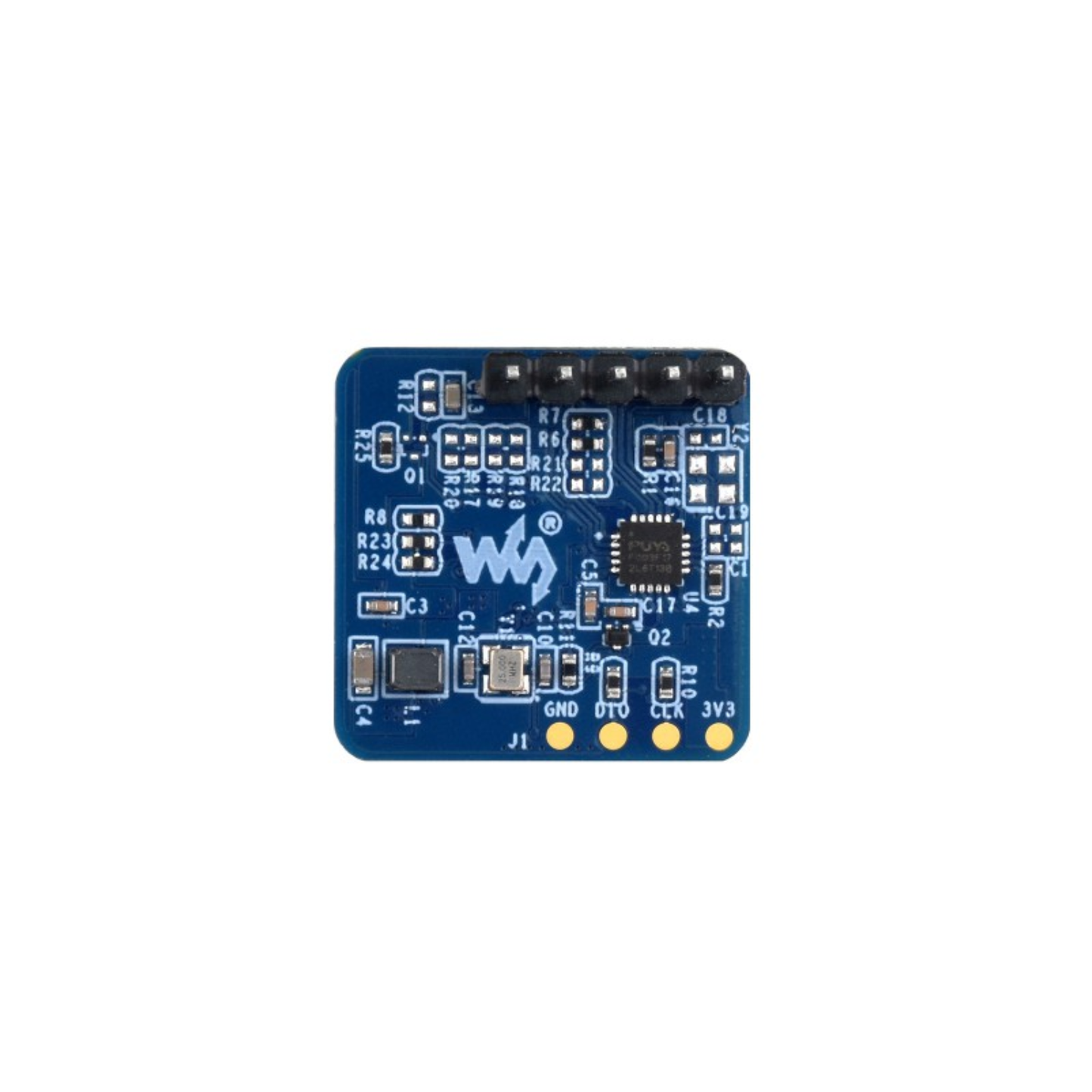

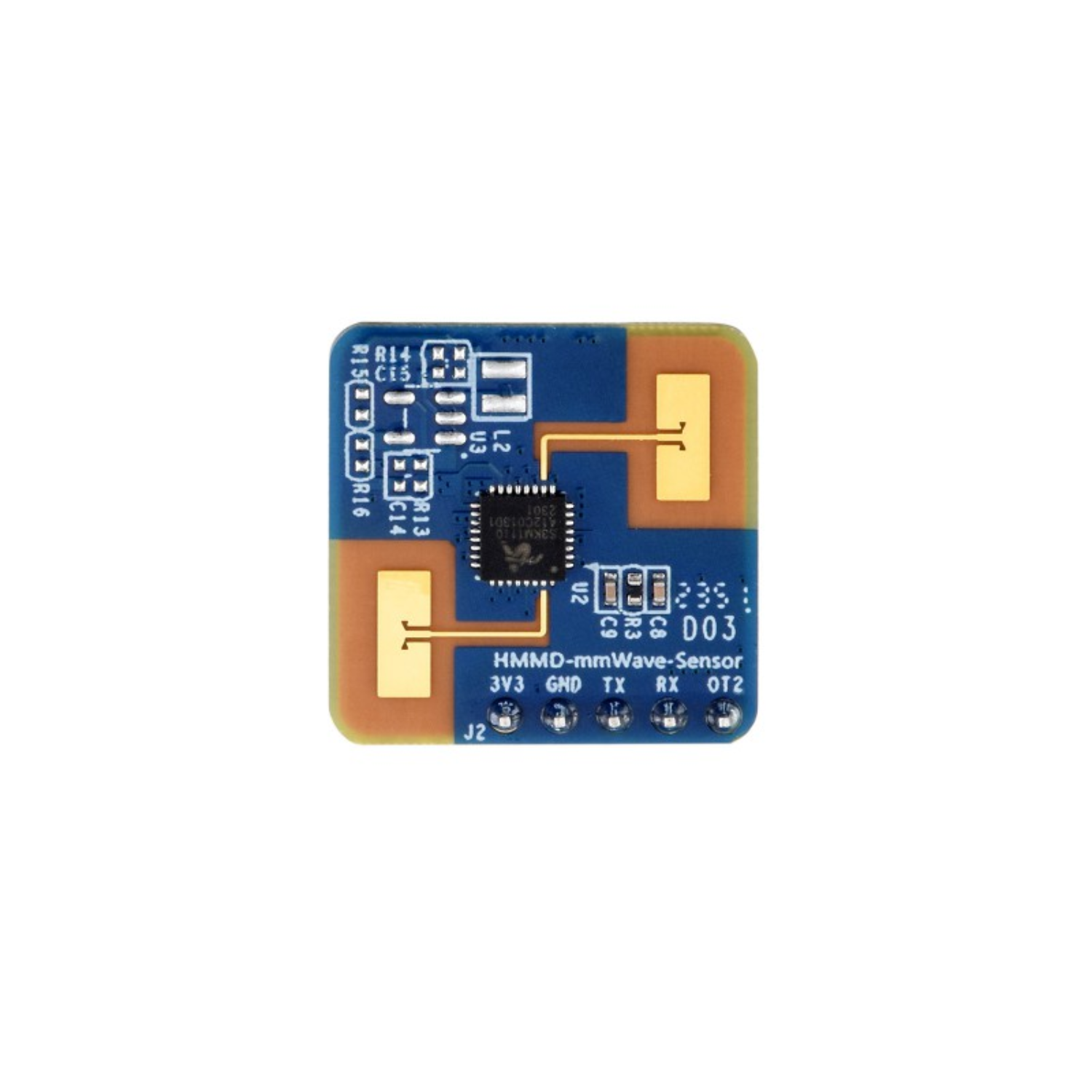

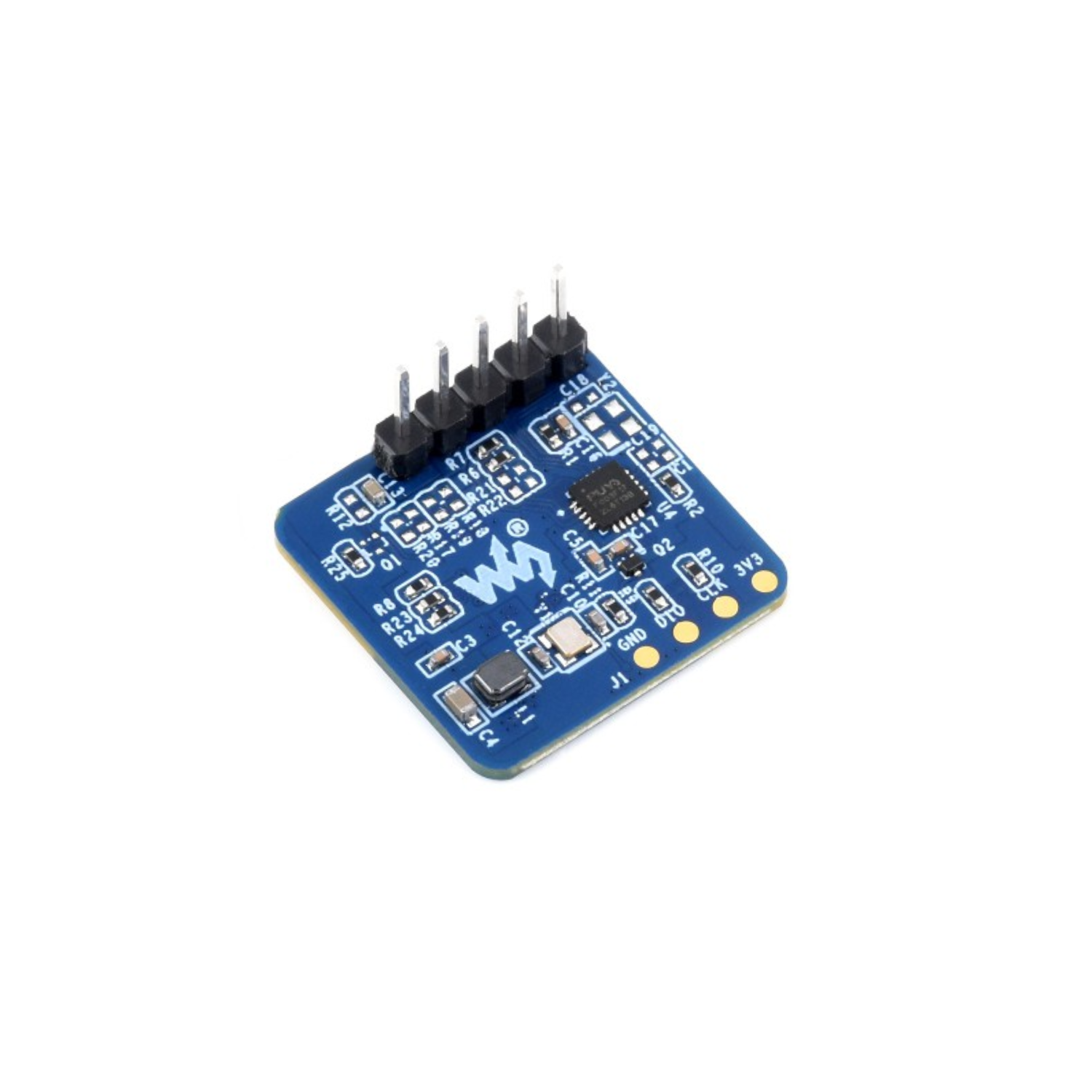

Waveshare mmWave Sensor Human Micro-Motion Detection S3KM1110 Based 24GHz Radar For Contactless Motion Sensing FMCW Radar Sensor - RS9313

Waveshare mmWave Sensor Human Micro-Motion Detection S3KM1110 Based 24GHz Radar For Contactless Motion Sensing FMCW Radar Sensor - RS9313

SKU:RS9313

Low stock: 10 left

Regular price Rs. 238.00
Regular price Sale price Rs. 238.00
Sale Sold out
Shipping calculated at checkout.

Couldn't load pickup availability

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

HMMD mmWave Sensor: Detects Moving, Standing, and Stationary Humans for Comprehensive AIoT Solutions. From smart homes to security, businesses, and lighting, experience complete human presence awareness.

Specifications:

  • Item Type: Sensor
  • Model Type: mmWave Sensor
  • Frequency: 24~24.25GHz
  • Bandwidth: 0.25GHz
  • Modulation frequency: FMCW
  • Power Supply: 3.3V
  • Output Interface: UART GPIO
  • UART Baud Rate: 115200bps (default)
  • Operating Temperature (°C): -40~85

Features:

  • Comes with the Silicon Micro AIoT Millimeter-Wave Sensor SoC S3KM1110.
  • Onboard high-performance 24GHz one-transmit-one-receive antenna and peripheral circuits.
  • Mini module size: 20mm x 20mm.
  • Pre-loaded with a default human body sensing configuration, plug-and-play.
  • The longest detection distance for motion human body sensing is 8.5m.
  • Driven by the PY32F003F17U6TR microcontroller, with UART pins exposed for easy integration with Arduino/ESP32/JetsonNano and other main control boards.
  • Utilizes human micro-motion sensing algorithms, millimeter-wave radar distance measurement technology, and advanced proprietary signal processing technology of the S3KM1110 chip.
  • Provide online comprehensive supporting documentation (Raspberry/Jetson Nano/Arduino/ESP32/sample demos).
  • Accurate perception of motion, micro-movement, and stationary human bodies was achieved.

Useful Link:

Waveshare mmWave Sensor

Package Included:

1 x Waveshare mmWave Sensor
