Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board with ARM Cortex-A7, RISC-V MCU/NPU/ISP & Ethernet Port

Description:

The LuckFox Pico RV1103 series offers five versatile versions designed to meet the needs of both DIY enthusiasts and professional engineers. Built for flexibility, it comes with extensive community resources that provide valuable knowledge, project ideas, and practical applications. Each board is supported with a detailed user manual, schematic diagrams, and a full Software Development Kit (SDK), making it easier to explore hardware functions, develop custom applications, and integrate into real-world projects. Whether you’re prototyping, learning, or building advanced AI and IoT solutions, the LuckFox Pico RV1103 delivers powerful performance with robust developer support.

Specification:

• Processor: Cortex A7@1.2GHz + RISC-V

• NPU: 0.5TOPS, supports int4, int8 and int16

• ISP: Input 4M @30fps (Max)

• Memory: 64MB DDR2

• USB: USB 2.0 Host/Device

• Camera: MIPI CSI 2-lane

• GPIO: 25 × GPIO pins

• Ethernet port: 10/100M Ethernet controller and embedded PHY

• Default Storage: SPI NAND FLASH (128MB)

Features:

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode, so that the images from the camera are high-definition with a smaller size, doubles the storage space
• Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”
• Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
• Integrated with built-in POR, audio codec, and MAC PHY

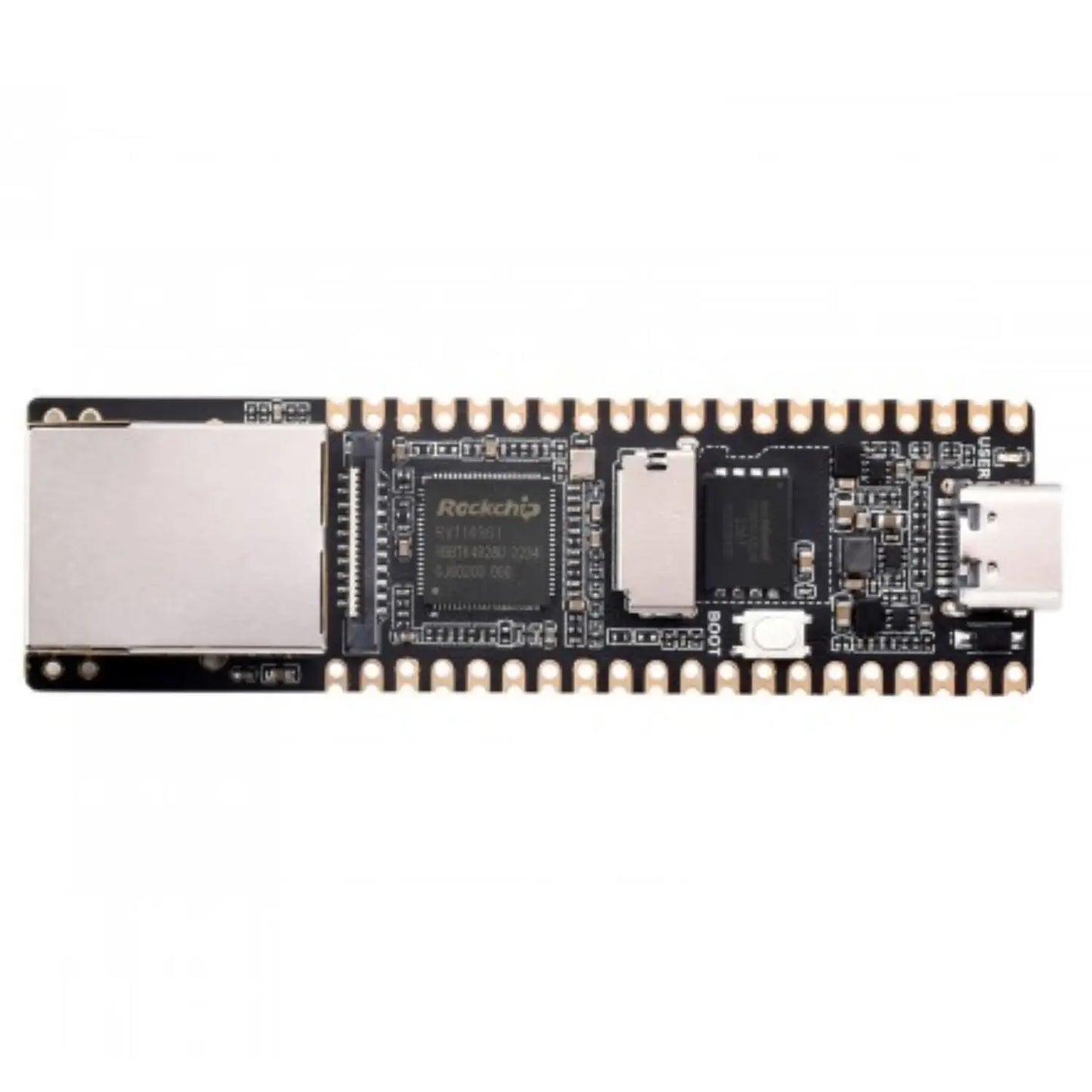

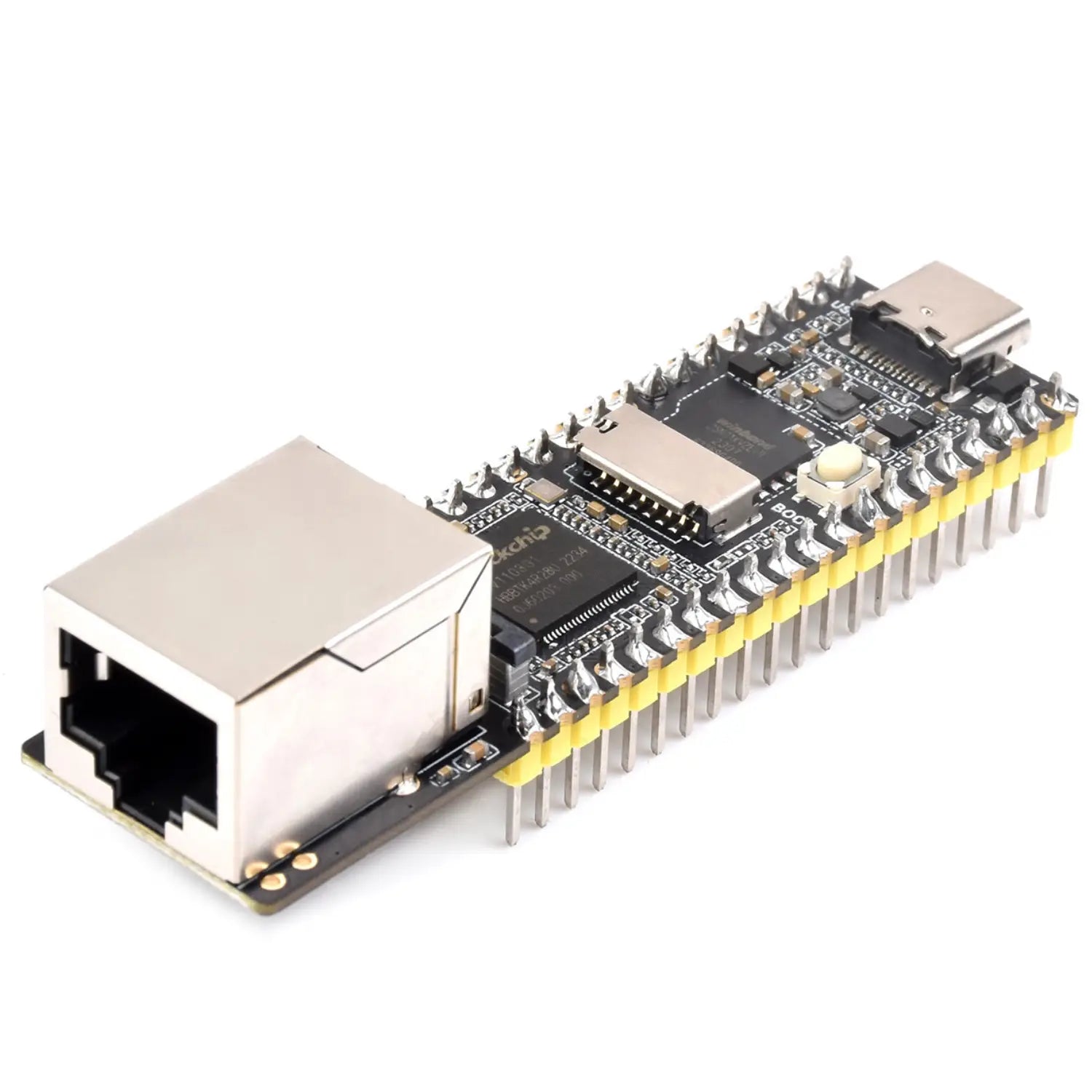

Product Interface:

Pin Description:

1. USB Type-C connector: for power supply and program burning
2. ACT-LED
3. TF card slot
4. BOOT button: Press it when powering on to enter download mode
5. W25N01KV: 128MB SLC NAND FLASH
6. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core

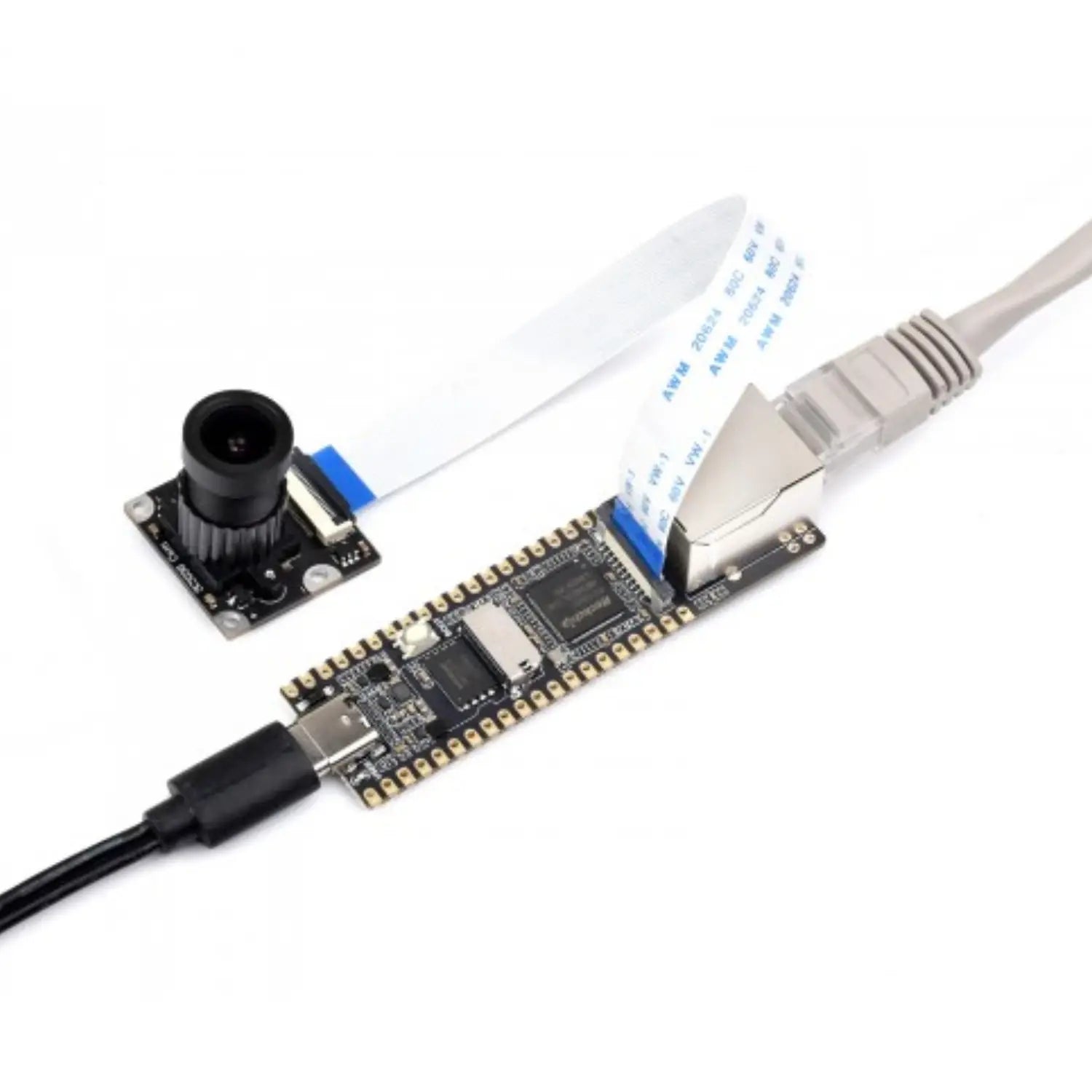

7. CSI camera interface: MIPI CSI 2-lane
8. RJ45 Ethernet port
9. GPIO header
10. USB test pads:TP2: USB_P
11. USB detection test pad

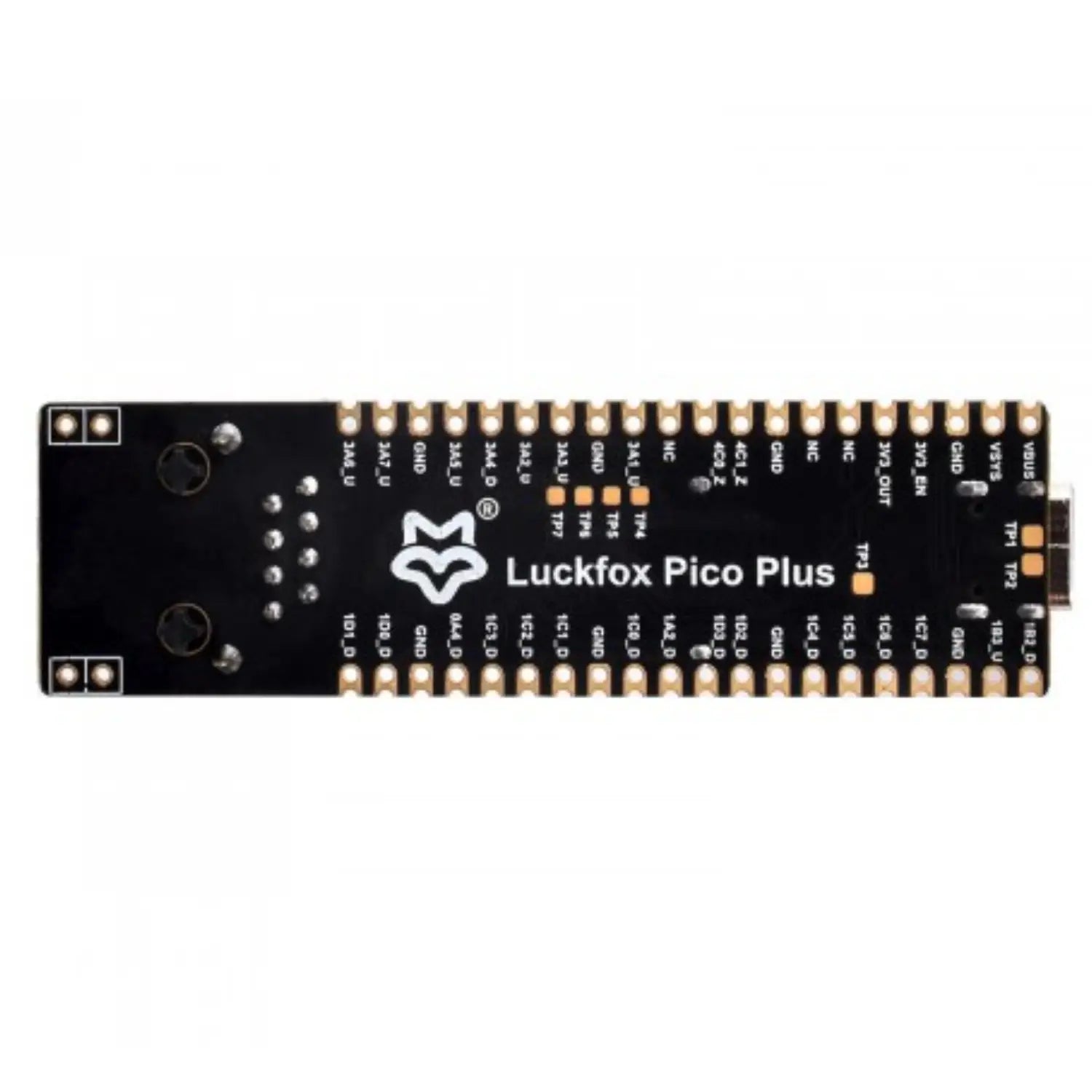

12. Microphone test pads:
    TP4: LINEOUT
    TP5: MIC1P
    TP6: MIC0P
    TP7: MICBIAS

Useful Link:

Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board

Package Included:

1 x Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board
