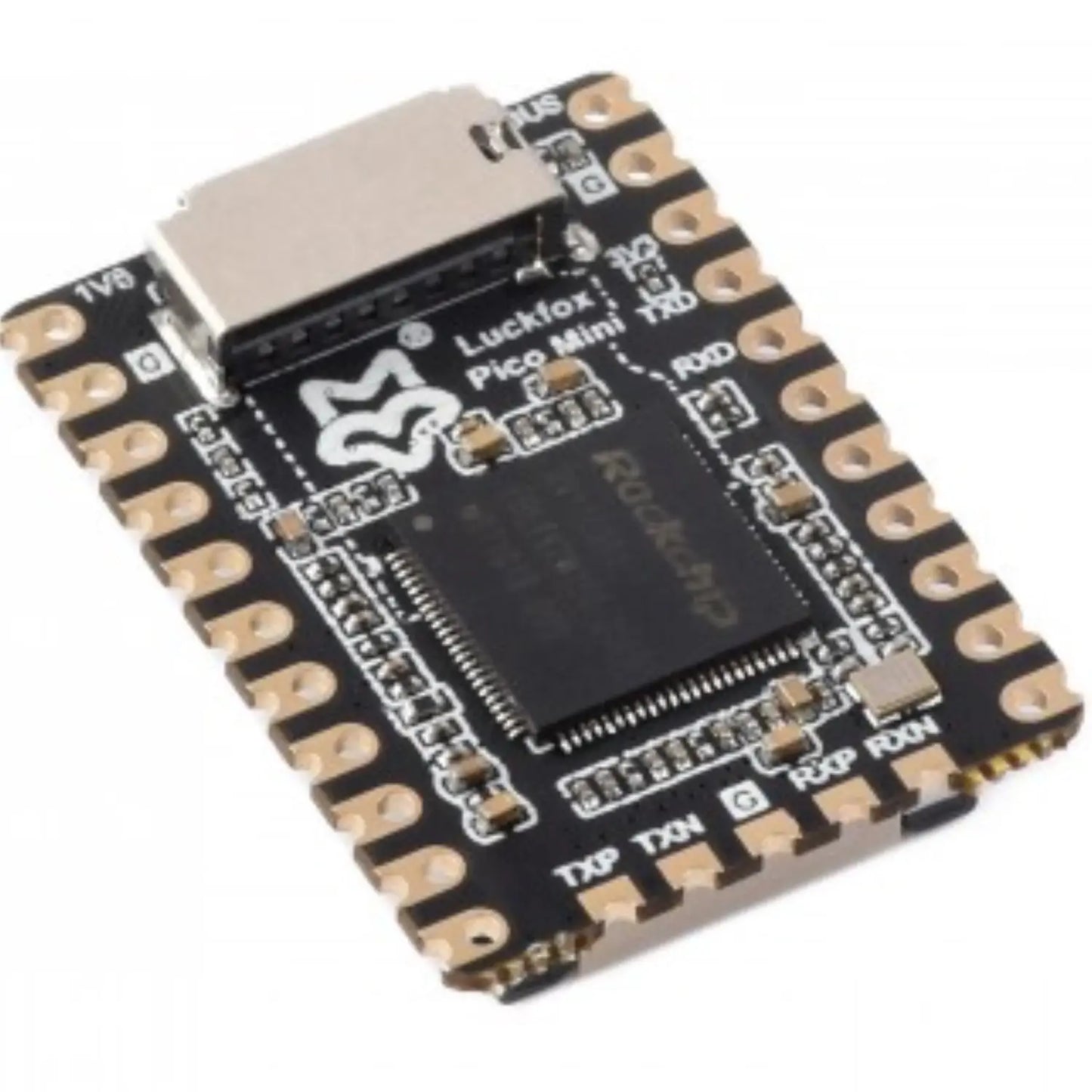

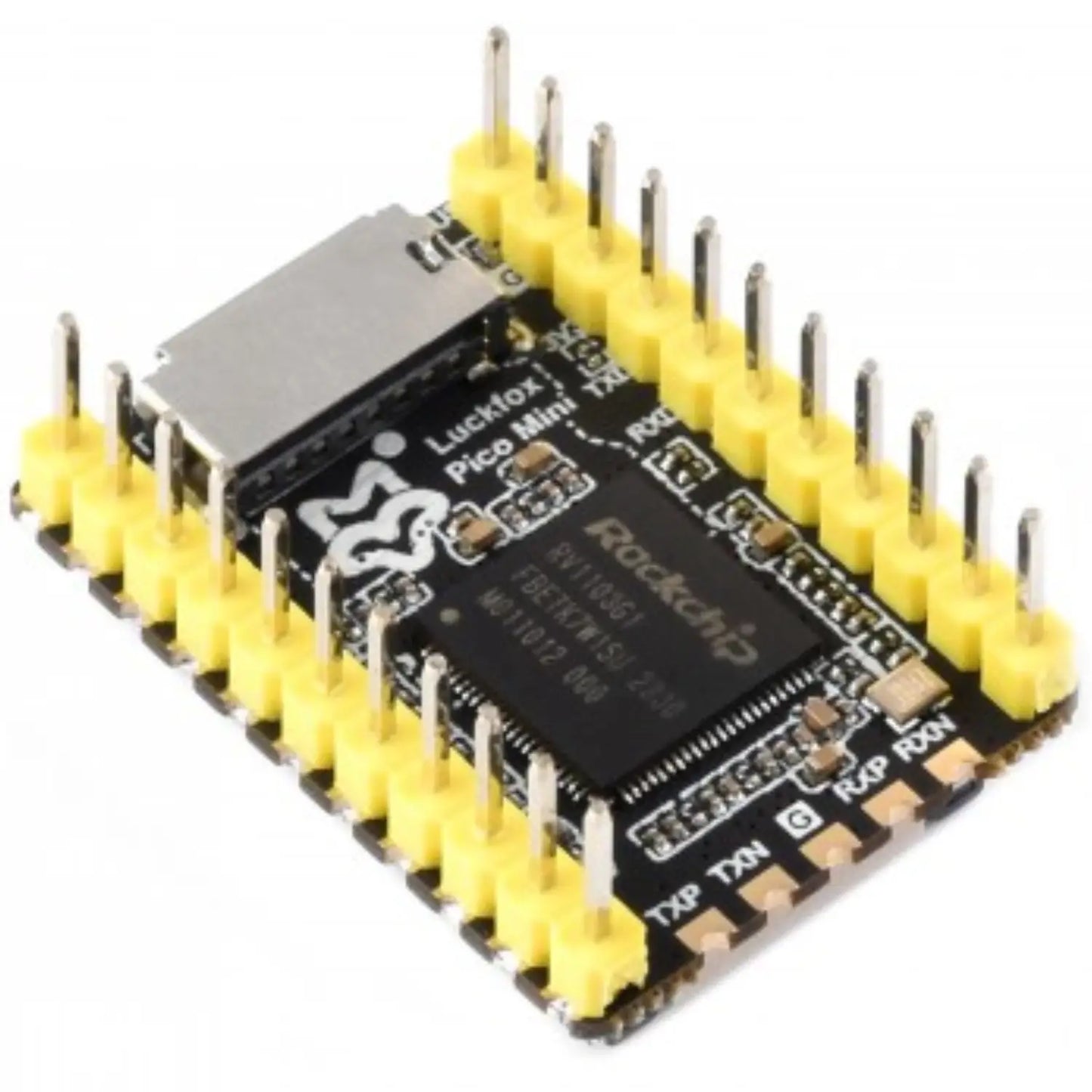

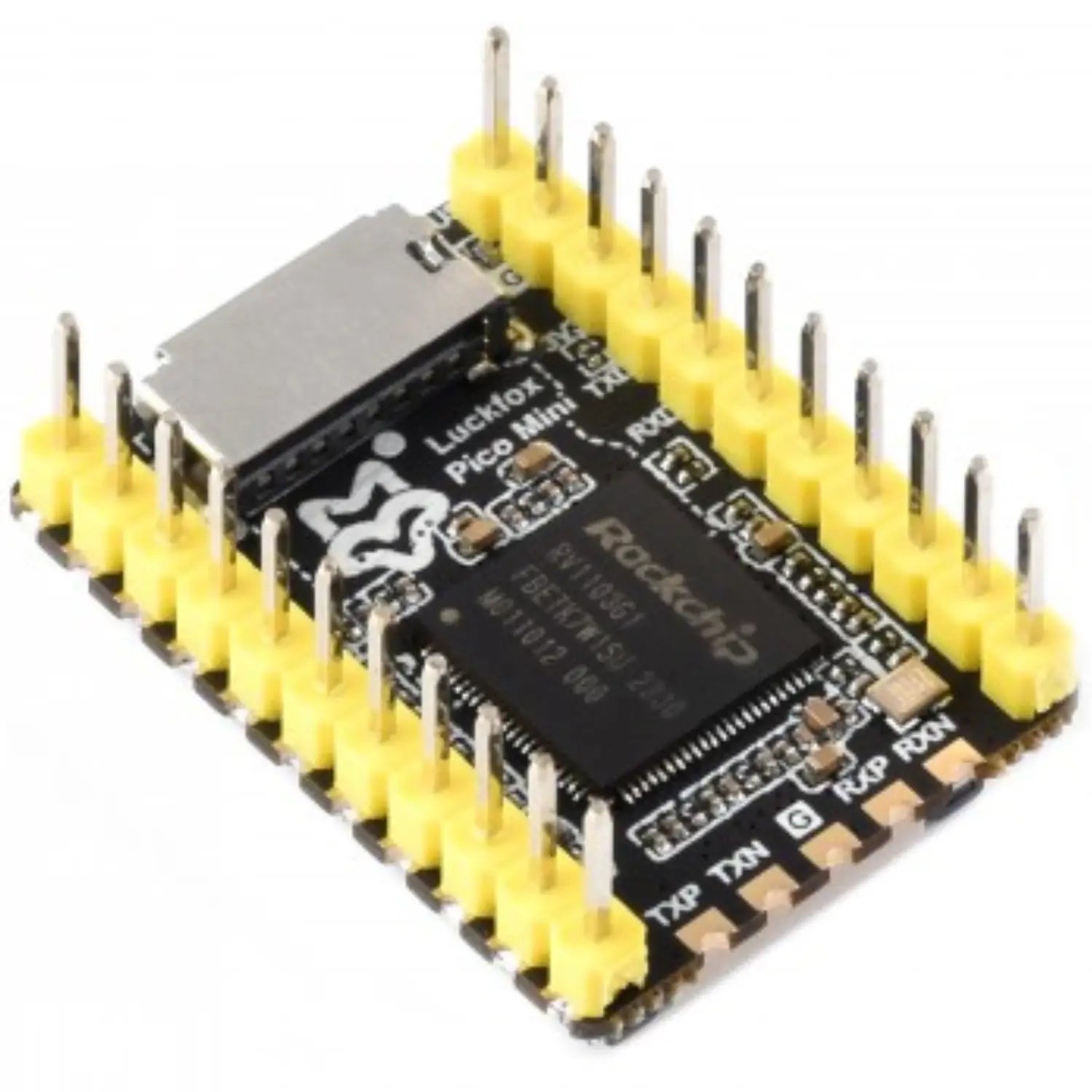

Waveshare Luckfox Pico Mini (B) RV1103 Linux Dev Board ARM Cortex-A7, RISC-V MCU, NPU & ISP Processors Compact IoT & AI Edge Module (with 128MB FLASH)

Description:

The Waveshare Luckfox Pico Mini A RV1103 is a powerful and compact Linux micro development board tailored for advanced embedded and AI edge computing applications. Featuring a dual-core processor architecture with an ARM Cortex-A7 32-bit core and a built-in RISC-V MCU, it provides a high-performance, low-power platform for real-time tasks, smart AI inference, and multimedia processing.

Equipped with a Rockchip 4th Gen NPU offering up to 1.0 TOPS (int4), the board supports int4/int8/int16 hybrid quantization for efficient deep learning performance. It's 3rd Gen ISP (ISP3.2) supports up to 4MP image processing with advanced image enhancement algorithms such as HDR, WDR, and multi-level noise reduction—ideal for AI vision, surveillance, and smart camera applications.

The RV1103 also boasts intelligent video encoding that adapts to real-time scenes, reducing bandwidth usage by over 50% compared to standard CBR encoding, while maintaining HD quality. The RISC-V MCU enables ultra-fast startup and energy efficiency, supporting 250ms rapid image capture and instant AI model loading for near-instant face recognition.

Other features include 128MB Flash, 16-bit DDR2 DRAM, integrated POR, audio codec, MAC PHY, and a Mini B USB interface. Its versatile architecture makes it an excellent choice for IoT devices, edge AI, computer vision, and smart automation projects.

Specification:

• Processor: Cortex A7@1.2GHz + RISC-V

• NPU: 0.5TOPS, supports int4, int8 and int16

• ISP: Input 4M @30fps (Max)

• Memory: 64MB DDR2

• USB: USB 2.0 Host/Device

• Camera: MIPI CSI 2-lane

• GPIO: 17 × GPIO pins

• Default Storage: Mini B: SPI NAND FLASH (128MB)


Features:

• ARM Cortex-A7 Processor: This board integrates an ARM Cortex-A7 core, offering processing capabilities for general-purpose computing tasks. The Cortex-A7 is known for its balance between performance and power efficiency.
• RISC-V MCU: Complementing the ARM Cortex-A7, it incorporates a RISC-V microcontroller unit (MCU), providing flexibility and programmability for specialized tasks.
• NPU (Neural Processing Unit): Includes a Neural Processing Unit, a specialized unit designed for accelerating machine learning algorithms and AI-related computations.
• ISP (Image Signal Processor): Incorporates an Image Signal Processor for handling image data and processing tasks, typically used in applications requiring image or video processing capabilities.
• Linux OS Support: Supports the Linux operating system, allowing developers to leverage the flexibility and robustness of Linux for developing applications on the board.
• Embedded Development: Suitable for embedded system development, IoT (Internet of Things) projects, AI-related tasks, image processing, and various applications that require a compact yet capable development board.
• Compact Form Factor: Designed as a mini-sized board, offering a compact footprint for ease of integration into smaller devices or projects

Product Interface:

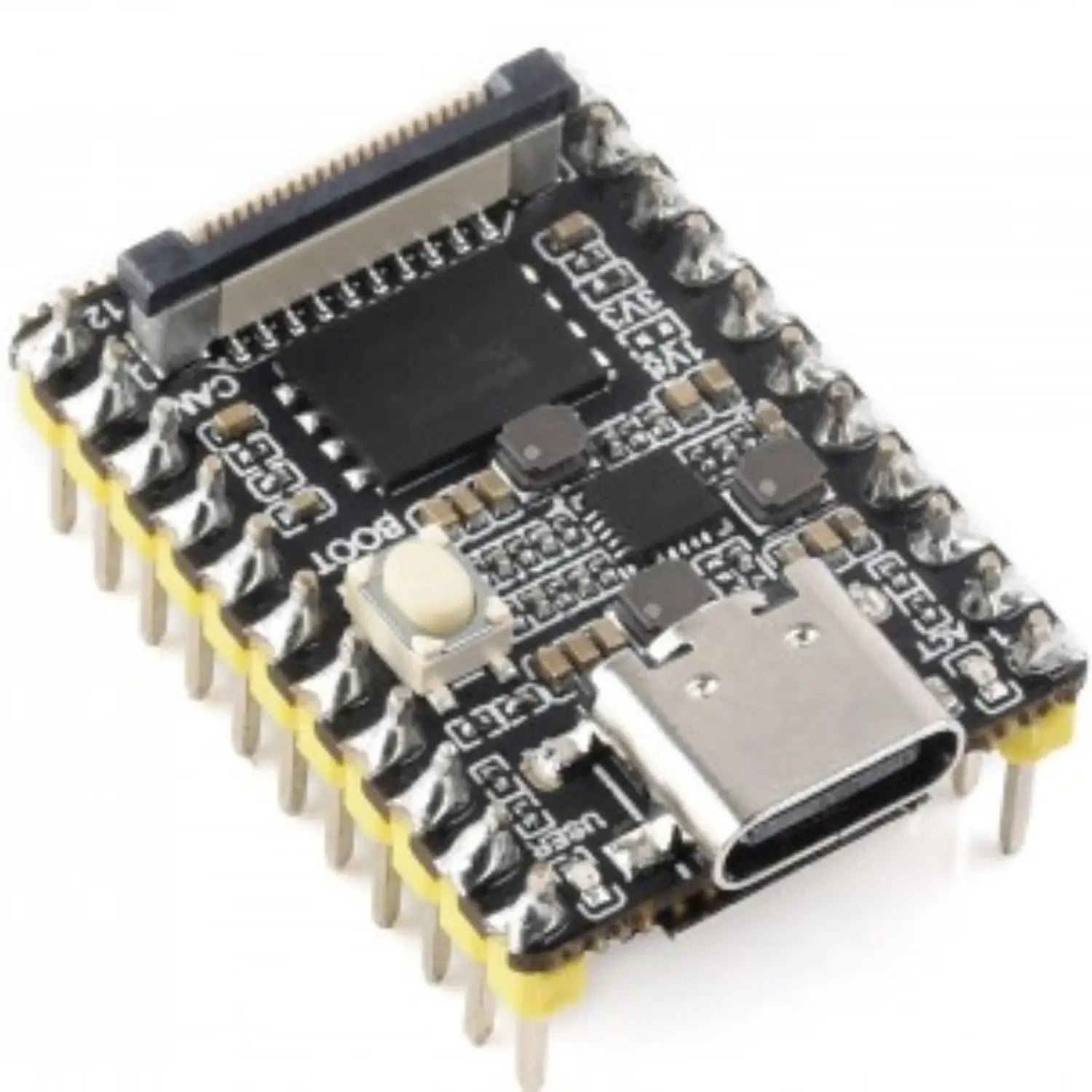

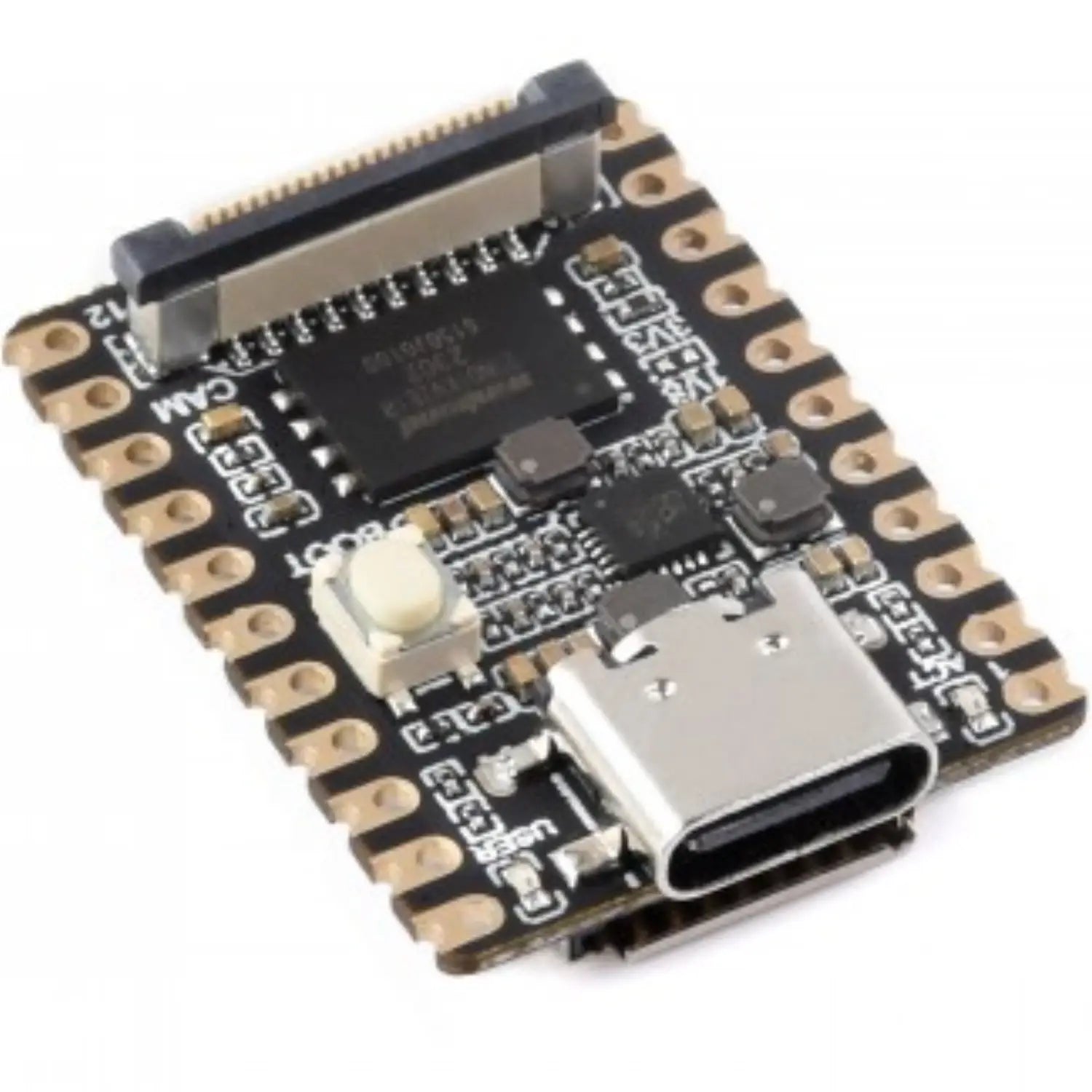

Pin Description:

1. USB Type-C connector: for power supply and program burning
2. ACT-LED: system operation status indicator (in the default system)
3. USER-LED
4. BOOT button: Press it when powering on to enter download mode
5. SLC NAND FLASH: Only available on the B version, and reserved pads for the A version
6. CSI camera interface: MIPI CSI 2-lane
7. TF card slot
8. RV1106: Vision processor SoC with built-in ARM Cortex-A7 core

Useful Link:

Waveshare Luckfox Pico Mini (B) RV1103 Linux Dev Board

Package Includes:

1 x Waveshare Luckfox Pico Mini (B) RV1103 Linux Development Board
