Description:

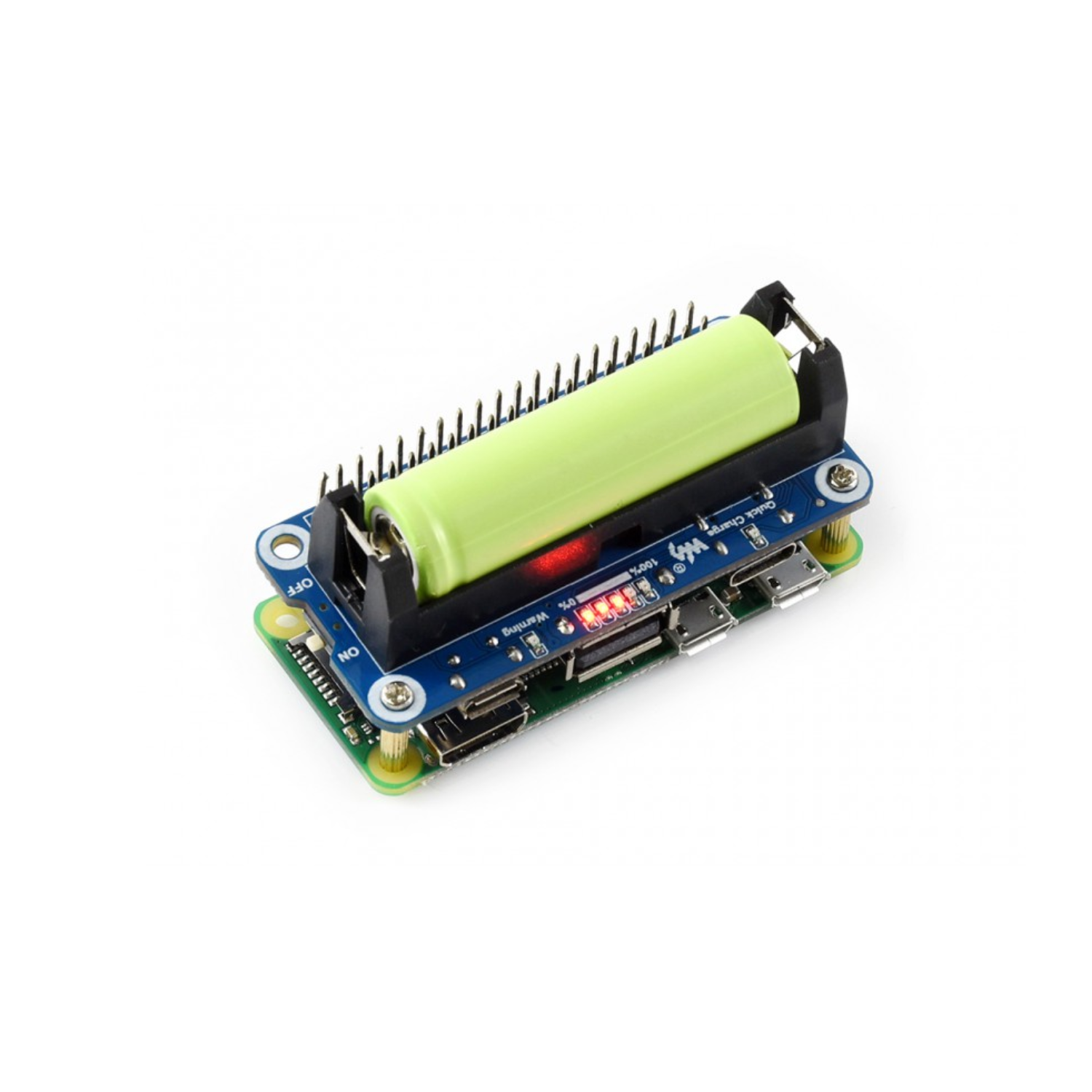

The Waveshare Li-ion Battery HAT integrates the SW6106 power bank management chip, allows providing a 5V regulated power supply to your Pi from a 14500 battery, and makes the Pi become a portable device. It will charge the battery as well, and it supports a bi-directional quick charge. This module can be used as a universal mini power bank and also works with other 5V devices.
Specifications:
- Output Voltage: 5V
- Applicable Battery: 3.7V 14500 Lithium Battery
- Dimension: 65mm × 30mm
- Mounting Hole Size: 3.0mm
Features:
- Onboard SW6106 chip supports bi-directional quick charge and supports multi quick charge protocols like PD/QC/FCP/PE/SFCP.
- Lithium battery protection circuitry provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection.
- Onboard indicators: quick charge, warning, and power capacity
Pin Description:

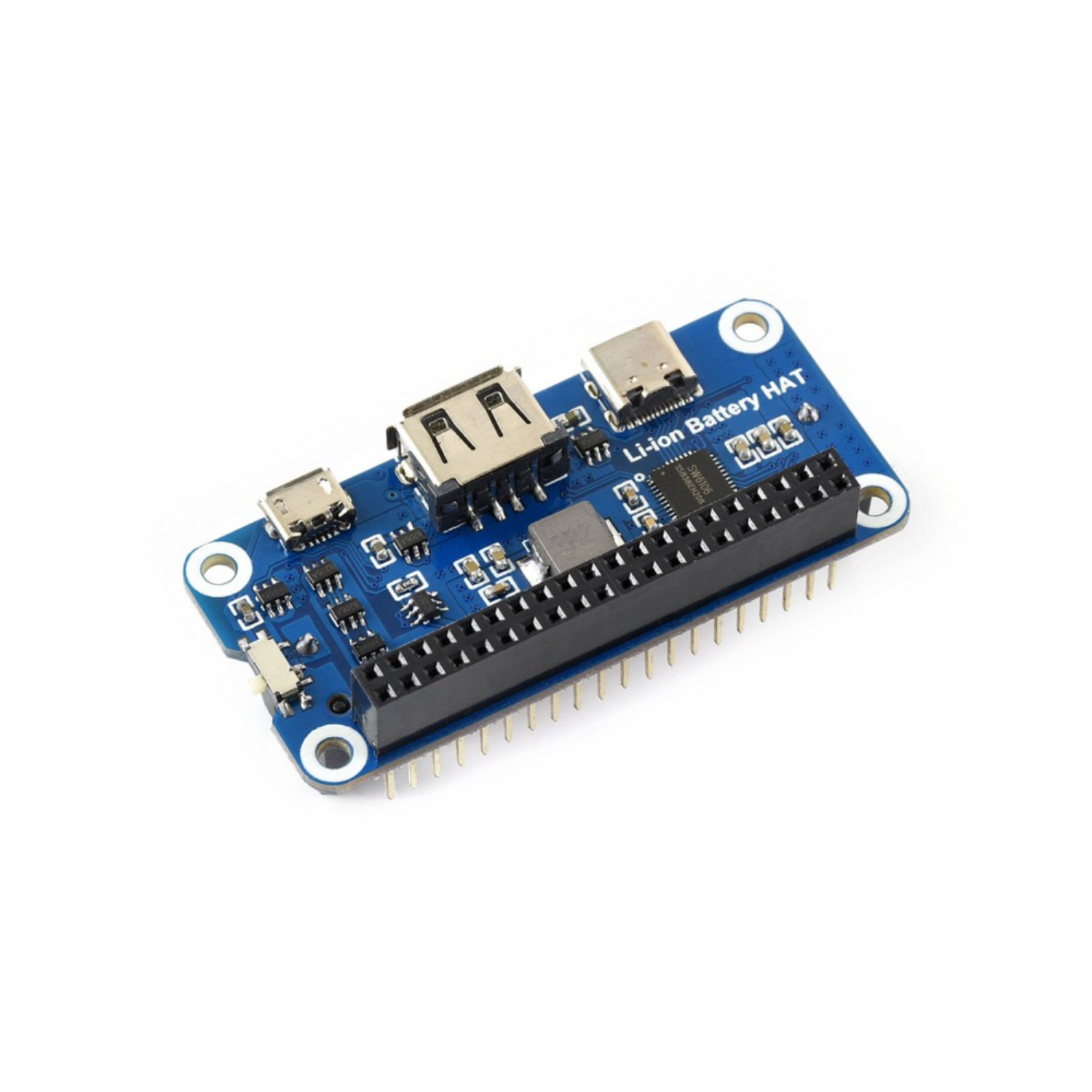

- Raspberry Pi GPIO connector: for connecting Raspberry Pi
- SW6106 power management chip
- USB Type-C connector: battery charge/power output
- USB Type-A connector: power output
- Micro USB connector: battery charge
- Raspberry Pi power switch
- Battery warning indicator: on when the battery is reversed
- Battery power capacity indicator LEDs to indicate the power capacity and charging status
- Quick charge indicator: on when quick charging

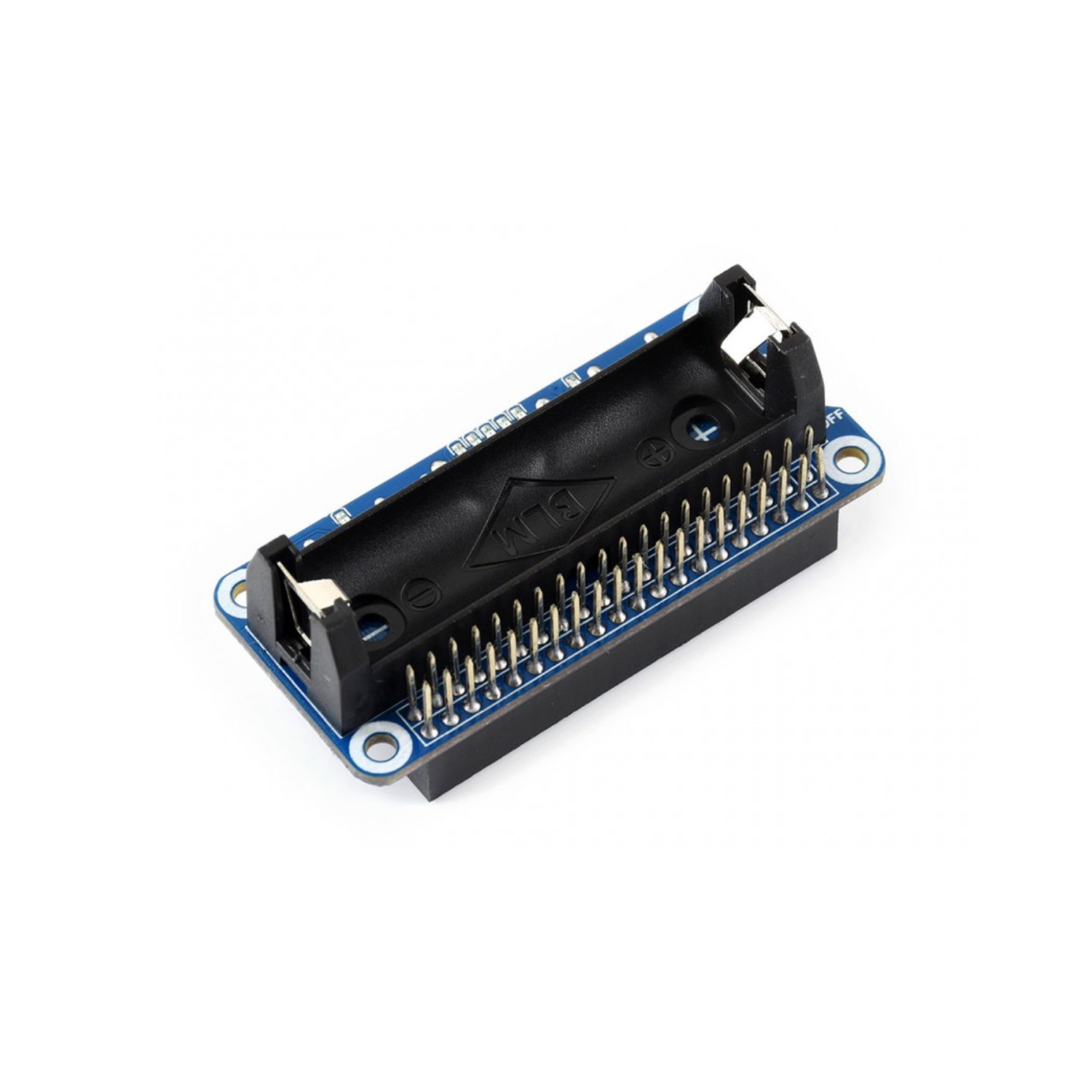

- 14500 battery holder
Compatible With:
- Raspberry Pi Zero
- Raspberry Pi Zero W
- Raspberry Pi Zero WH
- Raspberry Pi 3 Model A+
- Raspberry Pi 3 Model B
- Raspberry Pi 3 Model B+
Useful Links:

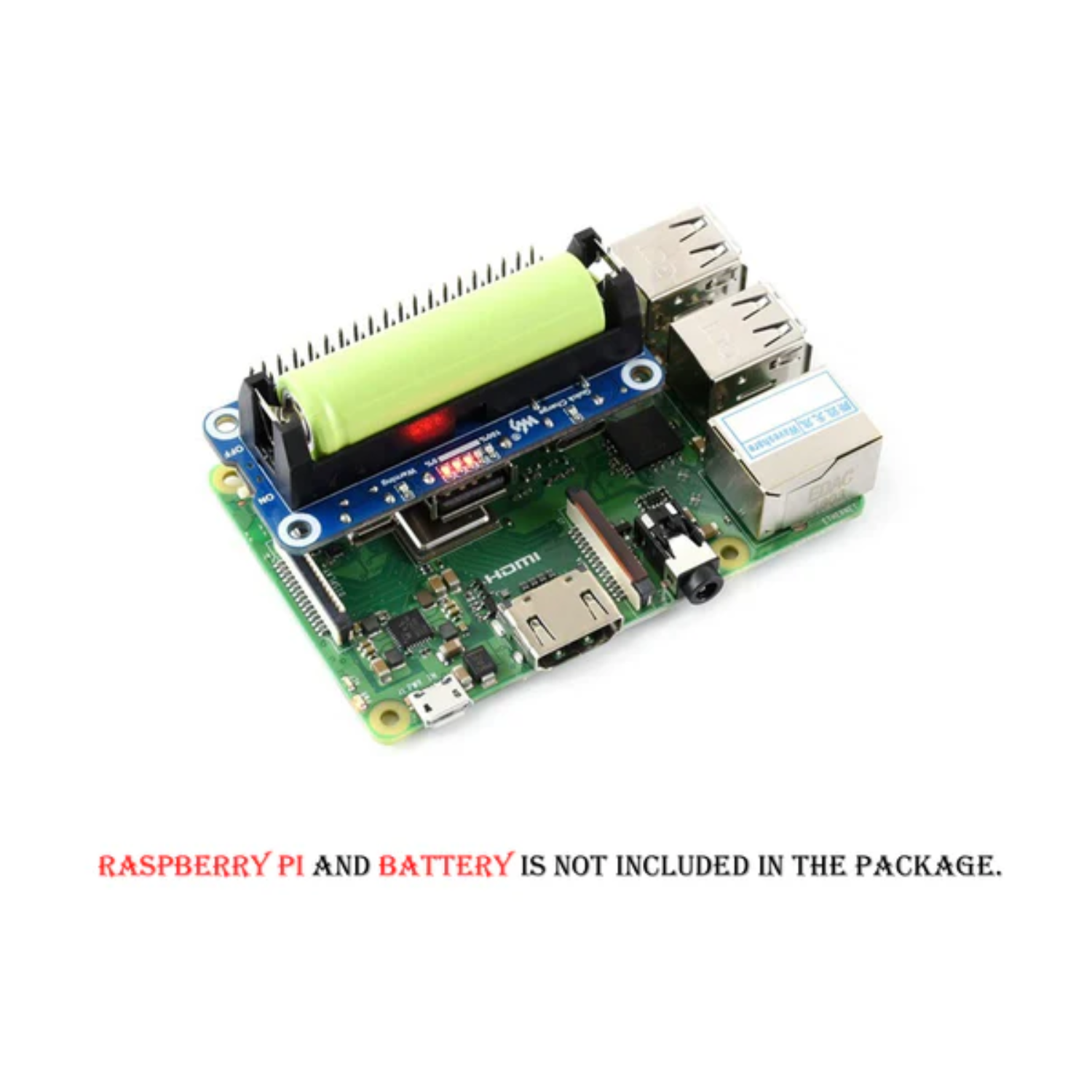

Note: Battery and Raspberry Pi and battery are not included in the package.
Package Included:
1 x Waveshare Li-ion Battery HAT
