Description:

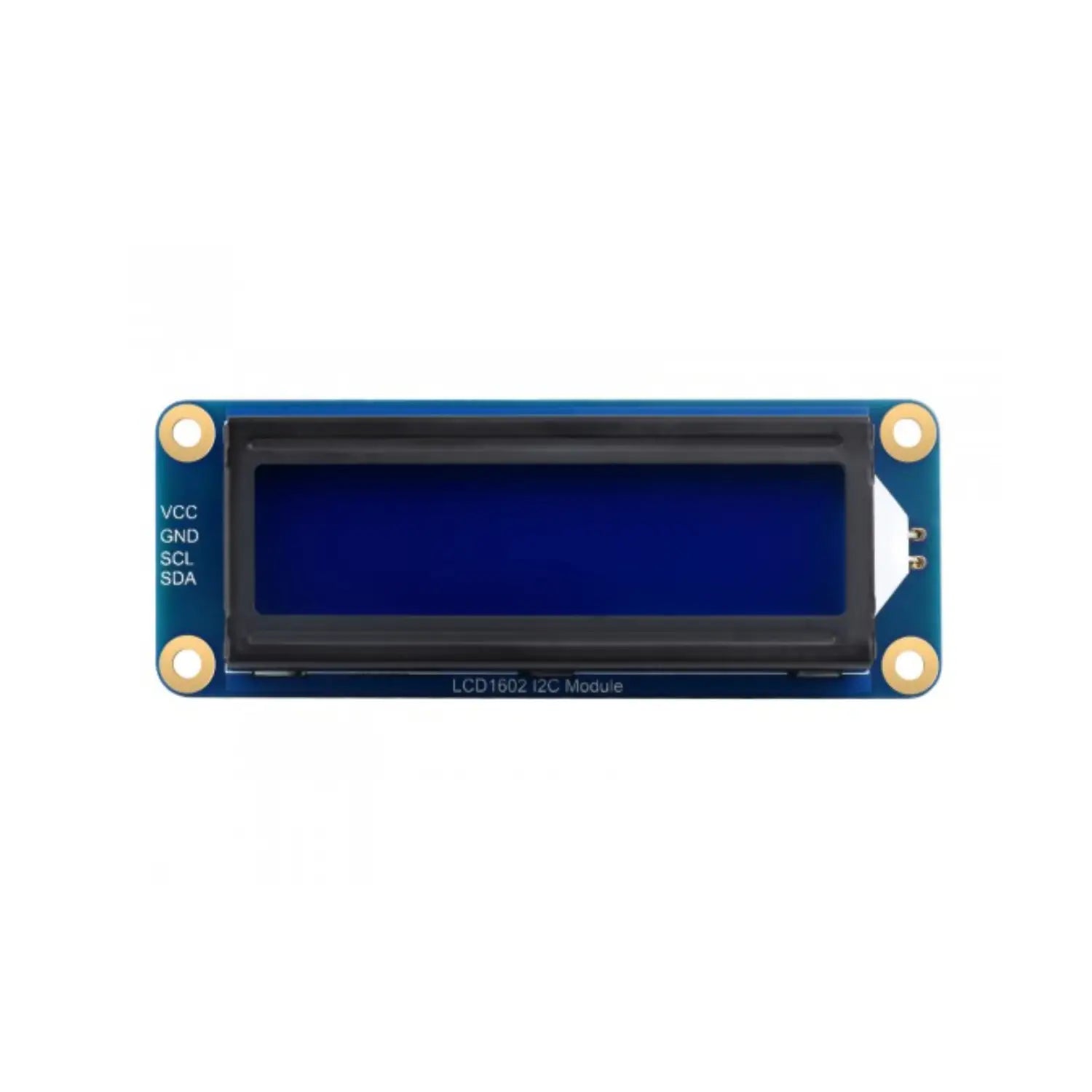

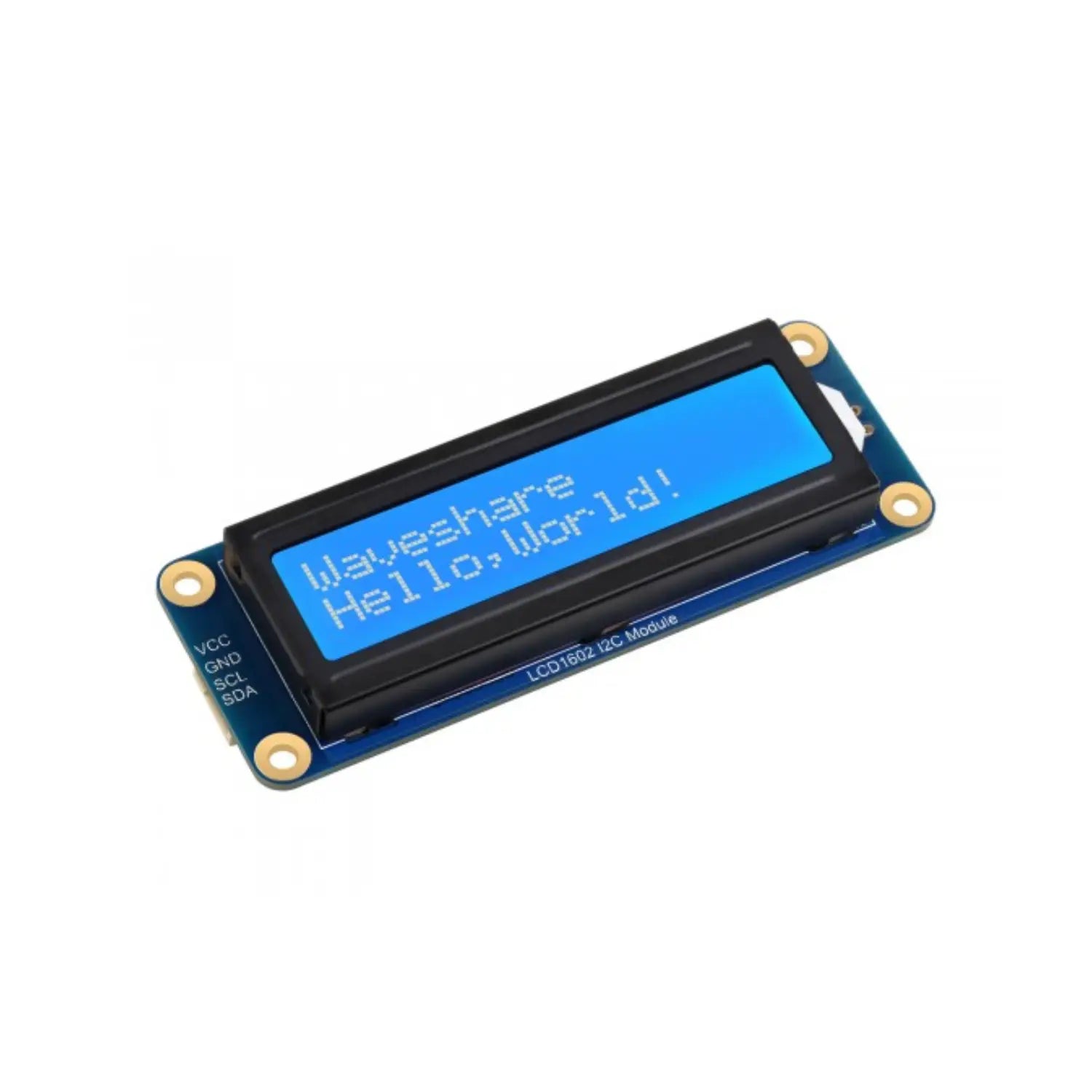

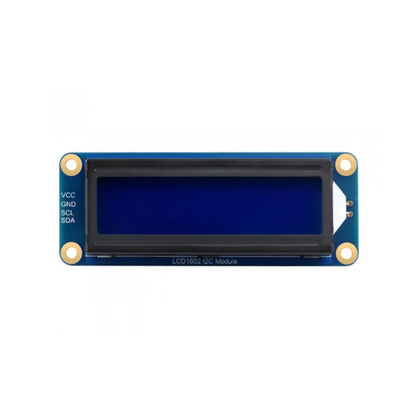

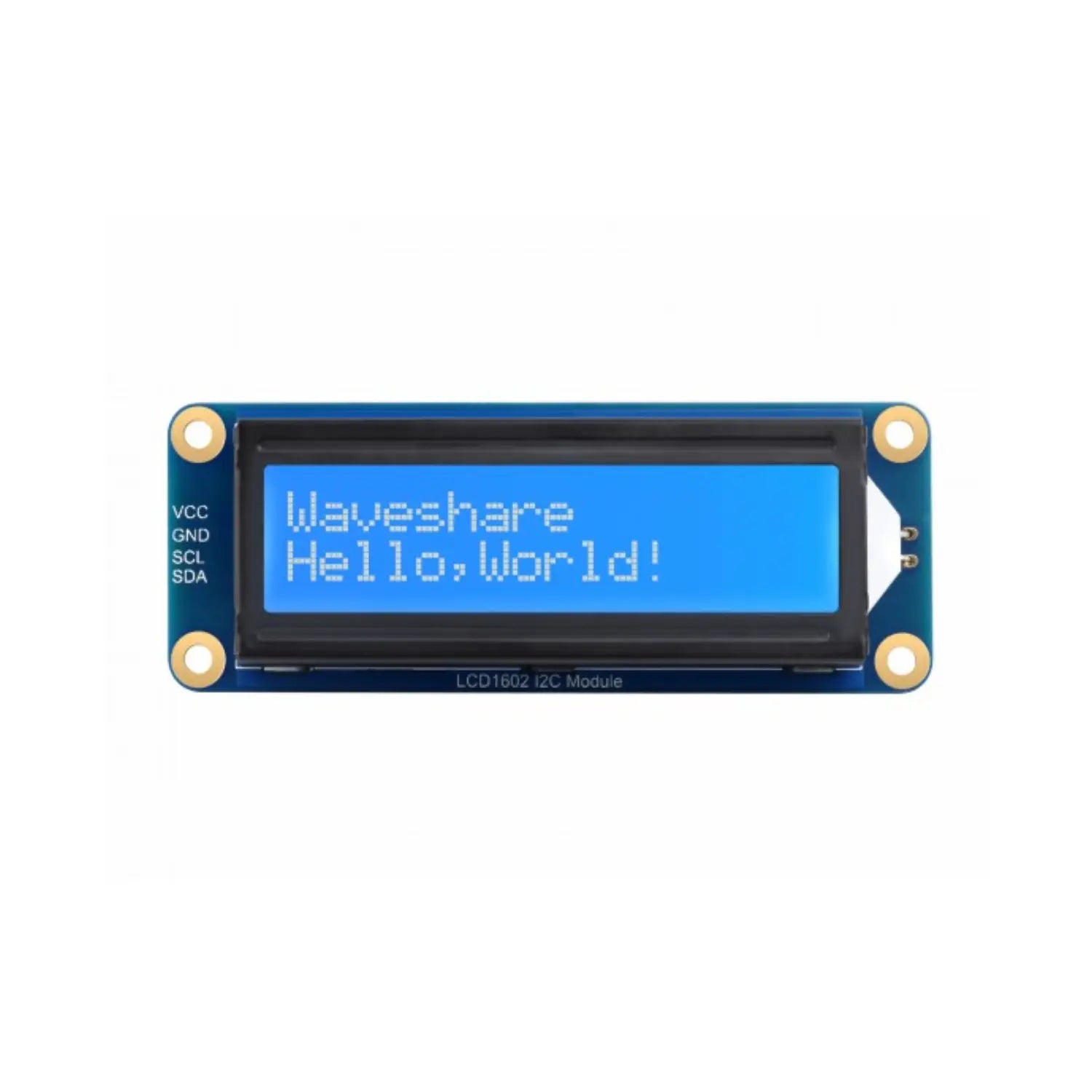

The Waveshare LCD1602 I2C Display Module, a 16x2 character LCD known for its clear white characters against a blue background. Compatible with 3.3V and 5V systems, this module is designed for easy development and integration. It includes extensive demos and user manuals specifically for Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32, Arduino, and STM32, ensuring broad support and enhanced expandability for your electronic projects.
Specification:
- Model No.: LCD1602
- Controller: Aip31068
- Operating Voltage: 3.3~5v
- Display Panel: character LCD
- Display Size: 64.5 x 16.0 mm (Inch)
- Characters: 16 x 2
Features:
- Incorporates a character LCD panel, LCD1602
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

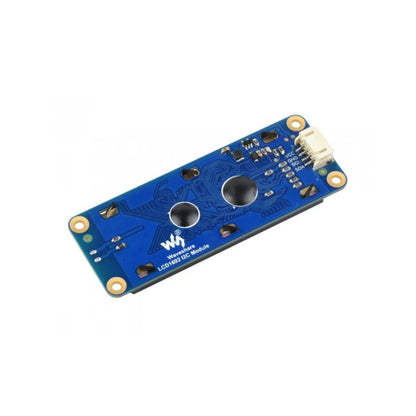

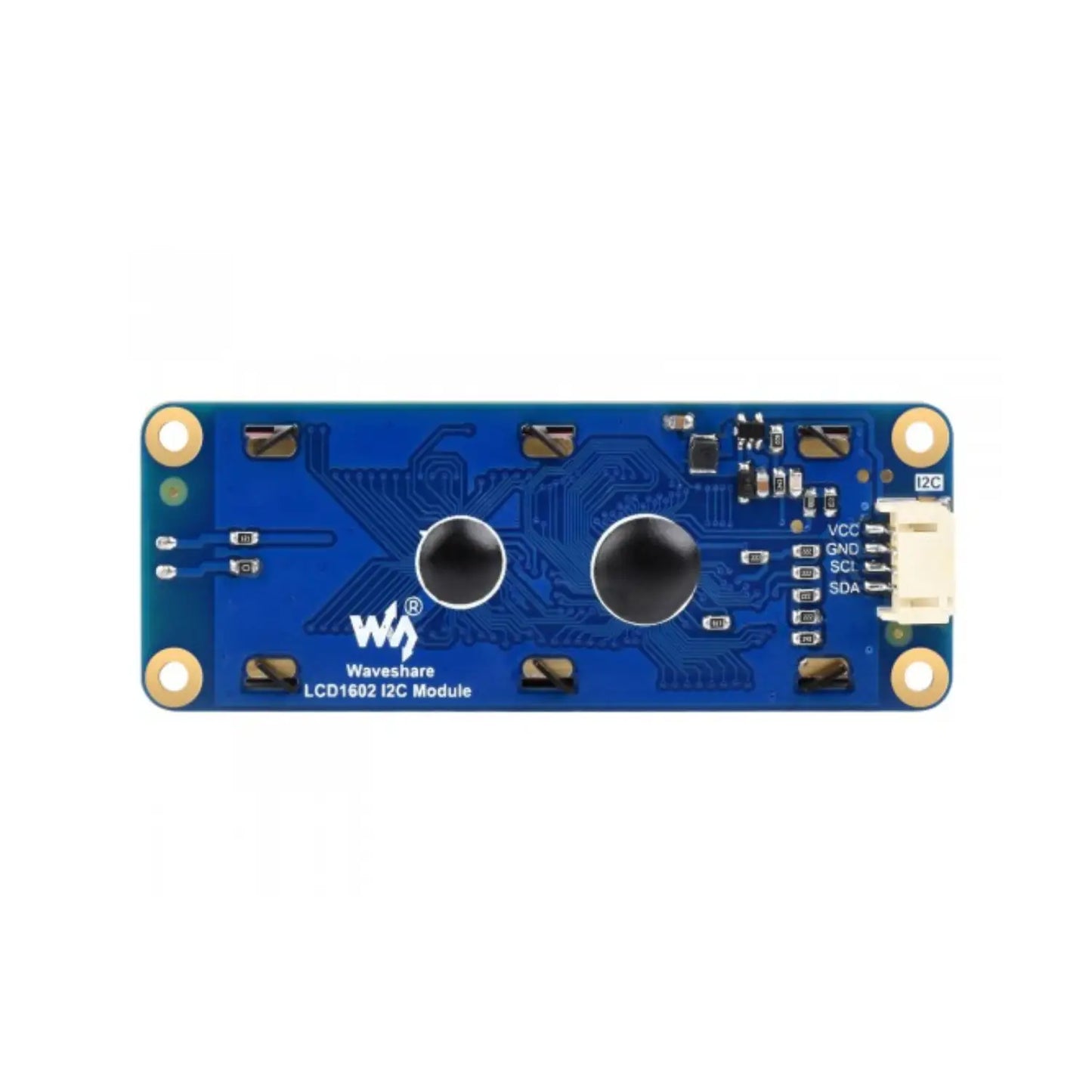

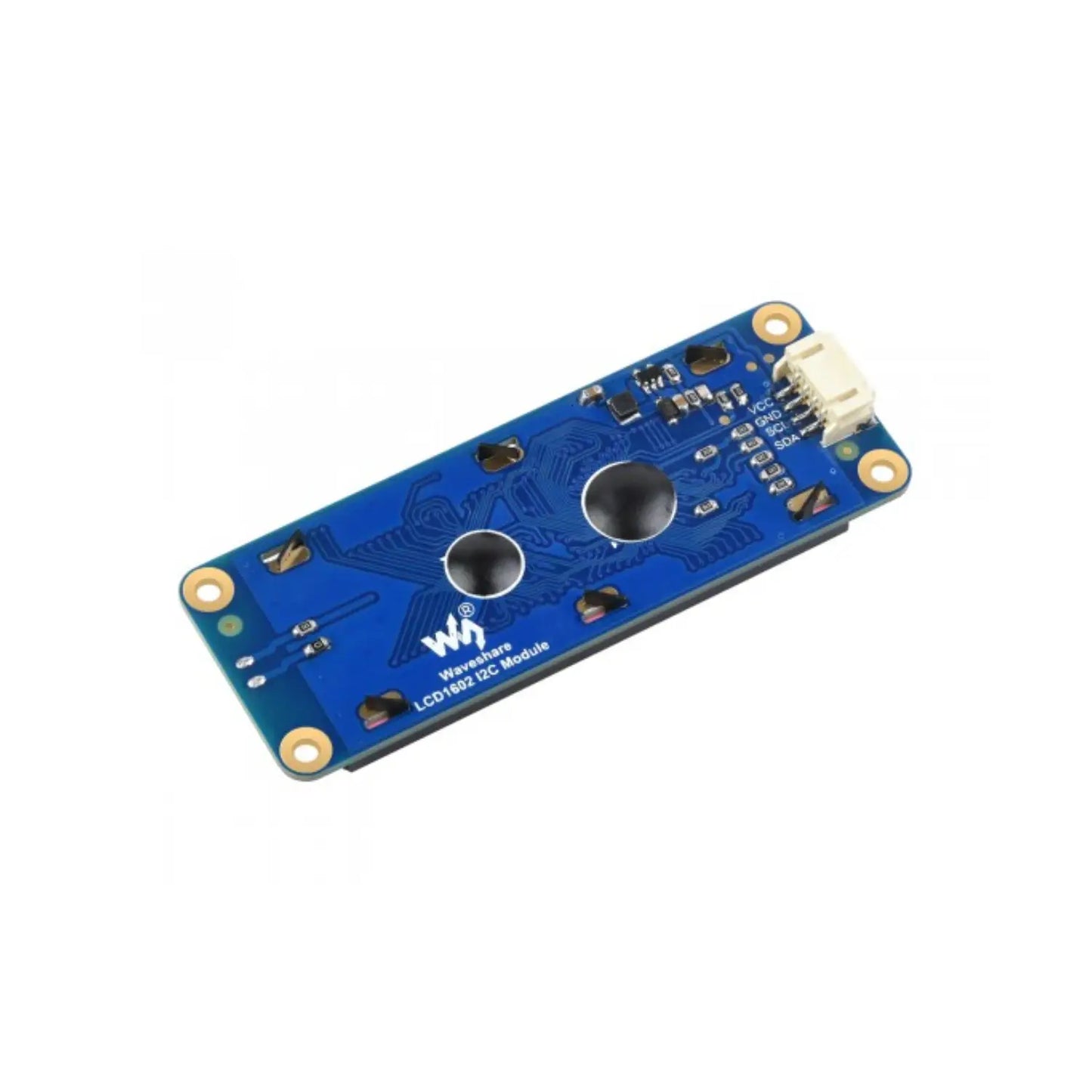

Product Interface:
- VCC: 3.3V ~5V power input
- GND: GND
- SCL: 12C clock pin
- SDA: 12C data pin
Useful Link:
Waveshare LCD1602 16x2 Character I2C Display
Package Included:
- Waveshare LCD1602 16x2 Character I2C Display
- PH2.0 4PIN wire
